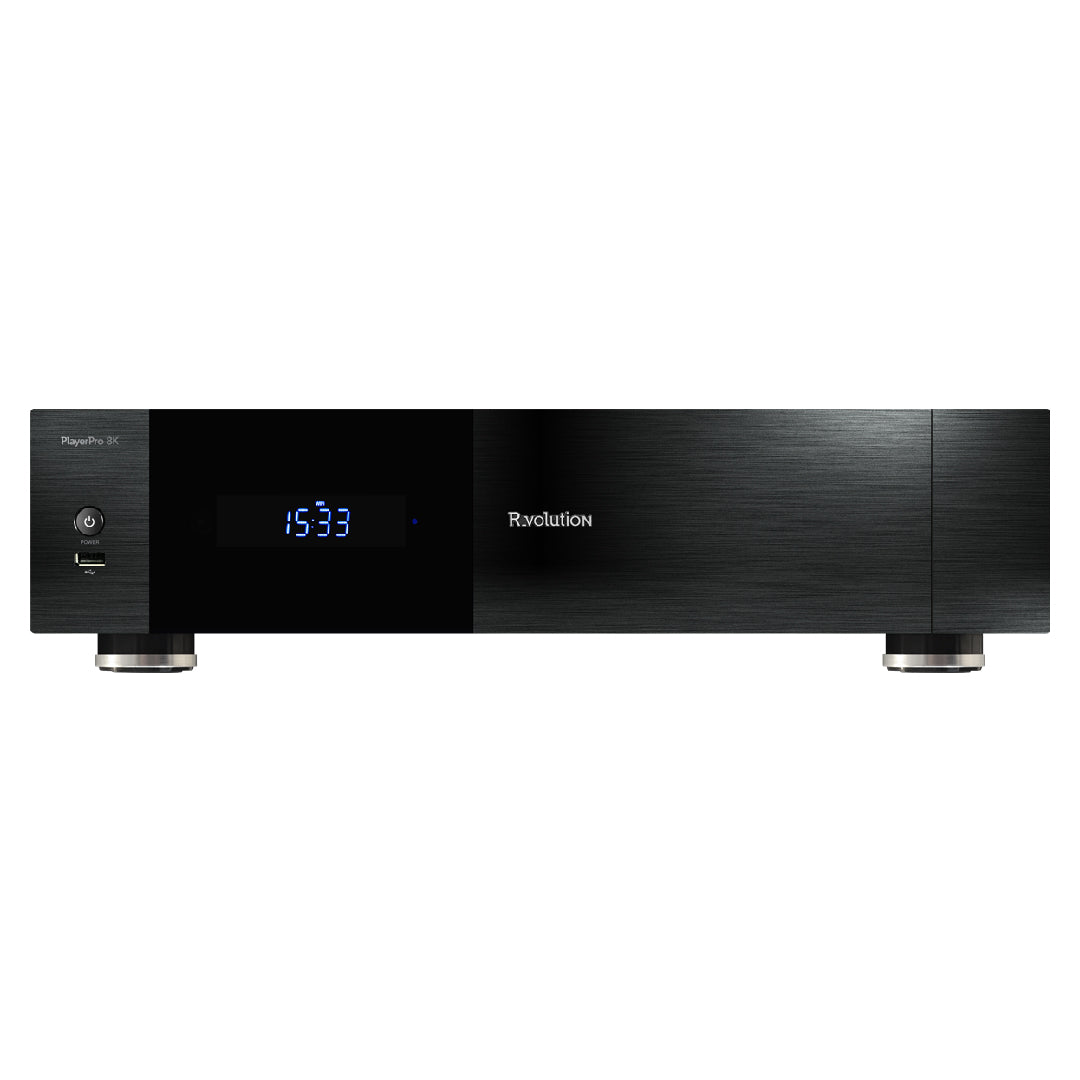

R_Volution Player Pro 8K

The R_volution PlayerPro 8K is a high-end 8K media player designed for premium home theater and dedicated cinema installations. It combines powerful Amlogic S928X processing, a precision TCXO clock and a high-quality linear power supply driven by a large toroidal transformer to deliver exceptional audio and video performance.

The PlayerPro 8K supports 8K Ultra HD playback, Dolby Vision, HDR10+, HDMI 2.1a and the latest AV1 video codec. It can play a wide range of video formats including UHD ISO, BD ISO, BDMV, MKV, MP4, TS and M2TS, with support for full Blu-ray and 4K Ultra HD Blu-ray menus.

Its Dolby Vision VS10 processing engine enhances image quality and enables advanced conversion between SDR, HDR and Dolby Vision. AI-PQ technology dynamically improves contrast and color, while AI-SR enhances image clarity, detail and sharpness when upscaling content to 4K or 8K resolution.

The PlayerPro 8K features a dual 3.5-inch SATA HDD enclosure supporting up to two internal hard drives, with up to 32 TB per drive and a total capacity of up to 64 TB. The integrated R_video media center organizes movies and TV shows with artwork, metadata, cast information, ratings, genres and personalized collections.

For high-end audio applications, the PlayerPro 8K supports Dolby Atmos, DTS:X and Auro-3D, along with high-resolution and audiophile formats such as DSD, AIFF, FLAC and ALAC.

With HDMI 2.1a, Gigabit Ethernet, Wi-Fi 6, multiple USB ports, digital and analog audio outputs, IP/IR control and integration with professional home automation systems, the R_volution PlayerPro 8K is designed for demanding home cinema enthusiasts and custom AV installations.

Model: R_volution PlayerPro 8K
Model Number: RVR011
Part Number: RVR0111W01-RV401

PROCESSOR

Chipset: Amlogic S928X-K/J
CPU: Quad-Core ARM Cortex-A55 2.0 GHz + ARM Cortex-A76 1.9 GHz
GPU: ARM Mali-G57
NPU: Dedicated Hardware AI Accelerator
Operating System: Dual-Boot Linux and Android 11
DSP: 10-bit YUV with hardware acceleration for R_video interface
Cache: 1 MB L2+L3
RAM: 8 GB
Internal Storage: 64 GB NAND eMMC

VIDEO

Maximum Resolution: 8K Ultra HD – 7680 × 4320
Video Output: HDMI 2.1a
Maximum Output: 8K 60p HDR
HDR Support: Dolby Vision, HDR10+
Dolby Vision Engine: Dolby Vision VS10
Video Enhancement: AI-PQ and AI-SR
Source-Based Tone Mapping: SBTM
Dolby Vision Profiles: P5, P7 MEL, P7 FEL and P8
Color Depth: Up to 12-bit
Video Codecs: AV1, HEVC, H.265, H.264, VP9, MPEG-2, MPEG-4, VC-1 and more
Supported Video Formats: UHD ISO, BD ISO, BDMV, MKV, MPEG-TS, MPEG-PS, M2TS, MP4, MOV, AVI, VOB, WebM, DVD-ISO, VIDEO_TS, WMV, AVCHD and more
Blu-ray Support: Full Blu-ray and 4K Ultra HD Blu-ray menu support
3D Support: 3D Side-by-Side and Top-and-Bottom

AUDIO

Audio Support: Dolby Atmos, DTS:X, Auro-3D
Audio Codecs: AC-3, E-AC3, DTS, DTS-X, Dolby TrueHD, AAC, FLAC, ALAC, AIFF, WAV, MP3, APE and more
High-Resolution Audio: Up to 24-bit / 192 kHz
DSD Support: DSD, DFF and DSF
SACD Support: Stereo and Multichannel SACD
Digital Audio Outputs: Coaxial S/PDIF and Optical S/PDIF
Analog Audio Output: RCA
HDMI Audio: Multichannel LPCM 2.0, 5.1 and 7.1

STORAGE

Internal HDD Bays: 2 × 3.5-inch SATA
Maximum HDD Capacity: Up to 32 TB per drive
Maximum Total Capacity: Up to 64 TB
Internal HDD: Not Included
External Storage: USB HDDs and Multi-Bay USB Storage Enclosures Supported

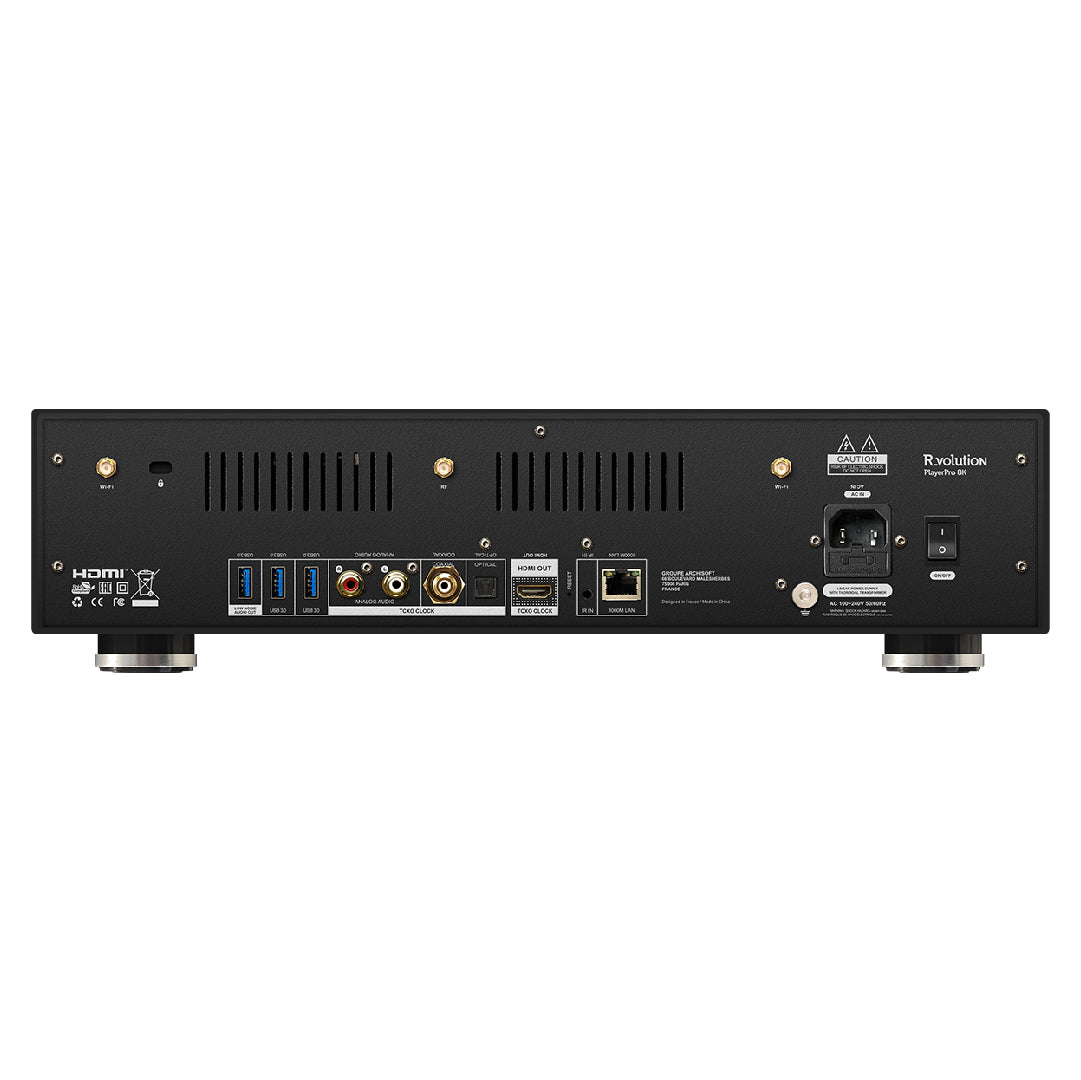

CONNECTIVITY

HDMI: HDMI 2.1a
HDMI Bandwidth: Up to 48 Gbps
USB Ports: 1 × USB 2.0 + 3 × USB 3.0
Ethernet: Gigabit Ethernet 10/100/1000 Mbps
Wi-Fi: Dual-Band 2.4 GHz + 5 GHz Wi-Fi 6 (802.11ax)
Antennas: 2 × Removable Wi-Fi Antennas
RF Antenna: Dedicated RF Antenna
IR Input: Supported
IP Control: Supported
Network Protocol: SMB 2
Network Playback: Supported
Fast File Transfer: Up to 90 MB/s

MEDIA SOURCES

Internal HDD
External USB HDD
USB Flash Drives
USB Card Readers
PC and Mac
NAS / Local Network
External Multi-Bay USB Storage

CONTROL & INTEGRATION

Remote Control: Backlit RF + IR Remote
IR Extender: Included
IP Control: Supported
IR Control: Supported
Home Automation Integration: Control4, Crestron, RTI, ProControl, Savant, URC and other compatible systems
Rack Mount Kit: Included

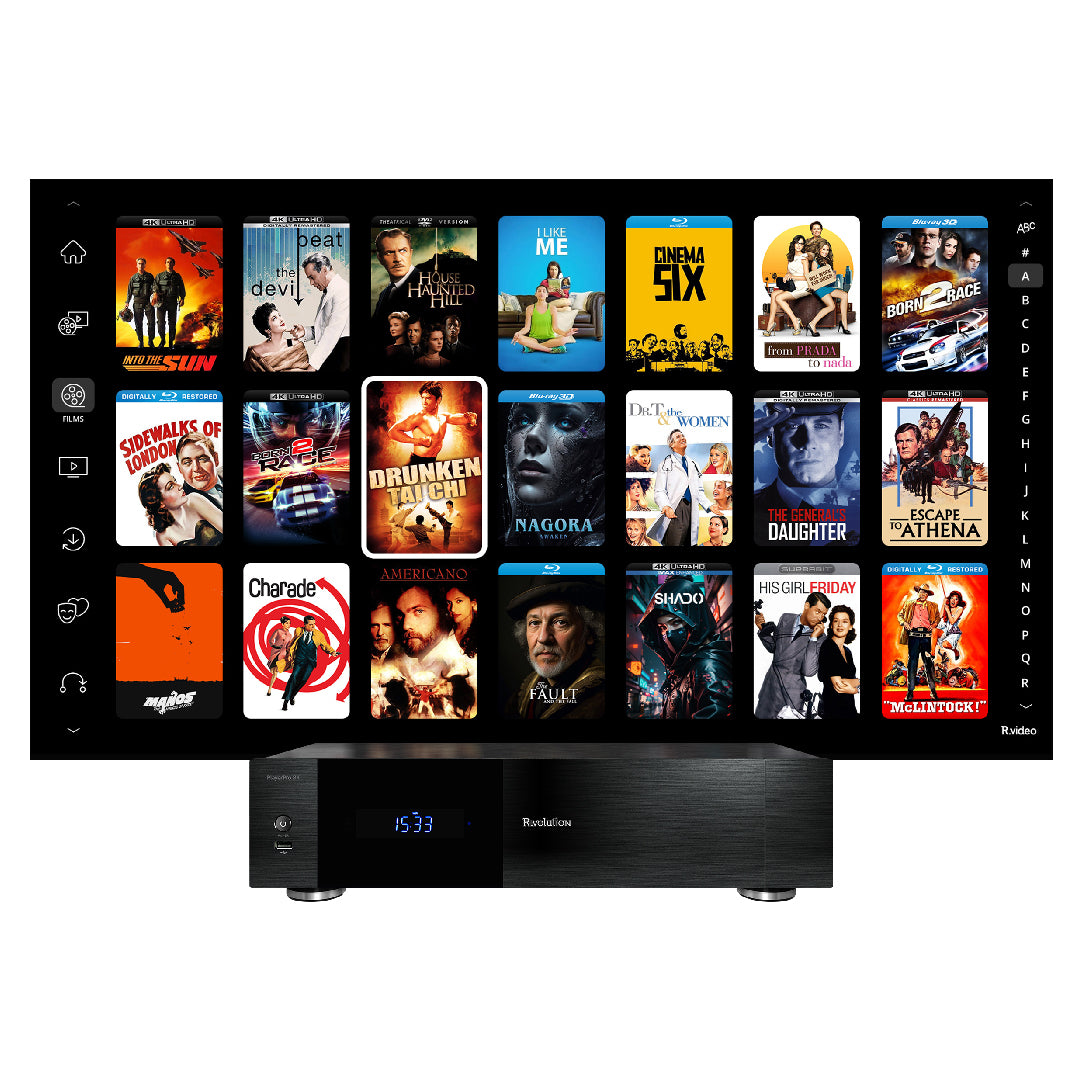

R_VIDEO MEDIA CENTER

Media Library: R_video
Movie & TV Show Management: Supported
Automatic Movie Identification: AI-Based
Movie Artwork: Supported
Movie Metadata: Supported
Genres & Ratings: Supported
Cast & Director Information: Supported
Personalized Categories: Supported
Favorite Scenes: Supported
Widescreen Support: 2.35:1, 2.39:1 and 2.40:1

POWER

Power Supply: Linear Internal Power Supply
Transformer: Toroidal Transformer
Input Voltage: AC 100–240V
Maximum Power Consumption: 42W
Typical Power Consumption: 39W without HDD
High-Power Standby Consumption: 9W
Low-Power Standby Consumption: 0.02W

DIMENSIONS & WEIGHT

Product Dimensions: 43.0 × 11 × 34 cm
Product Dimensions (Inches): 16.92 × 4.33 × 13.5 inches
Carton Dimensions: 54.0 × 40 × 23 cm
Carton Dimensions (Inches): 21.26 × 9 × 15.7 inches
Net Weight: 9 kg / 19.84 lbs
Gross Weight: 10 kg / 22.04 lbs

OPERATING CONDITIONS

Operating Temperature: 10–30°C
Operating Humidity: 30–70%

WARRANTY & CERTIFICATION

Warranty: 2 Years
Certifications: RoHS, CE, FCC, EAC, HDMI
Country of Design: France
Software: France
Country of Production: China
EAN: 3760115010161
TARIC Number: 8521900090

ACCESSORIES INCLUDED

• Backlit IR + Bluetooth Remote
• 8K HDMI Cable – 1 m
• Rack Mount Kit
• IR Extender
• Wi-Fi Antennas × 2
• RF Antenna
• Power Cables × 4 – EU, US, UK, AU
