R_Volution Player Mini

Model: R_volution PlayerMini

PROCESSOR

Chipset: Amlogic S905X4-K
CPU: 2.0 GHz ARM Cortex-A55, 4-Core
GPU: Mali-G31 MP2
Operating System: Linux + Android 11
DSP: Video and Audio DSP with Hardware Acceleration
Video Processing: Hardware 10-bit YUV
Cache: 1 MB L2 Cache
RAM: 4 GB
Internal Storage: 32 GB ROM eMMC NAND

VIDEO

Maximum Resolution: 4K Ultra HD – 3840 × 2160
Video Output: HDMI 2.1a
Maximum Output: 4K 60p HDR
HDR Support: Dolby Vision, HDR10+
Dolby Vision Processing: Dolby Vision VS10 Engine
Dolby Vision Profiles: P4, P5, P7 MEL, P7 FEL and P8
Color Depth: 10/12-bit
Video Codecs: AV1, VP9, HEVC/H.265, H.264/AVC, MPEG-2, MPEG-4, VC-1 and more
Supported Formats: MKV, MP4, TS, M2TS, BDMV, UHD ISO, BD ISO, MOV, AVI, VOB, WebM, DVD-ISO, VIDEO_TS, WMV, AVCHD and more
Blu-ray Support: Full Blu-ray and 4K UHD Blu-ray Menu Support
3D Support: Side-by-Side and Top-and-Bottom
Source-Based Tone Mapping: SBTM
Real Cinema: Automatic frame-rate detection
Supported Frame Rates: 23.976, 24, 29.97, 30, 50, 59.94 and 60 Hz
HDR Conversion: HDR to SDR and SDR to HDR using Dolby VS10

AUDIO

Audio Support: Dolby Atmos, DTS:X, Auro-3D
High-Resolution Audio: DSD, AIFF, FLAC, ALAC and WAV
Supported Audio Formats: AC-3, E-AC3, DTS, DTS-X, Dolby TrueHD, AAC, FLAC, ALAC, AIFF, WAV, MP3, APE and more
Digital Audio Output: Optical S/PDIF
HDMI Audio: Multichannel audio
Maximum Audio: Up to 11.1.8 channel bitstream
Audio Downmix: Stereo

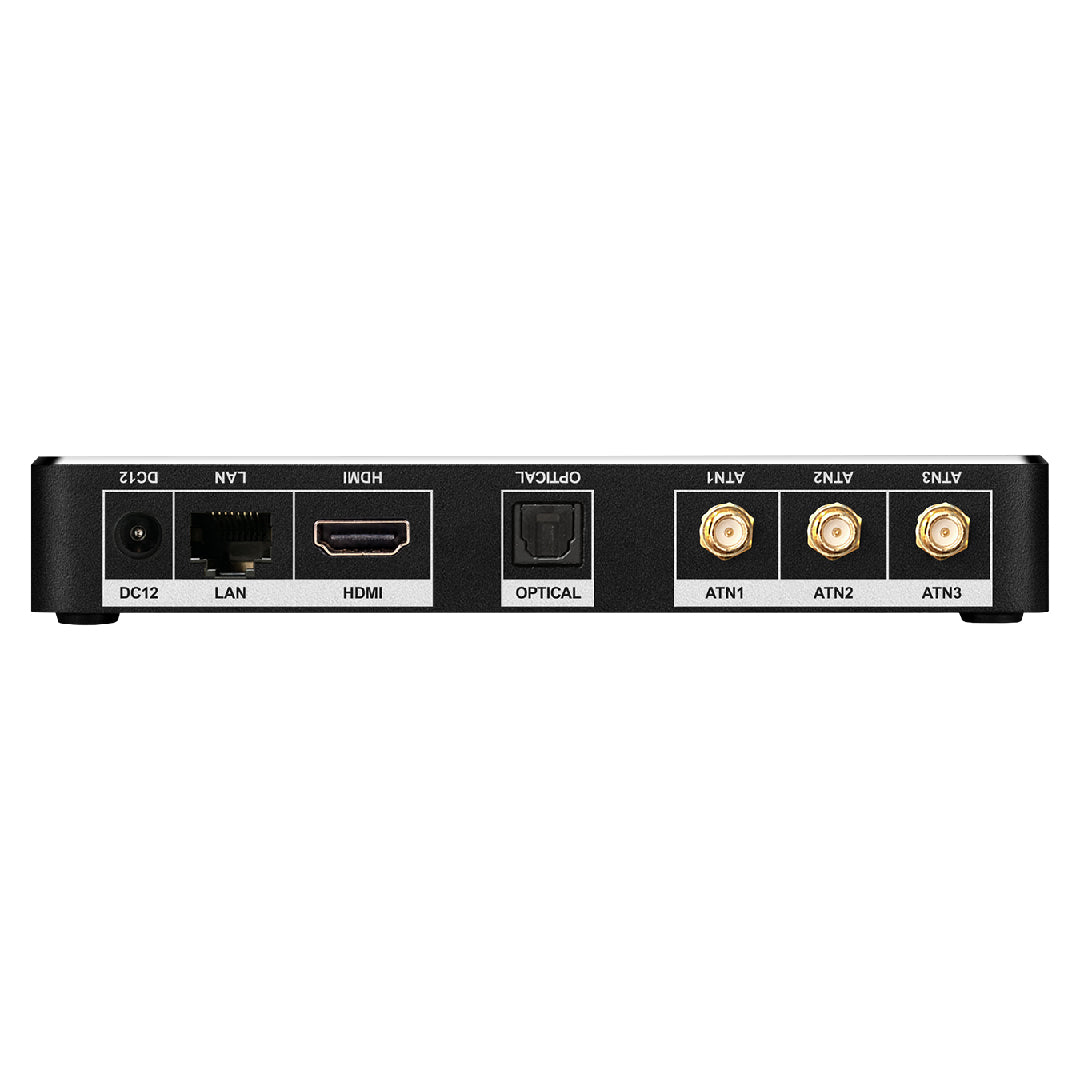

CONNECTIVITY

HDMI: HDMI 2.1a

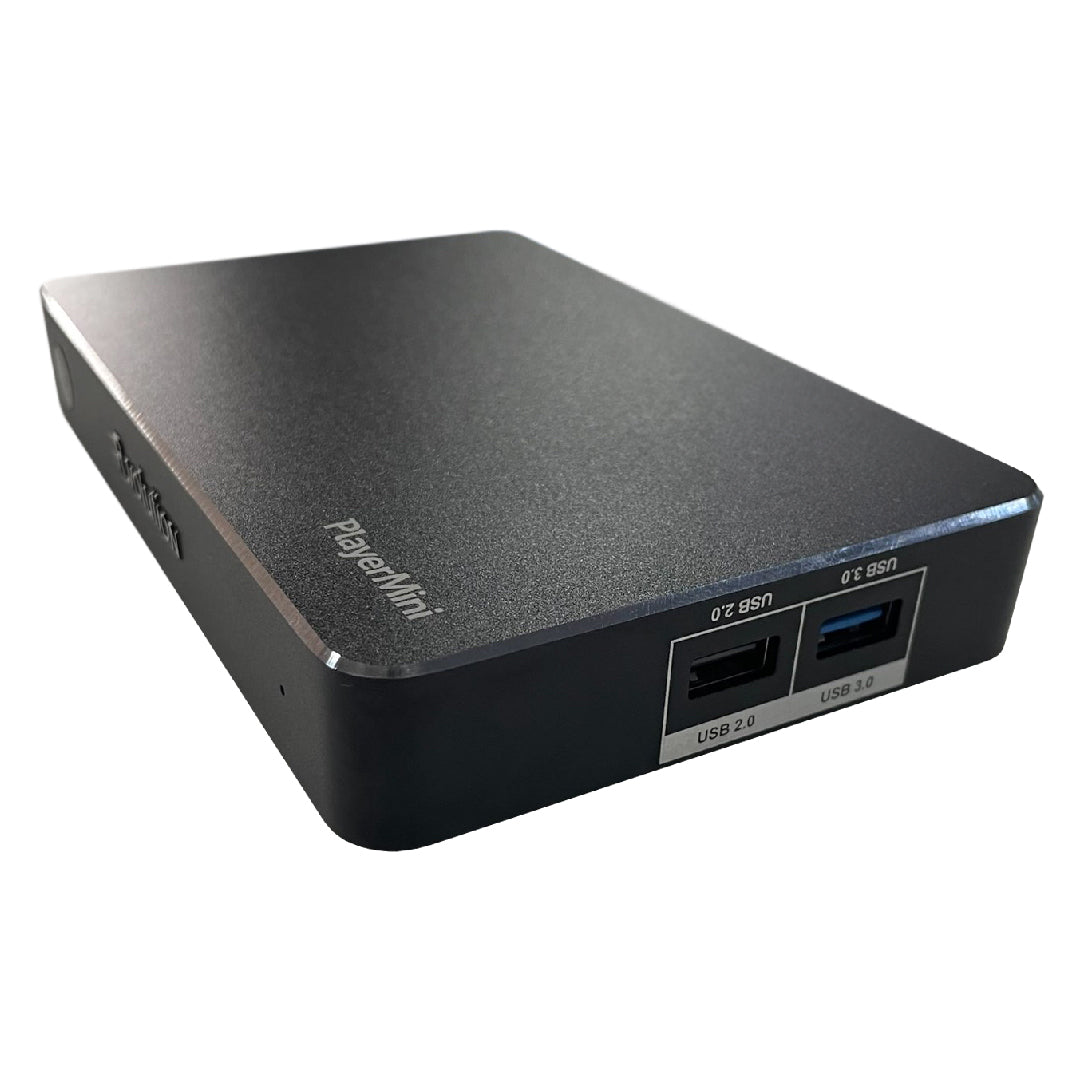

USB Ports: 1 × USB 2.0 + 1 × USB 3.0
Ethernet: Gigabit Ethernet 10/100/1000 Mbps
Wi-Fi: Dual-Band 2.4 GHz + 5 GHz Wi-Fi 6 (802.11ax)
Wi-Fi Antennas: 2 × Removable Gold-Plated Antennas
RF: Dedicated RF Antenna
IR: Wide-Range IR Sensor
IP Control: Supported
DC Input: 12V DC
HDCP: HDCP 2.2
CEC: Supported

STORAGE & MEDIA SOURCES

External HDD: Supported
Maximum USB HDD Capacity: Up to 32 TB
USB Flash Drives: Supported
USB Card Readers: Supported
PC/Mac Network Playback: Supported
NAS: Supported
Network Protocol: SMB 2
External Multi-Bay USB Storage: Supported
File Transfer Speed: Up to 90 MB/s

R_VIDEO MEDIA CENTER

Media Library: R_video
Movie & TV Show Management: Supported
Automatic Movie Identification: Supported
Movie Artwork: Supported
Movie Backgrounds: Supported
Cast & Director Information: Supported
Ratings & Genres: Supported
Custom Categories: Supported
Favorite Scenes: Supported
Parental Control: Supported
Subtitle Download: Supported
Movie Trailers: Supported
Widescreen Support: 2.35:1 / 2.39:1 / 2.40:1

FILE SYSTEM SUPPORT

FAT16/FAT32: Read/Write
EXT2/EXT3/EXT4: Read/Write
NTFS: Read/Write
exFAT: Read/Write
HFS/HFS+: Read Only
BTRFS: Read/Write

POWER

Power Input: DC 12V
Power Adapter: AC 100–240V to 12V / ≥3A
Maximum Power Consumption: 42W
Typical Consumption: 39W without HDD
High-Power Standby: 9W
Low-Power Standby: 0.02W

DIMENSIONS & WEIGHT

Product Dimensions: 16.0 × 2.4 × 11.8 cm
Product Dimensions: 6.30 × 0.95 × 4.64 inches
Carton Dimensions: 24.0 × 6.3 × 16.0 cm
Carton Dimensions: 9.44 × 2.48 × 6.29 inches
Net Product Weight: 0.4 kg
Gross Weight with Carton: 0.9 kg

OPERATING CONDITIONS

Operating Temperature: 10–30°C
Operating Humidity: 30–70%

WARRANTY & CERTIFICATION

Warranty: 2 Years
Certifications: RoHS, CE, FCC
Country of Design: France
Software: France
Country of Production: China
EAN: 3760115010147
TARIC Number: 8521900090

CONTROL & INTEGRATION

Remote Control: Backlit IR Remote
IR Sensor Range: 60° / approximately 26 feet
IP Control: Supported
RF Remote: Compatible with PlayerPro 8K RF Remote (optional)
Mobile Remote App: iOS and Android
Home Automation Integration: IR and IP control codes
Rack Mount Kit: Optional

ACCESSORIES INCLUDED

• High-Quality Backlit IR Remote Control
• Wi-Fi Antennas × 2
• RF Antenna
• DC Power Adapter
• User Card

IMPORTANT

External hard drive is not included. External HDDs up to 32 TB can be connected through the USB ports.
:::

The R_volution PlayerMini is a compact and powerful 4K UHD media player designed for premium home theater, multiroom entertainment and professional AV installations. Powered by the Amlogic S905X4-K chipset, it supports 4K Ultra HD playback with Dolby Vision, HDR10+ and advanced Dolby Vision VS10 video processing.

The PlayerMini can play a wide range of video formats including MKV, MP4, TS, M2TS, BDMV and UHD ISO, with support for full Blu-ray and 4K Ultra HD Blu-ray menus. It supports AV1 and HEVC video codecs, 4K 60p HDR and 10/12-bit video processing for detailed and smooth image quality.

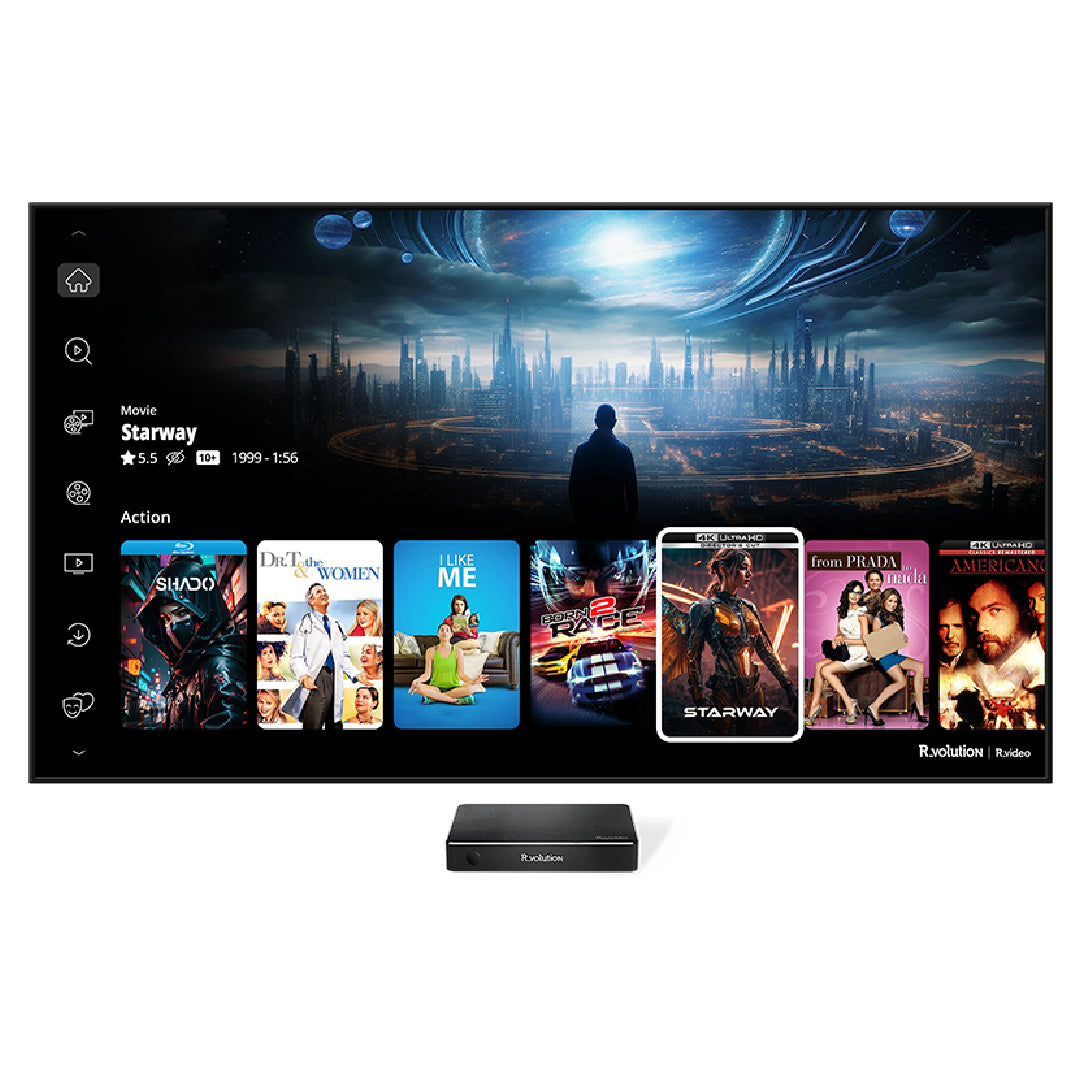

The integrated R_video Media Center automatically organizes your movie and TV show collection with artwork, backgrounds, cast information, directors, ratings, genres and other metadata. It can access content from USB-connected hard drives, PCs, Macs and NAS devices over the local network.

For high-quality audio, the PlayerMini supports Dolby Atmos, DTS:X, Auro-3D and high-resolution audio formats including DSD, AIFF, FLAC and ALAC. It provides optical digital audio output and HDMI 2.1a connectivity for integration with modern home theater systems.

With its compact design, Gigabit Ethernet, Wi-Fi 6, two USB ports, IP and IR control, and optional RF remote compatibility, the R_volution PlayerMini is well suited for multiroom entertainment, home theaters, yachts and custom AV installations.
