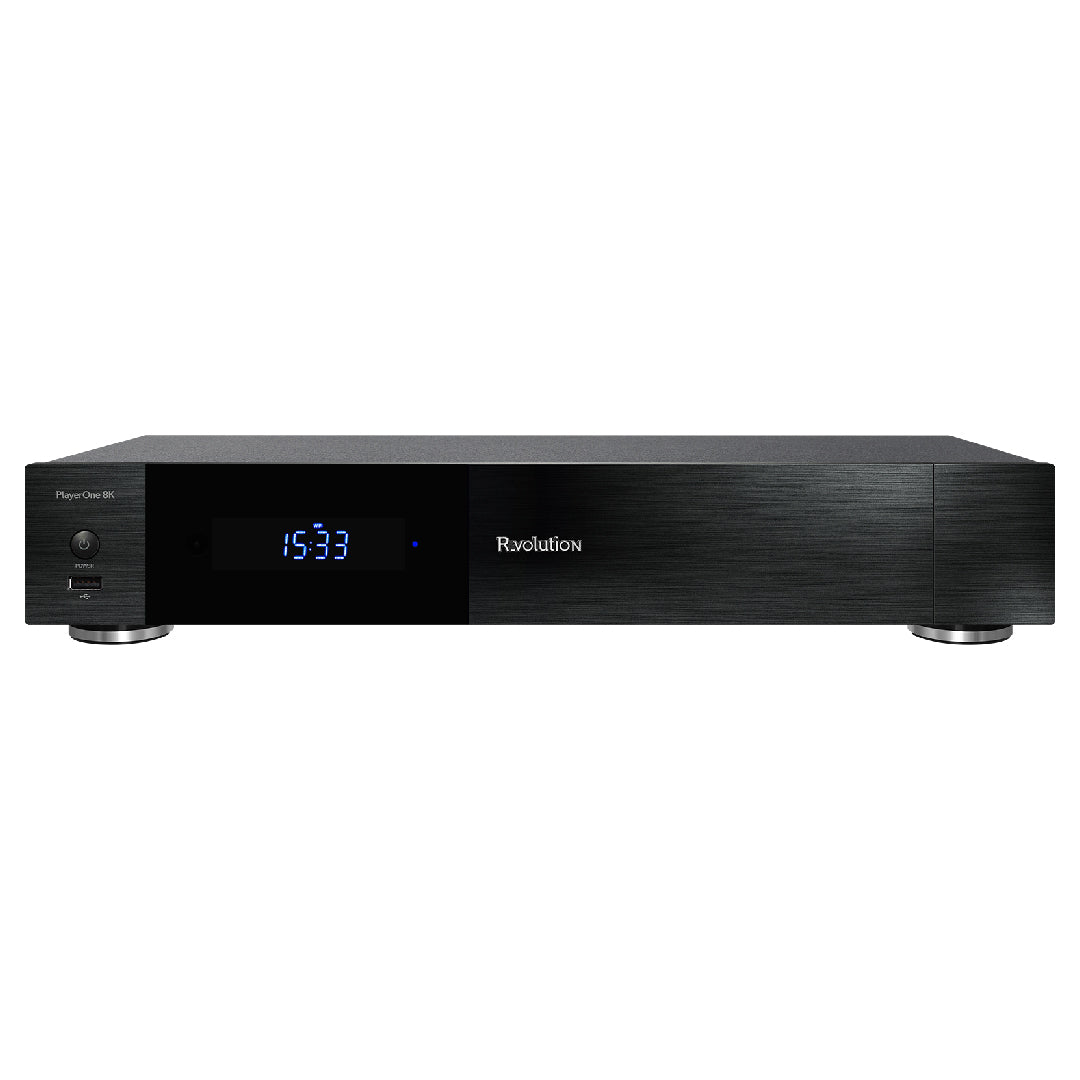

R_volution Player One 8k

Model: R_volution PlayerOne 8K
Model Number: RVR010
Part Number: RVR0101W01-RV401

PROCESSOR
Chipset: Amlogic S928X-K/J
CPU: 4-Core ARM Cortex-A55 2.0 GHz + ARM Cortex-A76 1.9 GHz
GPU: ARM Mali-G57
NPU: Hardware AI Accelerator
Operating System: Linux + Android 11
RAM: 8 GB
Internal Storage: 64 GB NAND eMMC

VIDEO
Maximum Resolution: 8K Ultra HD – 7680 × 4320
Video Output: HDMI 2.1a
HDR Support: Dolby Vision, HDR10+
Dolby Vision Processing: VS10 Engine
Video Enhancement: AI-PQ and AI Super-Resolution
Video Codecs: AV1, HEVC and other major video codecs
Supported Formats: MKV, MP4, TS, M2TS, BDMV, UHD ISO and more
Blu-ray Support: Full Blu-ray and 4K UHD menu support

AUDIO
Audio Support: Dolby Atmos, DTS:X, Auro-3D
High-Resolution Audio: DSD, AIFF, FLAC, ALAC and more
Digital Audio Output: Coaxial S/PDIF and Optical S/PDIF
Analog Audio Output: RCA

STORAGE
Internal HDD Bay: 3.5-inch SATA Hot-Swap
Maximum HDD Capacity: Up to 32 TB
Internal HDD: Not Included

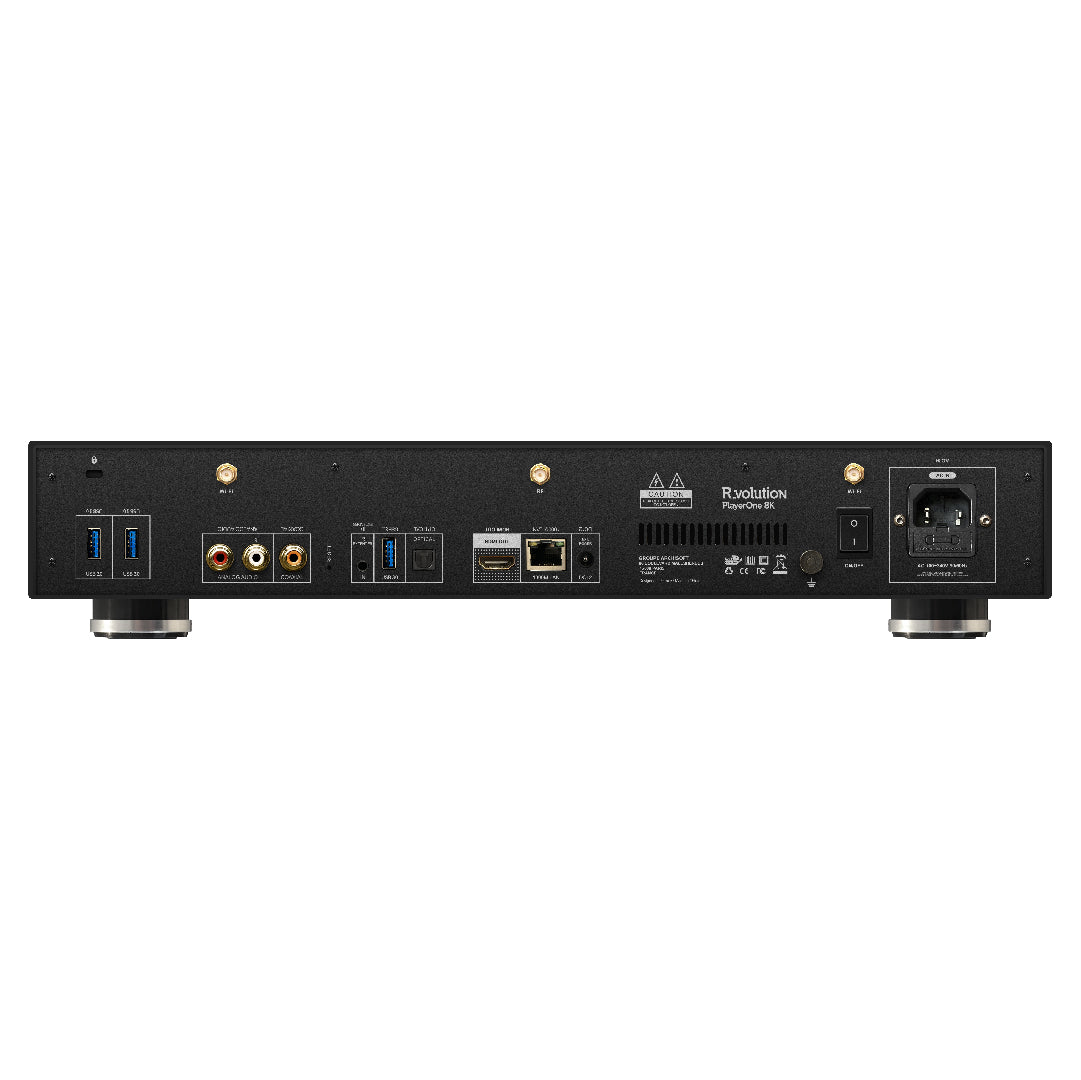

CONNECTIVITY
HDMI: HDMI 2.1a
USB Ports: 1 × USB 2.0 + 3 × USB 3.0
Ethernet: Gigabit Ethernet 10/100/1000 Mbps
Wi-Fi: Wi-Fi with 2 removable antennas

POWER
Power Supply: Internal AC 100–240V
Maximum Power Consumption: 42W
Typical Power Consumption: 39W without HDD
High-Power Standby Consumption: 9W
Low-Power Standby Consumption: 0.02W

DIMENSIONS & WEIGHT
Product Dimensions: 42.7 × 8 × 28.5 cm
Product Weight: 6 kg
Carton Dimensions: 54.0 × 39.5 × 22.0 cm
Gross Weight: 6.7 kg

OPERATING CONDITIONS
Operating Temperature: 10–30°C
Operating Humidity: 30–70%

WARRANTY & CERTIFICATION
Warranty: 2 Years
Certifications: RoHS, CE, FCC
Country of Production: China
EAN: 3760115010178
TARIC Number: 8521900090
Rack Mount Kit: Optional

The R_volution PlayerOne 8K is a high-end 8K media player and media server designed for premium home theater and home cinema systems. Powered by the Amlogic S928X-K/J chipset, it delivers exceptional video and audio performance with support for 8K Ultra HD, Dolby Vision, HDR10+, HDMI 2.1a and AV1.

The PlayerOne 8K supports a wide range of video formats including MKV, MP4, TS, M2TS, BDMV and UHD ISO, along with full Blu-ray and 4K UHD menu support. Its Dolby Vision VS10 processing engine provides advanced HDR processing, while AI-PQ and AI Super-Resolution technologies enhance image quality and upscaling.

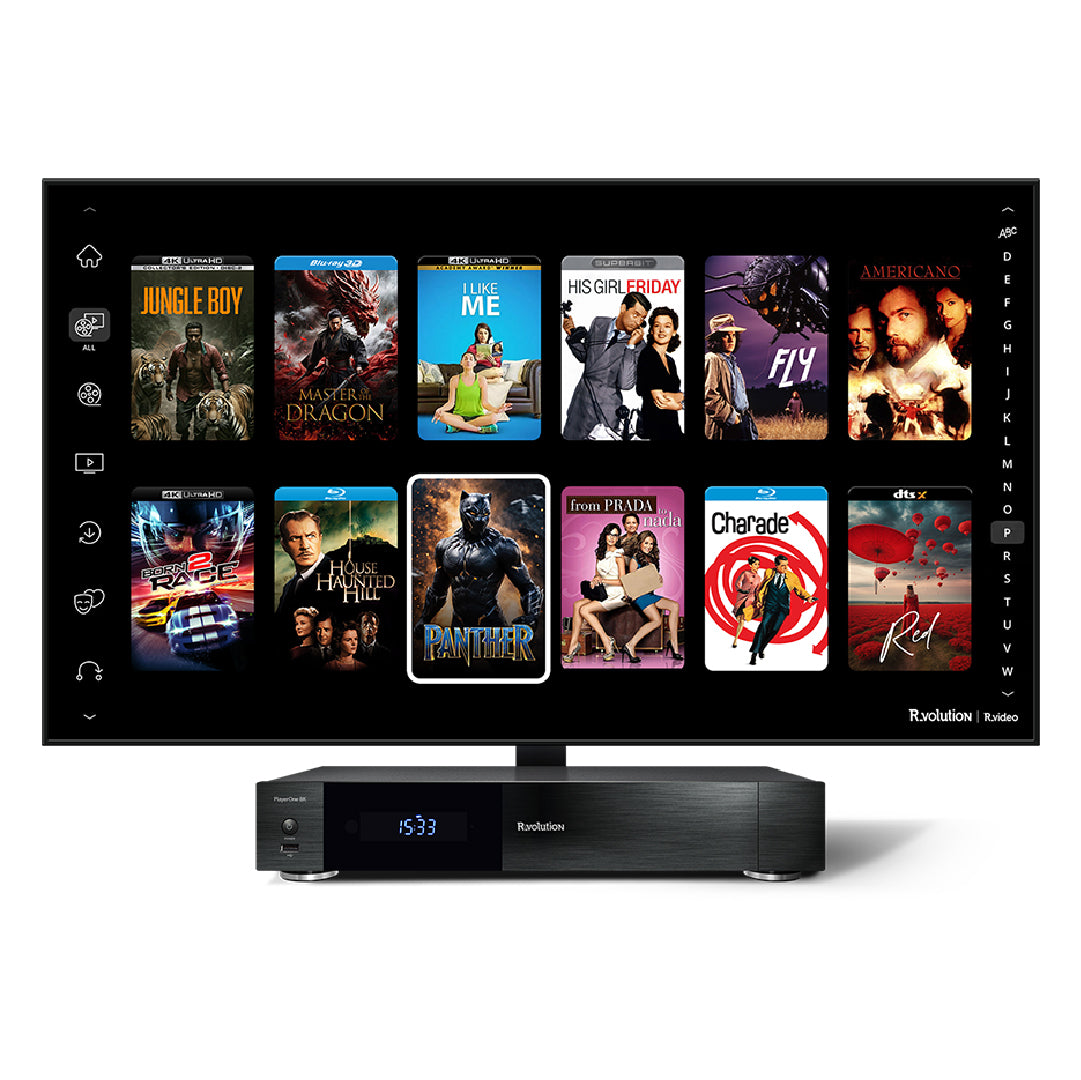

The built-in 3.5-inch SATA hot-swap HDD bay supports up to 32 TB of internal storage, making it ideal for storing large movie, TV show, music and media libraries. The integrated R_video interface organizes your media collection with artwork, movie information, genres, ratings and metadata.

For high-end audio systems, the PlayerOne 8K supports Dolby Atmos, DTS:X and Auro-3D, along with high-resolution audio formats including DSD, AIFF, FLAC and ALAC. With Gigabit Ethernet, Wi-Fi, multiple USB ports and HDMI 2.1a connectivity, it is designed for demanding home theater and media-server installations.
