R_volution NAS Ultra

PRODUCT NAME

R_volution NAS Ultra

PRODUCT TYPE

High-End Autorip Video Server / Network Attached Storage

STORAGE

Number of Drive Bays: 8 × Hot-Swap Bays
Hard Drive Type: 3.5-inch SATA
Hard Drives: Not Included
Maximum Drive Capacity: Up to 32 TB per drive
Maximum Raw Storage Capacity: Up to 256 TB with 8 × 32 TB drives
RAID Support: RAID 0, RAID 1, RAID 5 and JBOD
RAID Type: Hardware-Based RAID
Disk Hot-Swapping: Supported
Hot-Swap Limitation: One drive at a time

OPTICAL DRIVE & RIPPING

Built-In Optical Drive: Yes
Supported Discs: DVD, Blu-ray, Blu-ray 3D and 4K Ultra HD Blu-ray
Backup Method: Fully Automated
Backup Quality: Bit-for-Bit
Compression: None
Video Quality: Original / Uncompressed
External Optical Drives: Supported via USB
Maximum Simultaneous Rips: Up to 3 discs
External Drives for Simultaneous Ripping: Up to 2 additional optical drives
Ripping Compatibility: Approximately 95% of discs

RIPPING TIME

DVD: Approximately 20 minutes
Blu-ray: Approximately 30 minutes
4K UHD Blu-ray: Approximately 45 minutes

Note: Actual ripping time may vary depending on disc length and other factors.

VIDEO & AUDIO

Video Quality: Bit-Perfect / Uncompressed
Maximum Video Resolution: 4K Ultra HD
Video: 10-bit, HDR, BT.2020 and HEVC
HDR Support: HDR10, HDR10+ and Dolby Vision
Audio Support: Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Subtitle Support: High-Quality Subtitles in Multiple Languages

NETWORK

Network Interface: 2.5 GbE
Ethernet Speed: 10/100/1000/2500 Mbps
Multiroom Video: Supported
Maximum UHD Zones: Up to 4 zones simultaneously
Multiroom Audio: Supported
Network Streaming: Supported
Local Network Access: Supported
Computer Access: Supported
Personal File Storage: Supported

R_VIDEO MEDIA CENTER

Media Center: R_video
Movie Database: R_video DB
Movie Database: Over 1,200,000 Movie Titles
Movie Artwork: Supported
Movie Metadata: Supported
Cast Information: Supported
Director Information: Supported
Genres: Supported
Ratings: Supported
Movie Library Management: Supported
Movie Playback: Supported
Movie Resume: Supported

MEDIA CAPACITY

Maximum Storage with 8 × 32 TB Drives:
Up to 3,200 4K UHD Blu-rays
Up to 6,400 Blu-rays
Up to 38,400 DVDs

Important: Storage equivalence figures do not account for RAID 5. In RAID 5, the capacity equivalent of one hard drive must be deducted from the total storage capacity.

MULTIROOM AUDIO

Multiroom Audio: Supported
Roon Server: Included
Roon Integration: Supported
Sonos Integration: Supported
Bluesound Integration: Supported
Network Audio Streaming: Supported

POWER

Power Supply: 650W 1U Flex / 1U
Input Voltage: 100–240V
Frequency: 50/60 Hz
Power Consumption: 62W

COOLING & NOISE

Cooling System: Servo-Controlled Fans
Noise Level: 12.5 dB
Power Improvement: 50% more power than standard R_volution NAS
Noise Improvement: 50% quieter than standard version

OPERATING CONDITIONS

Operating Temperature: 0°C–40°C
Storage Temperature: -40°C–65°C
Operating Humidity: 20%–80%

DIMENSIONS & WEIGHT

Dimensions: 316 × 285 × 208 mm
Dimensions: 12.4 × 11.2 × 8.2 inches
Product Weight: 9 kg / 19.8 lbs
Weight with Box: 10 kg / 22 lbs
HDDs Included: No

PRODUCT CODES

EAN Code: 3760115010192
TARIC Code: 8528 52 10 00

ACCESSORIES INCLUDED

• Power Cable
• Quick Installation Guide

IMPORTANT

Hard drives are not included with the R_volution NAS Ultra. The system supports up to eight 3.5-inch SATA hard drives. Storage capacity depends on the number and capacity of installed drives and the selected RAID configuration.

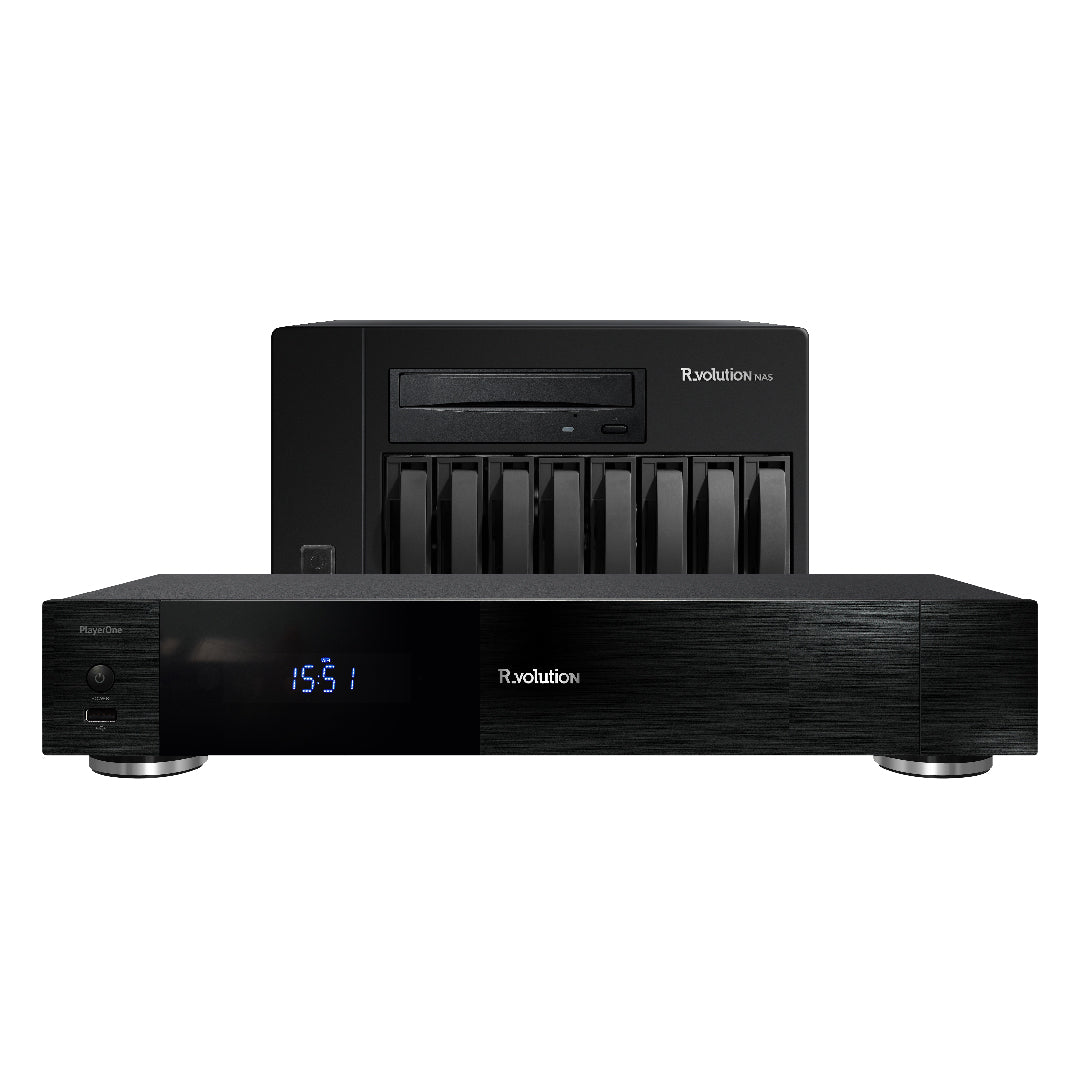

The R_volution NAS Ultra must be paired with a compatible R_volution media player for playback on each TV or projector.

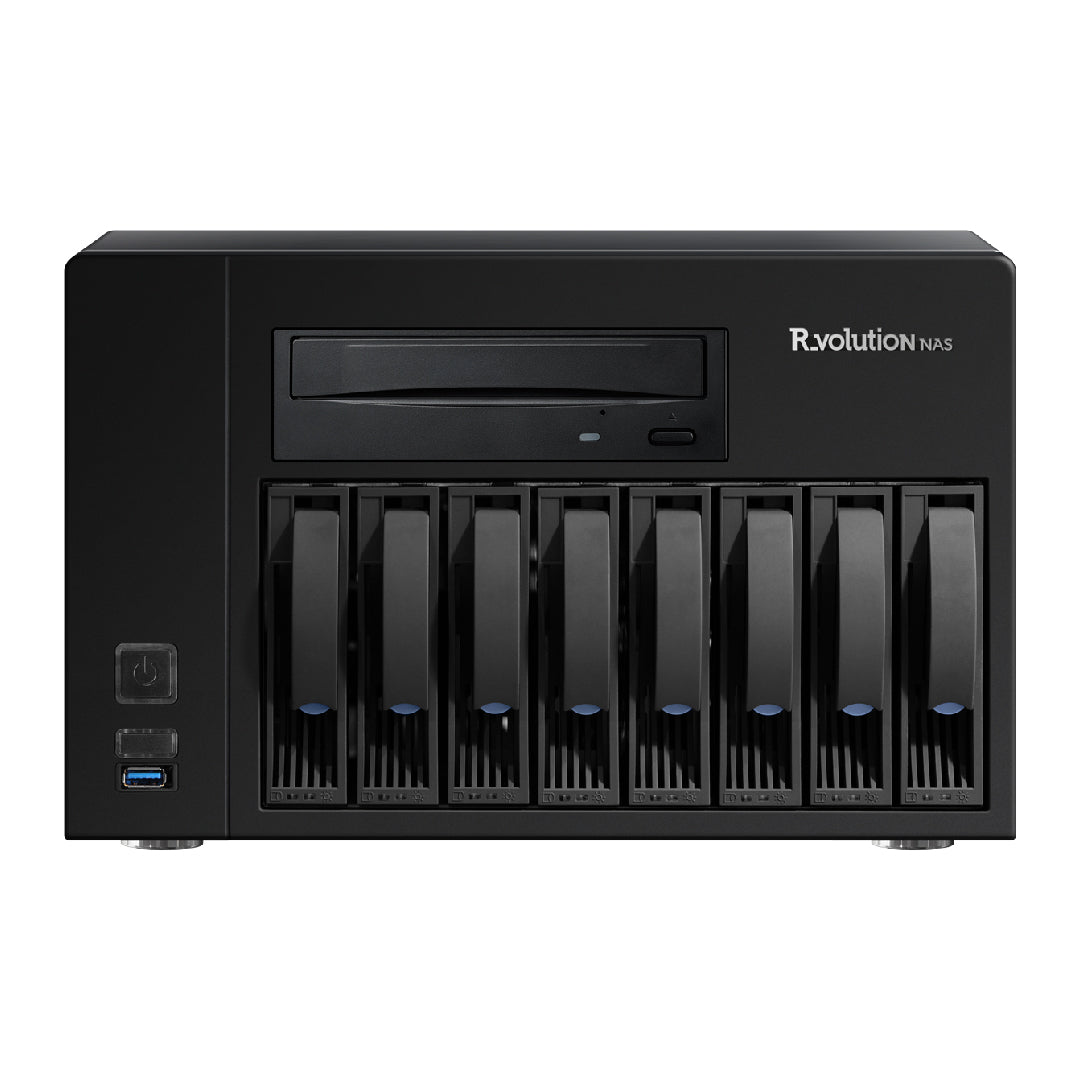

The R_volution NAS Ultra is a high-end 8-bay Network Attached Storage and autorip video server designed for premium home theater and multiroom entertainment systems. It allows users to automatically back up DVD, Blu-ray, Blu-ray 3D and 4K Ultra HD Blu-ray discs in bit-perfect, uncompressed quality and store them on internal hard drives.

The R_volution NAS Ultra features eight hot-swappable 3.5-inch SATA drive bays and supports hardware-based RAID configurations including RAID 0, RAID 1, RAID 5 and JBOD. With up to eight 32 TB hard drives, it can provide storage capacity equivalent to up to 3,200 4K UHD Blu-rays, 6,400 Blu-rays or 38,400 DVDs. Multiple NAS Ultra units can also be combined for larger media collections.

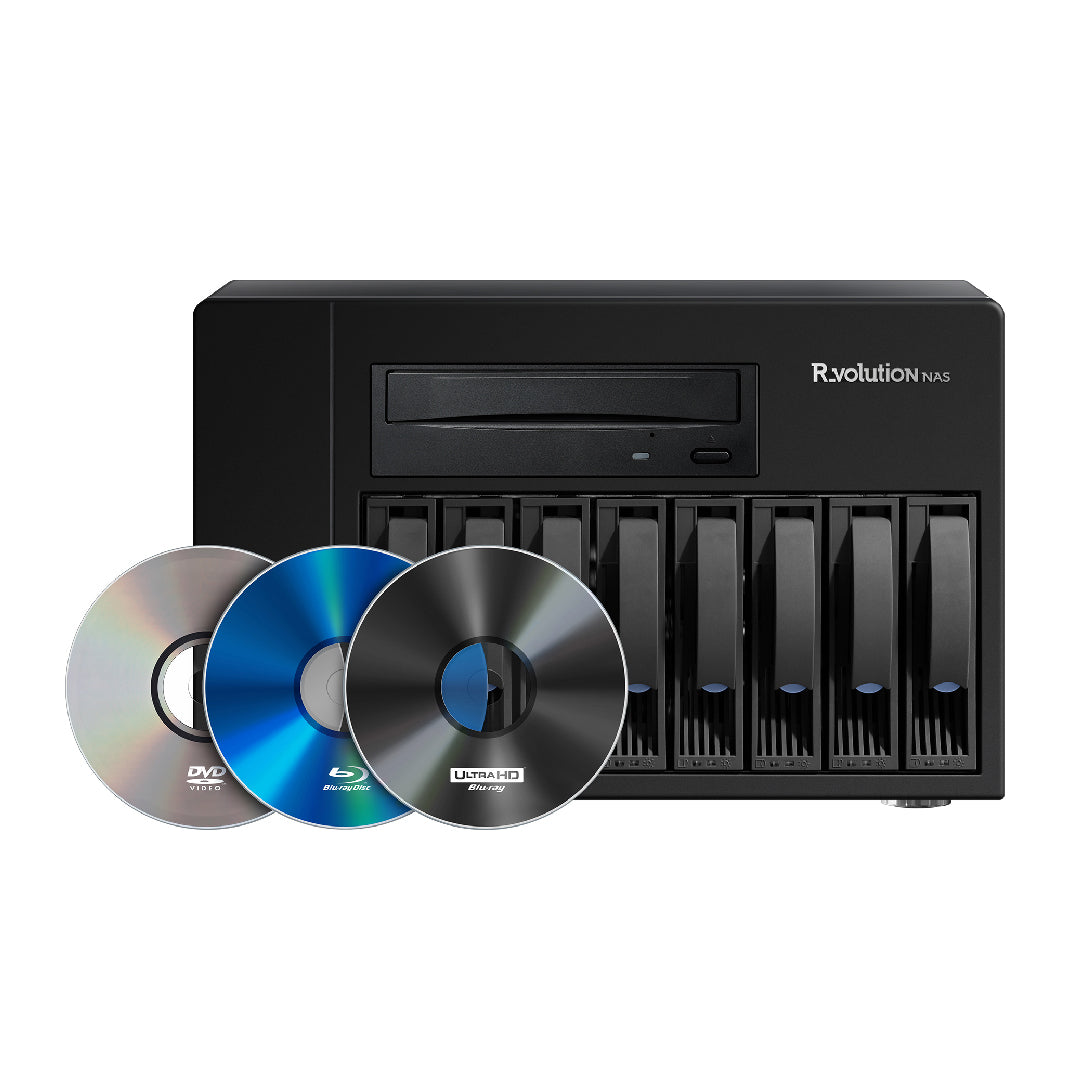

The built-in optical drive provides automated disc ripping. Users can simply insert a DVD, Blu-ray or 4K UHD Blu-ray disc and the NAS Ultra automatically backs up the content to its internal storage. Up to two additional external optical drives can be connected via USB, allowing up to three discs to be backed up simultaneously.

The R_volution NAS Ultra stores movies and TV shows in their original, uncompressed quality, supporting 4K UHD, HDR, BT.2020, HEVC, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X. The integrated R_video Media Center automatically organizes the media library with movie covers, metadata, cast information, directors, genres and ratings.

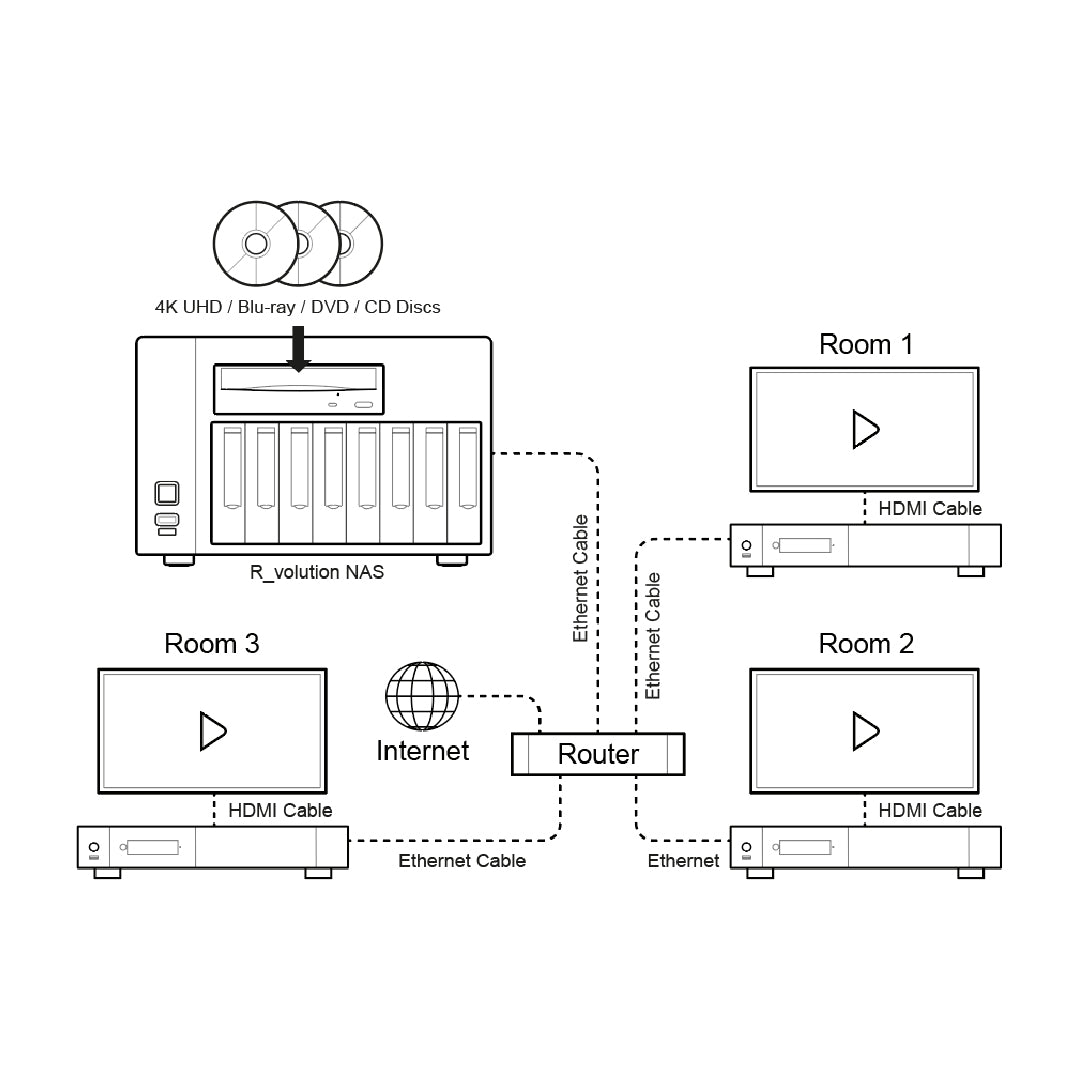

The NAS Ultra supports multiroom video streaming to up to four zones simultaneously, allowing different rooms to play different movies or TV shows at the same time. Its 2.5 GbE network interface provides faster network performance compared with the standard R_volution NAS.

For music lovers, the NAS Ultra also supports multiroom audio and Roon Server, allowing music collections to be accessed throughout the home using compatible R_volution players, Sonos, Bluesound and Roon-enabled devices.

With servo-controlled fans, 50% more power than the standard NAS and a quieter operating design, the R_volution NAS Ultra is designed for demanding home cinema enthusiasts, large media libraries and professional custom AV installations.
