R_volution NAS

PRODUCT NAME

R_volution NAS

STORAGE

Number of Drive Bays: 8 × Hot-Swap Bays
Hard Drive Type: 3.5-inch SATA
Hard Drives: Not Included
Maximum Drive Capacity: Up to 32 TB per drive
Maximum Raw Storage Capacity: Up to 256 TB with 8 × 32 TB drives
RAID Support: RAID 0, RAID 1, RAID 5 and JBOD
RAID Type: Hardware-Based RAID
Drive Hot-Swapping: Supported, one drive at a time

STORAGE CAPACITY EQUIVALENCE

1 × 16 TB: Up to 200 4K UHD Blu-rays / 400 Blu-rays / 2,400 DVDs
2 × 16 TB: Up to 400 4K UHD Blu-rays / 800 Blu-rays / 4,800 DVDs
4 × 16 TB: Up to 800 4K UHD Blu-rays / 1,600 Blu-rays / 9,600 DVDs
8 × 16 TB: Up to 1,600 4K UHD Blu-rays / 3,200 Blu-rays / 19,200 DVDs

1 × 20 TB: Up to 250 4K UHD Blu-rays / 500 Blu-rays / 3,000 DVDs
4 × 20 TB: Up to 1,000 4K UHD Blu-rays / 2,000 Blu-rays / 12,000 DVDs
8 × 20 TB: Up to 2,000 4K UHD Blu-rays / 4,000 Blu-rays / 24,000 DVDs

1 × 32 TB: Up to 400 4K UHD Blu-rays / 800 Blu-rays / 4,800 DVDs
4 × 32 TB: Up to 1,600 4K UHD Blu-rays / 3,200 Blu-rays / 19,200 DVDs
8 × 32 TB: Up to 3,200 4K UHD Blu-rays / 6,400 Blu-rays / 38,400 DVDs

Note: Storage equivalence figures do not account for RAID 5. In RAID 5, the capacity equivalent to one drive must be deducted from the total storage.

OPTICAL DRIVE

Optical Drive: Built-in
Supported Discs: DVD, Blu-ray, Blu-ray 3D and 4K Ultra HD Blu-ray
Disc Backup: Fully Automated
Backup Type: Bit-for-Bit
Compression: None
Video Quality: Original / Uncompressed
External Optical Drive: Supported via USB
Simultaneous Disc Backup: Up to 2 discs with an additional external optical drive

RIPPING PERFORMANCE

DVD Backup Time: Approximately 20 minutes
Blu-ray Backup Time: Approximately 30 minutes
4K UHD Backup Time: Approximately 45 minutes

Note: Actual backup times may vary depending on disc length and other factors.

MEDIA & VIDEO

Video Backup Quality: Bit-Perfect / Uncompressed
Supported Video: 10-bit, HDR, BT.2020 and HEVC
Maximum Video Quality: 4K UHD
Audio Support: Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Subtitle Support: High-Quality Subtitles in Multiple Languages

NETWORK

Ethernet: 10/100/1000 Mbps Gigabit Ethernet
Network Access: Local Network
Multiroom Streaming: Supported
Simultaneous Video Zones: Up to 3 zones
Computer Access: Supported
Personal File Storage: Supported

R_VIDEO MEDIA CENTER

Media Center: R_video
Movie Database: R_video DB
Movie Database Size: Over 1,200,000 Movie Titles
Movie Artwork: Supported
Movie Metadata: Supported
Cast Information: Supported
Director Information: Supported
Genres: Supported
Ratings: Supported
Movie Resume: Supported
Movie Playback: Supported
Media Library Management: Supported

MULTIROOM AUDIO

Multiroom Audio: Supported
Roon Server: Included
Roon Integration: Supported
Sonos Integration: Supported
Bluesound Integration: Supported
Network Audio Streaming: Supported

POWER

Power Supply: 650W 1U Flex/1U
Input Voltage: 100–240V
Frequency: 50/60 Hz
Power Consumption: 62W

NOISE

Noise Level: 25 dB

OPERATING CONDITIONS

Operating Humidity: 20%–80%
Operating Temperature: 0°C–40°C
Storage Temperature: -40°C–65°C

DIMENSIONS & WEIGHT

Dimensions: 316 × 285 × 208 mm
Dimensions in Inches: 12.4 × 11.2 × 8.2 inches
Product Weight Without HDDs: 9 kg / 19.8 lbs
Weight With Box Without HDDs: 10 kg / 22 lbs

PRODUCT CODES

EAN Code: 3760115010192
TARIC Code: 8528 52 10 00

ACCESSORIES INCLUDED

• Power Cable
• Quick Installation Guide

IMPORTANT

Hard drives are not included with the R_volution NAS. The system supports up to eight 3.5-inch SATA hard drives. Storage capacity depends on the number and capacity of installed drives and the selected RAID configuration.

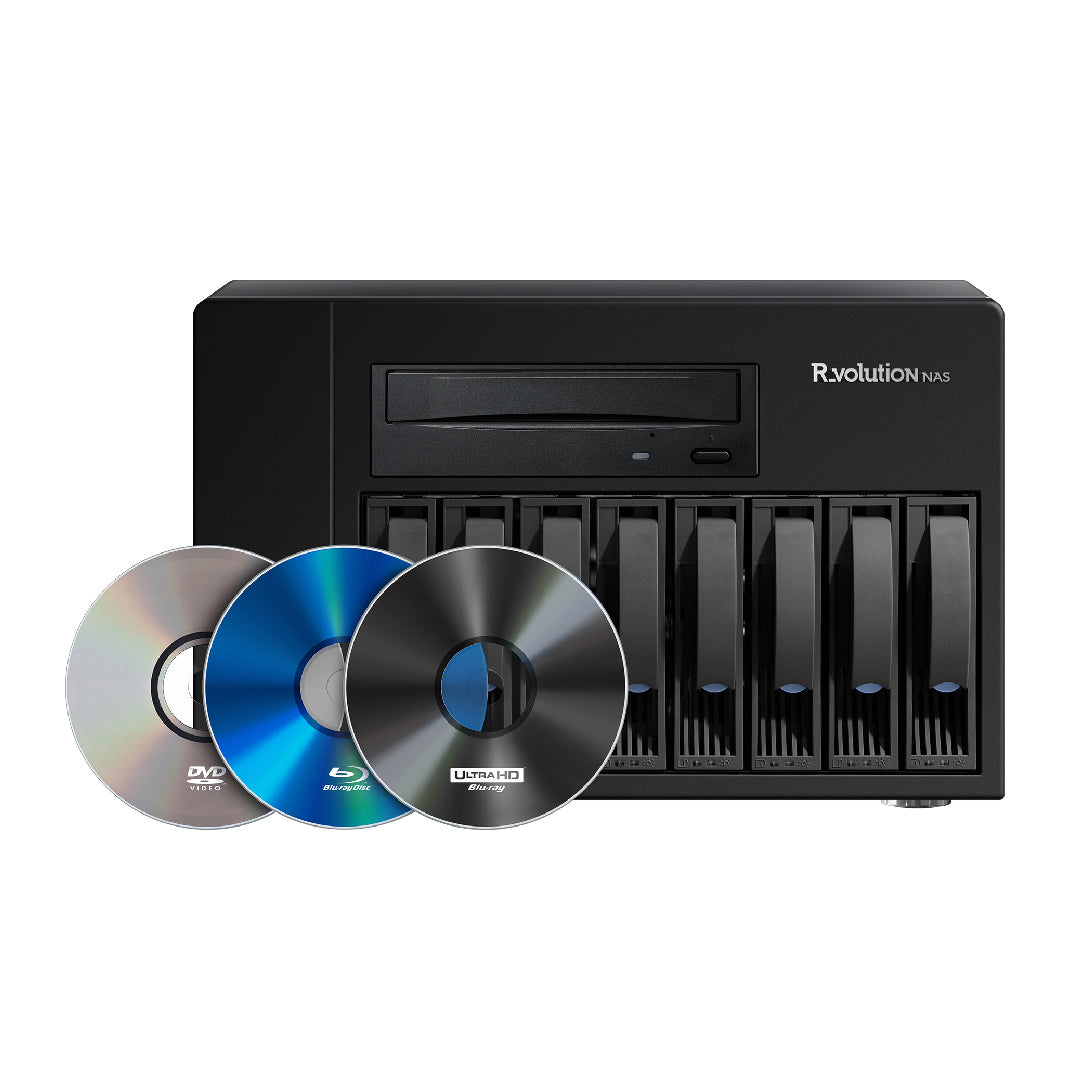

The R_volution NAS is a powerful 8-bay Network Attached Storage system designed specifically for storing, protecting and streaming high-quality movies, TV shows and music throughout your home. It features an integrated optical disc drive that can automatically back up DVD, Blu-ray, Blu-ray 3D and 4K Ultra HD Blu-ray discs in bit-perfect, uncompressed quality.

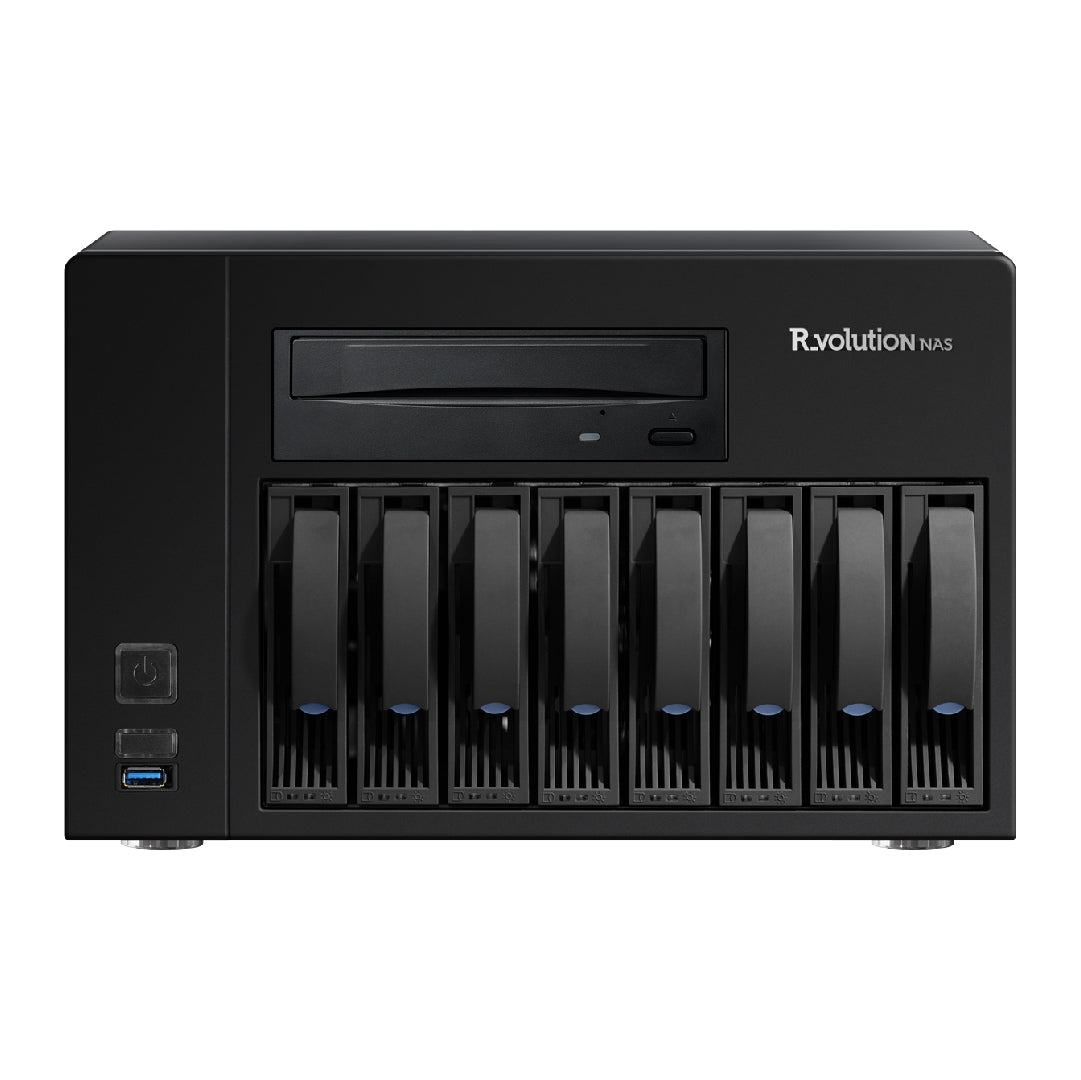

With its 8 hot-swappable drive bays, the R_volution NAS provides a scalable storage solution for large media collections. It supports 3.5-inch SATA hard drives and hardware-based RAID configurations including RAID 0, RAID 1, RAID 5 and JBOD. RAID 5 provides protection against a single drive failure while allowing the system to continue operating.

The built-in R_video Media Center automatically organizes movies and TV shows with covers, metadata, cast information, directors, genres and ratings. The R_video database contains information for more than 1.2 million movie titles, providing a rich and easy-to-navigate media library experience.

The R_volution NAS can store up to 38,400 DVDs, 6,400 Blu-rays or 3,200 4K UHD discs when equipped with eight 32 TB drives. Multiple R_volution NAS units can also be combined to expand the overall storage capacity.

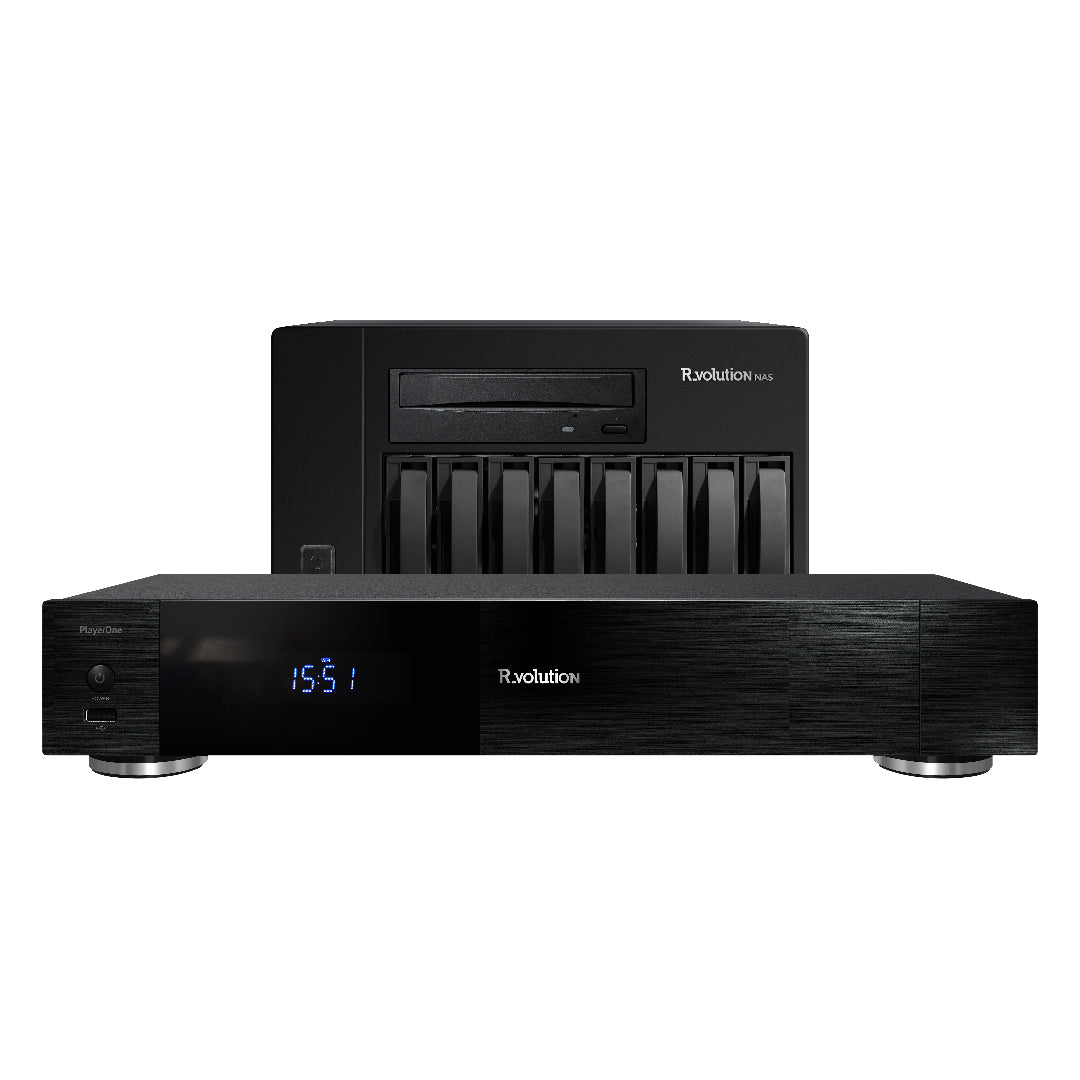

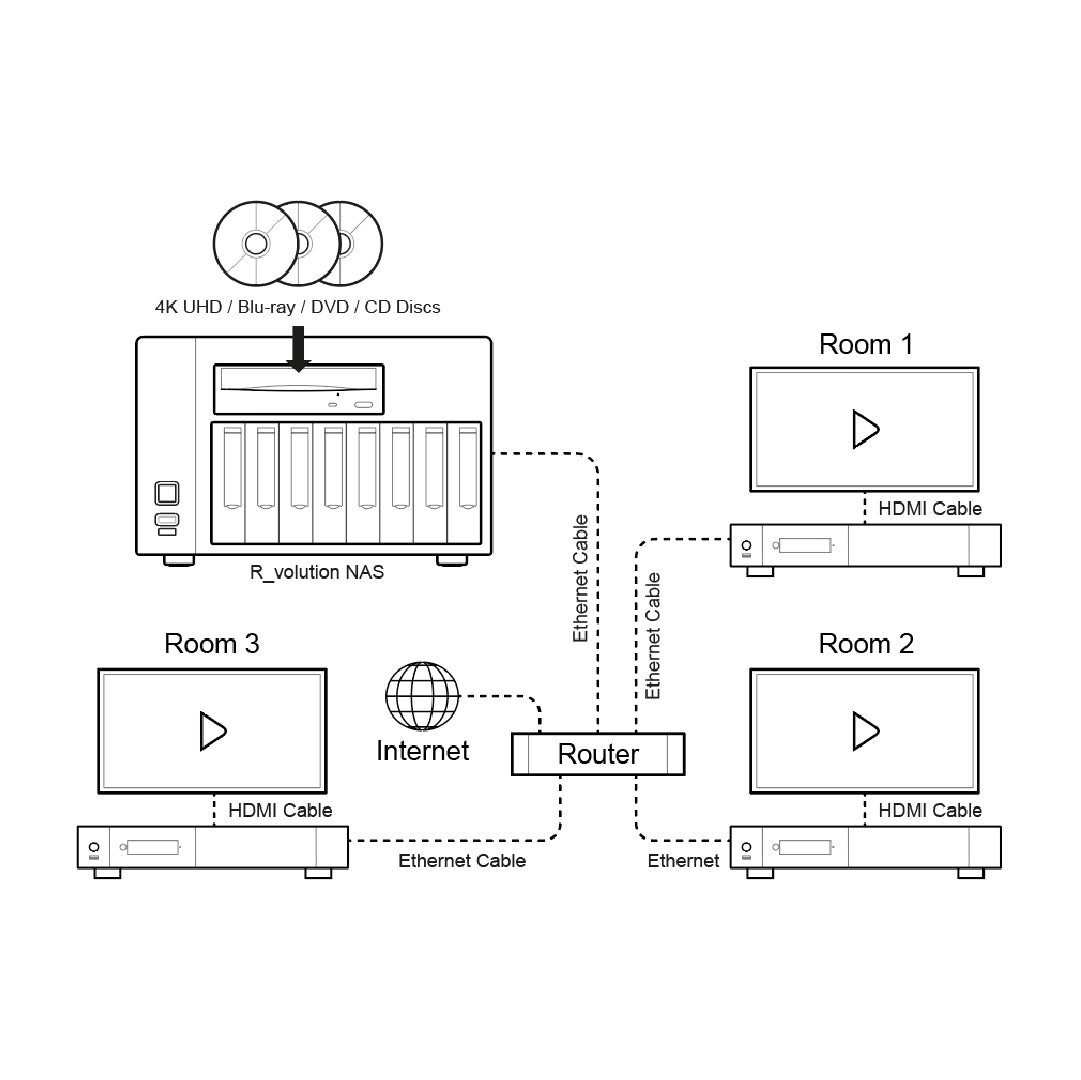

The NAS allows movies, TV shows and music to be streamed across a home network to multiple R_volution media players. Up to three zones can simultaneously play different movies in stunning UHD quality. It also supports multiroom audio and can work with platforms and devices such as Roon, Sonos and Bluesound.

The R_volution NAS is also suitable for yachts and other environments where an offline media library is required. Once the media library has been created, users can enjoy their stored content without an Internet connection.

The system is designed as a complete solution for serious home theater enthusiasts, media collectors and custom AV installations requiring large-capacity, reliable and centralized media storage.
