R_volution NAS Storage

PRODUCT NAME

R_volution NAS Storage

PRODUCT TYPE

8-Bay Network Attached Storage / Media Server

STORAGE

Number of Drive Bays: 8 × Hot-Swap Bays
Hard Drive Type: 3.5-inch SATA
Hard Drives: Not Included
Maximum Drive Bays: 8
Drive Hot-Swapping: Supported
Hot-Swap Limitation: One drive at a time

RAID

RAID Support: RAID 0, RAID 1, RAID 5 and JBOD
RAID Type: Hardware-Based RAID
RAID 5: Supported
RAID 5 Protection: Protects data against a single drive failure
RAID Expansion: Supported
Scalable Storage: Supported

STORAGE CAPACITY

Maximum Music Files: Up to 192,000 music files
SD Video Capacity: Up to 19,200 SD video files
HD Video Capacity: Up to 3,200 HD video files
4K UHD Video Capacity: Up to 2,000 4K UHD video files

Note: Actual storage capacity depends on the number and capacity of installed hard drives, RAID configuration and file sizes.

VIDEO

Maximum Video Quality: 4K/8K Ultra HD
Video: 10-bit
HDR: Supported
Color Space: BT.2020
Video Codec: HEVC
Video Storage: Uncompressed
Supported Audio Tracks: AC-4, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Subtitle Download: Supported

AUDIO

Supported Formats: DSD, WAVE, AIFF, FLAC, ALAC, MP3, OGG, AC3, DTS MPEG, AAC, LPCM, APE, M4A, VSELP and Ogg/Vorbis
Lossless Audio: Supported
High-Resolution Audio: Supported
Multiroom Audio: Supported

R_VIDEO MEDIA CENTER

Media Center: R_video
Automatic Movie Identification: Supported
Movie Database: Supported
Movie Covers: Supported
Movie Wallpapers: Supported
Movie Synopsis: Supported
Technical Information: Supported
Cast Information: Supported
Director Information: Supported
Release Date: Supported
Ratings: Supported
Genres: Supported
Automatic Categorization: Supported
Movie Editing: Supported
Movie Deletion: Supported
Movie Filtering and Sorting: Supported

MULTIROOM VIDEO

Multiroom Video: Supported
Maximum Simultaneous UHD Zones: Up to 3 zones
Playback: Independent playback in each zone
Required Device: R_volution Media Player for each TV

MULTIROOM AUDIO

Multiroom Audio: Supported
Roon: Supported
Roon Server: Supported / Optional Full Integration
Sonos: Supported
Bluesound: Supported
Connected Speakers: Supported
Network Audio Playback: Supported

NETWORK

Ethernet: 10/100/1000 Mbps
Network Speed: Up to 1 Gbps
Network Streaming: Supported
Local Network Access: Supported
Computer Access: Supported
Plug-and-Play Network Configuration: Supported
Automatic NAS Detection: Supported with compatible R_volution media players

CONNECTIVITY & FILE MANAGEMENT

Computer Access: Supported
File Copy: Supported
File Paste: Supported
File Cut: Supported
File Rename: Supported
File Delete: Supported
Remote File Management: Supported through compatible R_volution media player

POWER

Power Supply: 650W 1U Flex/1U
Input Voltage: 100–240V
Frequency: 50/60 Hz
Power Consumption: 62W

OPERATING CONDITIONS

Operating Humidity: 20%–80%
Operating Temperature: 0°C–40°C
Storage Temperature: -40°C–65°C

NOISE

Noise Level: 25 dB

DIMENSIONS & WEIGHT

Product Dimensions: 316 × 285 × 208 mm
Product Dimensions: 12.4 × 11.2 × 8.2 inches
Product Weight: 9 kg / 19.8 lbs
Gross Weight with Box: 10 kg / 22 lbs
HDDs Included: No

PRODUCT CODES

EAN Code: 3760115010000
TARIC Code: 8528 52 10 00

ACCESSORIES INCLUDED

• Power Cable
• Quick Installation Guide

IMPORTANT

Hard drives are not included with the R_volution NAS Storage. The system supports up to eight 3.5-inch SATA hard drives. Storage capacity depends on the installed drives and selected RAID configuration.

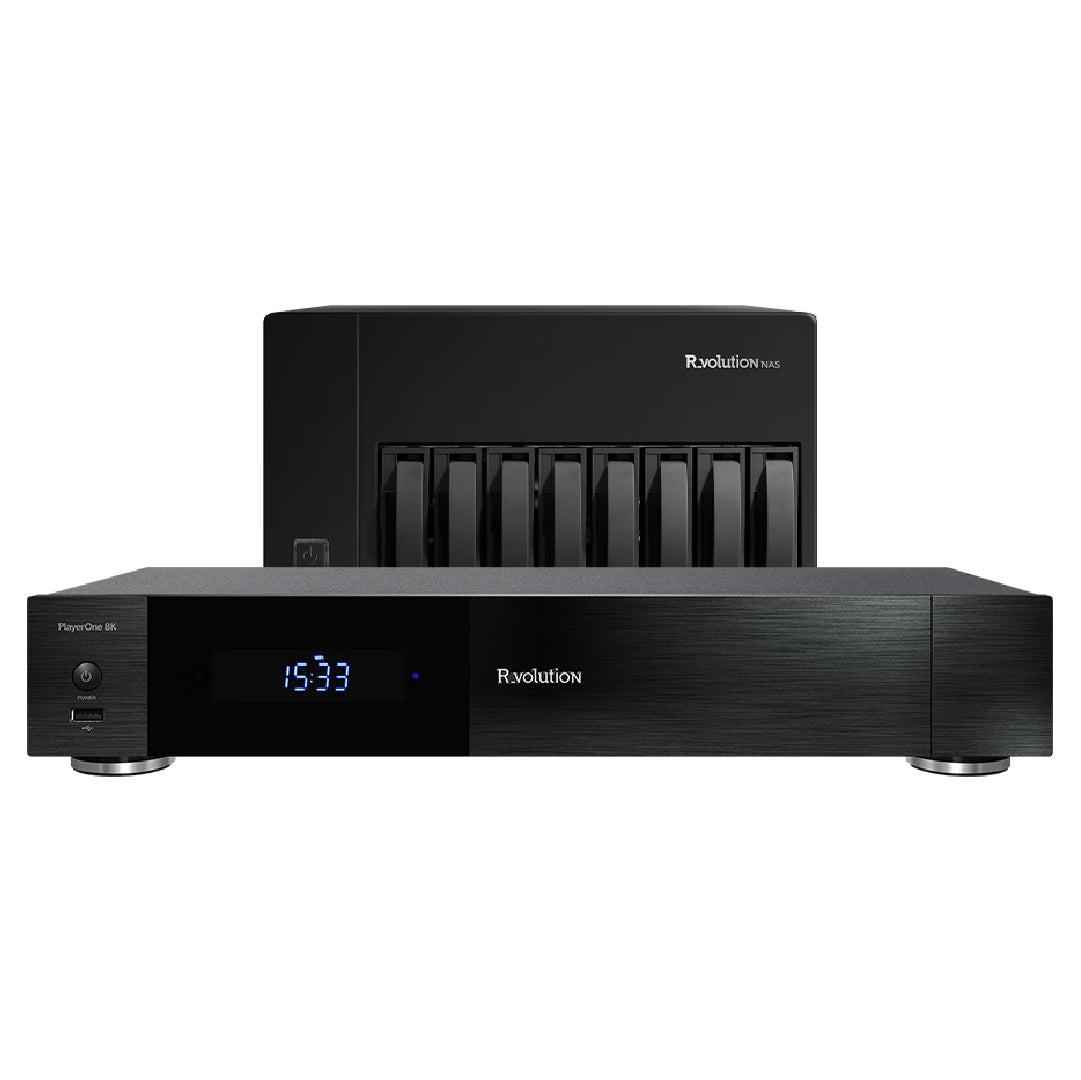

The R_volution NAS Storage must be paired with a compatible R_volution Media Player for playback on each TV.

The R_volution NAS Storage is a powerful 8-bay Network Attached Storage system designed to securely store and manage large music and video libraries throughout the home. It provides a scalable and reliable storage solution for movies, TV shows, concerts and music, with RAID protection and multiroom streaming capabilities.

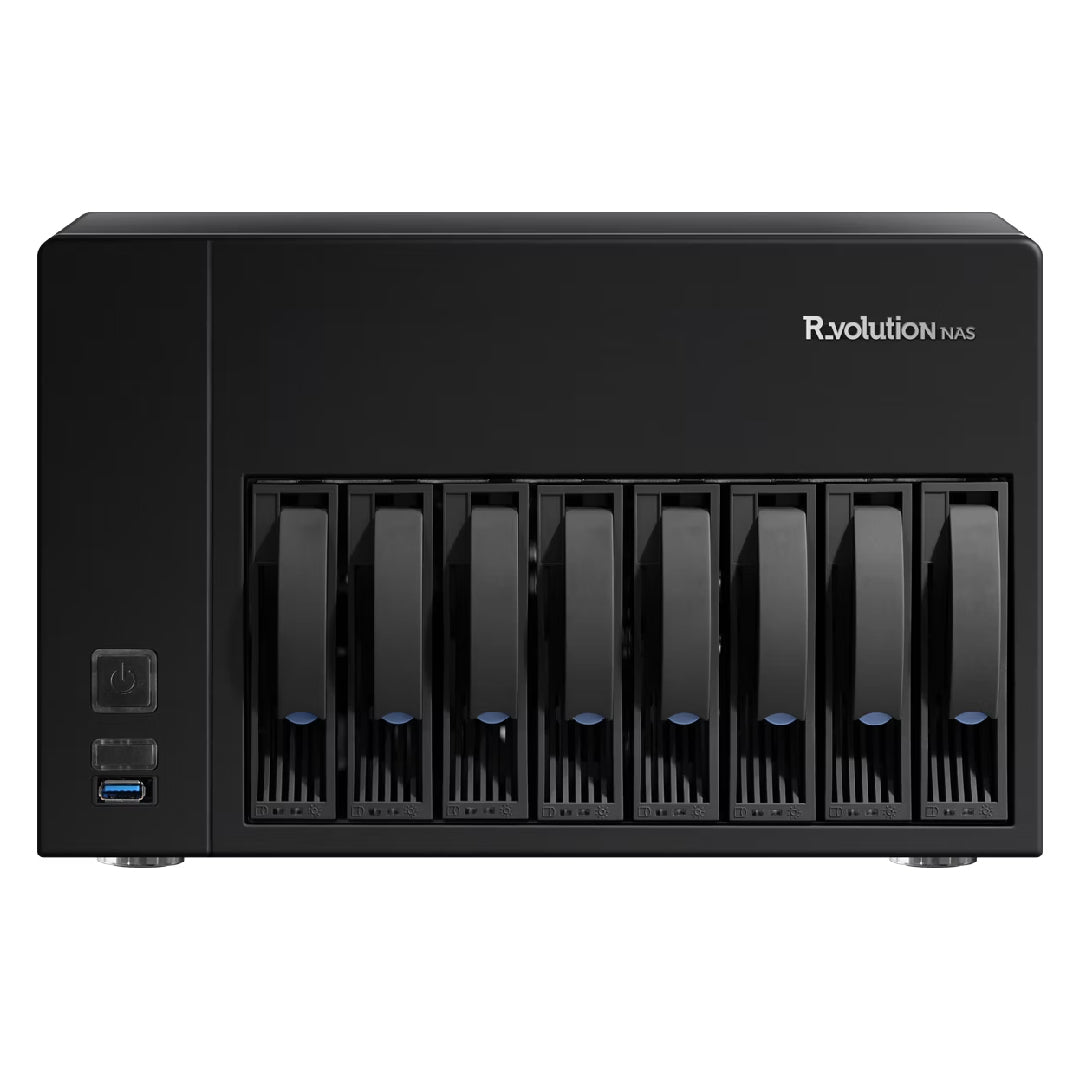

The NAS Storage features eight hot-swappable 3.5-inch SATA drive bays and supports hardware-based RAID configurations including RAID 0, RAID 1, RAID 5 and JBOD. RAID 5 provides protection against a single drive failure while allowing the system to continue operating without interrupting playback.

The R_volution NAS Storage is designed for high-capacity media collections. A single system can store up to approximately 192,000 music files, 19,200 SD video files, 3,200 HD video files or 2,000 4K UHD video files, depending on the installed storage capacity and content size.

For premium home theater applications, the NAS Storage can store movies, concerts and TV shows in uncompressed quality, supporting 10-bit video, HDR, BT.2020, HEVC and 4K/8K Ultra HD content. It also supports advanced audio formats including AC-4, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X.

The integrated R_video Media Center automatically identifies and organizes movies and TV shows, providing covers, wallpapers, synopses, technical information, actors, directors, release dates, ratings and genres. Users can also edit information, organize categories and manage their media library directly through a compatible R_volution media player.

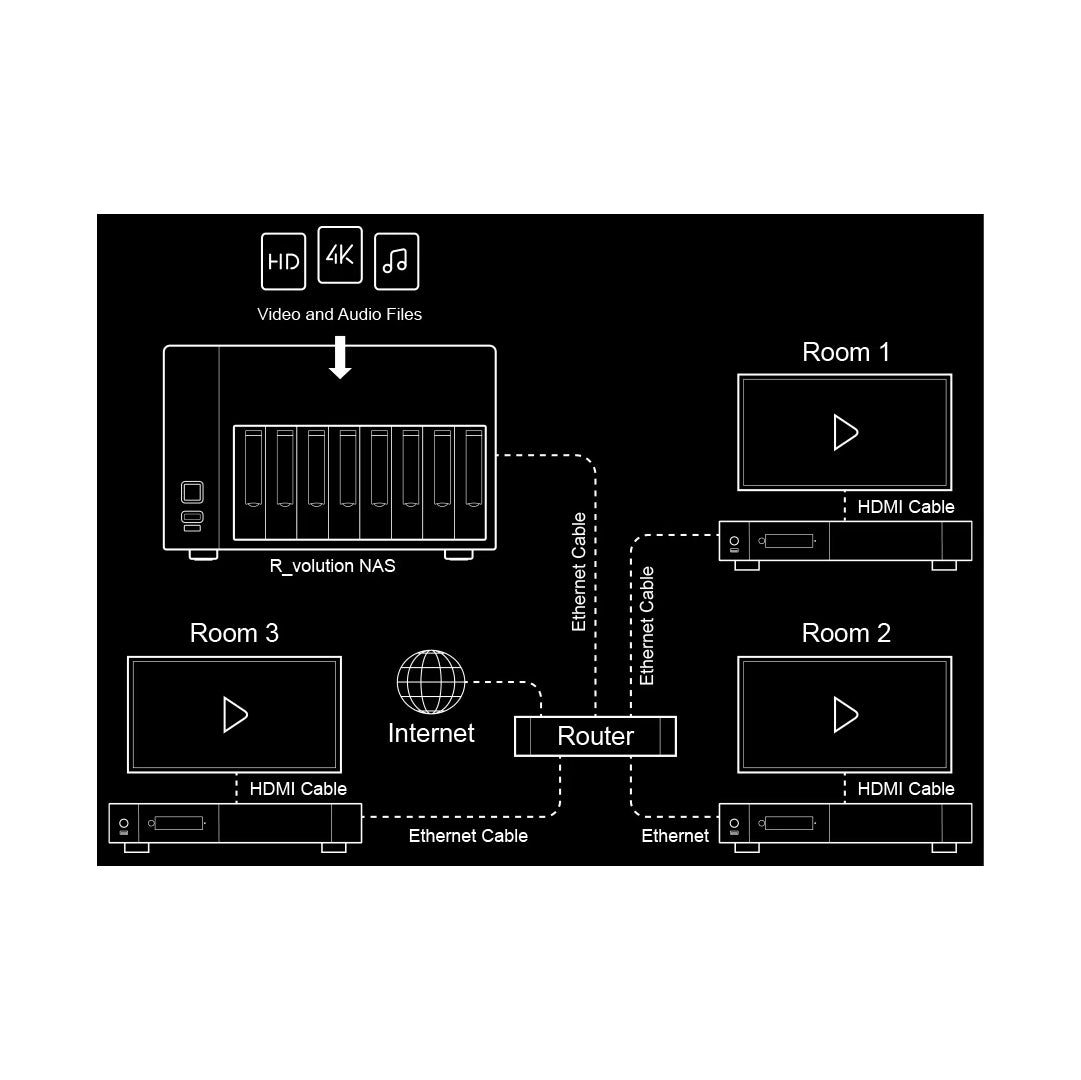

The R_volution NAS Storage supports multiroom video streaming to up to three zones simultaneously when paired with R_volution media players. Each player can operate independently, allowing different movies or TV shows to be played in different rooms.

For music enthusiasts, the NAS Storage supports high-resolution and lossless formats including DSD, WAVE, AIFF, FLAC and ALAC. It also supports multiroom audio systems and can work with compatible platforms and devices such as Roon, Sonos and Bluesound.

The R_volution NAS Storage is plug-and-play and can automatically be detected by compatible R_volution media players connected to the same local network. It is also suitable for yachts, private planes, motor coaches and other environments where a locally stored media library is required.
