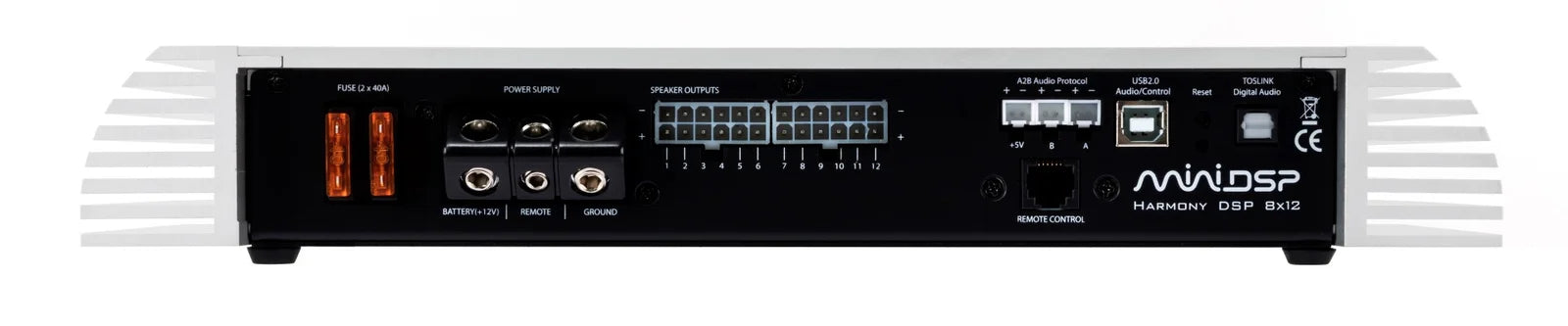

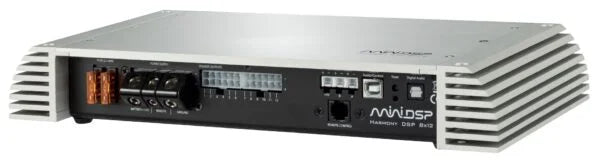

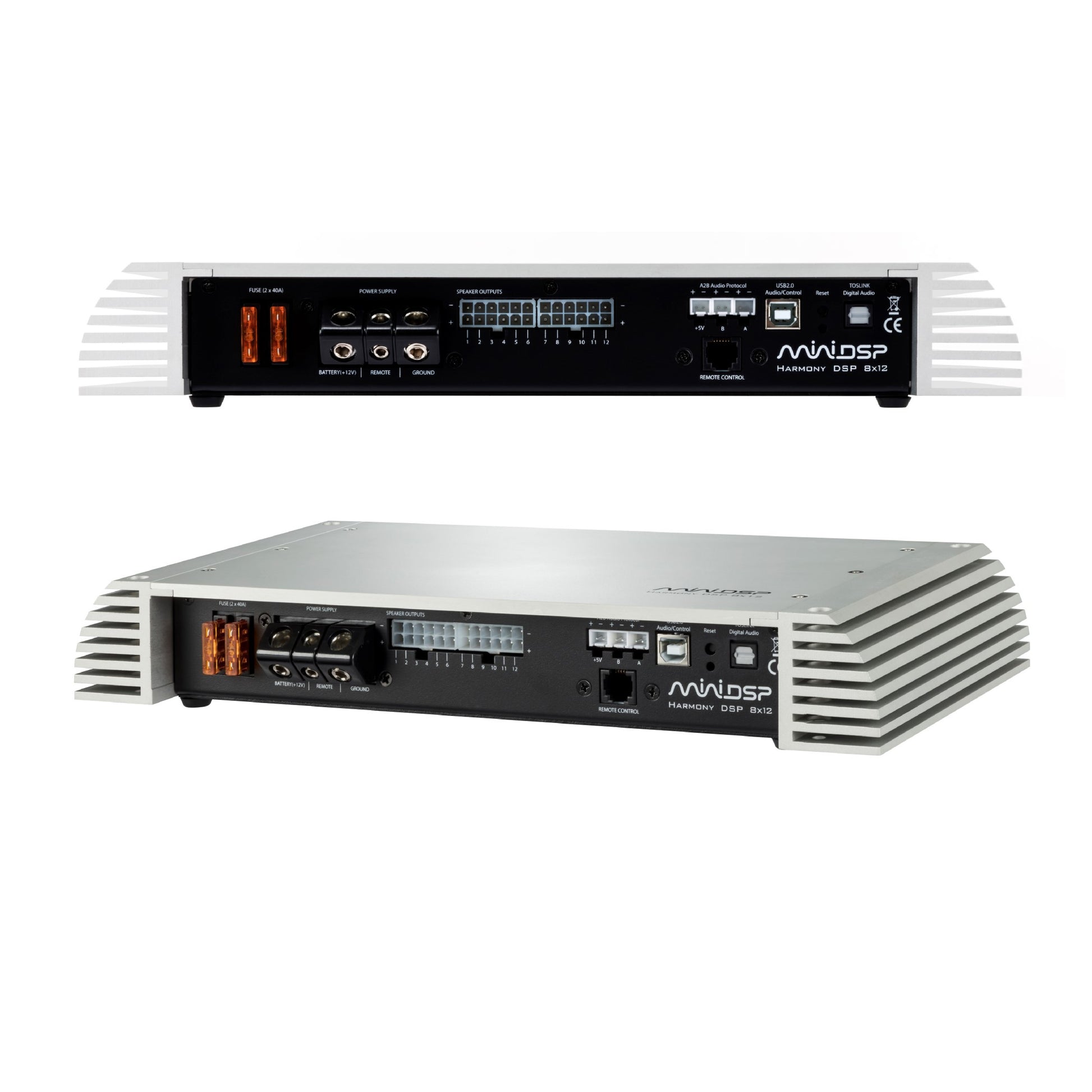

Harmony DSP 8x12

miniDSP is proud to introduce the latest addition to its line of innovative car audio processors. The all-digital Harmony DSP 8×12 integrated DSP/amplifier features six-channels digital audio input via USB, stereo digital optical input (TOSLINK), Dirac Live® acoustic correction and 12 output channels.

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, and a wired remote with OLED display for dash or console. Flexible output configurations cater to a wide variety of system configurations: each output can be a 40 Wrms power amplifier or a line-level output for driving external amplifiers. In addition, each pair of outputs can be configured in parallel BTL mode for 80 W output into 2 Ω loads.

In addition to Dirac Live, the Harmony DSP 8×12 includes miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete processing configurations are stored in flash memory for recall with a wired or infrared remote.

Features
400MHz 32bit Sharc Floating point processor
Dirac Live technology helps tune your cabin environment
All Digital amplifier
USB Audio (6ch), Toslink(2ch), A2B (future) digital inputs
12 channel flexible amplifier for Mono/Bridged mode and Line OUT(driving external amps)
Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
Windows/Mac compatible GUI
Remote control or preset/master & sub volume control

Processor & Control

Powered by a 400 MHz, 32-bit floating-point SHARC DSP (ADSP21489)
Internal sample rate of 48 kHz
Driverless USB 2.0 interface for seamless control via Windows or Mac

Digital Audio Inputs

USB Audio input supporting up to 6 channels at 44.1 / 48 kHz
TOSLINK stereo input supporting 44.1 to 192 kHz
A2B® multichannel audio input (future firmware upgrade support)

Digital Audio Outputs

A2B® multichannel output for amplifier linking (future firmware upgrade)

Power Output & Performance

12 × 40W RMS (4Ω load, BTL mode)
6 × 80W RMS (2Ω load, PBTL mode)
THD+N: <0.03% (1 kHz, 30 mW to 40W, 4Ω load)
Signal-to-noise ratio: >107 dB (A-weighted, 40W @ 4Ω)
Frequency response: 20 Hz – 20 kHz (±0.5 dB)
Crosstalk: < –80 dB (1 kHz)

Analog Output Modes

BTL mode for loads above 2Ω (4Ω)
PBTL mode for loads between 1–2Ω (2Ω)
Line-out mode for external amplifier connection

Line-Out Specifications

Maximum output level: 5V RMS balanced
THD+N: <0.03% (1 kHz, digital input 0 dB)
Signal-to-noise ratio: >102 dB (A-weighted)
Frequency response: 20 Hz – 20 kHz (±0.2 dB)

DSP Processing

Integrated Dirac Live® correction (8 channels)
Advanced matrix mixer and miniDSP processing across all 12 outputs

Configuration & Presets

4 onboard presets for Dirac Live and DSP configurations

Control & Remote

External wired remote (RJ11) for preset selection, volume, mute, and Dirac on/off
Built-in OLED display for status monitoring

Power Supply

Operates on 10–16 V DC
REM input (4V DC trigger level)

Dimensions & Build

Main unit dimensions: 321 × 150 × 45 mm
Remote dimensions: 102 × 23 × 41 mm
Durable powder-coated steel enclosure with aluminium heatsink
