Flex HTx

➤ Advanced multichannel DSP processor with HDMI ARC/eARC support
➤ Multiple inputs – analog (RCA/TRS), HDMI (LPCM), USB, SPDIF & TOSLINK
➤ Flexible DSP features – bass management, parametric EQ, crossovers & delay control
➤ Upgradeable with Dirac Live® for full-range room correction
➤ 8-channel processing with high-performance low noise & distortion

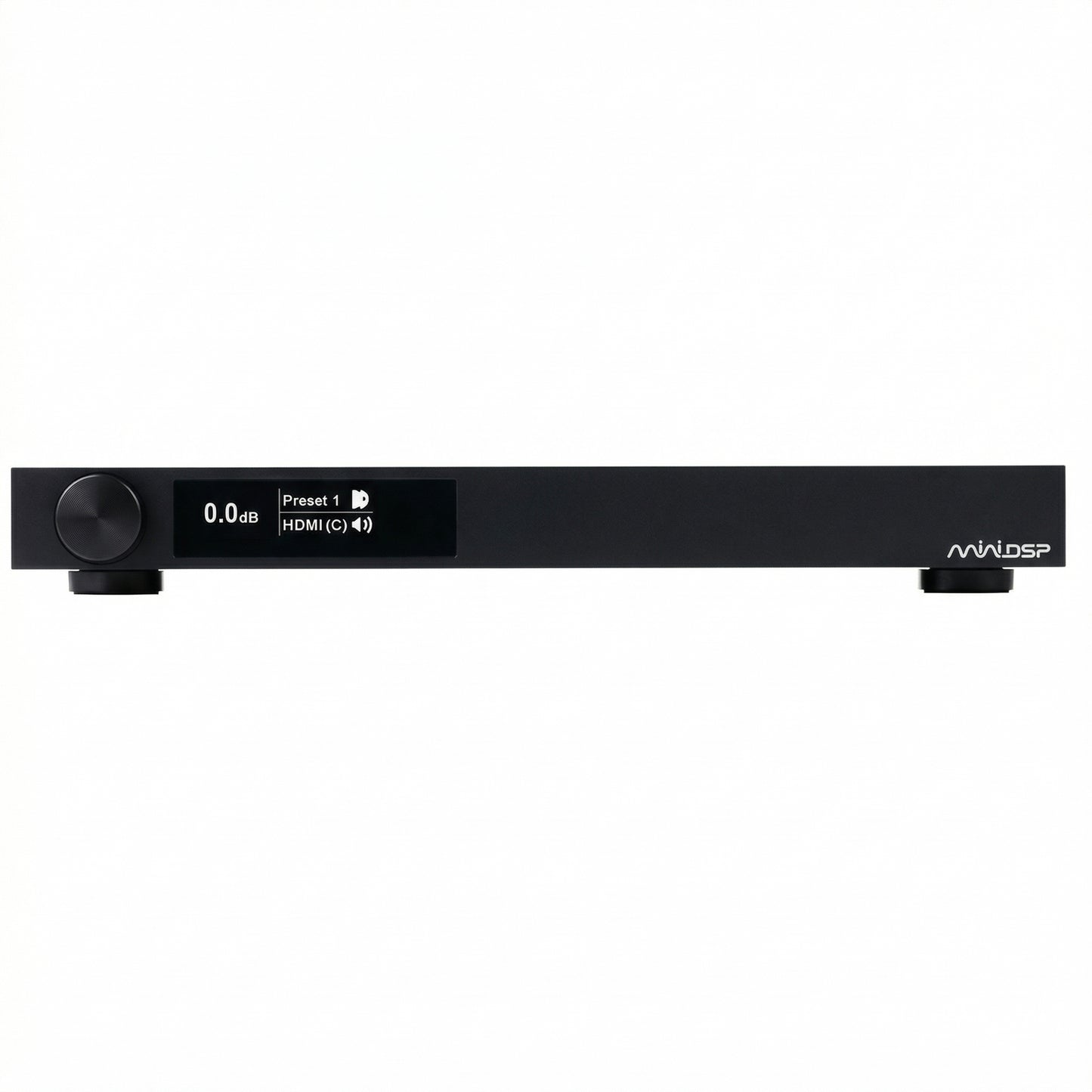

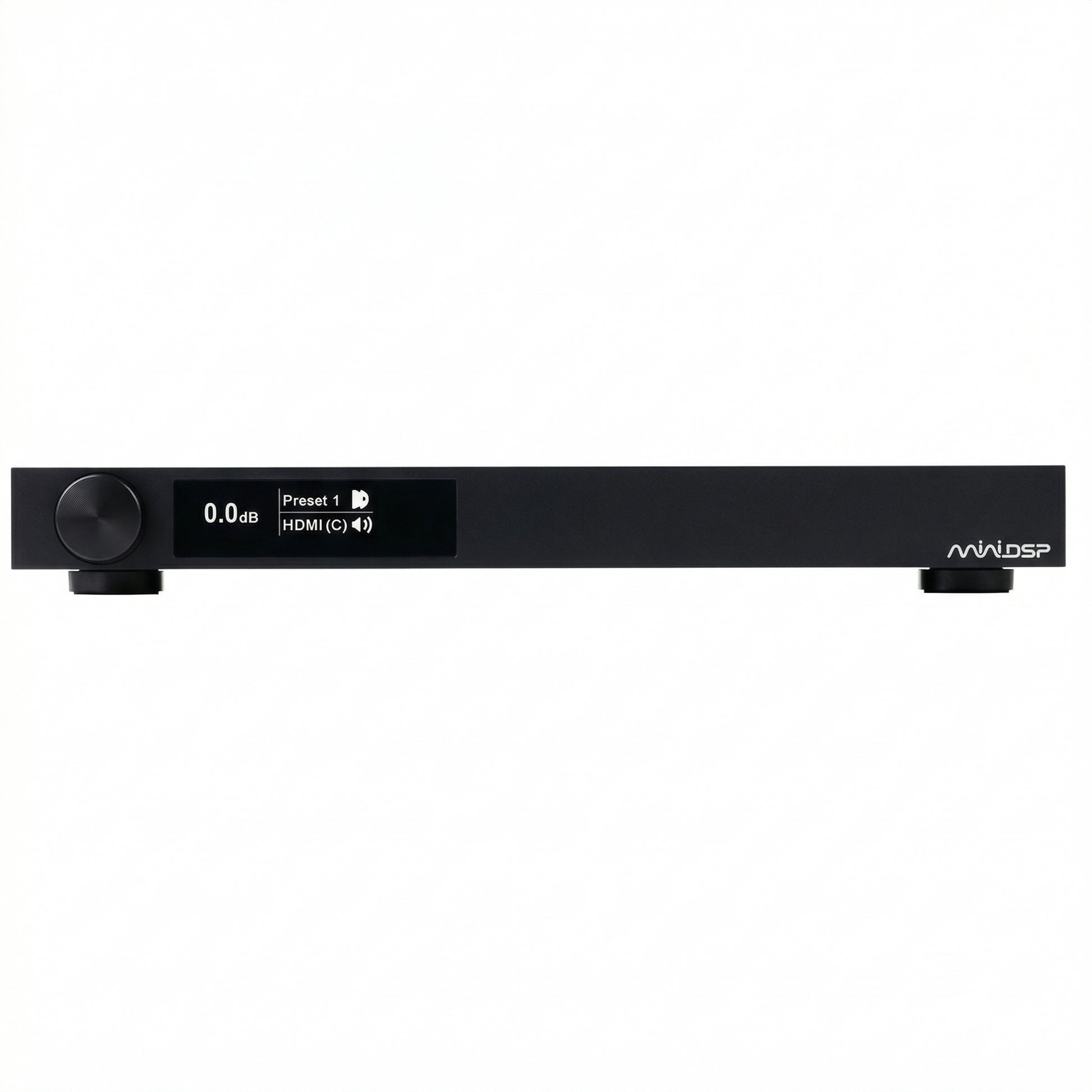

➤ OLED display with volume knob for easy front panel control
➤ Ideal for home theater & multichannel audio systems
➤ Requires LPCM input (no Dolby/DTS bitstream decoding support)
➤ 32-bit floating-point 400MHz SHARC DSP with XMOS multi-core USB processor
➤ HDMI eARC/ARC support for multichannel LPCM audio (no Dolby/DTS bitstream)
➤ Optional Dirac Live® 3.x for full-range 8-channel room correction
➤ Audiophile-grade performance – 127dB SNR & ultra-low distortion (-120dB THD+N)
➤ Multiple inputs – SPDIF, Optical & USB (up to 7.1 multichannel)
➤ 8-channel output via unbalanced RCA
➤ OLED front panel display with IR remote control
➤ Easy configuration via miniDSP Device Console software
➤ Rack-mountable design with removable rack ears

➤ 400MHz SHARC DSP (ADSP21489) with 32-bit / 48kHz processing
➤ Multichannel USB audio (up to 7.1) with UAC2, ASIO (Windows) & plug & play (Mac/Linux)
➤ Flexible DSP routing – 8ch input (USB/HDMI/Analog) or 2ch input (SPDIF/TOSLINK) to 8ch output
➤ HDMI ARC/eARC for up to 8-channel LPCM audio (no Dolby/DTS decoding)
➤ Multiple inputs – USB, Analog, SPDIF (RCA) & Optical (TOSLINK)
➤ Wide sample rate support (20–216kHz for digital inputs)
➤ 8-channel analog output for multichannel setups
➤ Advanced DSP processing for flexible audio configuration

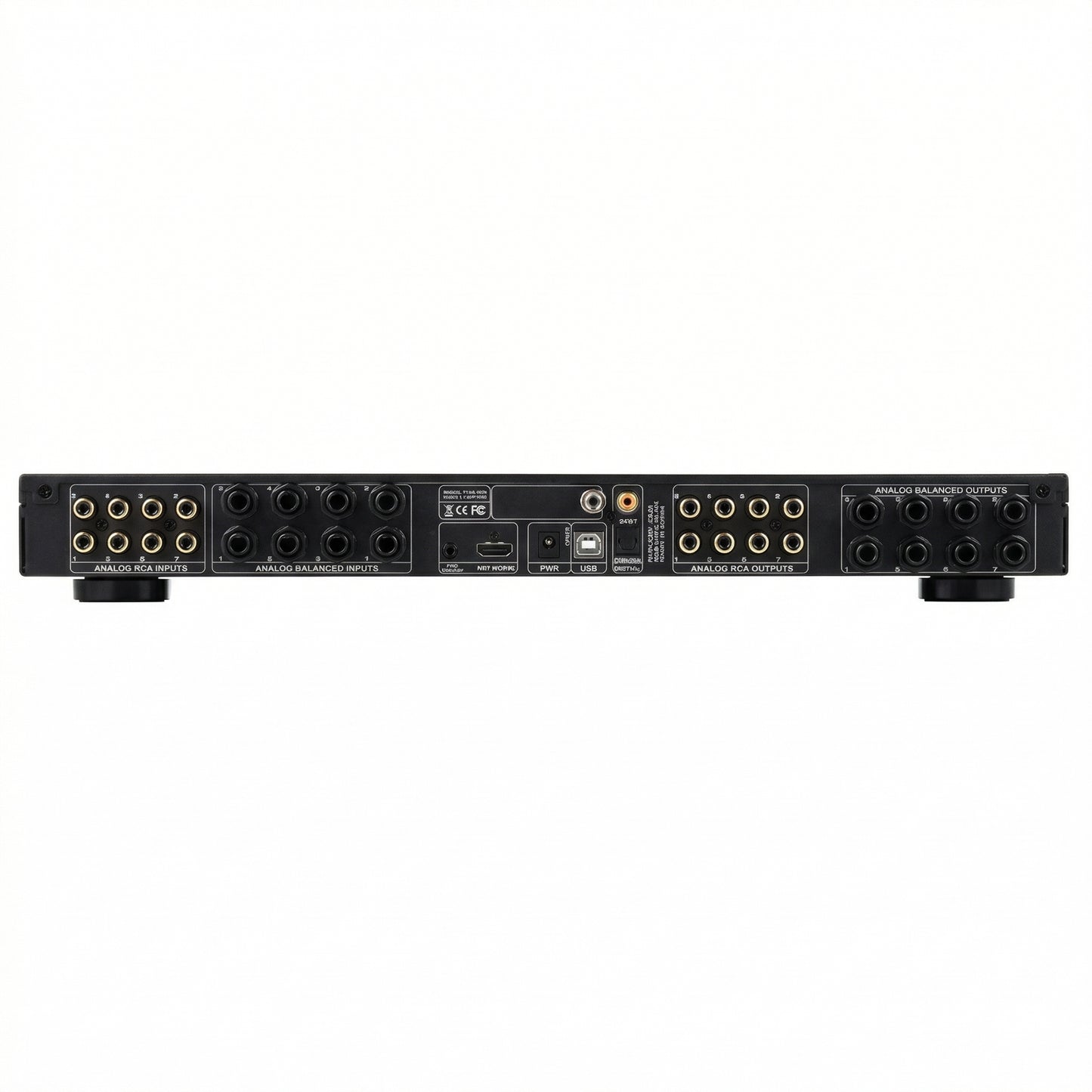

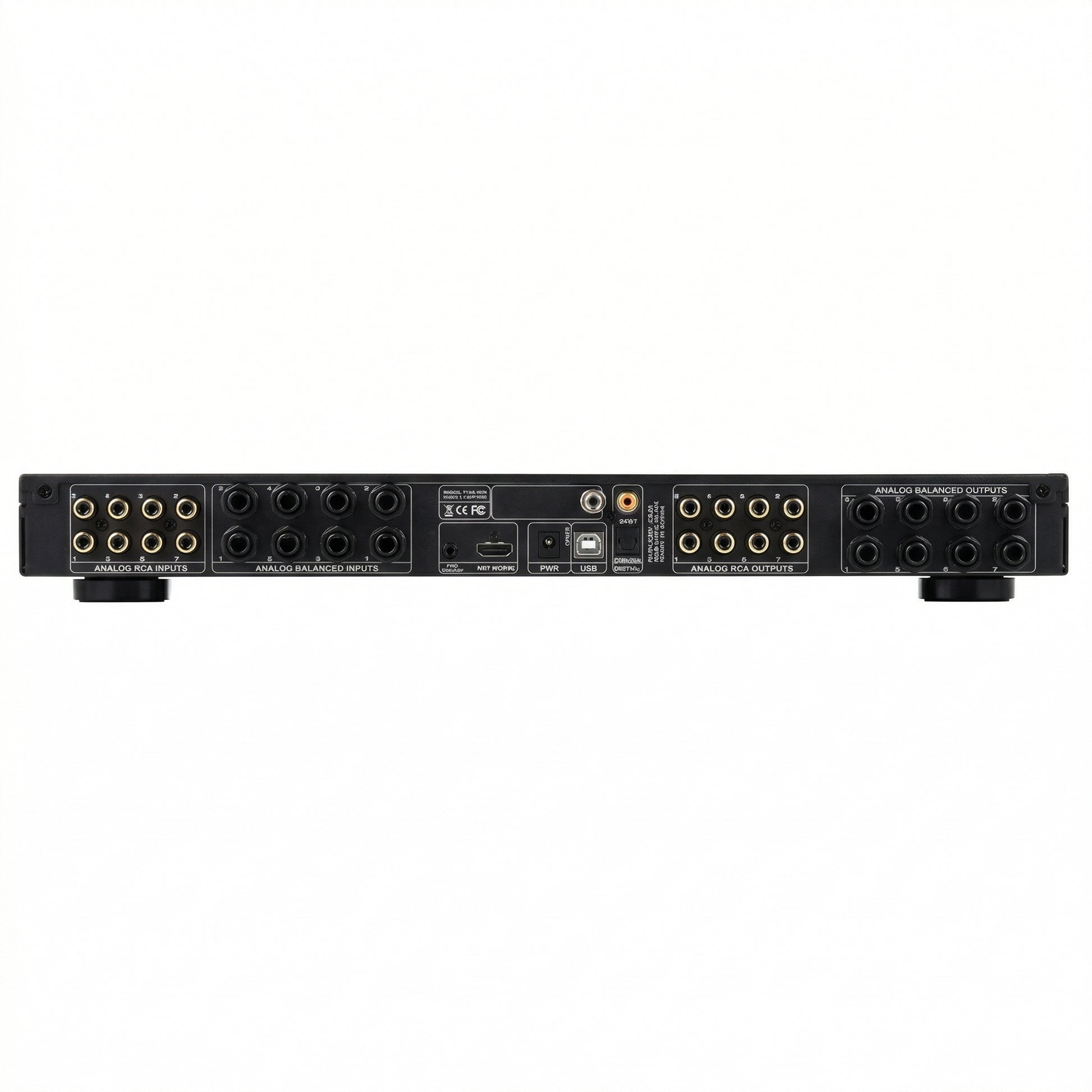

➤ Dual connectivity – Balanced 6.35mm TRS & Unbalanced RCA inputs
➤ 8-channel analog input support (TRS & RCA)
➤ High input impedance – 200 kΩ (TRS) / 100 kΩ (RCA)
➤ Low output impedance – 300 Ω (TRS) / 150 Ω (RCA)
➤ Max input/output levels – 4 Vrms (TRS) / 2 Vrms (RCA)
➤ Wide frequency response – 20 Hz to 20 kHz (±0.1 dB)
➤ 400MHz SHARC DSP (ADSP21489) with 32-bit / 48kHz processing
➤ Multichannel USB audio (up to 7.1) with UAC2, ASIO (Windows) & plug & play (Mac/Linux)
➤ Flexible DSP routing – 8ch input (USB/HDMI/Analog) or 2ch input (SPDIF/TOSLINK) to 8ch output
➤ HDMI ARC/eARC for up to 8-channel LPCM audio (no Dolby/DTS decoding)
➤ Multiple inputs – USB, Analog (TRS/RCA), SPDIF & Optical with wide sample rate support (20–216kHz)
➤ Dual analog connectivity – 8x Balanced TRS & 8x Unbalanced RCA inputs
➤ High-performance audio – up to 127dB SNR & ultra-low distortion (-120dB THD+N)
➤ Excellent analog performance with low crosstalk & high dynamic range
➤ Advanced DSP toolbox – EQ, bass management, crossovers, delay & routing
➤ Optional Dirac Live® 3.x for full-range room correction (20Hz–20kHz)
➤ Up to 4 presets with IR remote control
➤ HDMI CEC control & 12V trigger output for system integration
➤ Rack-size design with included power supply (16.5W idle / 3.7W standby)
