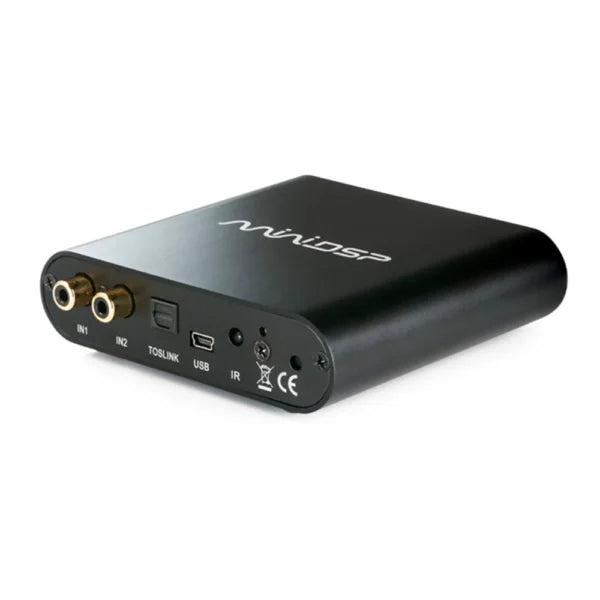

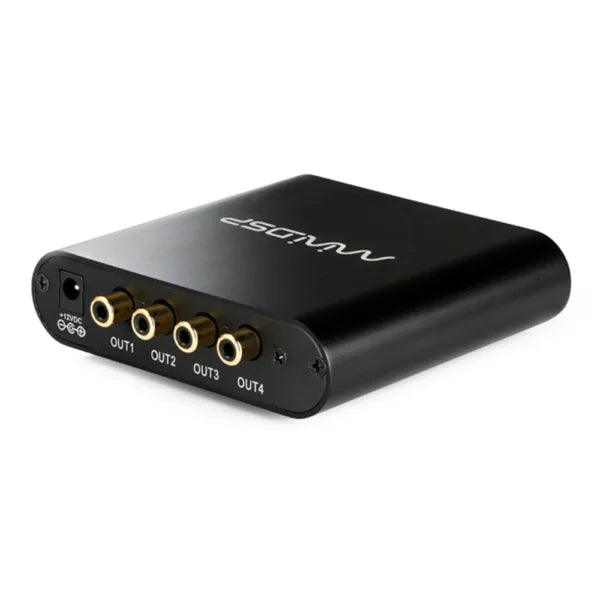

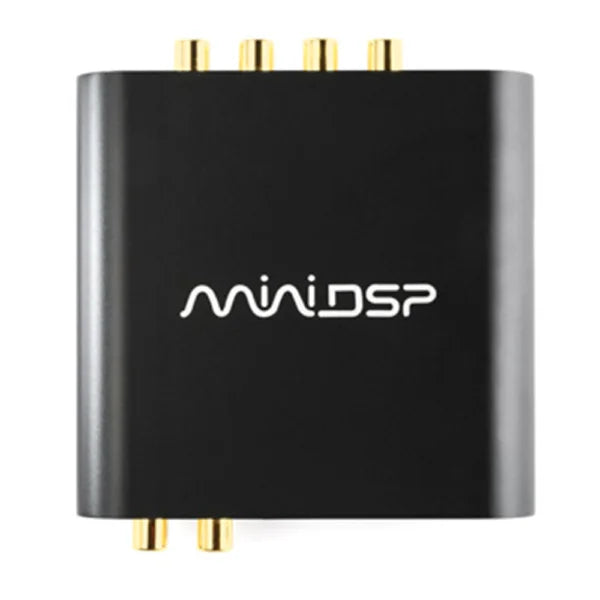

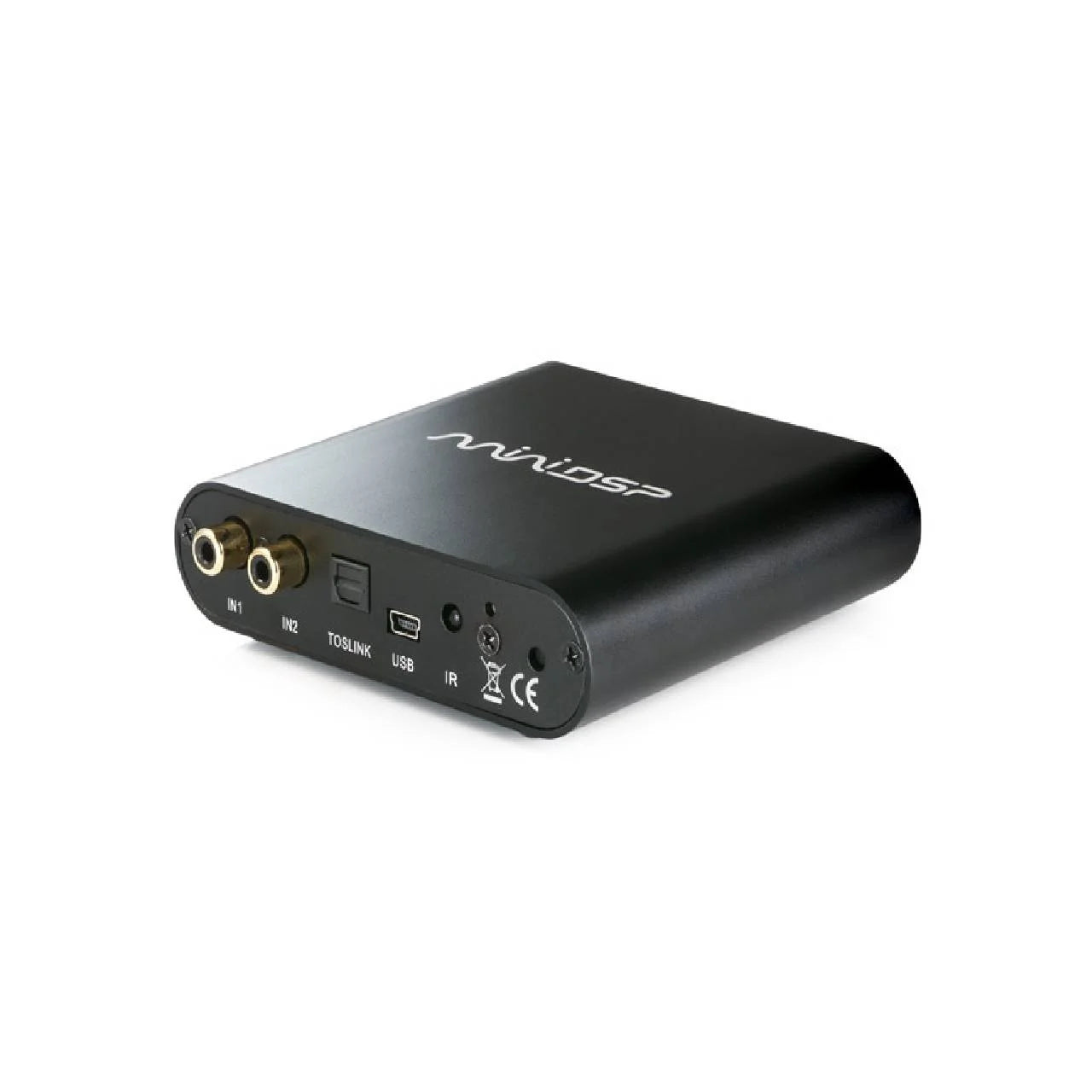

miniDSP DDRC-24

miniDSP introduces the DDRC-24, the world’s smallest Dirac Live® hardware processor. Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2×4 Hd, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC Dirac Live Room Correction Speaker processing.

I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP DDRC-24 will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed.

Features:
ADSP21489 400MHz Sharc DSP floating point engine
XMOS Xcore200 for USB control and bidirectional audio streaming
24 bit ADC/DAC resolution
Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
Unbalanced outputs: Max 2Vrms
USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx
4 preset configuration, recallable via IR, Software
Wifi/Alexa voice control via WI-DG accessory

Digital Signal Processor Engine: Analog Devices fixed-point DSP SHARC (ADSP21489)

Processing Resolution & Sample Rate: 32-bit / 48 kHz

Input / Output Configuration: 2 inputs / 4 outputs

Input / Output Max Levels:
Input: 2 Vrms / 4 Vrms
Output: 2 Vrms
Input Impedance: 10 kΩ
Output Impedance: 560 Ω
Calibration Software: DDRC-24 plugin
Dimensions: 27 × 119 × 107 mm
Power Supply: 12 V DC (single supply)
