Rythmik Audio E15HP2

225,593.22

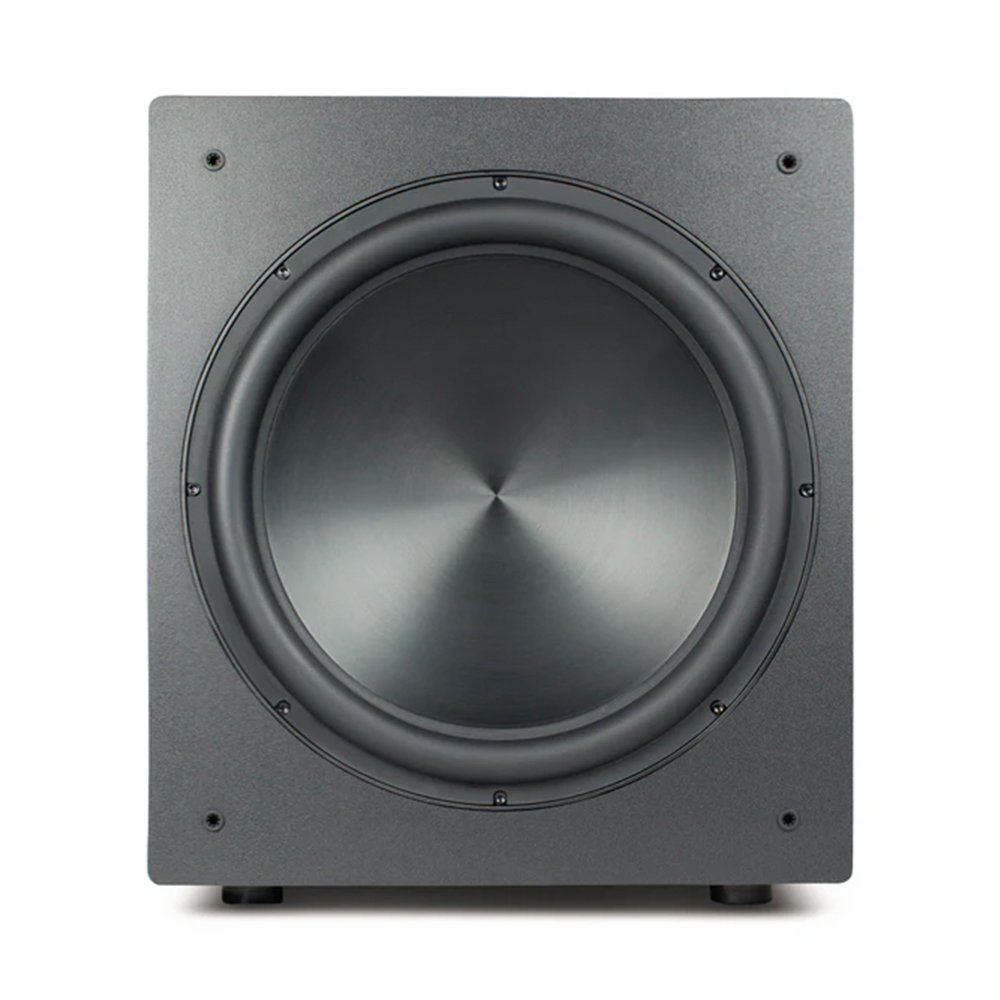

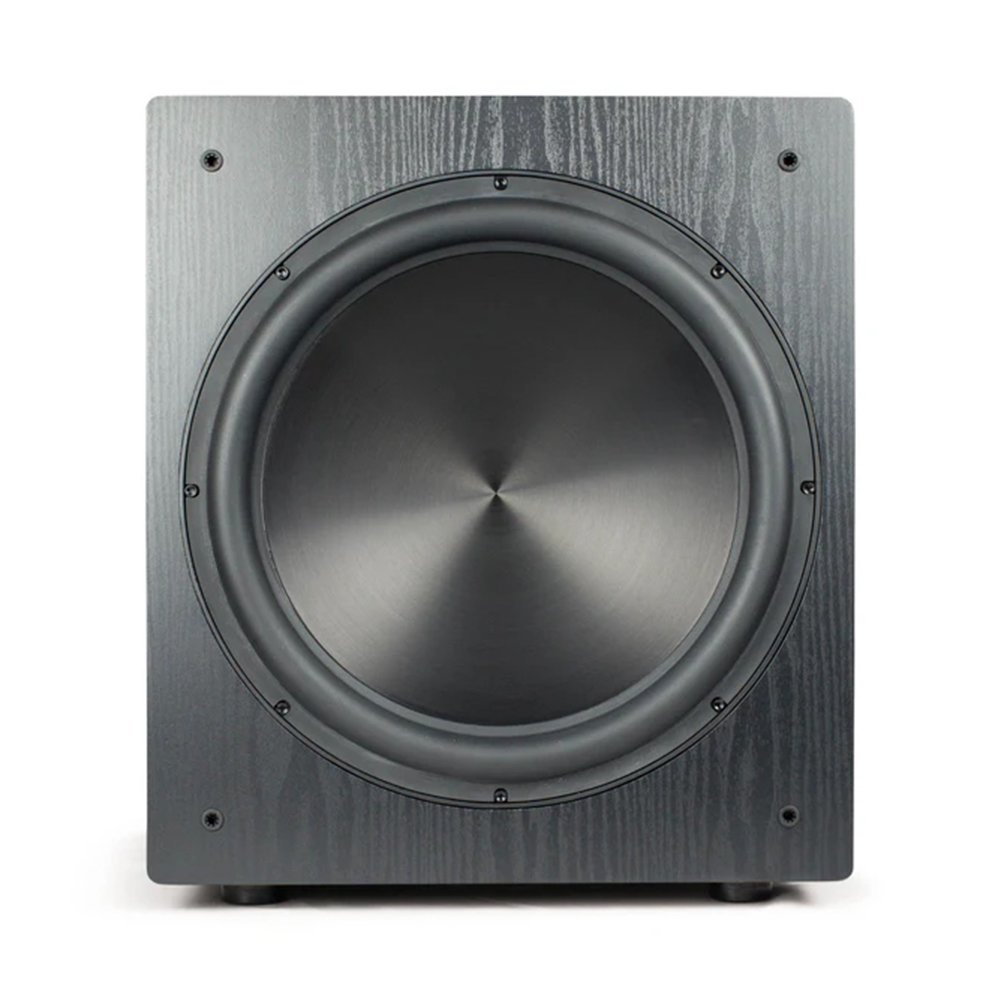

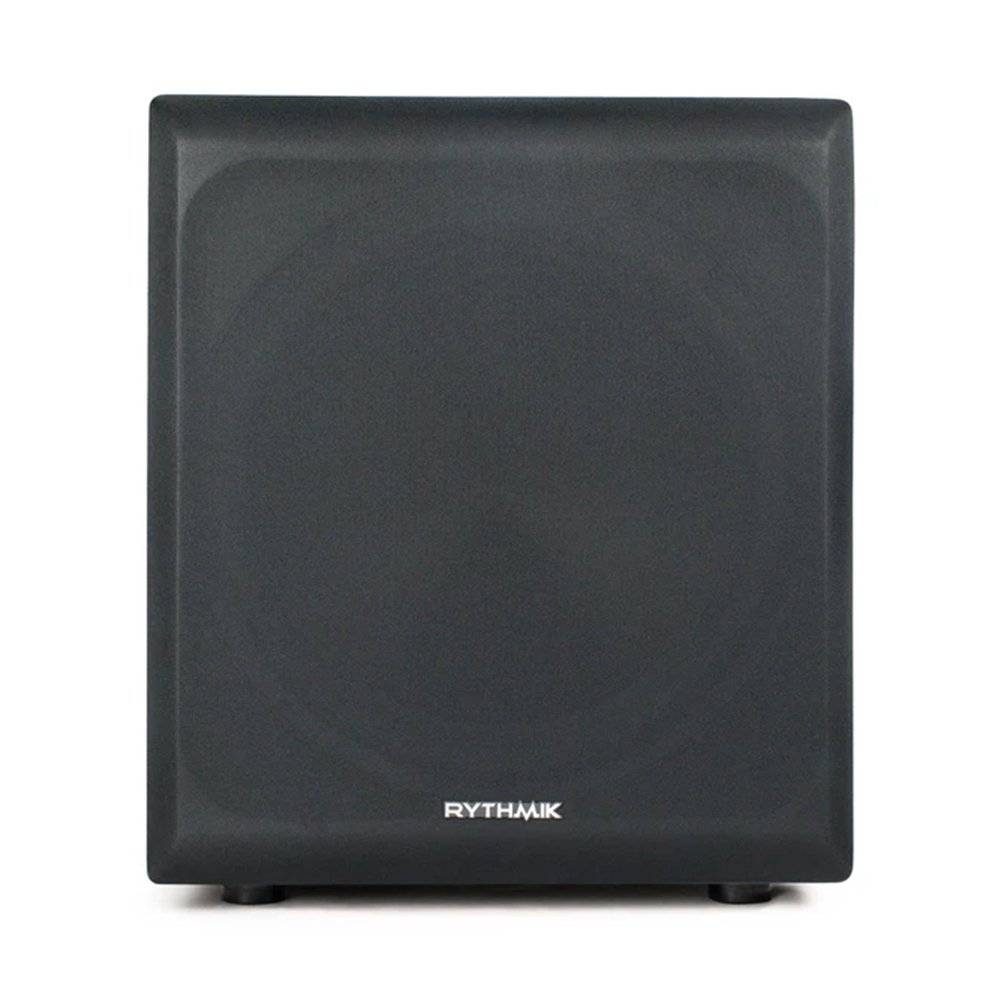

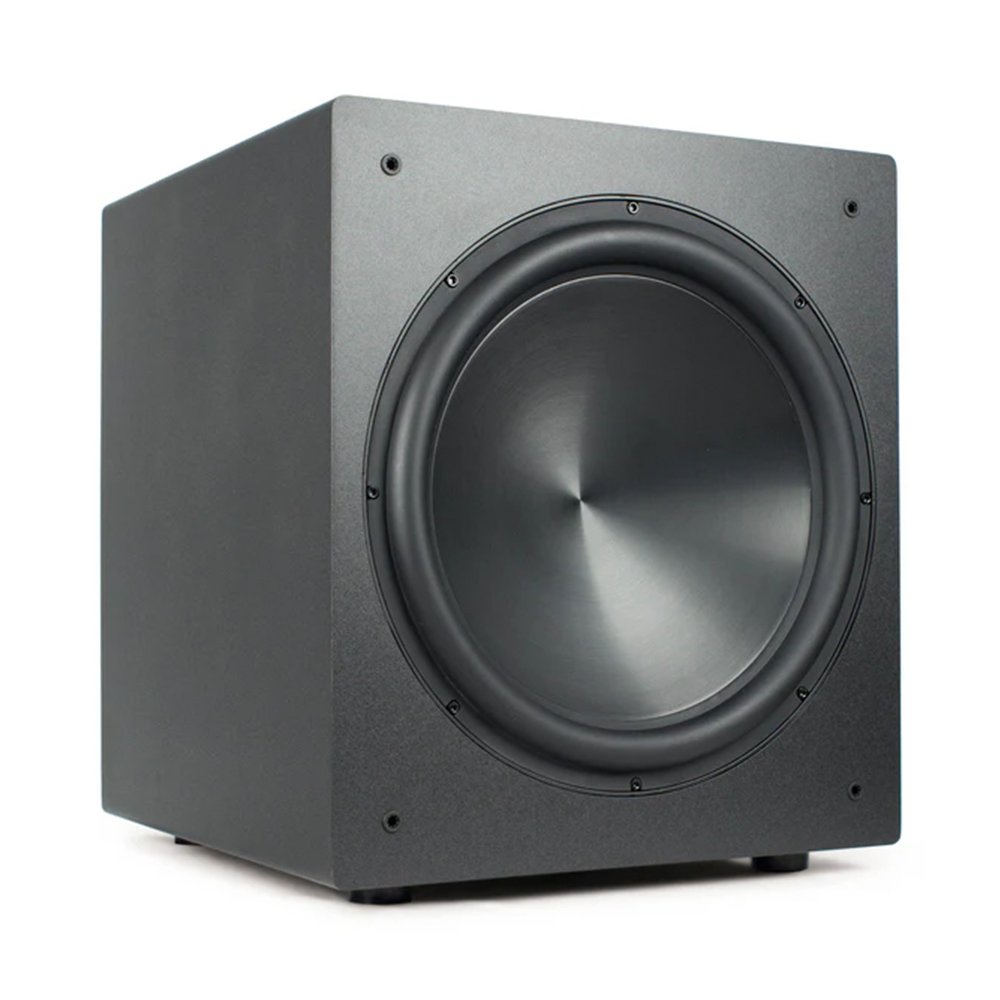

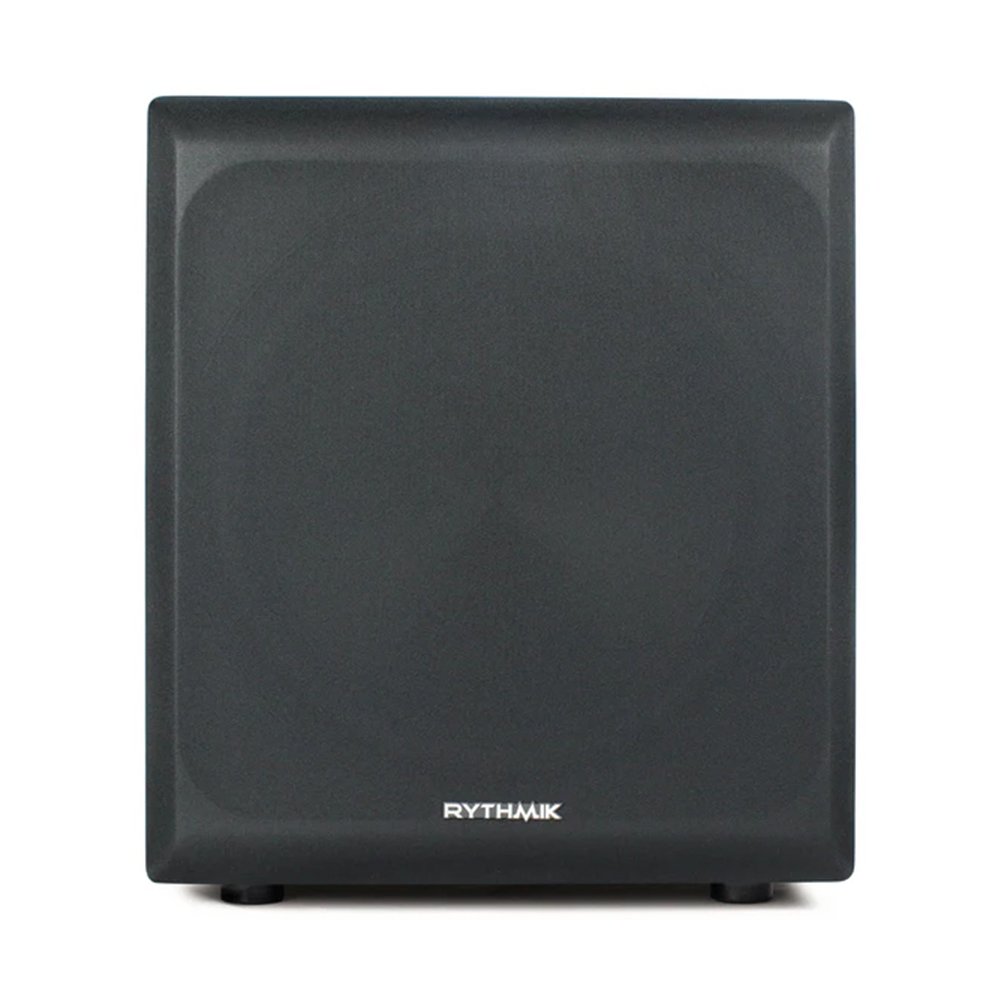

15″ Compact High Power Subwoofer.

SKU: 15105 Categories: , Tags: , ,

Description

The E15HP2 is our answer to the need for more output in a compact size. It is based on F15HP so it has more output than our standard subs, yet we have carefully reduced the size to minimise the visual impression of its size without substantial sonic compromise.

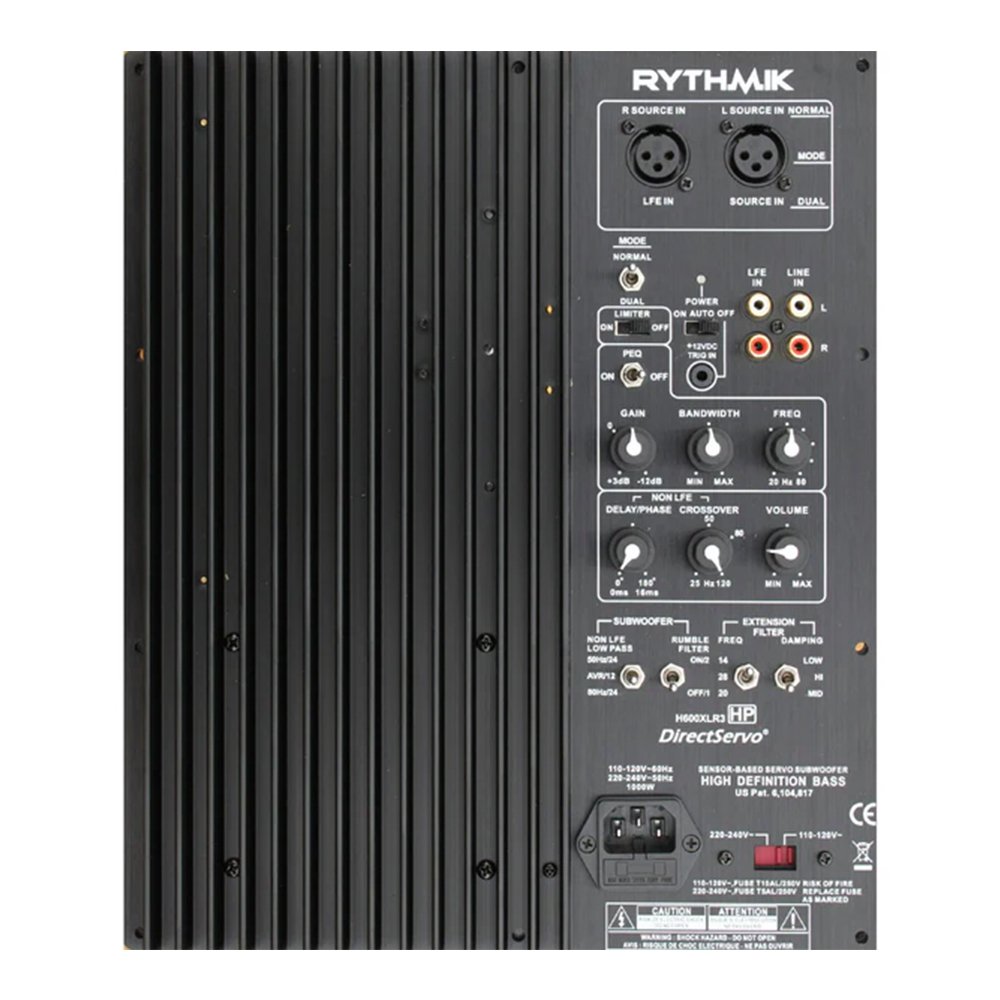

E15 now uses our high power H600XLR3 servo amplifier and DS1510 driver. DS1510 features anodized aluminum cone, a 3″ voice coil, and 200 oz magnet. Its linear excursion range has increased to /- 20mm (from /-15mm of DS1500). The entire subwoofer is 12lbs heavier than DS1501.

 H600XLR3 amps do not have high pass filter RCA output, nor speaker level inputs. E15HP2 is the same as E15 except with the HX1000XLR3 amplifier to offer 1.5db more output. E15HP2 features an HX1000XLR3 upgrade.

Features:

  • Patented Direct Servo technology
  • 15″ silver anodized aluminum high excursion driver
  • 600w high power H600PEQ amplifier
  • Solid and very inert enclosure
  • Bass extension controls allowing adjustment of bass extension and excursion control
  • Balanced XLR input option
  • Parametric EQ

Specifications:

Driver: DS1510 15″ high excursion with custom sensing coil
Amplifier: 600 RMS class H patented servo controlled
Frequency Response: 14 – 200 Hz (-2 dB @ 14 Hz) with LFE inputs in A370PEQ3/XLR2/XLR3
  14 – 90 Hz (-2 dB @ 14 Hz) with LINE IN inputs in all models
Crossover slope: Selectable 12 or 24 dB / octave (PEQ and XLR versions)
Crossover range (Low pass): 25 – 100 Hz
Phase response 90 degrees phase shift at 20 Hz (measuring mic has 18 degrees shift)
Phase adjustment 0 – 180 degrees continuously variable
Dimensions: 17″(W) x 19 ” (H )x 20″(D) – (18″ (D) without grille, nor amp depth
Shipping Weight: 104 lbs
Finishes: Available in black matte vinyl or black oak vinyl

Warranty: 5 years warranty on driver and 3 years on electronics

Additional information

Weight 47 kg
Color

Black Matte, Piano Gloss Black
