Calibrated headphone test fixture, low noise capsules, USB audio plug & play setup, Configurable jumpers Array
Introducing “EARS”, the Earphone Audio Response System. miniDSP EARS brings headphone measurement capability to “the masses” – it’s just an extremely affordable measurement rig for headphones and IEMs that we’ve built using the same technology as our popular UMIK-1 calibrated measurement microphone. Alternatively one could use EARS as a binaural microphone with USB audio streaming.

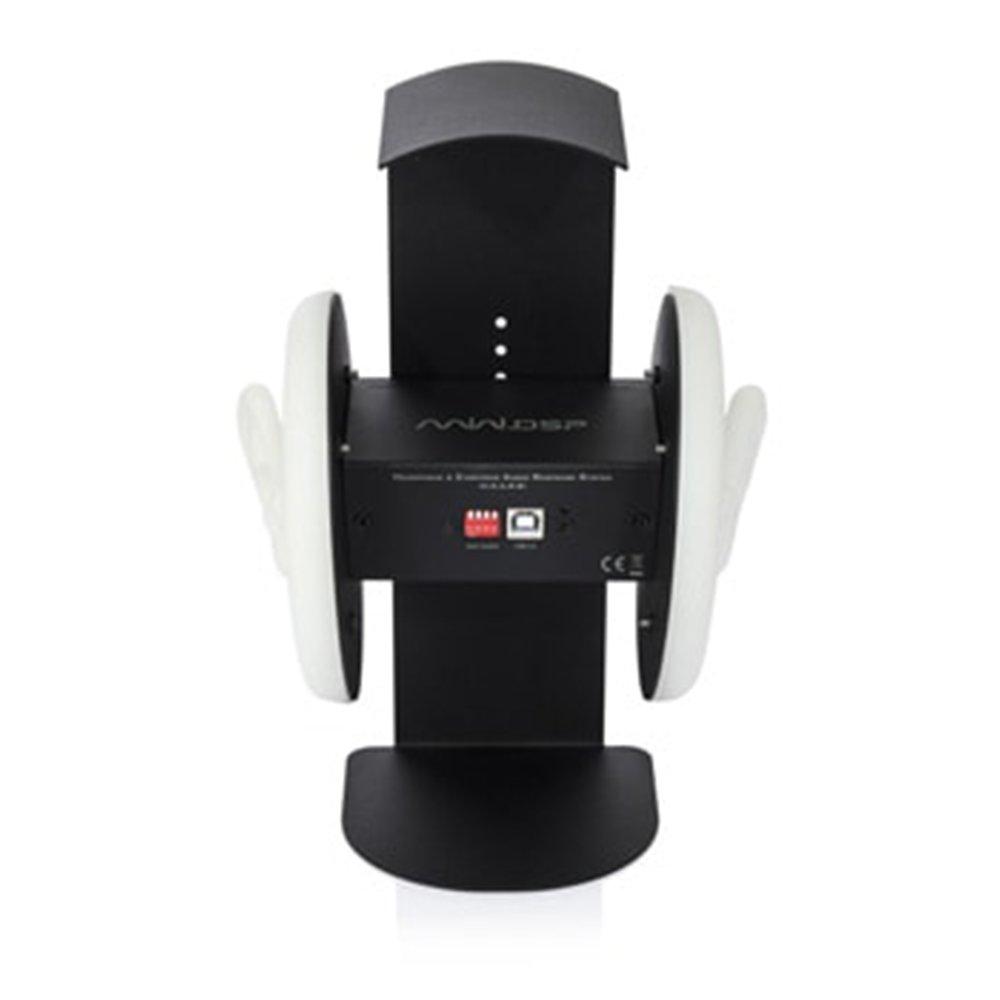

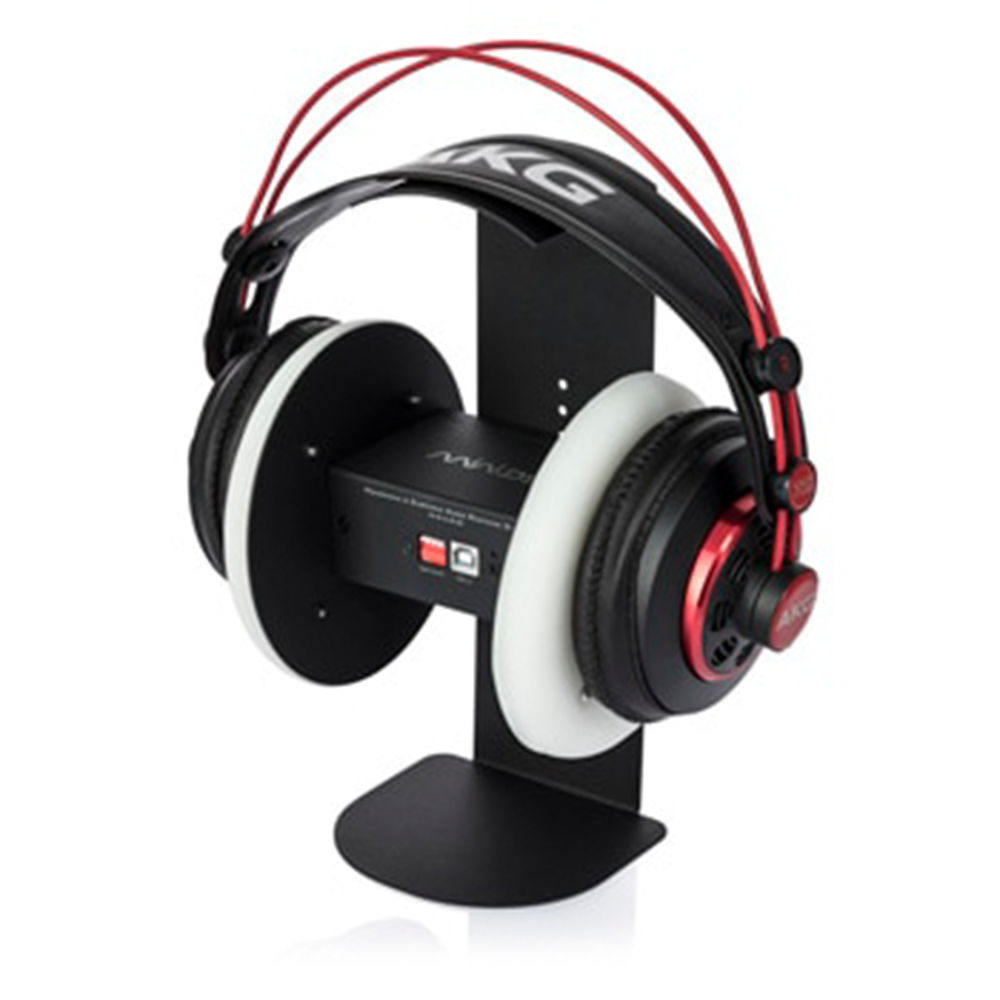

Each pair of EARS has two microphone capsules mounted in a minimal “dummy head”. Measurement output is via the driverless USB connection. The EARS are powered from the USB so there is no need for an external power supply. To measure headphones, just mount your headphones on the rig and run a measurement sweep using your headphone amp and favorite measurement program (e.g. Room EQ Wizard). The supplied calibration file corrects for the response of the microphone capsule and the ear. The miniDSP EARS is the perfect tool for creating EQ filters for the miniDSP HA-DSP headphone amplifier or for any other headphone system with EQ capability.
- Affordable Headphone test jig
- Plug&play USB audio streaming for Win/Mac/Linux
|Frequency response:||20 Hz – 20kHz|
|USB Audio Class:||USB Audio class 1.0|
Driverless interface for Windows, Mac & Linux
|Resolution & Sample rate:||24bit ADC @ 48kHz|
|Power:||USB Powered (5V) – Blue LED indicates unit under power|
