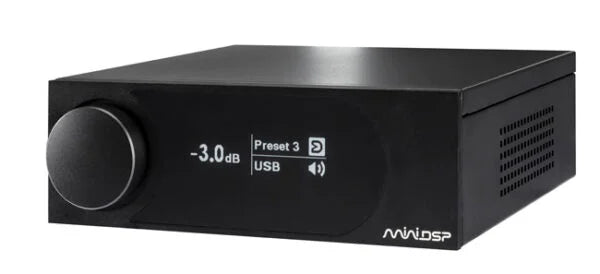

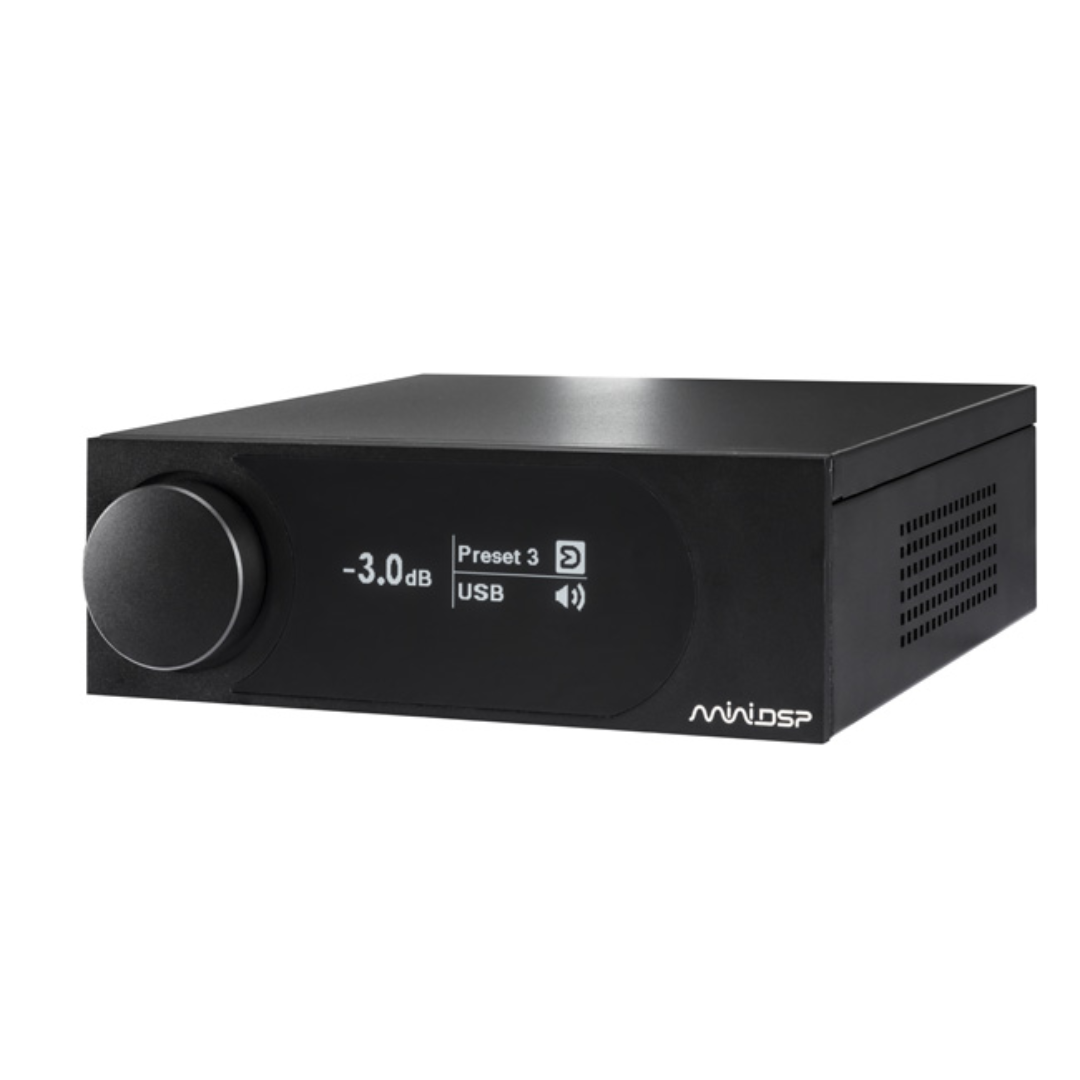

SHD Power

miniDSP is proud to introduce the latest member of the SHD (“Streaming High Definition”) processor family. As with all SHD Series processors, the SHD Power includes Dirac Live®, the world’s premier room correction solution, and a full suite of miniDSP’s powerful but user-friendly audio tuning software.

The SHD Power includes a 120W per channel low-distortion power amplifier for powering main speakers, and two additional analog outputs for connecting a subwoofer or subwoofers. With three digital inputs and high-resolution USB Audio, the SHD Power is the ideal modern integrated amplifier, all packed into an unbelievably compact metal enclosure.

The miniDSP SHD Power is a certified Roon Ready network player. Being Roon Ready means that miniDSP uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise. The quad-core streaming processor in the SHD Power also runs Volumio, a popular open-source network streamer, providing web-based access to music files from sources as diverse as a USB stick to Internet Radio and Spotify.

Hardware Features
Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP
32bit Audiophile converters
Proprietary custom 2 x 120W amplifier (8Ohms/4Ohms), SNR >110dB (at 1kHz A-weighted, 120W in 8Ω), Embedded PCM1795 DAC chipset + TPA3255 Class D chipset
Powered by Dirac Live® 3.x Digital Room Correction
Quad core ARM processor for network audio streaming – Roon Ready and Volumio

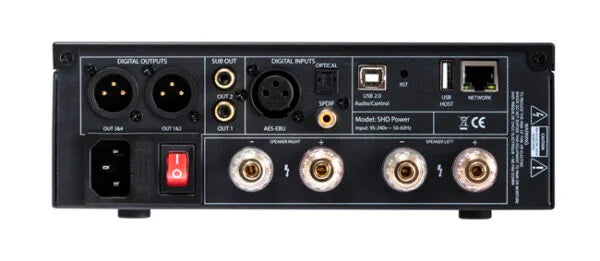

Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical)
Outputs: 2 x 120W amplifier output , 2 x analog out (Unbalanced RCA), 4 x digital AES-EBU
USB audio recording feature (4xCH processed output via USB audio to record digital inputs)

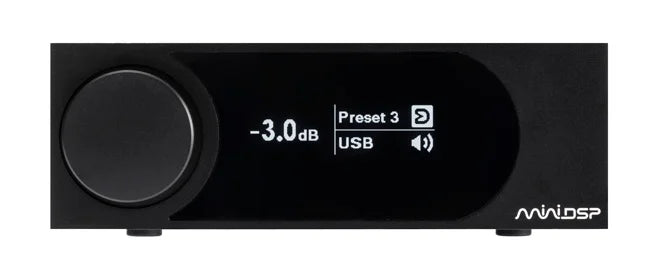

White/Black OLED front panel controller

• Digital Signal Processor:
- 32-bit floating-point Analog Devices SHARC ADSP21489 @ 450 MHz
- Internal sample rate: 96 kHz

• Control:
- Driverless USB 2.0 control interface (Windows)
- Computer required only for initial configuration and USB audio streaming

• Network Audio Streamer:
- Roon Ready certified network player
- Volumio Audiophile player support
- Quad-core ARM processor
- Gigabit Ethernet
- USB 2.0 for external hard drive

• Bidirectional USB Audio:
- XMOS asynchronous USB audio up to 192 kHz
- USB Audio Class 2 compliant
- ASIO drivers for Windows
- Driverless for macOS
- 2-channel playback (PC to SHD)
- 4-channel recording post-processing (SHD to PC)

• Digital Audio Inputs:
- Selectable via IR remote or front panel
- Supports up to 216 kHz sample rate
- AES/EBU (Neutrik 3-pin female XLR, transformer isolated)
- SPDIF (RCA, transformer isolated)
- TOSLINK (Optical)

• Digital Audio Outputs:
- 4-channel digital output
- 2 x AES/EBU (XLR connectors, transformer isolated)

• Amplifier Specifications:
- 2 x 120W RMS (8Ω / 4Ω)
- THD+N:
- < 0.005% (100 Hz, 1W–100W, 8Ω / 4Ω)
- < 0.03% (20 Hz – 20 kHz, 60 mW–100W, 4Ω)
- < 0.07% (20 Hz – 20 kHz, 60 mW–100W, 8Ω)
- SNR:
- > 110 dB (1 kHz A-weighted, 120W @ 8Ω)
- Frequency response:
- 10 Hz – 30 kHz ± 0.5 dB
- Crosstalk:
- < -95 dB (1 kHz)

• Analog Audio Outputs:
- 2-channel unbalanced RCA output
- 32-bit DAC
- 120 dB SNR (measured)
- 0.0007% THD+N (Digital to balanced analog)
- Frequency response:
- 10 Hz – 30 kHz ± 0.2 dB
- Max output level:
- 1.7V RMS (unbalanced)

• miniDSP Processing:
- Volume control
- Parametric equalizer banks
- Crossovers
- Matrix mixer
- Compressor / Limiter
- Mute

• Dirac Live Correction Suite:
- Dirac Live® 3.x full-range room correction
- Plug & Play configuration

• Filter Storage:
- Up to 4 filter configurations stored onboard

• USB Port:
- USB Type-B
- Supports audio streaming, real-time control, and firmware updates

• Power Supply:
- 100–240V AC universal power supply

• Dimensions (H x W x D):
- 70 x 215 x 225 mm
- (2.75 x 8.5 x 8.9 inches)
