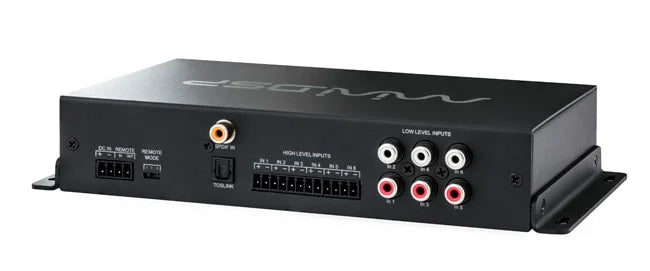

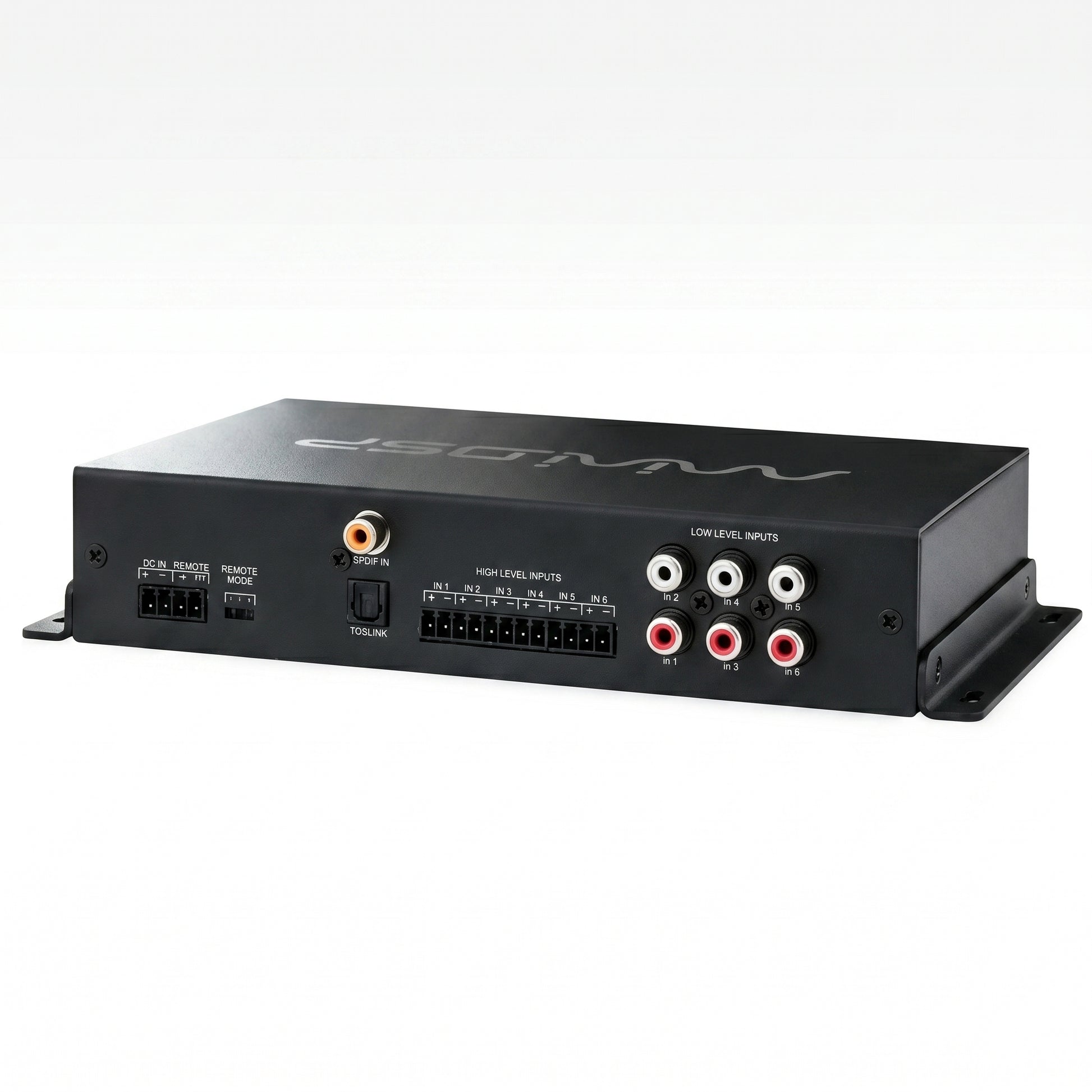

C-DSP 8×12 v2

The C-DSP 8×12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8×12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems. New to this upgraded version are the onboard 32bit AKM converters that provide low noise and improved dynamic range to perfect your miniDSP experience.

The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote.

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates.

Features
400MHz 32bit Sharc Floating point processor, Up to 192kHz processing
32bit DAC/ADC chipsets
THD+N 0.0007%, 115dB SNR
Digital and analog inputs (Low/High levels), 12 analog outputs
Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
Fully differential balanced inputs
Optional Dirac live upgrade (Read here for more info)
Windows/Mac compatible GUI
Remote control or preset/master & sub volume control

• Digital Signal Processor Engine:
- Analog Devices ADSP21489 floating-point DSP

• Converters:
- 32-bit AK4456 (DAC)
- 32-bit AK5556 (ADC)

• Internal Processing Resolution & Sample Rate:
- 32-bit / 192 kHz (C-DSP 8×12 plugin)

• Input / Output Configuration:
- 8 inputs / 12 outputs

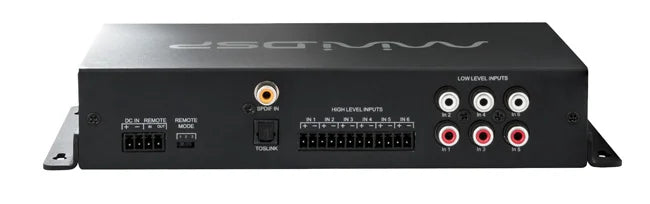

• Audio Input Connectivity:
- High-level input (6 terminal block)
- Low-level unbalanced (6 x RCA)
- Stereo digital inputs:
- SPDIF (RCA)
- TOSLINK (Optical)
- Supported ASRC: 44.1 – 192 kHz

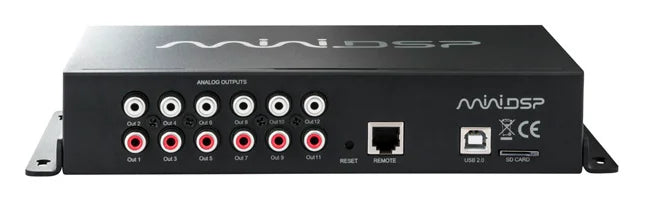

• Audio Output Connectivity:
- 12 x RCA connectors
- 115 dB SNR
- THD+N: 0.0007%

• Input / Output Max Levels:
- Input:
- 8 or 12 Vrms (high-level)
- 4 or 2 Vrms (low-level)
- Output:
- 4.5 Vrms

• Input Impedance:
- High-level: 68 Ω
- Low-level: 10 kΩ

• Output Impedance:
- 560 Ω

• Calibration Software:
- C-DSP 8×12 plug-in

• Filtering Technology:
- IIR / FIR (depending on plugin)

• DSP Presets:
- Up to 4 presets

• Dimensions:
- 41 x 205 x 122 mm

• Power:
- Isolated DC-DC conversion (Car Audio environment)

• Features:
- Impulse response correction: ✔
- Infrared remote learning: ✔
- Windows / Mac compatible: ✔
- UMIK-1 included: ✘
- Bass management: ✘
- Room EQ Wizard support: ✔
