R_volution NAS Storage Ultra

PRODUCT NAME

R_volution NAS Storage Ultra

PRODUCT TYPE

8-Bay Network Attached Storage / Media Server

STORAGE

Drive Bays: 8 × Hot-Swap Trays
Hard Drive Type: 3.5-inch SATA
Hard Drives: Not Included
Maximum Drive Bays: 8
Disk Hot-Swapping: Supported
Hot-Swap Limitation: One drive at a time

RAID

RAID Support: RAID 0, RAID 1, RAID 5 and JBOD
RAID Type: Hardware-Based RAID
RAID 5 Protection: Supported
Drive Failure Protection: Single-drive failure protection
Automatic Data Reconstruction: Supported
Hot-Spare Rebuild: Supported

STORAGE CAPACITY

Maximum Music Tracks: Up to 192,000
SD Video Capacity: Up to 19,200 videos
HD Movie Capacity: Up to 3,200 movies
4K UHD Capacity: Up to 2,000 titles

Note: Actual capacity depends on the installed hard drives, RAID configuration and file sizes.

VIDEO

Maximum Video Resolution: 4K / 8K Ultra HD
Color Depth: Up to 12-bit
HDR: HDR10+
Dolby Vision: Supported
Color Space: BT.2020
Video Codec: HEVC
Video Storage: Uncompressed
Supported Audio Formats: AC-4, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Subtitle Downloading: Supported

MULTIROOM VIDEO

Multiroom Video: Supported
Maximum UHD Zones: Up to 4 zones simultaneously
Playback: Independent playback in each zone
Required Device: R_volution Media Player for each display

NETWORK

Ethernet: 10/100/1000/2500 Mb/s
Network Speed: Up to 2.5 GbE
Network Streaming: Supported
Local Network Access: Supported
Automatic NAS Detection: Supported with compatible R_volution media players
Multiroom Streaming: Supported

R_VIDEO MEDIA CENTER

Media Center: R_video
Automatic Media Recognition: Supported
Movie Posters: Supported
Backdrops: Supported
Movie Synopsis: Supported
Cast Information: Supported
Technical Information: Supported
Genres: Supported
Ratings: Supported
Automatic Categorization: Supported
Filtering: Supported
Sorting: Supported
Metadata Editing: Supported
Media Management: Supported

MUSIC

Supported Audio Formats: DSD, WAVE, AIFF, FLAC, ALAC, MP3, AAC and more
Lossless Audio: Supported
High-Resolution Audio: Supported
Stereo DSD: Supported
Multichannel DSD: Supported
Multiroom Audio: Supported
Artwork & Thumbnails: Supported
Shuffle: Supported
Repeat: Supported
Playlist Playback: Supported

ROON & MULTIROOM AUDIO

Roon Server: Integrated
Roon Integration: Supported
Roon Subscription: Required for Roon services
Sonos: Supported
Bluesound: Supported
Network Audio Systems: Supported
Multiroom Audio: Supported

POWER

Power Supply: 650W 1U Flex/1U
Input Voltage: 100–240V
Frequency: 50/60 Hz
Power Consumption: 62W

COOLING & NOISE

Cooling System: Servo-Controlled Fans
Noise Level: 12.5 dB
Power: 50% more than standard version
Noise Reduction: 50% quieter than standard version

OPERATING CONDITIONS

Operating Humidity: 20%–80%
Operating Temperature: 0°C–40°C
Storage Temperature: -40°C–65°C

DIMENSIONS & WEIGHT

Product Dimensions: 316 × 285 × 208 mm
Product Dimensions: 12.4 × 11.2 × 8.2 inches
Product Weight: 9 kg / 19.8 lbs
Gross Weight with Box: 10 kg / 22 lbs
HDDs Included: No

PRODUCT CODES

EAN Code: 3760115010000
TARIC Code: 8528 52 10 00

ACCESSORIES INCLUDED

• Power Cable
• Quick Installation Guide

IMPORTANT

Hard drives are not included with the R_volution NAS Storage Ultra. The system supports eight 3.5-inch SATA hard drives. Storage capacity depends on the number and capacity of installed drives and the selected RAID configuration.

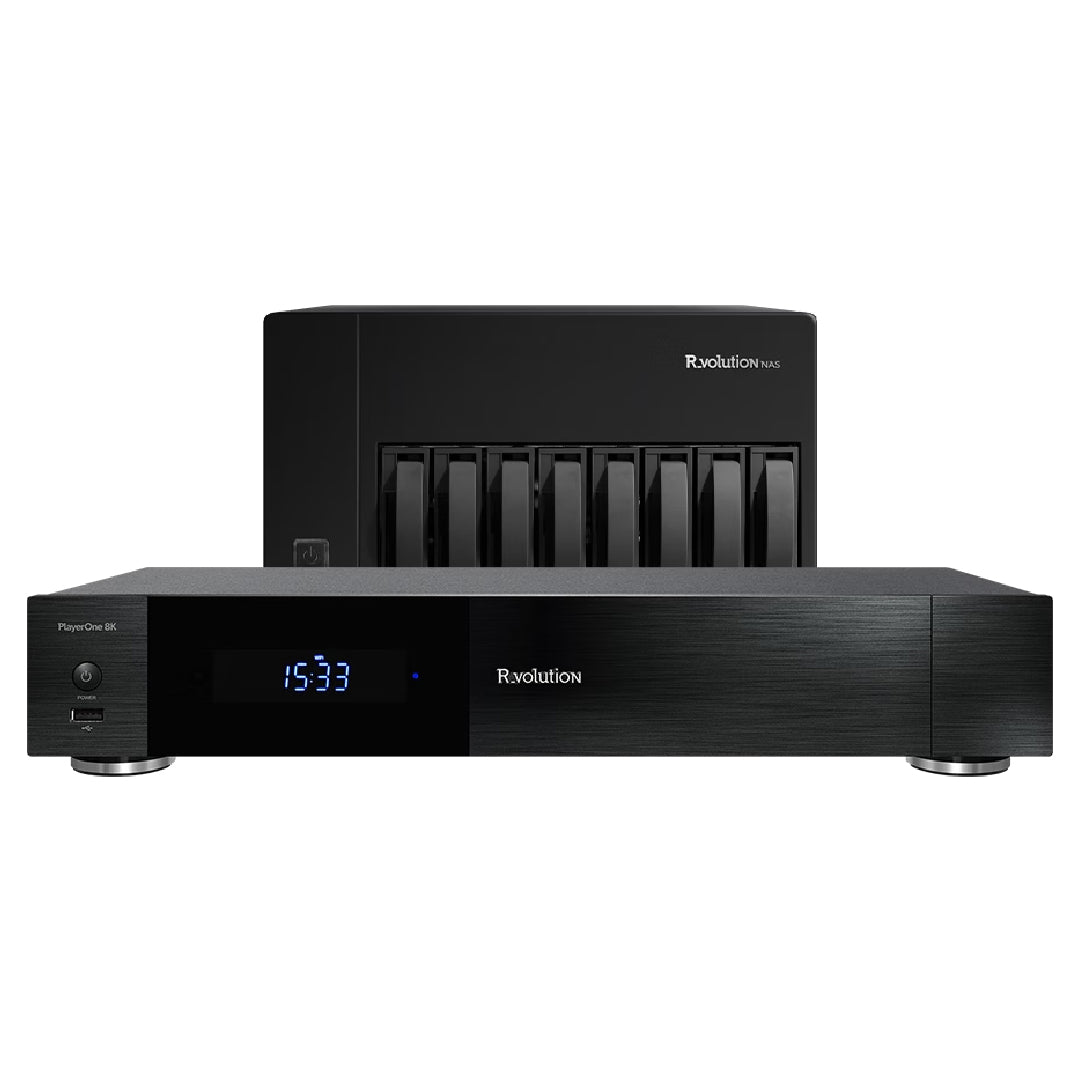

Each TV or display requires a compatible R_volution Media Player for playback. The NAS Storage Ultra acts as the central storage and media server for the connected R_volution players.

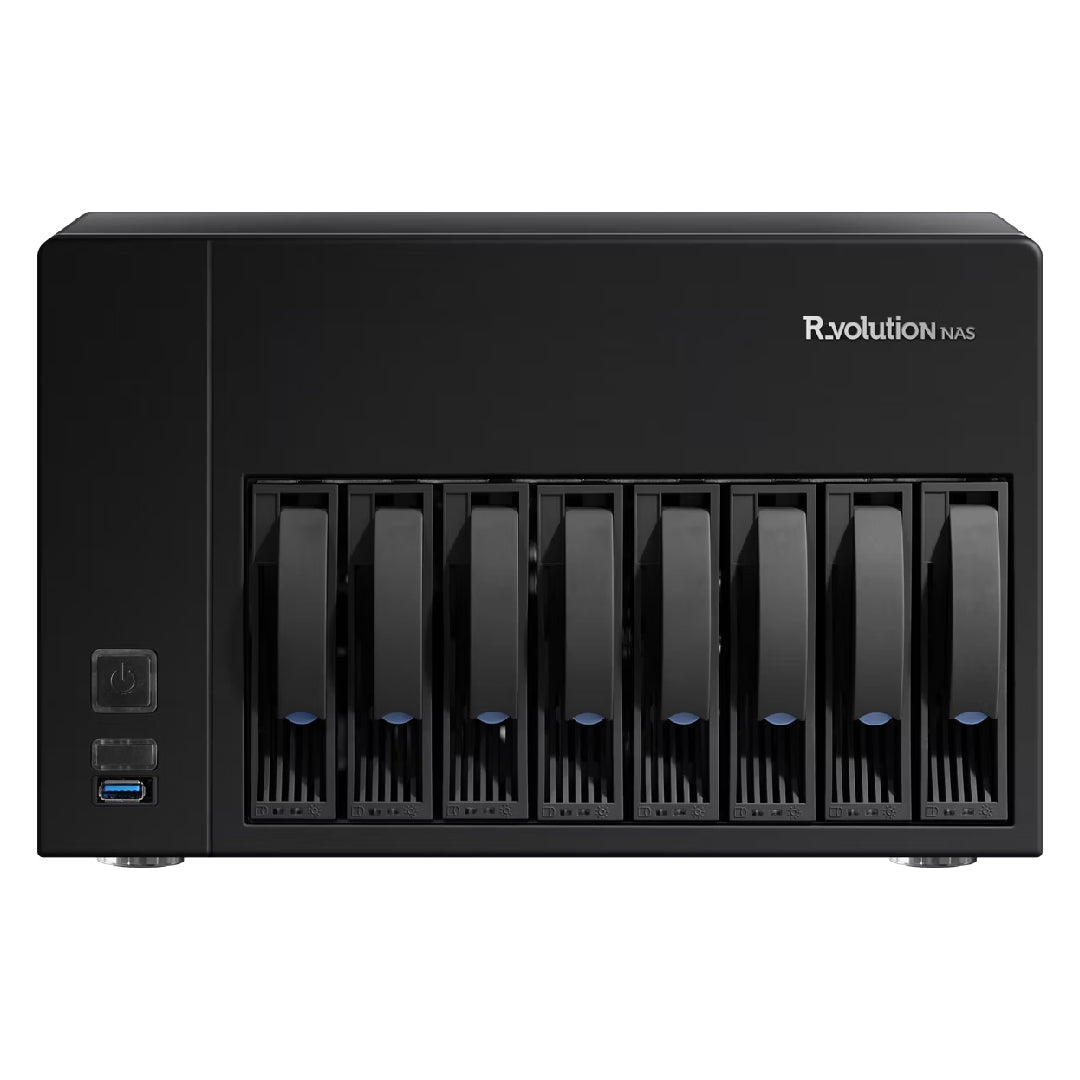

The R_volution NAS Storage Ultra is a high-performance 8-bay Network Attached Storage system designed to securely store and stream large music and video libraries throughout the home. It provides a scalable storage solution with hardware-based RAID protection, high-speed 2.5 GbE networking and multiroom audio and video capabilities.

The NAS Storage Ultra features eight hot-swappable 3.5-inch SATA drive bays and supports RAID 0, RAID 1, RAID 5 and JBOD configurations. Its hardware-based RAID 5 system provides protection against a single drive failure while maintaining access to stored content. The system can automatically rebuild data onto a hot-swappable spare drive without interrupting playback.

Designed for large media collections, the R_volution NAS Storage Ultra can store up to 192,000 music tracks, 19,200 SD videos, 3,200 HD movies or 2,000 4K Ultra HD titles, depending on the installed storage capacity and content size.

For high-end home theater applications, the NAS Storage Ultra supports uncompressed 4K and 8K Ultra HD content with 12-bit color, HDR10+, Dolby Vision, BT.2020 and HEVC. It also supports premium audio formats including AC-4, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X.

The integrated R_video Media Center automatically organizes movies and TV shows with posters, backdrops, synopses, cast information, technical details, genres, ratings and other metadata. Users can browse, categorize, filter, sort, edit and manage their media library through compatible R_volution media players.

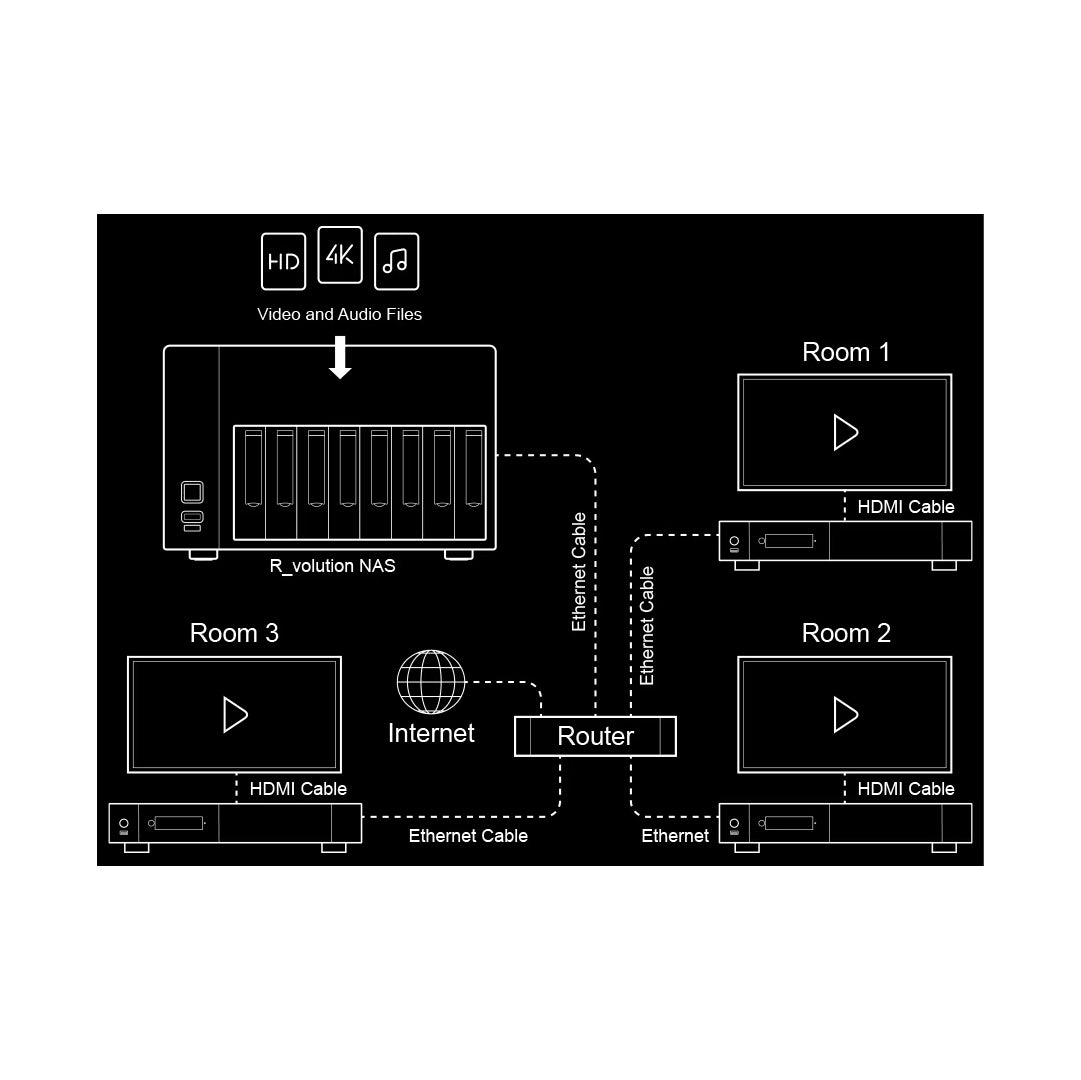

The NAS Storage Ultra supports simultaneous UHD streaming to up to four zones, allowing different movies or TV shows to be played independently in multiple rooms. Each display requires a compatible R_volution media player.

For music enthusiasts, the NAS Storage Ultra supports high-resolution and lossless formats including DSD, WAVE, AIFF, FLAC and ALAC. It also provides multiroom audio integration with systems such as Sonos, Bluesound and Roon. An integrated Roon Server provides centralized access to music libraries through compatible devices.

With its 2.5 GbE network interface, servo-controlled fans, 50% more power and quieter operation compared with the standard version, the R_volution NAS Storage Ultra is designed for demanding home theater enthusiasts, audiophiles and custom AV installations requiring reliable, high-capacity media storage.
