MCHStreamer Lite

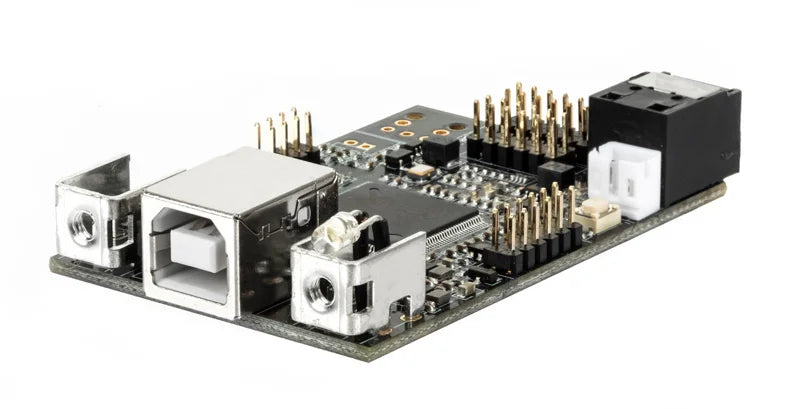

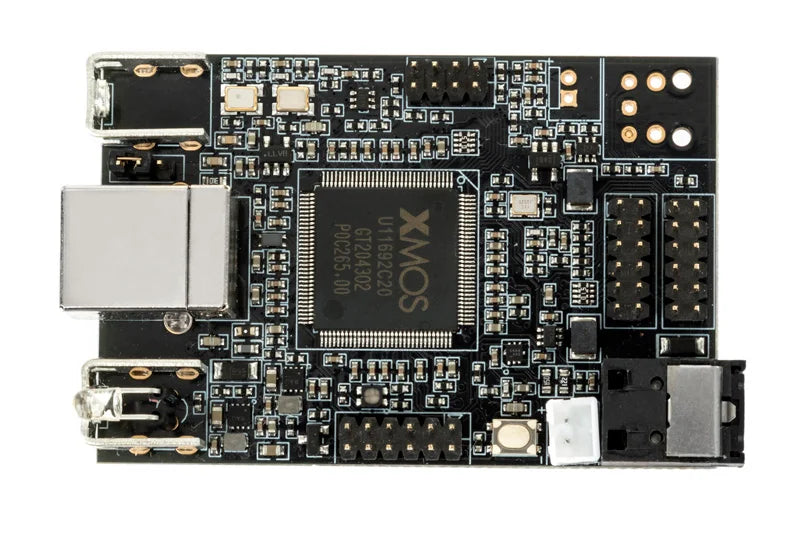

The MCHStreamer Lite, a simplified version of our MCHStreamer, is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages years of XMOS product development to achieve a rock solid performance in all configurations. Packaged on a tiny 40x62mm PCB, the MCHStreamer Lite is a perfect fit for OEM/DIY integration or as a testing tool for your R&D team.

By loading one of the miniDSP-provided firmware packages, MCHStreamer Lite supports I2S, TDM, DSD and PDM data formats for input and output. In addition, optical TOSLINK, ADAT and S/PDIF (coax), are supported for output only. This USB Audio Class 2 (UAC2) compliant interface truly is a powerful tool for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from PDM signal to I2S for up to 16 MEMS microphones: a neat tool for beamforming algorithm development.



The MCHStreamer Lite, a simplified version of our MCHStreamer, is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages years of XMOS product development to achieve a rock solid performance in all configurations. Packaged on a tiny 40x62mm PCB, the MCHStreamer Lite is a perfect fit for OEM/DIY integration or as a testing tool for your R&D team.

By loading one of the miniDSP-provided firmware packages, MCHStreamer Lite supports I2S, TDM, DSD and PDM data formats for input and output. In addition, optical TOSLINK, ADAT and S/PDIF (coax), are supported for output only. This USB Audio Class 2 (UAC2) compliant interface truly is a powerful tool for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from PDM signal to I2S for up to 16 MEMS microphones: a neat tool for beamforming algorithm development.



Features
Multi-channel USB audio interface (up to 24×24)
Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats
Native support up to 32bit / 384kHz
PDM to I2S converter for up to 16 MEMS microphones
Multichannel DSD (up to 8ch) support
USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
Toslink (optical) and SPDIF (coax) transmitter
Flexible board powering option: USB powered or External DC input power
What’s in the box?
1 x MCHStreamer Lite
1 x 1m long USB audio cable
1 * Toslink audio cables
2 * 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing

Product Specifications

USB Streaming Engine: XMOS XCore 200, USB 2.0 full speed (USB Audio Class 2.0 compliant)

Drivers & Compatibility:
Driverless support for macOS (v10.6.4 and above)
Free ASIO driver for Windows (XP / Vista / 7 / 8 / 10)
Linux ALSA compliant
Apple iOS support (iPad/iPhone via Camera Kit) with multichannel audio streaming

Logic Level Formats:
SPDIF: Stereo output, 24-bit up to 192 kHz
I2S: Up to 8-channel bidirectional audio, 24/32-bit up to 384 kHz
TDM8: Up to 24-channel bidirectional audio, 44.1 / 48 / 88.2 / 96 kHz
PDM: Up to 16-channel audio recording, 24-bit up to 48 kHz
DSD: Up to 8-channel DSD64 / DSD128 / DSD256

Optical Output:
Toslink: Stereo output up to 44.1 / 48 / 88.2 / 96 / 176.4 kHz
ADAT: 8-channel output @ 44.1/48 kHz or 4-channel output @ 96 kHz
Optical / SPDIF Inputs: Not available (refer to MCHStreamer KIT for input support)
Expansion Connectivity: 2 × 12-pin (2 mm pitch) expansion connectors for hardware integration
Mounting: 2 × right-angle brackets with M3 threaded holes for easy chassis mounting
Power Supply: USB powered or 5V DC external supply via header (300 mA requirement)

Dimensions: 13 × 40 × 62 mm (H × W × D)
