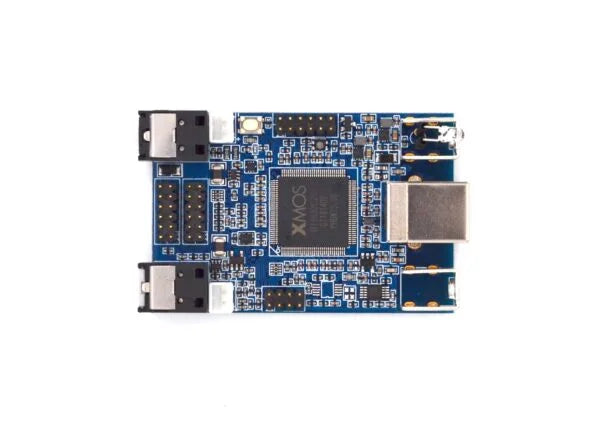

MCHStreamer Kit

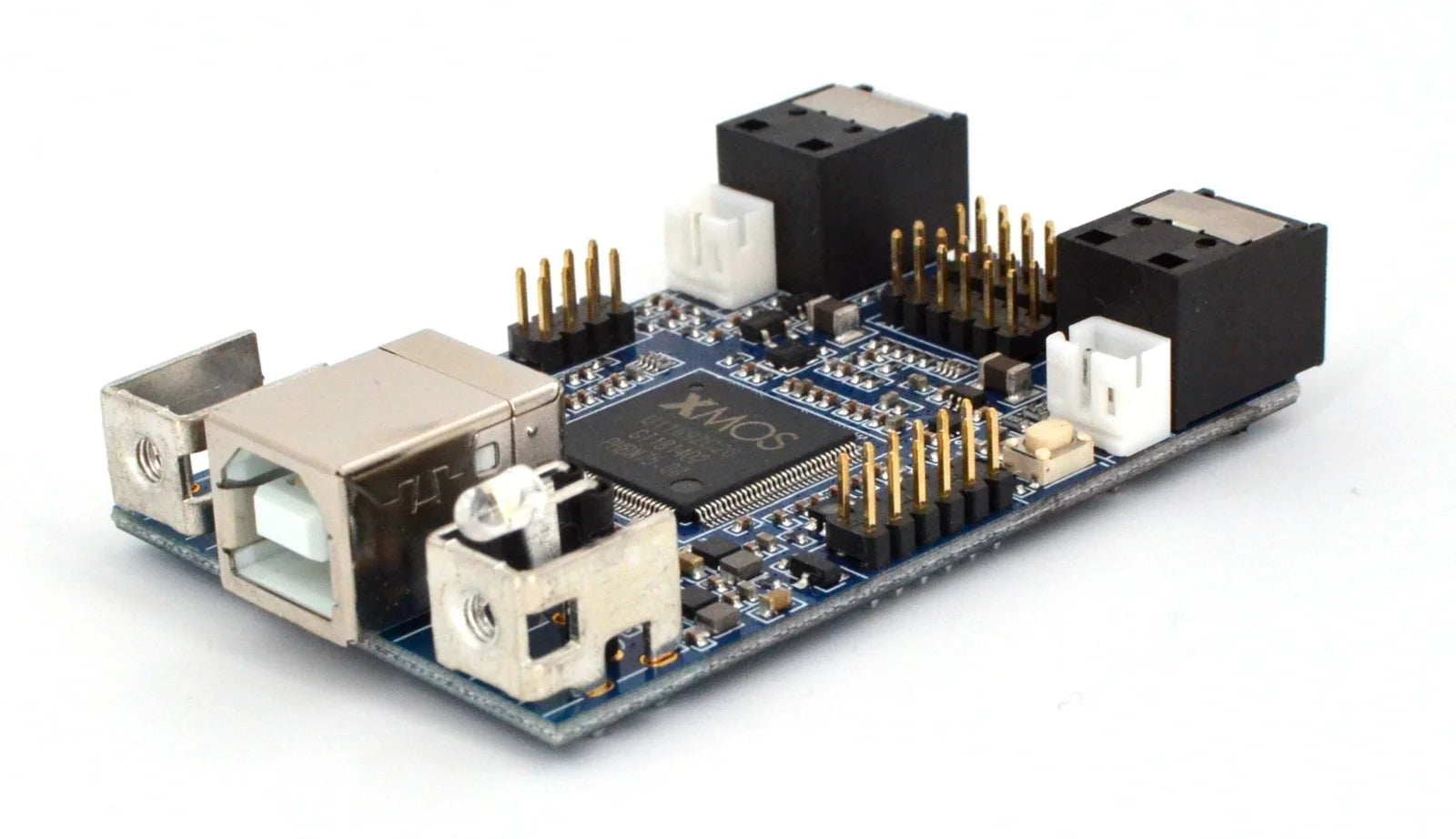

The MCHStreamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP’s XMOS expertise. . Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research & Development applications.

By loading one of the miniDSP-provided firmware packages, MCHStreamer supports optical TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats. This USB Audio Class 2 (UAC2) compliant interface truly is the swiss-army knife for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from 16x PDM MEMS microphone to I2S which makes it a powerful tool for beamforming/voice algorithm development.

Features
Multi-channel USB audio interface (up to 24×24)
Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats
Native support up to 32bit / 384kHz
PDM to I2S converter for up to 16 MEMS microphones
Multichannel DSD (up to 8ch) support
USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
Toslink (optical) and SPDIF (coax) transmitter and receiver
Flexible board powering option: USB powered or External DC input power

Product Specifications

USB Streaming Engine: XMOS XCore 200, USB 2.0 full speed (USB Audio Class 2.0 compliant)

Drivers & Compatibility:
Driverless support for macOS (v10.6.4 and above)
Free ASIO driver for Windows (XP / Vista / 7 / 8 / 10)
Linux ALSA compliant
Apple iOS support (iPad/iPhone via Camera Kit) with multichannel audio streaming

Logic Level Formats:
SPDIF: Stereo input/output, 24-bit up to 192 kHz
I2S: Up to 8-channel bidirectional audio, 24/32-bit up to 384 kHz
TDM8: Up to 24-channel bidirectional audio, 44.1 / 48 / 88.2 / 96 kHz
PDM: Up to 16-channel audio recording, 24-bit up to 48 kHz
DSD: Up to 8-channel DSD64 / DSD128 / DSD256

Optical Input & Output:
Toslink: Stereo support up to 44.1 / 48 / 88.2 / 96 / 176.4 kHz
ADAT: 8-channel mode @ 44.1/48 kHz, 4-channel mode @ 96 kHz
Expansion Connectivity: 2 × 12-pin (2 mm pitch) expansion connectors for hardware integration
Mounting: 2 × right-angle brackets with M3 threaded holes for easy chassis mounting
Power Supply: USB powered or 5V DC external supply via header (300 mA requirement)

Dimensions: 13 × 40 × 62 mm (H × W × D)
