WIDG

Features

• 2.4GHz WiFi router (b/g/n) with Access Point & Station modes

• Ethernet / WiFi control of miniDSP platforms via plugins and apps

What’s in the Box?

• 1 × WI-DG interface

• 1 × 1m micro USB cable

Supported Plugins (IP Control)

• miniDSP 2×4 HD (Available)

• SHD Series (Available)

• Flex (Available)

• Flex Eight (Requires firmware v0.95 upgrade)

• DDRC-24 (Available)

• miniDSP 2×8 / 8×8 / 4×10 / 10×10 (Available)

• nanoDIGI 2×8 (Available)

• C-DSP 6×8 (Available)

• C-DSP 8×12 (Available)

• OpenDRC Series (Available)

• DDRC-22 Series (Future)

• DDRC-88A/D (Available)

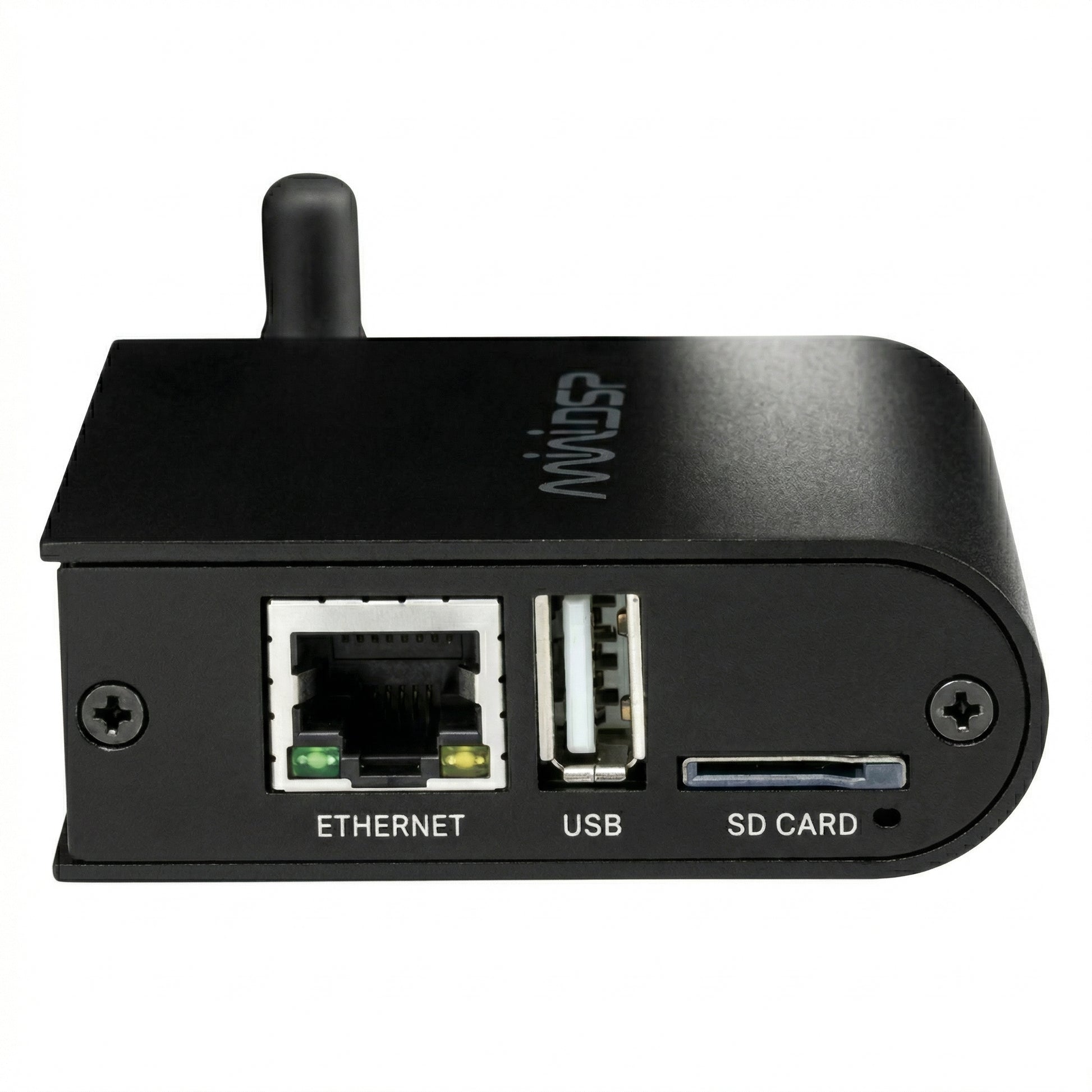

WI-DG – WiFi / Ethernet to USB Bridge

• WiFi/Ethernet to USB bridge for seamless network-based control

• Pre-configured for plug-and-play discovery over IP networks

• Compact adapter that connects to the USB port of a miniDSP device

• Enables wireless control and configuration via supported miniDSP plugins

Connectivity & Operation

• Replaces direct USB connection with wireless network access

• Supports two operating modes:
– Station Mode
– Access Point Mode

• Plugins automatically detect and communicate with the device over the network

Control & Compatibility

• Compatible with supported miniDSP plugins

• Can be controlled via miniDSP mobile app (iOS & Android) for:
– Preset selection
– Master volume control
– Active source selection

Important Notes

• Not compatible with Dirac Live software

• Only one WI-DG unit can be used per system

• Using multiple units may cause configuration issues

Specifications

• Processor: 580MHz CPU with 2.4GHz Wi-Fi (b/g/n)

• Capabilities: Ethernet / WiFi bridging of control commands to USB-powered miniDSP devices

• Standards: IEEE® 802.11 b/g/n (2.4GHz)

• Supported Platforms: Refer to product page for updated miniDSP compatibility

Operation Modes

• Access Point Mode:
– Functions as a WiFi access point with its own SSID

• Station Mode:
– Connects to an existing WiFi network for seamless integration

Features

• Web-based GUI for easy control

• Automatic discovery of miniDSP devices on the network

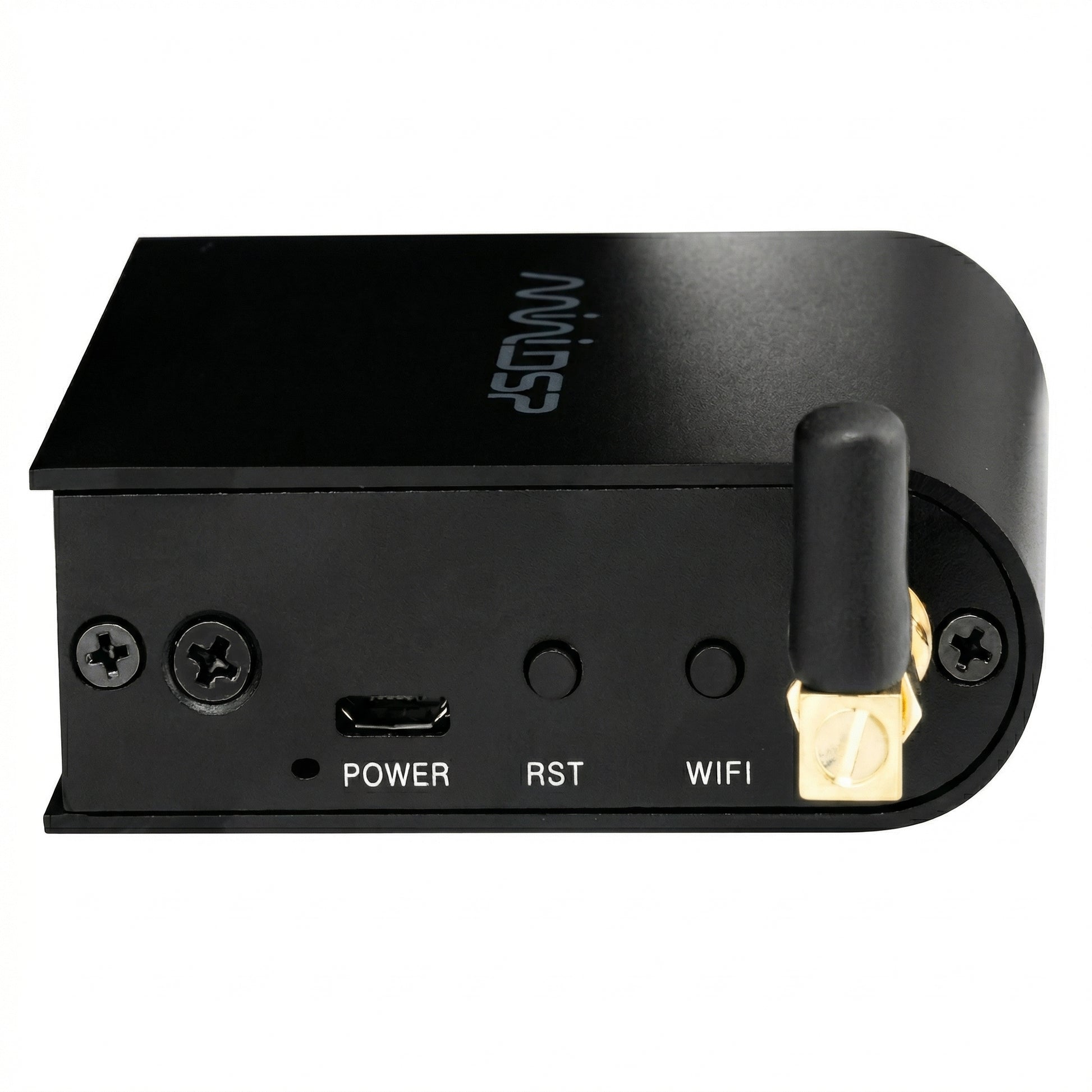

Hardware & Power

• USB Host: USB 2.0 port for miniDSP connection

• Power Supply: 5V via micro USB

Physical Details

• Dimensions (H × W × D): 67.4 × 24 × 74 mm

• Weight: 100g
