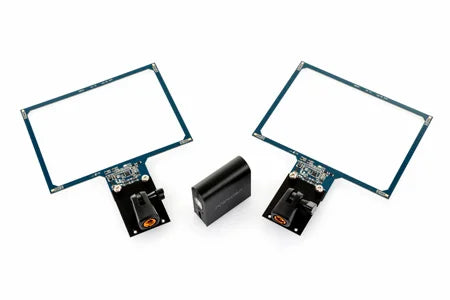

UMIK-X-4

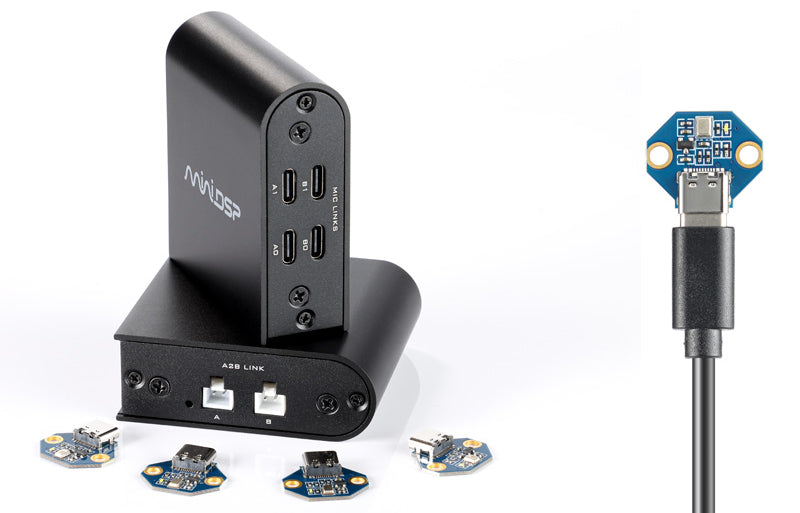

The UMIK-X consists of one to four UMA-4/UMA-XL microphone modules and a USB-A2B interface to interface the modules to the computer. Between four and 16 microphones can therefore be connected. UMA-4/UMA-XL modules are daisy-chained to each other using a single twisted-pair cable carrying Analog Devices A2B protocol for multichannel audio at 24-bit/44.1 or 48 kHz. A single cable for audio + power for up to 40m distance! Applications include environmental monitoring and distributed soundfield measurement. The distributed omnidirectional microphones in the array allow quick measurement and analysis in applications such as room equalization and distributed subwoofer tuning.

The UMIK-X is a UAC-2 compliant interface comes with its own ASIO driver and is driverless for macOS and Linux. For Windows, an ASIO driver is provided. Last but not least, the UMIK-X is compatible with the new multi-channel measurement capability of Room EQ Wizard (v5.20 and up). While this is normally a paid upgrade (100USD), a license for the upgrade is already included with your purchase.

The UMIK-X is now available for sale in ready to go packages to get up and running in no time! The basic package supports up to 8 x Channel recording (2 x UMA4/UMA-XL arrays) and 16 channel recording (4 x UMA4/UMA-XL arrays).

Features
Multichannel – Multipoint Microphone measurement system
Up to 4 x UMA-4/XL MEMS microphone arrays can be daisy chained
Low Distortion, High AOP, High SNR Knowles MEMS (SPH0655LM4H-1)
24bit 44.1/48kHz recording, ASIO drivers
USB to A2B® module for multichannel audio streaming over long cables (up to 40m)
Includes REW license for Multichannel measurement (100USD worth)

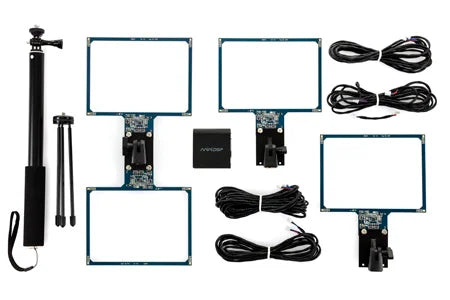

What’s in the box?
1 x USB to A2B interface for multichannel audio streaming / Multichannel USB audio streaming
2 or 4 x UMA4/XL Microphone Modules based on option selected above
1 x License Code for Multichannel Audio Measurement with REW (100 USD worth)
1 x shielded USB cable (2m)
A2B Twisted pair cable for microphone module daisy chainning: 2 x UMA4/XL package (1 x 5m, 1 x 3m , 1 x 5cm), 4 x UMA4/XL package (1 x 5m, 3 x 3m , 2x 5cm)
2 or 4 Microphone monoPods for UMA4 selection / Extendable up to 1.2m height. (OPTIONAL)
Linking brackets to link 2 x UMA-4 microphone arrays together (if option selected)

USB Streaming Engine

Powered by an XMOS multicore USB audio processor for UAC2 streaming
Supports USB audio recording up to 16 channels
Driverless compatibility with macOS and Linux
Includes custom ASIO drivers for Windows 10
Resolution of 24-bit @ 44.1 / 48 kHz
Analog Devices A2B link for multichannel audio (up to 40m cable length)
TOSLINK output for stereo playback connection (input not enabled)
LED indicator for power and active link status
Powered via external 5V USB supply
Compact size of 24 × 64 × 67 mm
Lightweight design at 90 g

UMA-4 Microphone Module

Analog Devices A2B link with dual-port support for daisy chaining up to 4 UMA-4 units
Equipped with 4 × Knowles MEMS microphones with low-noise buffer and high-performance modulator
Low distortion of 1% at 130 dB SPL
Sensitivity rated at -37 dBFS @ 94 dB SPL (1 kHz)
Acoustic Overload Point (AOP): 132.5 dB SPL
High signal-to-noise ratio of 66 dBA with flat frequency response
RF shielded to prevent mobile interference
Omnidirectional pickup pattern for 360° sound capture
Matched sensitivity across microphones for consistent performance
Includes plastic clamp for easy mounting
Dimensions: 160 × 180 mm
Lightweight design at 27 g
