SP2-12000-HT

SP2-12000-HT

Rs. 722,900.00
Rs. 722,900.00
Shipping calculated at check out.

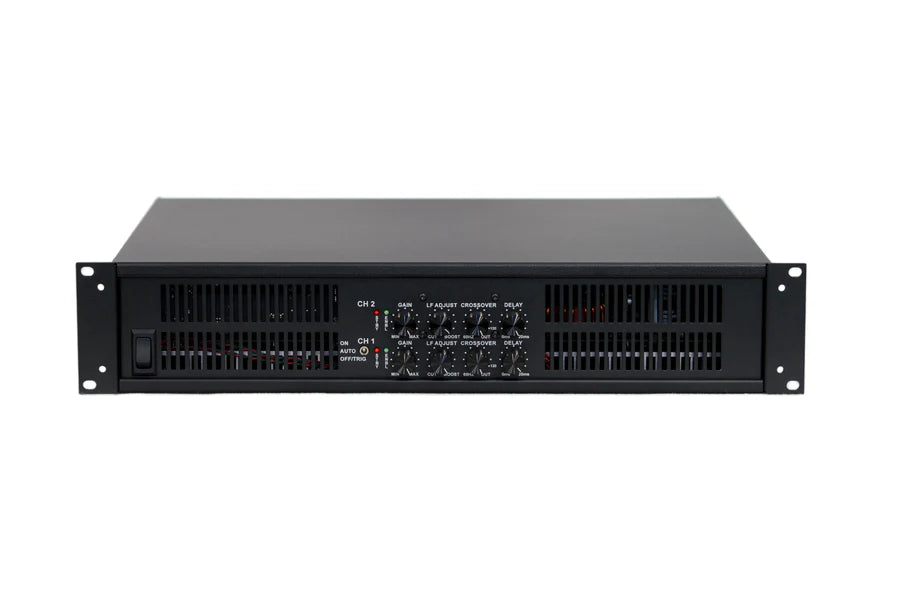

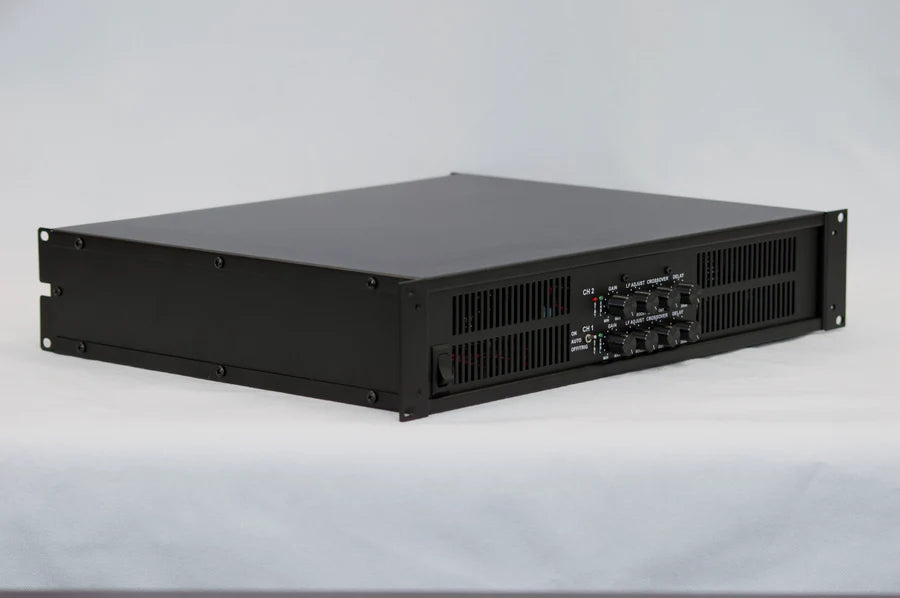

Dual Mono Block Subwoofer Rack Amplifier
Home Theater (HT)

19" Rack Mount - 2RU

Power Rating Per Channel:

STABLE at 1 ohm

6000W at 2 ohms

3200W at 4 ohms

1800W at 8 ohms

131 VRMS (185 Vp) at Hi-Z

Independent Subwoofer DSP Controls per channel

Hurry only 1 left
  • Secure Packaging & Safe Delivery
  • Quality product
  • Shipping available

Features

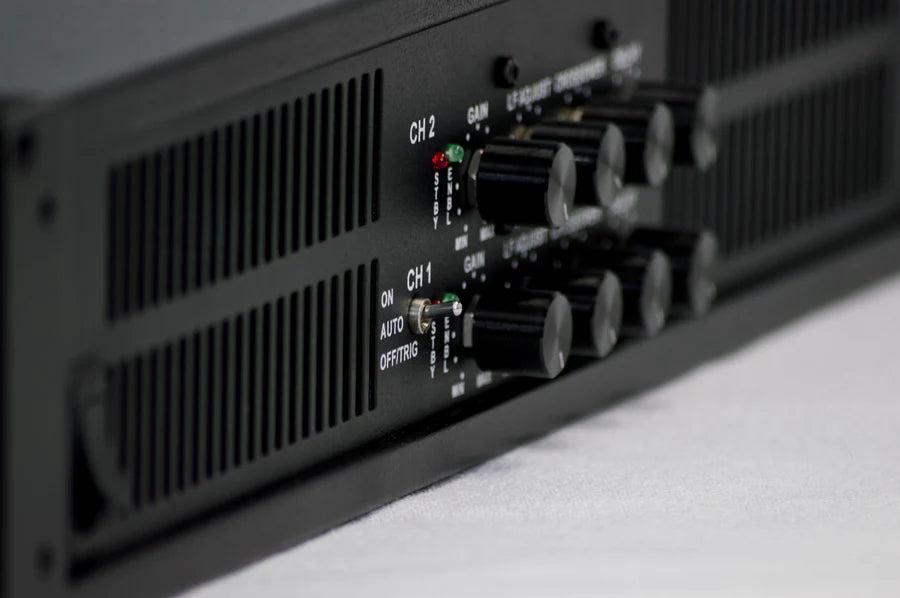

3-MODE SWITCH

ON - Amplifier ON
AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
OFF/TRIG - Amplifier OFF, 12V TRIGGER enables amp

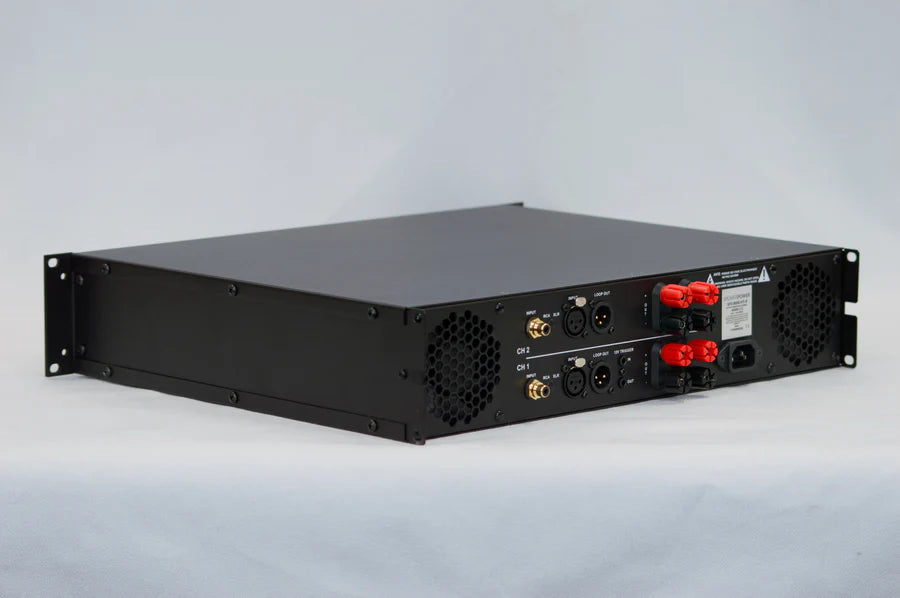

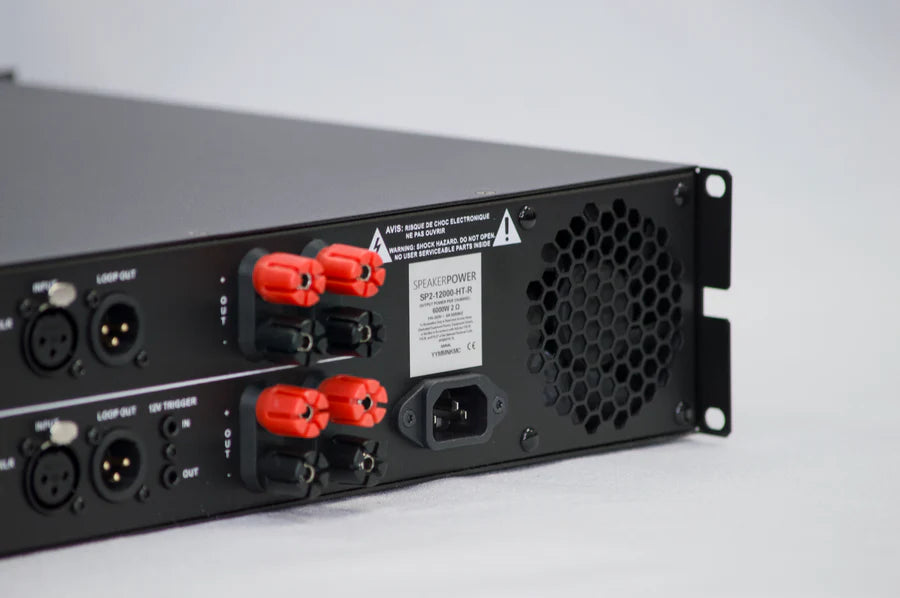

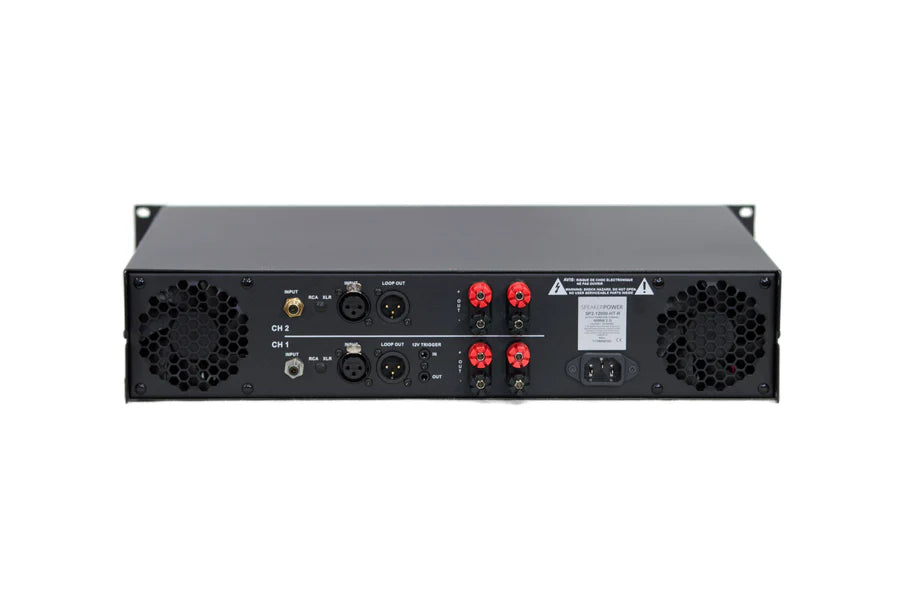

CONNECTIONS

3.5mm minijack 12V TRIGGER (IN / THRU)
RCA (Single-ended) per channel
XLR (Balanced) with Looping out (THRU) per channel
IEC C13 AC mains connector
Two paralleled binding posts (5-way, up to 12AWG) per channel
LED INDICATION

GREEN - ON, Amplifier ready to pass signal
RED - STBY, Amplifier is in low-power standby
ROTARY CONTROLS

GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
LF ADJUST - 40Hz Tone Shelf ("Bass Boost", CUT-12dB, BOOST+12dB)
CROSSOVER - 60Hz to OUT (500Hz)
DELAY - 0ms to 20ms

Specifications

AMPLIFIER TOPOLOGY CLASS-D
POWER SUPPLY 6000W with Power Factor Correction (PFC) per channel
FREQUENCY REPSONSE 5Hz to 500Hz (+-1.5dB)
AMPLIFIER GAIN 45dB
AC MAINS 100 - 265VAC 50/60Hz (Universal) rated power at 220VAC
STANDBY POWER DRAW 30W
COOLING EXTRUDED ALUMINUM HEATSINK per module
FANS TEMPERATURE ACTIVATED, turn on at 175F (80C) internal
INPUT SENSITIVITY 316mV (at MAX GAIN)
INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz
DIMENSIONS
HEIGHT 3.5 in. ( 88.9 mm) - 2 RACK UNITS (2RU)
WIDTH 19 in. (482.6 mm)
DEPTH 14.5 in. (368.3 mm)
WEIGHT 22 LBS (9.97 kg)

For basic support please contact www.avenuesound.in

For any advanced support please write to support.minidsp.com
