SP1-700-HT

SP1-700-HT

Rs. 112,900.00
Rs. 112,900.00
Shipping calculated at check out.

Mono Block Subwoofer Plate Amplifier
Home Theater (HT)

STABLE at 2 ohms

1000W @ 2.7 ohms

700W at 4 ohms

350W at 8 ohms

53 VRMS (75 Vp) at Hi-Z

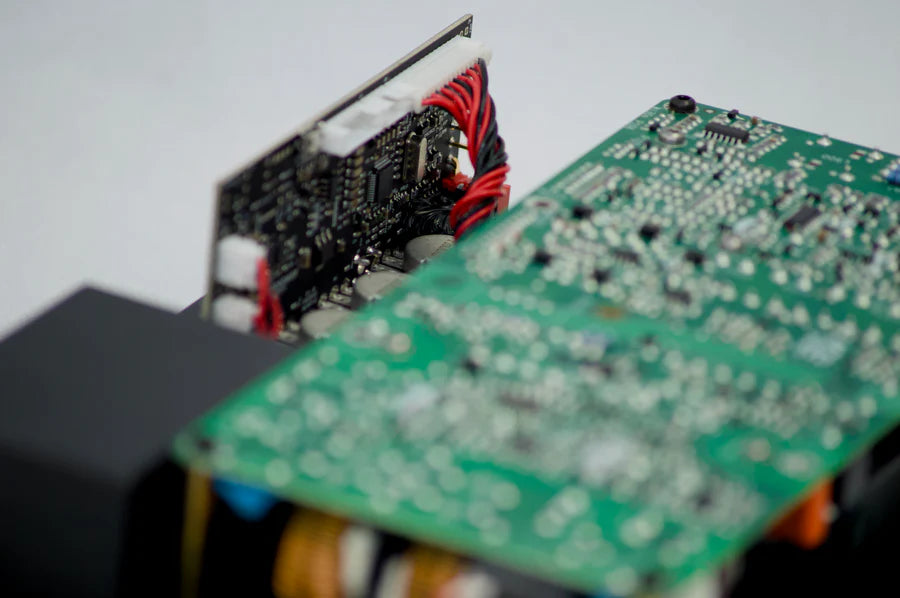

Subwoofer DSP Controls

Hurry only 2 left
  • Secure Packaging & Safe Delivery
  • Quality product
  • Shipping available

Features

3-MODE SWITCH

ON - Amplifier ON
AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
OFF-12V - Amplifier OFF, 12V TRIGGER enables amp

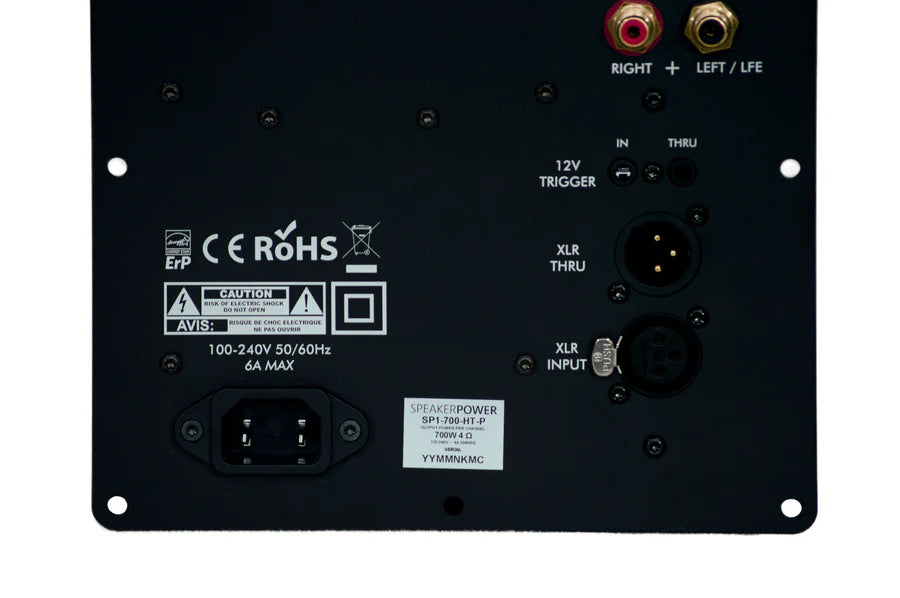

CONNECTIONS

3.5mm minijack 12V TRIGGER (IN / THRU)
DUAL RCA (Single-ended) Summing with LFE
XLR (Balanced) with Looping out (THRU)
IEC C13 AC mains connector
NL-4 SPEAKON auxiliary speaker connector

LED INDICATION

GREEN - ON, Amplifier ready to pass signal
RED - STBY, Amplifier is in low-power standby

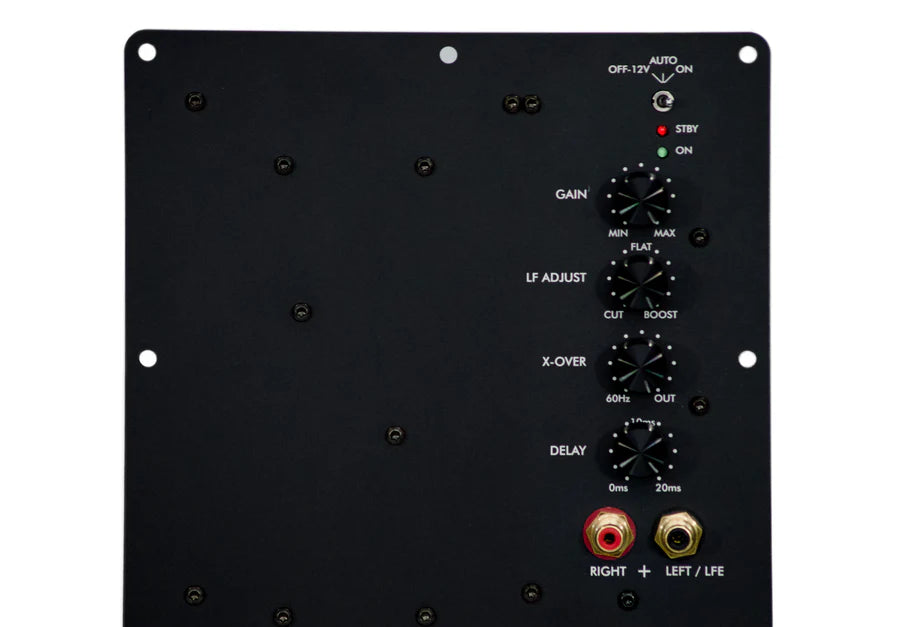

ROTARY CONTROLS

GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
LF ADJUST - 25Hz Peaking Filter ("Bass Boost", CUT-12dB, BOOST+12dB)
X-OVER - 60Hz to OUT (500Hz)
DELAY - 0ms to 20ms

Specifications

AMPLIFIER TOPOLOGY CLASS-D
POWER SUPPLY 1000W
FREQUENCY REPSONSE 5Hz to 500Hz (+-1.5dB)
AMPLIFIER GAIN 45dB
AC MAINS 100 - 265VAC 50/60Hz (Universal)
STANDBY POWER DRAW 1W
COOLING ALUMINUM HEATSINK
INPUT SENSITIVITY 316mV (at MAX GAIN)
INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz

DIMENSIONS

HEIGHT 10.75 in. (273 mm)
DEPTH 2.0 in. ( 51 mm)
WIDTH 7.2 in. (183 mm)
WEIGHT 3 LBS (1.4 kg)

For basic support please contact www.avenuesound.in

For any advanced support please write to support.minidsp.com
