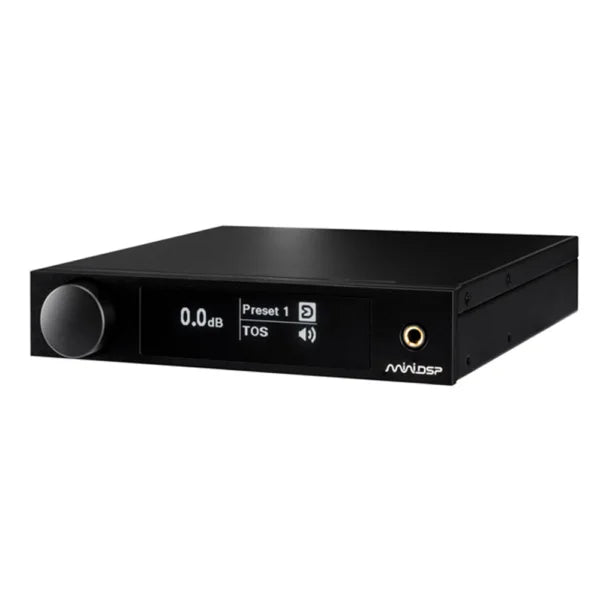

miniDSP SHD Studio

miniDSP is proud to introduce the SHD Studio (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. While physically the SHD Studio is the “baby brother” of the full-featured SHD — accomplished by removing the analog I/O connectors and circuitry — internally it packs the same powerful audio processing capabilities. First and foremost, the SHD is a stereo Dirac Live room correction processor. The SHD fits right into any digital processing path, with AES/EBU, SPDIF, optical and USB audio inputs, and four output channels on both SPDIF and AES/EBU. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool.

We have also included network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. The SHD Studio includes a suite of our powerful but user-friendly DSP audio tuning software – ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2×4 matrix mixer. Applications range from integrating a single subwoofer to a two-way active speaker. Outputs 3 and 4 also drive the headphone jack on the front panel for a uniquely flexible digital processing solution.

Features:
Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP
Powered by Dirac Live® 3.0 Digital Room Correction
Quad core ARM processor for network audio streaming – Preloaded with Volumio
Inputs: Stereo digital channels (USB Audio/AES-EBU/SPDIF/Optical)

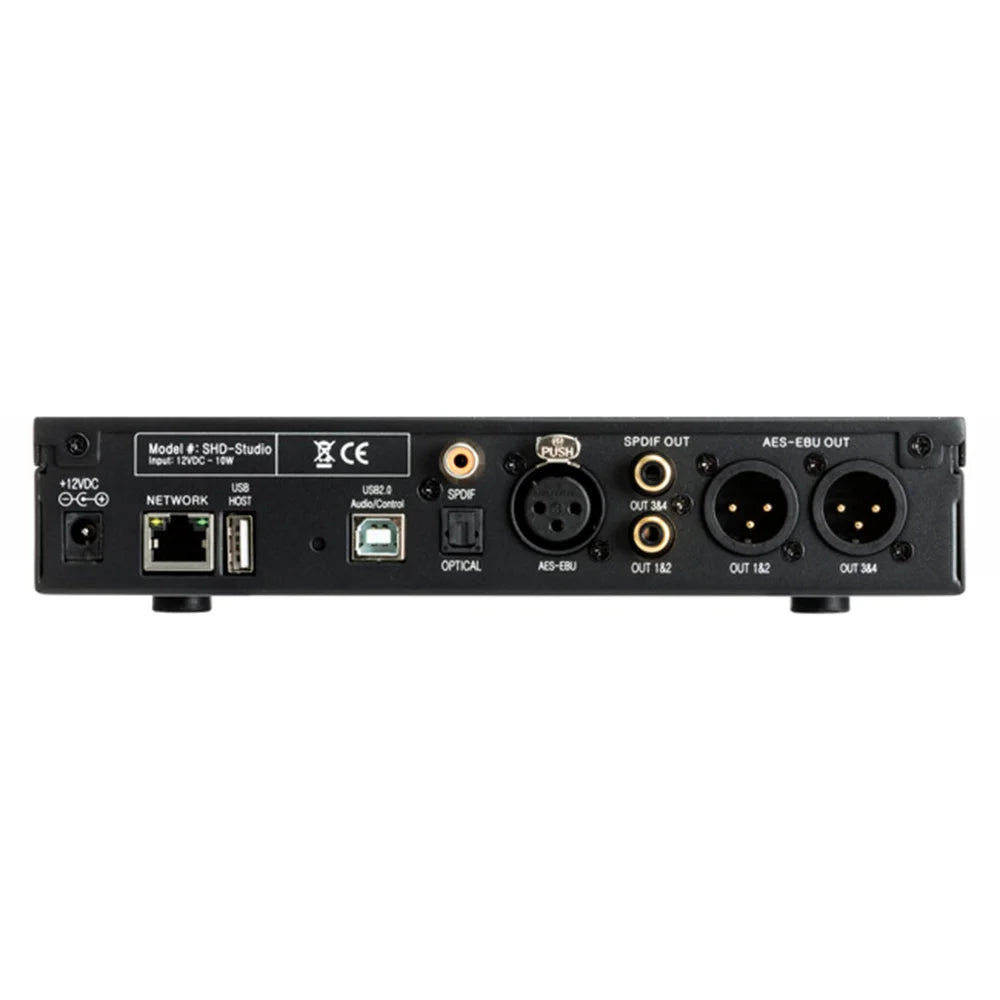

Outputs: Dual Stereo digital channels (2 x stereo SPDIF RCA outputs and 2 x stereo AES-EBU Balanced XLR) / Headphone amplifier
USB audio recording feature (4xCH processed output via USB audio to record inputs)

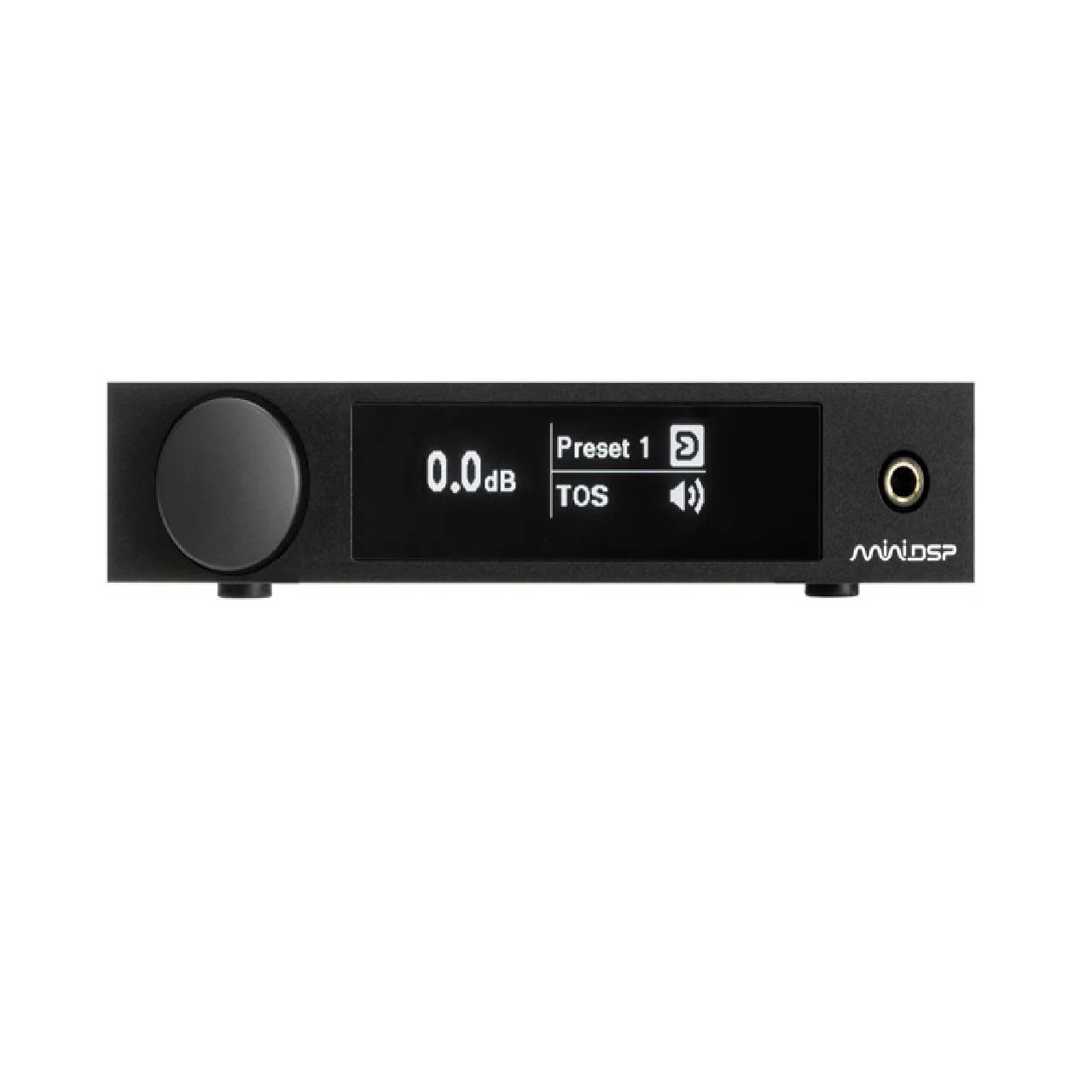

White/Black OLED front panel controller

Digital Signal Processor: 32-bit floating point Analog Devices SHARC (ADSP21489) / 450 MHz with internal sample rate of 96 kHz
Headphone Amplifier Output: CS43130 headphone amplifier
miniDSP Processing: Volume control, parametric equalizer banks, crossovers, matrix mixer, compressor/limiter, and mute functions
Dirac Live Support: Plug-and-play control and configuration via Dirac Live Correction Suite
Filter Storage: Up to 4 filter configurations stored onboard
USB Port: Type-B USB for audio streaming, real-time control, and firmware upgrades
Power Supply: 12V DC external power supply
Dimensions: 41.5 × 214.5 × 206 mm (H × W × D), 1RU half size (optional full rack mount adapter available)

miniDSP is proud to introduce the SHD Studio (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. While physically the SHD Studio is the “baby brother” of the full-featured SHD — accomplished by removing the analog I/O connectors and circuitry — internally it packs the same powerful audio processing capabilities. First and foremost, the SHD is a stereo Dirac Live room correction processor. The SHD fits right into any digital processing path, with AES/EBU, SPDIF, optical and USB audio inputs, and four output channels on both SPDIF and AES/EBU. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool.

We have also included network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. The SHD Studio includes a suite of our powerful but user-friendly DSP audio tuning software – ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2×4 matrix mixer. Applications range from integrating a single subwoofer to a two-way active speaker. Outputs 3 and 4 also drive the headphone jack on the front panel for a uniquely flexible digital processing solution.

Features:
Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP
Powered by Dirac Live® 3.0 Digital Room Correction
Quad core ARM processor for network audio streaming – Preloaded with Volumio
Inputs: Stereo digital channels (USB Audio/AES-EBU/SPDIF/Optical)
Outputs: Dual Stereo digital channels (2 x stereo SPDIF RCA outputs and 2 x stereo AES-EBU Balanced XLR) / Headphone amplifier
USB audio recording feature (4xCH processed output via USB audio to record inputs)
White/Black OLED front panel controller

Digital Signal Processor: 32-bit floating point Analog Devices SHARC (ADSP21489) / 450 MHz with internal sample rate of 96 kHz
Headphone Amplifier Output: CS43130 headphone amplifier
miniDSP Processing: Volume control, parametric equalizer banks, crossovers, matrix mixer, compressor/limiter, and mute functions
Dirac Live Support: Plug-and-play control and configuration via Dirac Live Correction Suite
Filter Storage: Up to 4 filter configurations stored onboard
USB Port: Type-B USB for audio streaming, real-time control, and firmware upgrades
Power Supply: 12V DC external power supply
Dimensions: 41.5 × 214.5 × 206 mm (H × W × D), 1RU half size (optional full rack mount adapter available)
