miniDSP EARS

miniDSP EARS

Rs. 28,305.08
Rs. 28,305.08
Shipping calculated at check out.

Calibrated headphone test fixture, low noise capsules, USB audio plug & play setup, Configurable jumpers Array

Out of stock
  • Secure Packaging & Safe Delivery
  • Quality product
  • Shipping available

Features

Introducing “EARS”, the Earphone Audio Response System. miniDSP EARS brings headphone measurement capability to “the masses” – it’s just an extremely affordable measurement rig for headphones and IEMs that we’ve built using the same technology as our popular UMIK-1 calibrated measurement microphone. Alternatively one could use EARS as a binaural microphone with USB audio streaming.

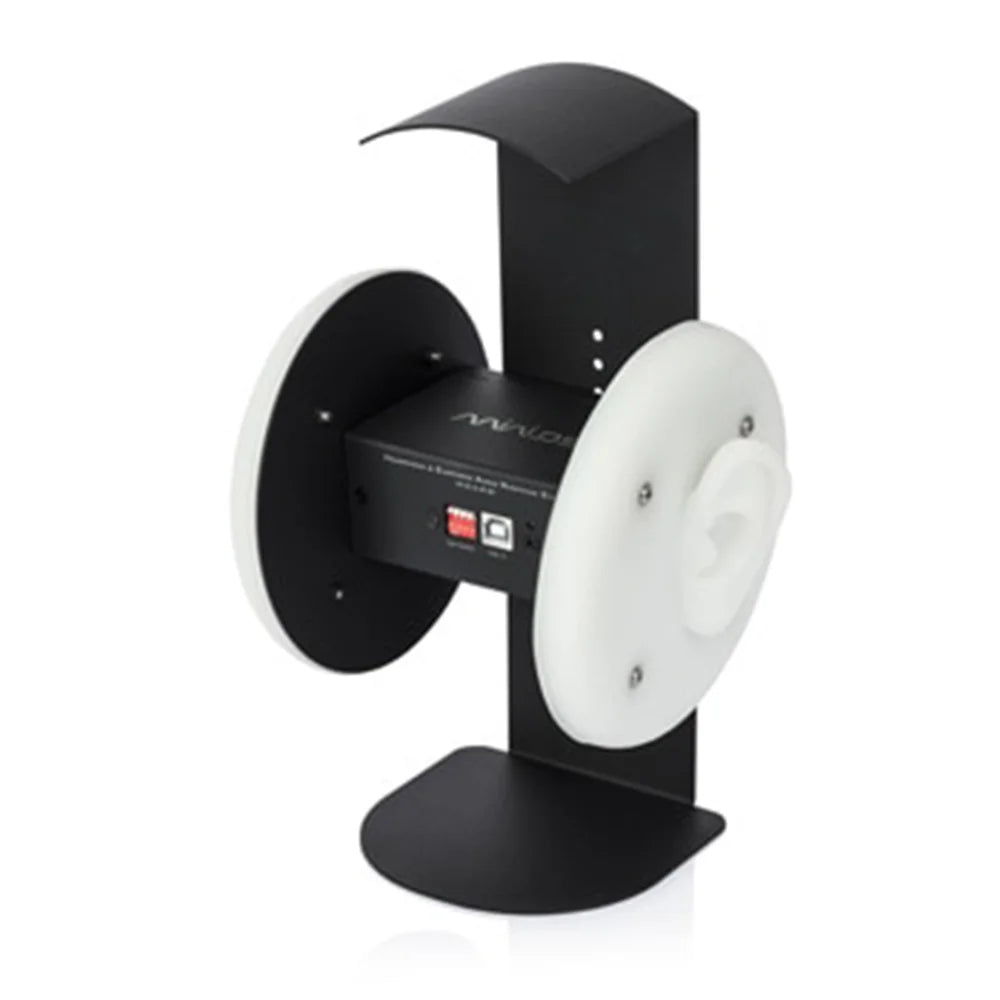

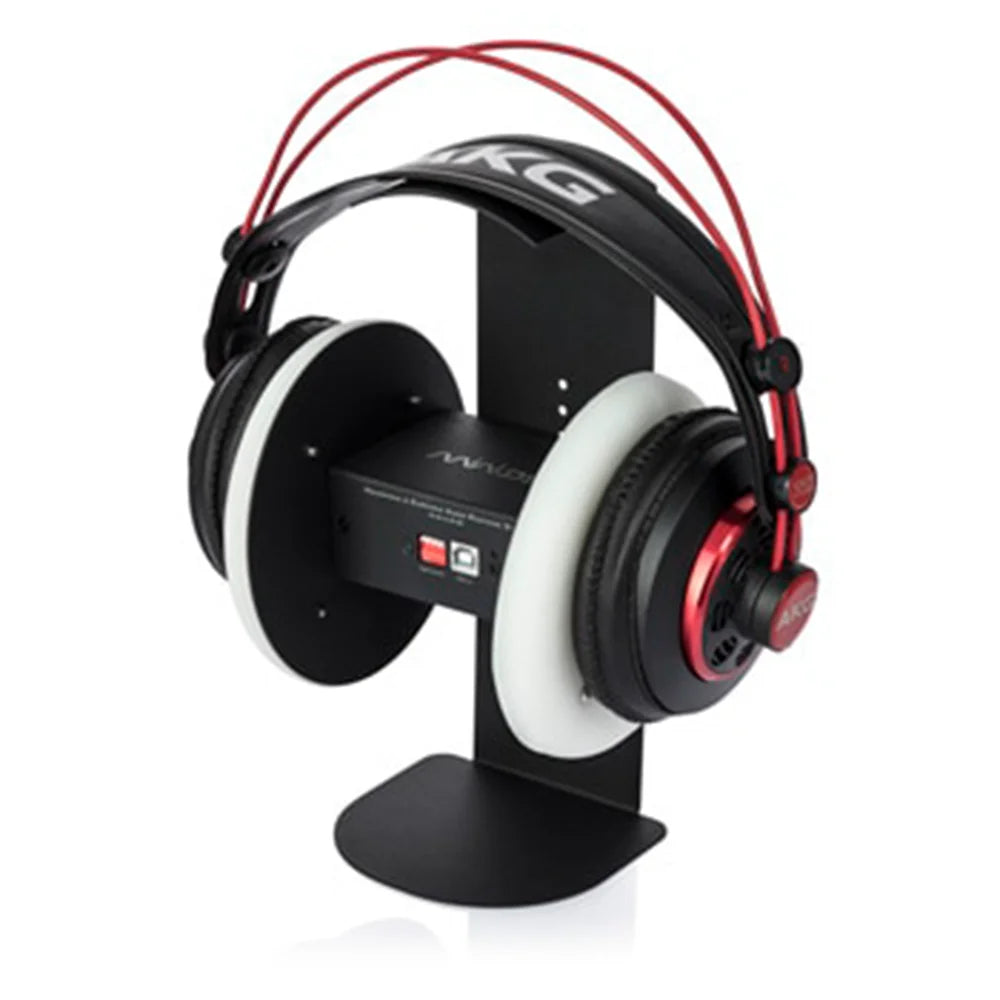

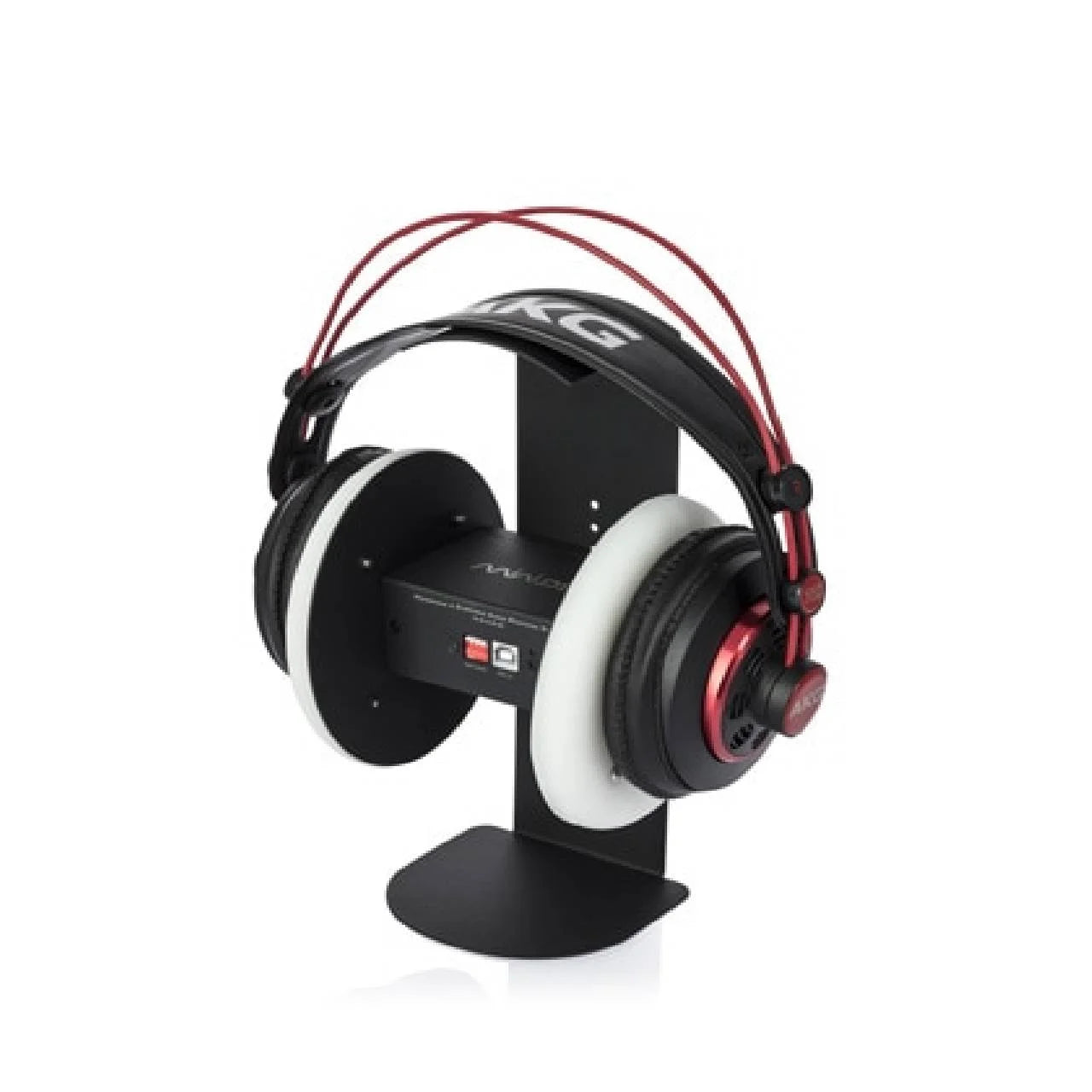

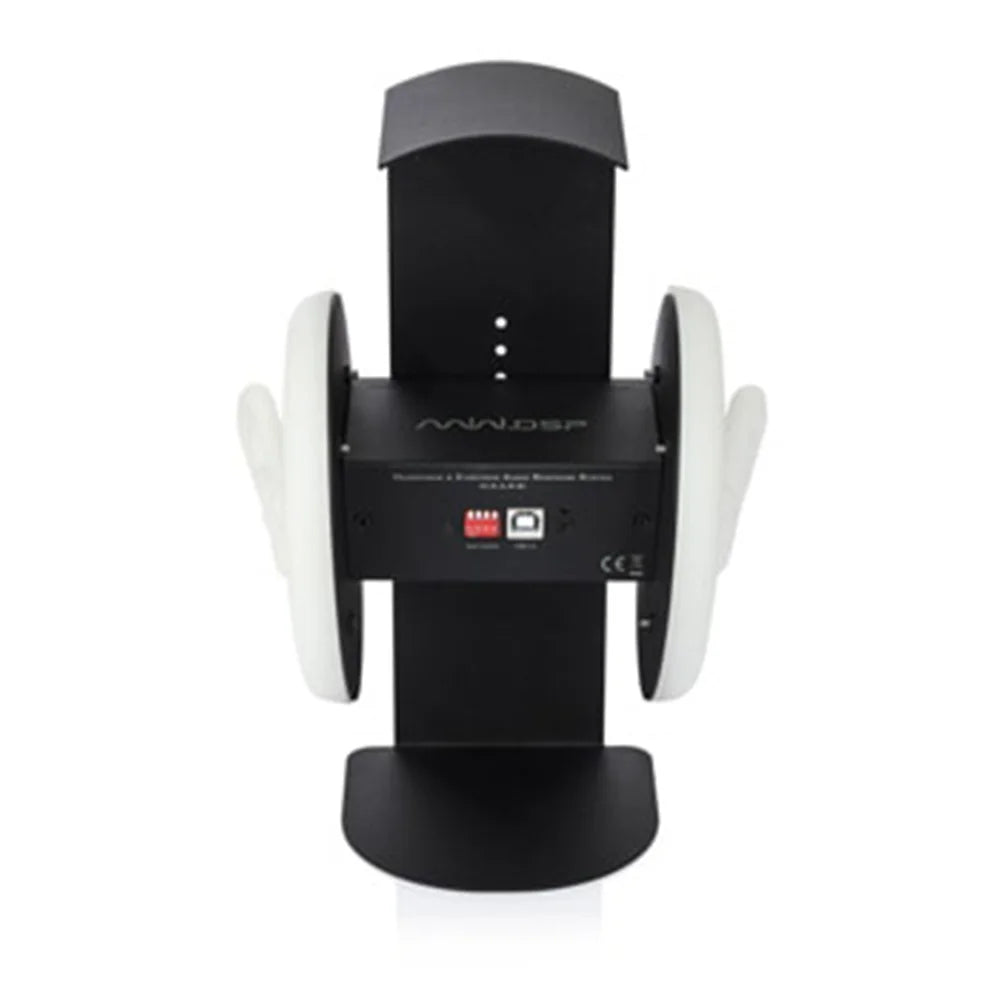

Each pair of EARS has two microphone capsules mounted in a minimal “dummy head”. Measurement output is via the driverless USB connection. The EARS are powered from the USB so there is no need for an external power supply. To measure headphones, just mount your headphones on the rig and run a measurement sweep using your headphone amp and favorite measurement program (e.g. Room EQ Wizard). The supplied calibration file corrects for the response of the microphone capsule and the ear. The miniDSP EARS is the perfect tool for creating EQ filters for the miniDSP HA-DSP headphone amplifier or for any other headphone system with EQ capability.

Features:
Affordable Headphone test jig
Plug&play USB audio streaming for Win/Mac/Linux

Frequency Response: 20 Hz – 20 kHz

USB Audio Class: USB Audio Class 1.0

Compatibility: Driverless interface for Windows, macOS, and Linux

Connector: USB

Resolution & Sample Rate: 24-bit ADC @ 48 kHz

Weight: 1.3 kg

Power Supply: USB powered (5V) with blue LED indicator for power status

Weight 5 kg

Specifications

Introducing “EARS”, the Earphone Audio Response System. miniDSP EARS brings headphone measurement capability to “the masses” – it’s just an extremely affordable measurement rig for headphones and IEMs that we’ve built using the same technology as our popular UMIK-1 calibrated measurement microphone. Alternatively one could use EARS as a binaural microphone with USB audio streaming.

Each pair of EARS has two microphone capsules mounted in a minimal “dummy head”. Measurement output is via the driverless USB connection. The EARS are powered from the USB so there is no need for an external power supply. To measure headphones, just mount your headphones on the rig and run a measurement sweep using your headphone amp and favorite measurement program (e.g. Room EQ Wizard). The supplied calibration file corrects for the response of the microphone capsule and the ear. The miniDSP EARS is the perfect tool for creating EQ filters for the miniDSP HA-DSP headphone amplifier or for any other headphone system with EQ capability.

Features:
Affordable Headphone test jig
Plug&play USB audio streaming for Win/Mac/Linux

Frequency Response: 20 Hz – 20 kHz

USB Audio Class: USB Audio Class 1.0

Compatibility: Driverless interface for Windows, macOS, and Linux

Connector: USB

Resolution & Sample Rate: 24-bit ADC @ 48 kHz

Weight: 1.3 kg

Power Supply: USB powered (5V) with blue LED indicator for power status

Weight 5 kg

For basic support please contact www.avenuesound.in

For any advanced support please write to support.minidsp.com
