HST-15

HST-15

Rs. 252,100.00
Rs. 252,100.00
Shipping calculated at check out.

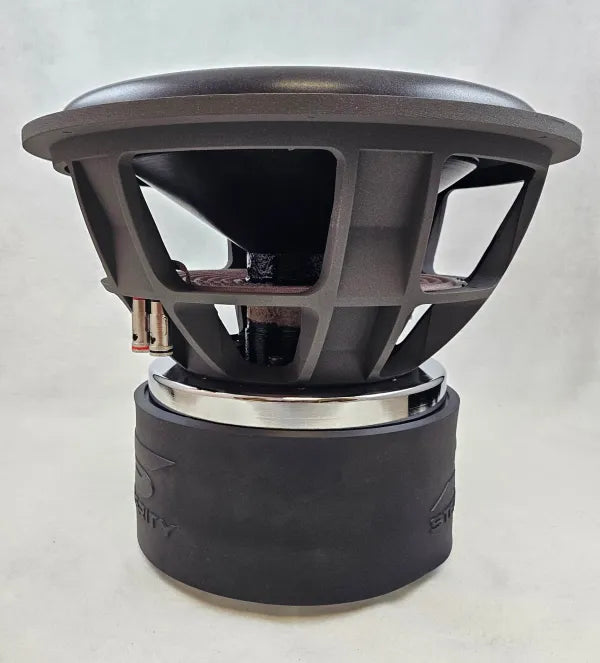

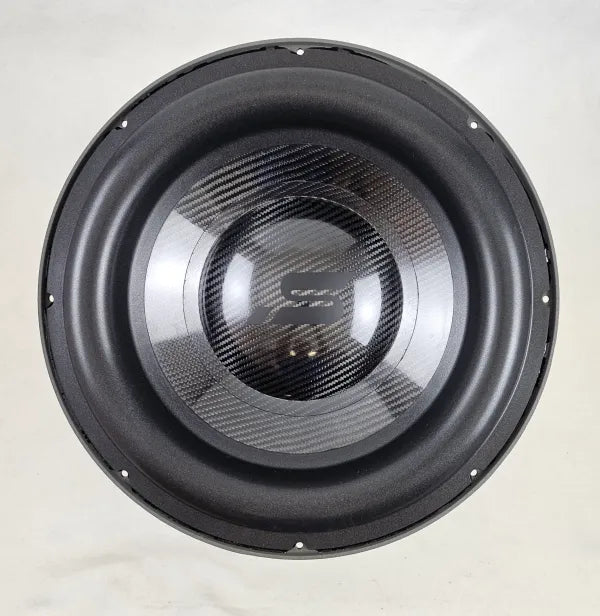

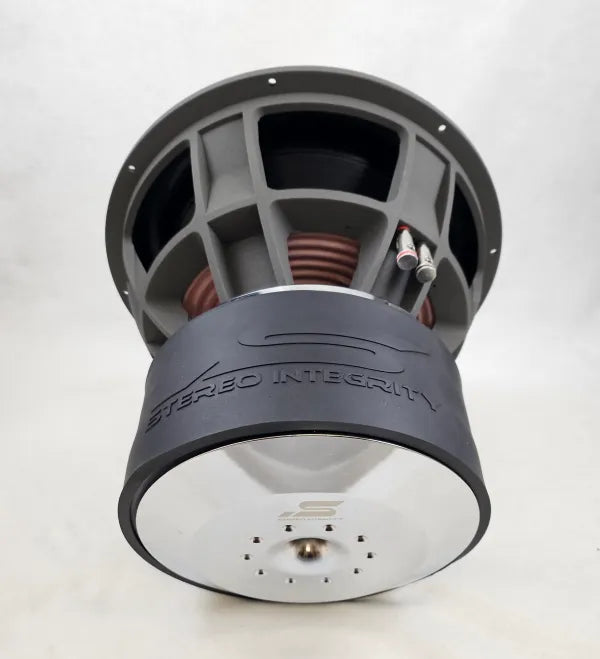

Our HST series are designed for massive amounts of bass out of very small enclosures. To achieve the latter our HST drivers are equipped with very long stroke, high motor force, motors with 3 shorting rings and a bifilar copper voice coil that is capable of 40 mm of one-way linear travel. That’s right, 80 mm of total linear travel and 102 mm of total peak excursion. Flat and linear suspension compliance is achieved by utilizing a wide soft foam surround and a three layer natural color 10″ diameter Nomex spider. Our spiders have sewn-on flat voice coil leads which completely eliminate lead tap. High-clearance cast aluminum frame is used to support the moving parts and the large 250 mm triple stacked motor structure. Large 4 AWG push terminals allow you all the wiring access needed for hookups. Last but not least is our Carbon Fiber sandwich cone and dust cap for extremely high cone stiffness eliminating any cone distortion. When modeling the HST-15 use 0.45 ft^3 for the driver displacement.

Hurry only 1 left
  • Secure Packaging & Safe Delivery
  • Quality product
  • Shipping available

Features

Weight: 90 lbs
Dimensions (OD): 15.375 inches
Dimensions (Cutout): 14.125 inches
Mounting Depth: 11.875 inches
RMS: 2000 watts

Thiele-Small Parameters

Re: 4.0 Ohms
Fs: 20.9 Hz
Qes: 0.38
Qms: 4.42
Qts: 0.35
Le: 3.1 mH
Sd: 112.85 square inches
Vas: 73.42 Liters
BL: 28.65 Tesla Meters
Mms: 593.9 grams
Cms: 97.6 µM/N

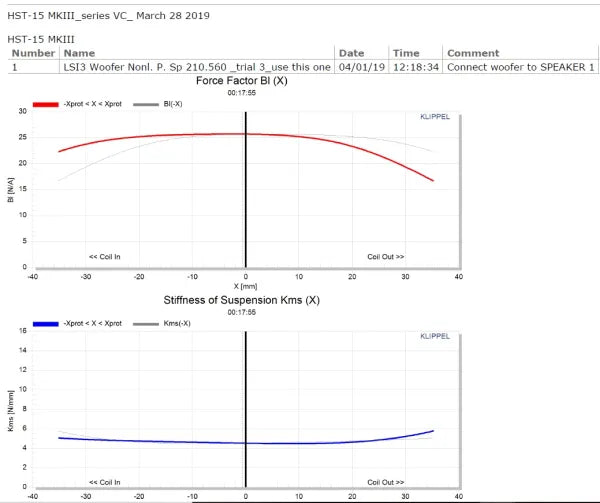

Xmax: 40 mm one-way 70% BL
SPL: 87.5 dB

Materials

Cone Material: Carbon Fiber
Voice Coil Material: Copper

Enclosure Recommendations

Sealed Enclosure Volume: 1.0 cubic feet
Minimum Sealed Enclosure Volume: 0.88 cubic feet
Maximum Sealed Enclosure Volume: 1.5 cubic feet
Ported Enclosure Volume: 1.6 cubic feet
Minimum Ported Enclosure Volume: 1.2 cubic feet
Maximum Ported Enclosure Volume: 2.0 cubic feet
Ported Enclosure Tuning: 23 Hz
Port Surface Area: 40 square inches

Additional Specifications

Voice Coil Diameter: 3 inches
Terminal Type: Large 4 AWG
Motor Diameter (without boot): 10.0 inches
Motor Diameter (with boot): 10.25 inches

Specifications

Weight: 90 lbs
Dimensions (OD): 15.375 inches
Dimensions (Cutout): 14.125 inches
Mounting Depth: 11.875 inches
RMS: 2000 watts

Thiele-Small Parameters

Re: 4.0 Ohms
Fs: 20.9 Hz
Qes: 0.38
Qms: 4.42
Qts: 0.35
Le: 3.1 mH
Sd: 112.85 square inches
Vas: 73.42 Liters
BL: 28.65 Tesla Meters
Mms: 593.9 grams
Cms: 97.6 µM/N
Xmax: 40 mm one-way 70% BL
SPL: 87.5 dB

Materials

Cone Material: Carbon Fiber
Voice Coil Material: Copper

Enclosure Recommendations

Sealed Enclosure Volume: 1.0 cubic feet
Minimum Sealed Enclosure Volume: 0.88 cubic feet
Maximum Sealed Enclosure Volume: 1.5 cubic feet
Ported Enclosure Volume: 1.6 cubic feet
Minimum Ported Enclosure Volume: 1.2 cubic feet
Maximum Ported Enclosure Volume: 2.0 cubic feet
Ported Enclosure Tuning: 23 Hz
Port Surface Area: 40 square inches

Additional Specifications

Voice Coil Diameter: 3 inches
Terminal Type: Large 4 AWG
Motor Diameter (without boot): 10.0 inches
Motor Diameter (with boot): 10.25 inches

For basic support please contact www.avenuesound.in

For any advanced support please write to support.minidsp.com
