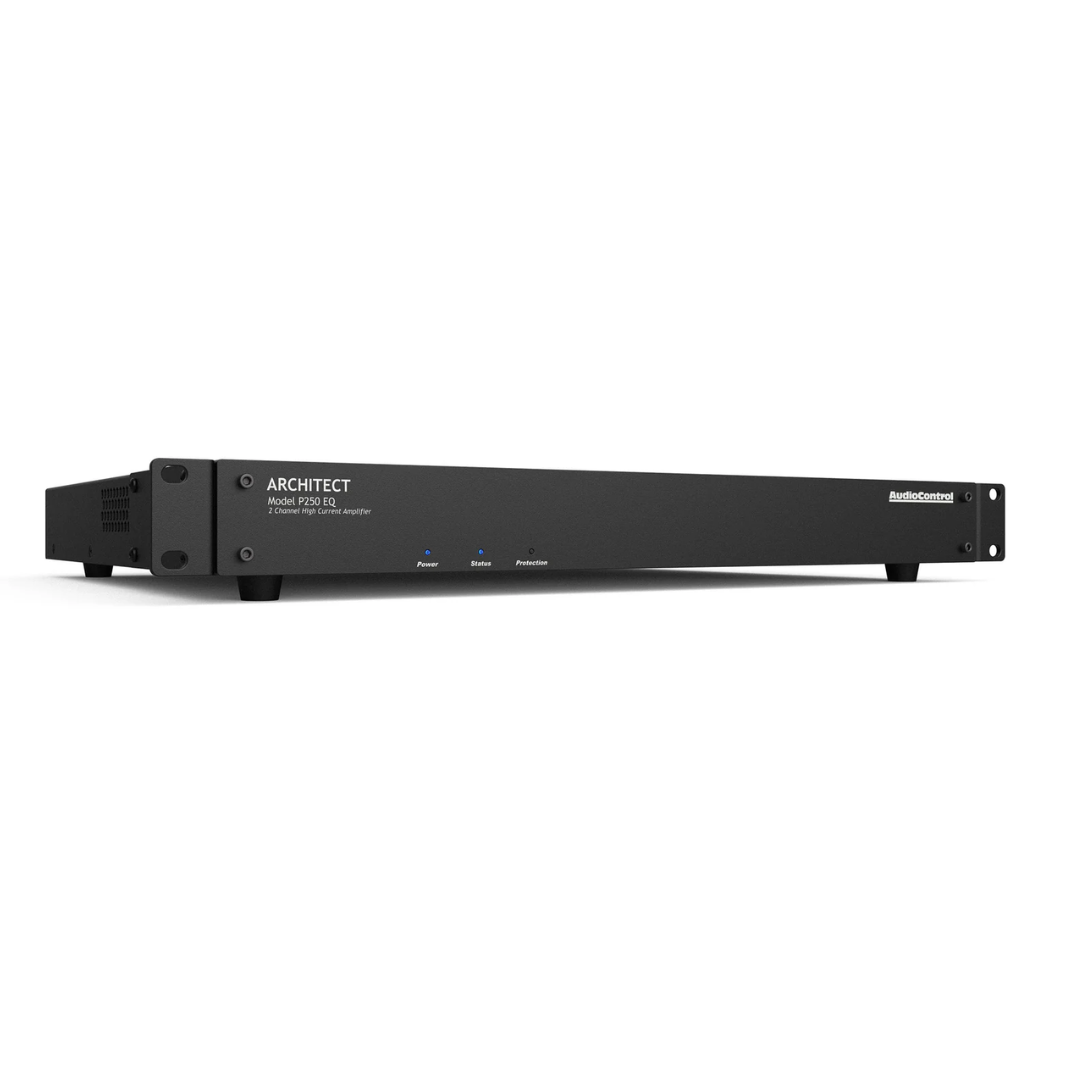

AudioControl Architect P250 EQ

2-Channel High-Current Amplifier with EQ

2 channels
180 W per channel into 8 Ohms
250 W output into 4/2 Ohms
500 W bridged into 8/4 Ohms
Input Prioritization & Signal Sense Switching
Selectable EQ presets
The Architect Model P250 EQ is a high-power, 2-channel amplifier engineered with an emphasis on sound quality to deliver clarity and tonally balanced sound into any loudspeaker.

At only one rack space high, the P250 EQ delivers solid performance found in much larger solutions. Constructed with a high-current overbuilt power supply, an advanced filter stage, and fast-switching, impedance-matching output transistors, the P250EQ delivers 250 watts per channel into 4/2-ohm loads and 180 watts per channel into 8 ohms. The P250 EQ reproduces nuanced detail from any style of music with the power to control even the hardest to drive loudspeakers effortlessly.



250 Watts Per Channel at 4/2 Ohms
180 Watts Per Channel at 8 Ohms
500 Watts at 8/4 Ohms Bridged
High Current Design, 2 Ohm Stable
LightDrive™ Anti-clipping Protection
Stereo Coaxial and TOSLINK Digital inputs
Stereo Coaxial Digital Loop Output
Stereo Analog Input with Loop Output
Signal Detection Switch Input
Input Prioritization & Signal Sense Switching
Selectable EQ Presets
Shallow Mounting Depth (13.5”)
Compact 1U Design
Unparalleled Energy Efficiency


Inputs

Supports 1 Analog Stereo Main input, 1 Digital Main input (Coaxial / TOSLINK), and 1 Analog SDS input
Analog input sensitivity of 1 Vrms for full output at maximum level
Gain of 27 dB for efficient signal amplification

General

Power consumption: 1.5 W (Standby)
Power consumption: 18 W (Idle / All Channels Off)
Power consumption: 24 W (All Channels Active)
Power consumption: 87 W (Loud Listening Level)
Power consumption: 591 W (Maximum)
Heat dissipation: 5.1 BTU/hr (Standby)
Heat dissipation: 61 BTU/hr (Idle / All Channels Off)
Heat dissipation: 82 BTU/hr (All Channels Active)
Heat dissipation: 108 BTU/hr (Loud Listening Level)
Heat dissipation: 268 BTU/hr (Maximum)
Advanced protection includes clipping, short circuit, thermal, ultrasonic, DC offset, and stable operation with reactive or mismatched loads

Outputs

2 amplifier channels
Power output: 180W per channel at 8 Ohms
Power output: 250W per channel at 4/2 Ohms
500W bridged mono output at 8/4 Ohms
Minimum speaker load: 2 Ohms

Performance

Frequency response of ±0.25 dB from 20 Hz to 20 kHz (8Ω load)
Signal-to-noise ratio of >110 dB (A-weighted, reference full output ±3 dB)
THD+N:
<1% at 8Ω per channel
<0.2% at 4Ω per channel
<0.07% at 2Ω per channel
Crosstalk of >80 dB at 1 kHz
High-resolution DAC supporting 32–192 kHz sample rate and 16/24-bit depth

Weight & Dimensions

Dimensions: 19” W (with rack ears) / 17” W (without rack ears) × 13.5” D × 1.75” H (1U)
Weight: 15.0 lbs (6.8 kg)

Control

Remote power trigger: +12 VDC

In the Box

Architect Model P250 EQ amplifier
Power cord
User manual
Warranty documentation
