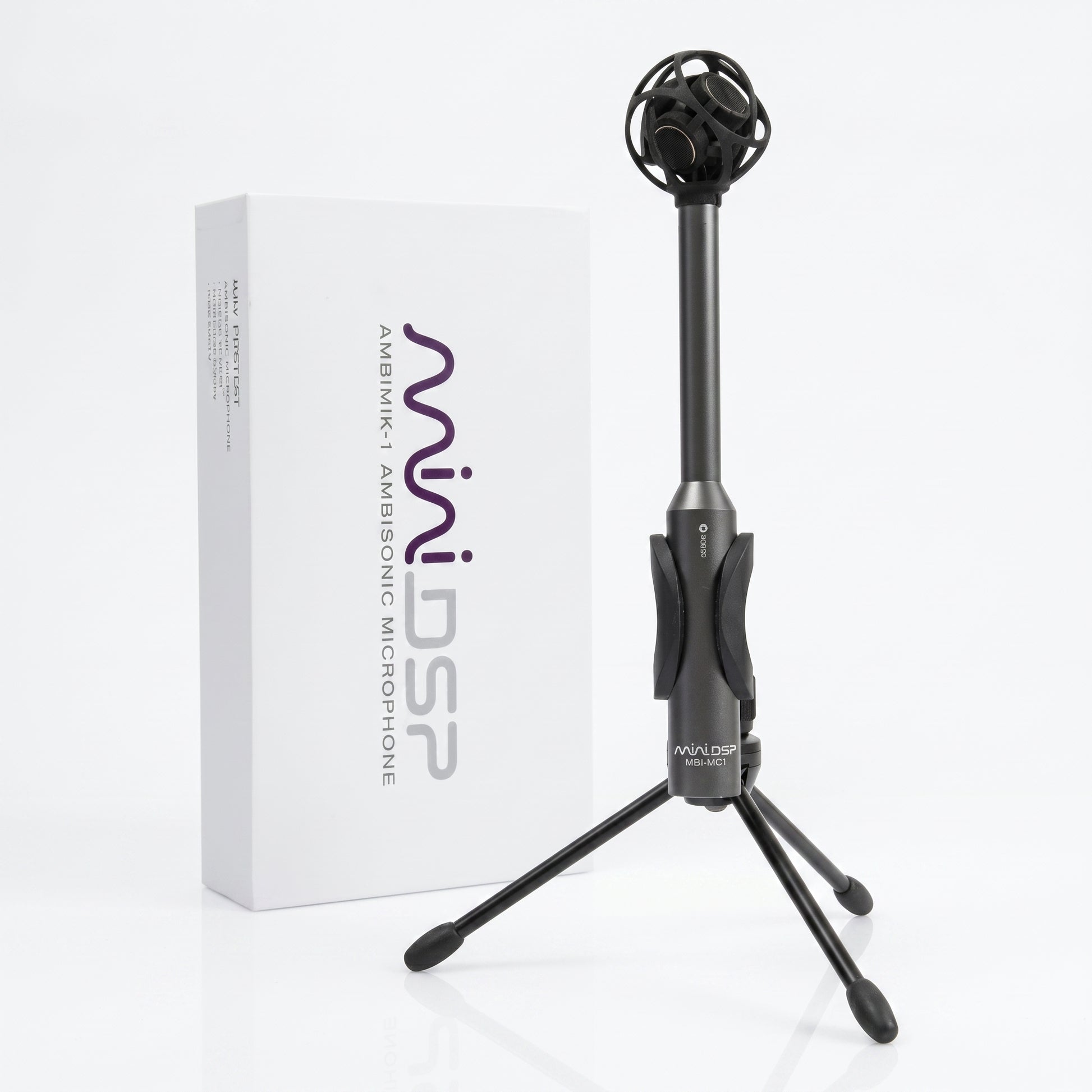

MiniDSP ambiMIK-1

Introducing ambiMIK-1, an affordable First Order Ambisonic (FOA) microphone with embedded preamp, Analog to Digital converters (ADC) and USB processor. This compact solution enables high sample rates (up to 32bit/192kHz) in a portable package. With applications ranging from VR/AR & music recording, the ambiMIK-1 doesn’t require any bulky external preamp or XLR cables. A simple USB cable to your tablet/laptop and you’re ready to go!

With its 4 low noise 14mm capsules, its slim aluminum body and nylon protective frame, the ambiMIK-1 package was engineered for durability and optimal performance without breaking the bank.
Last but not least, miniDSP partnered with Dirac Research for the design of a VST plugin specifically calibrated for the ambiMIK-1 with over 1200 measurements. The controls include Yaw/Pitch/Roll/Output gain and Output Format (B format or Binaural).

Features
First Order Ambisonic Microphone
Multichannel USB audio
32bit 44.1~192kHz recording, ASIO drivers
Low noise capsules
Binaural VST/AU plugin powered by Dirac Research
A-B Conversion (Ambix Output)

Product Specifications

USB Audio Controller: XMOS 500 MHz multicore processor

ADC:
32-bit ADC with embedded PGA (up to 60 dB analog gain)
120 dB SNR
Gain control via Mac/Windows application

Microphone Capsules:
4 × low-noise cardioid capsules
14 mm pre-polarized condenser
Maximum SPL: 127 dB
Self-noise: 16 dB SPL

A-Format Layout:
Ch1 – Front Left Up (FLU)
Ch2 – Front Right Down (FRD)
Ch3 – Back Left Down (BLD)
Ch4 – Back Right Up (BRU)

Connectivity:
USB 2.0 streaming
32-bit audio with selectable sample rates from 44.1 kHz to 192 kHz

Software:
VST plugin (Mac/Windows), powered by Dirac Research
Pre-calibrated for ambiMIK-1
Selectable output: B-format (Ambix) or binaural
Controls: Output gain, yaw, pitch, roll

USB Audio Compatibility:
Driverless support for Linux, macOS, and Android
ASIO driver support for Windows
iOS compatible with USB camera adapter

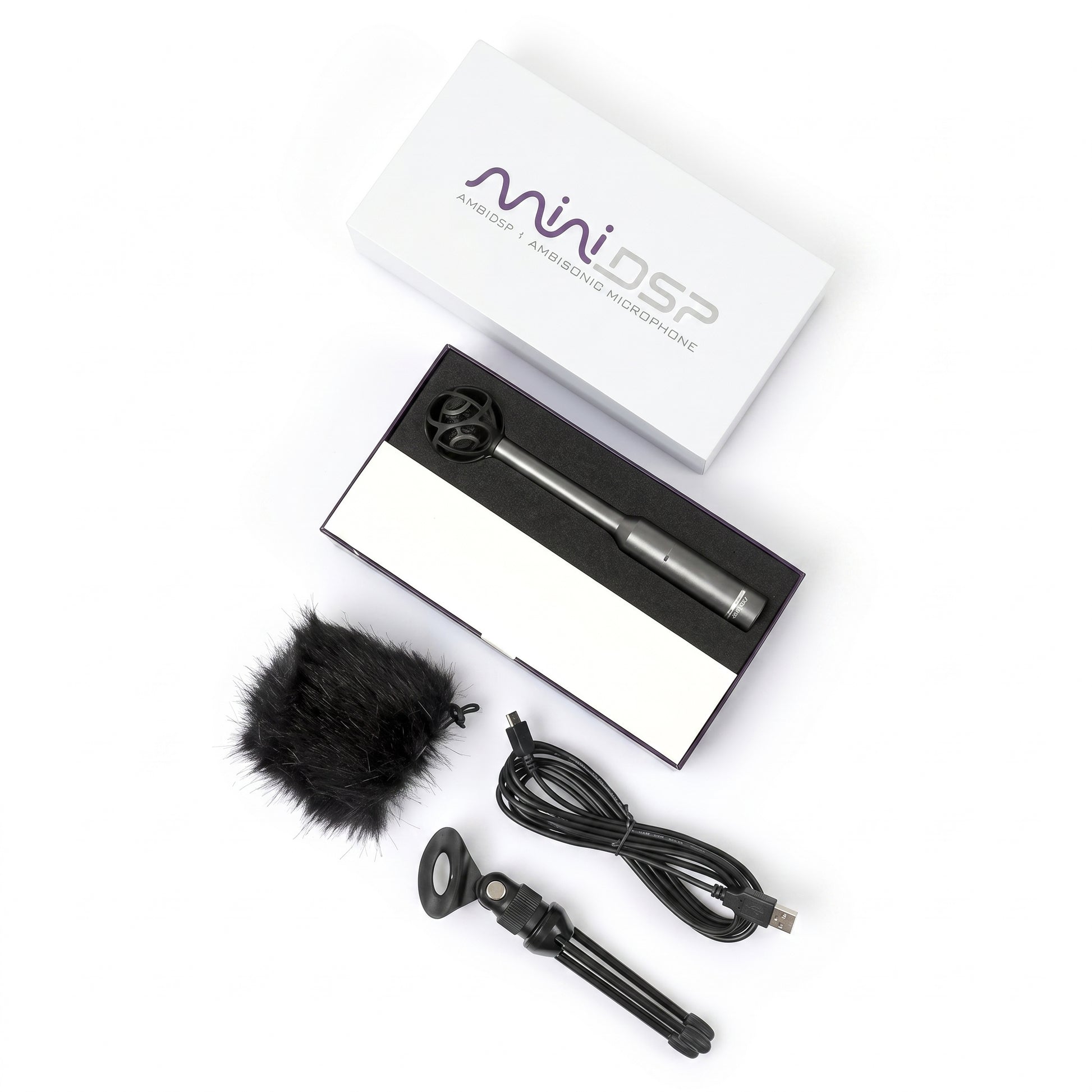

Accessories Included:
Mini tripod with microphone clamp
Windjammer
2m USB cable

Dimensions & Weight: 42 × 213 mm, 130 g

Construction: Aluminum body with plastic microphone holder
