UMA-16 v2 USB mic array

Description

The UMA-16 v2 is the updated version of our sixteen-channel microphone array with plug&play USB audio connectivity. With its onboard XMOS interface, the UMA-16 is the perfect fit for the development of beam-forming algorithms or your DIY acoustic camera. Its system architecture consists of two core elements:

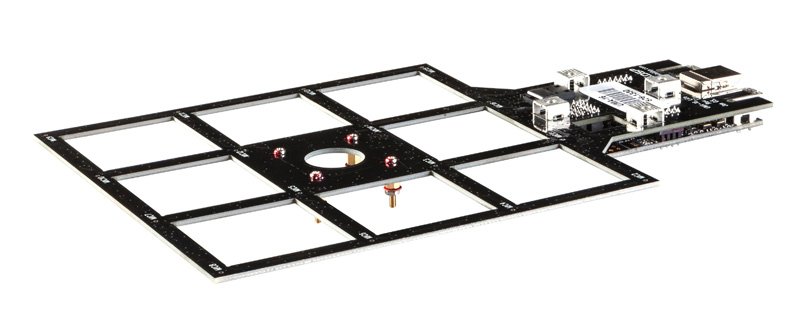

– A microphone PCB with 16 x Knowles PDM MEMS microphones in a uniform rectangular array (URA). A center hole fits an optional USB camera for applications such as acoustic cameras. The microphone PCB is a simple 2-layer design that can easily be customized to your needs by following our schematics included in the user manual.

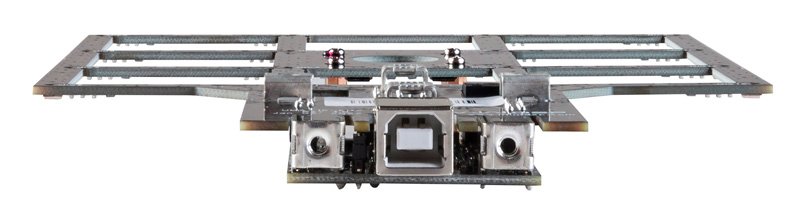

– Stacked on top of the mic array is the MCHStreamer Lite USB interface. This XMOS XCORE interface allows for a high quality PDM to PCM conversion and presents all 16 channels of raw audio to the USB interface.

Features

• Multichannel USB microphone array for voice command
• 16 channels of RAW audio for development of custom beamforming algorithms
• High quality MEMS from Knowles SPH1668LM4H
• USB to PDM conversion for up to 16 x PDM MEMS microphones
• Center Hole for USB camera (Not provided)
• Sample Matlab code to get started

What’s in the box?

• 1 x UMA-16 USB microphone array interface
• 1 x 1.5m USB miniUSB cable
• 1 x 12V power supply with EU/UK/US plugs
• Access to the UserDownloads section for ASIO drivers/Firmware updates once the product purchased.
