Description

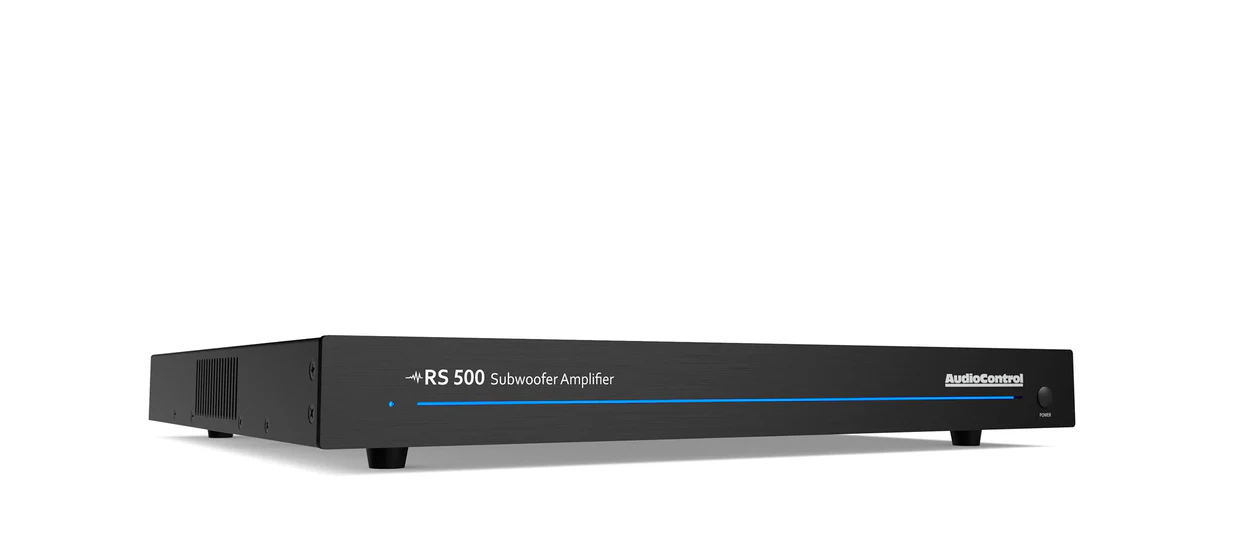

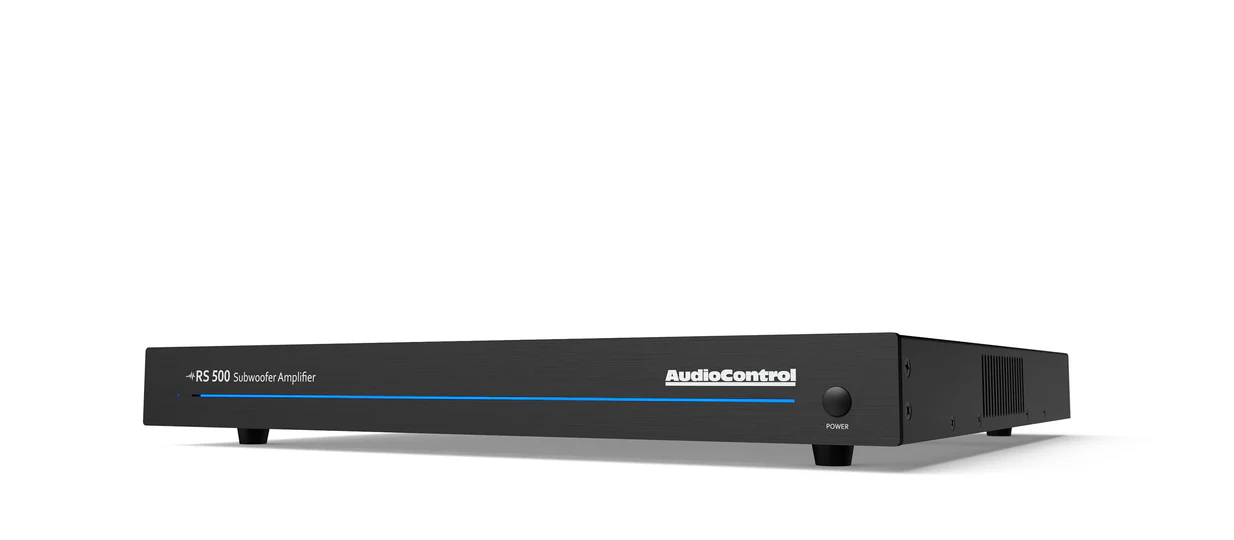

500W Subwoofer Amplifier with DSP
The AudioControl RS 500 DSP-controlled subwoofer amplifier is the ultimate bass amplification solution for any home cinema, multi-zone audio, or 2.1-channel music system.
RS Series amplifiers deliver continuous power into speaker loads from 2 to 8 ohms, and like many AudioControl amplifiers, the RS series offers IP or IR control, plus looped outputs with an optional high-pass filter.
The power of AudioControl’s multi-award-winning DSP engine, coupled with features such as graphic equalization, parametric equalization, high/low filter cutoff, and incremental signal phase with delay compensation, put precise calibration and fine-tuning control at your fingertips for accurate, authoritative bass response. RS Series amplifiers are the definitive choice to power passive subwoofers in entertainment systems that demand the very best.
- 500 Watts into 8, 4, or 2 Ohms
- Digital Signal Processing (DSP) Performance
- Six-band Graphic EQ
- Eight-band Parametric EQ
- Variable Crossover with protective Subsonic Filter
- Downloadable Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
- Network Programmable Graphic & Parametric Equalization with User Memories
- Digital Signal Sense
- AudioControl LightDrive Anti-Clipping Speaker Protection
- Balanced Input/Thru Output
- Unbalanced Inputs/Thru Output
- LFE Input/Thru Output
- Speaker-Level Inputs
- 12 Volt Triggerable
- 5-Way Binding Posts
- Perfect for Home and Commercial Installations

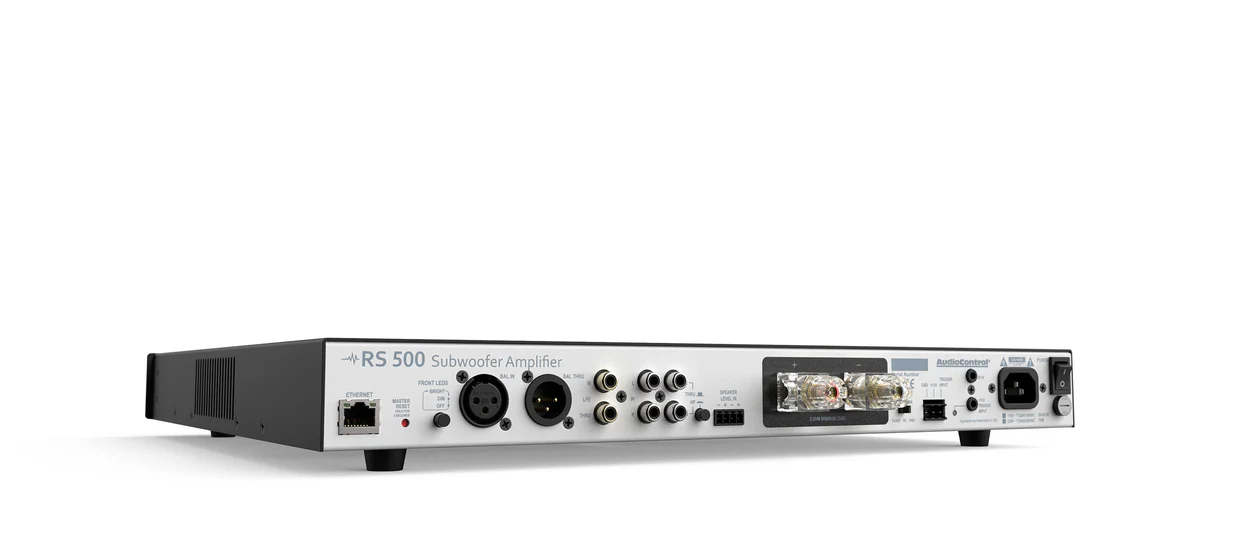

| INPUTS Audio Inputs: 1 Balanced, 2 Unbalanced, 1 LFE, 2 Speaker-Level Nominal sensitivity: 0.5V to 4V (user selectable) Signal to Noise (A-wtd ref full output): 98 dB Frequency Response: 15 Hz – 350 Hz |
CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure Network Connection/Protocol: 10BaseT Ethernet TCP/IP Communication Protocol: HTTP or Telnet 12 Volt Trigger Outputs: 1 IR Receiver Inputs: 1 |
| OUTPUTS Amplifier Channels: 1 Continuous power output: 500W Minimum Speaker Load: 2Ω Loop/Thru Audio Outputs: 1 Balanced, 2 Unbalanced, 1 LFE Total Harmonic Distortion: 0.1% |
WEIGHT & DIMENSIONS Dimensions (including terminals and feet): 17” W x 17.5” D x 1.75” H (1 U) Weight: 14.9 lbs. (6.8 kg) |
| IN THE BOX RS 500, power cord, rack mounting brackets, user manual, warranty |
Additional information
| Weight | 6.8 kg |
|---|
