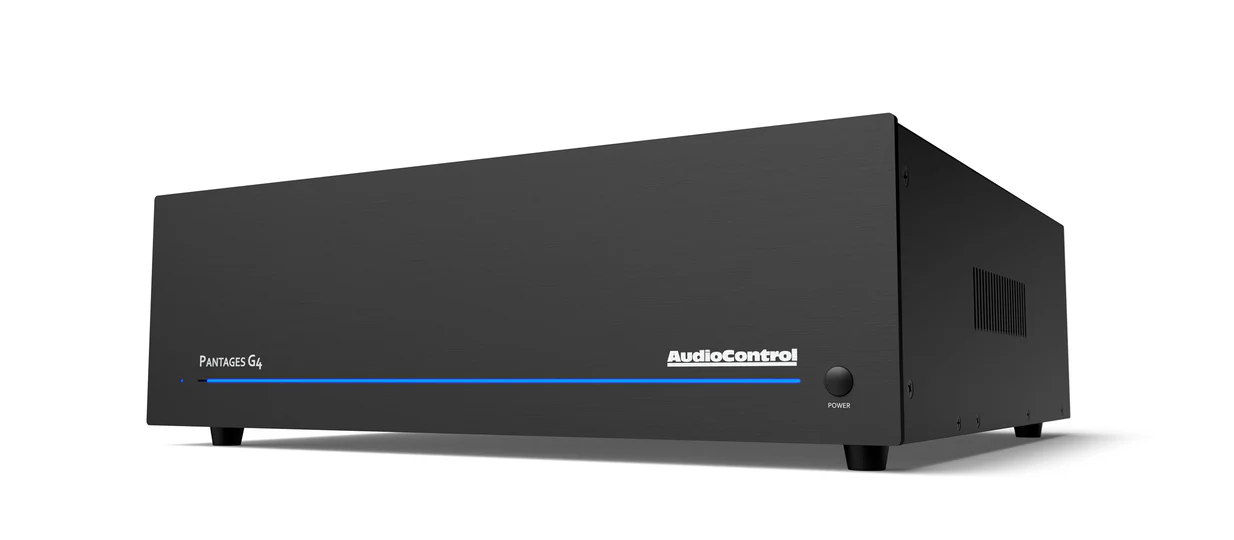

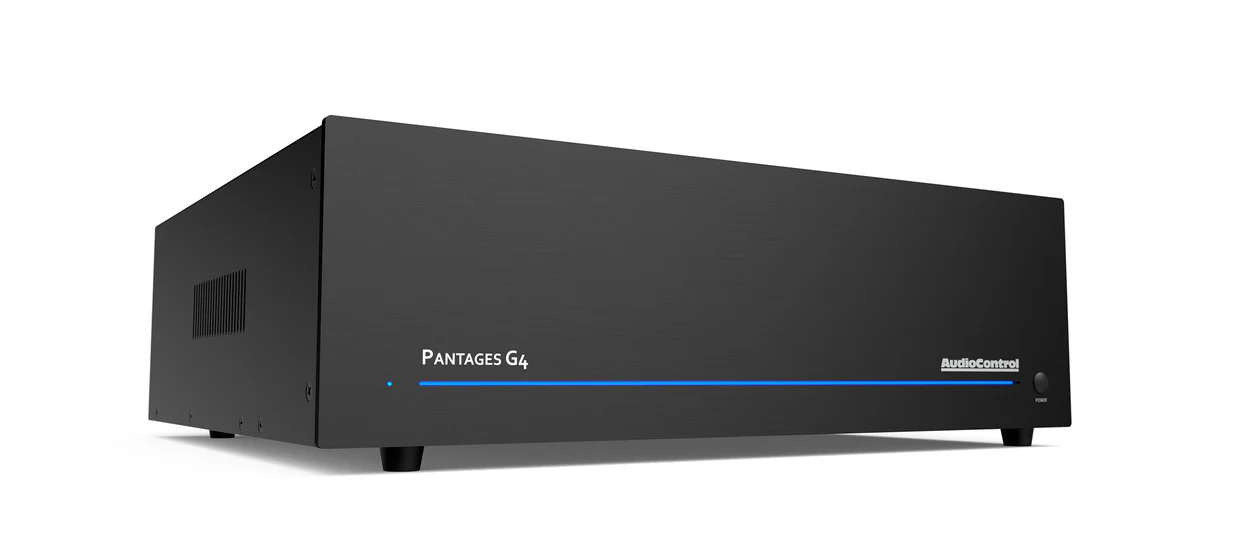

5-Channel Power Amplifier
Built from a legacy of respected premium power amplifiers, AudioControl’s G4 series amplifiers offer effortless power and efficiency, delivering impressively dynamic and detailed audio across all channels.
Incorporating AudioControl’s unique, highly efficient, and cool-running Class H design, the Pantages G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Pantages G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. AudioControl’s LightDrive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions.
Designed as a perfect match to AudioControl’s preamp processors or as a standalone critical listening power amplifier, the Pantages G4 can be configured for anything from a powerful 3-channel listening room to a detailed and dynamic, multichannel home theater.
- Award-winning theater amplifier technologies
- Five-channel home theater amplifier
- Multi-mode operation: 5-channel, 3.1-channel, 3-channel
- 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
- 600 watts at 8 ohms bridged on select channels
- Stable into low impedances
- Stereo/mono operation
- Unparalleled Energy Efficiency
- High Definition BiMOS Outputs
- Cool Running Class H Operation
- LightDrive Anti-Clipping Protection Circuitry
- 5-way Binding Posts
- Unbalanced RCA inputs with pass through
- Balanced XLR Inputs
- Bullet-Proof Reliability
- Remote 12 volt Trigger
- Perfect paired with AudioControl’s home theater preamplifiers

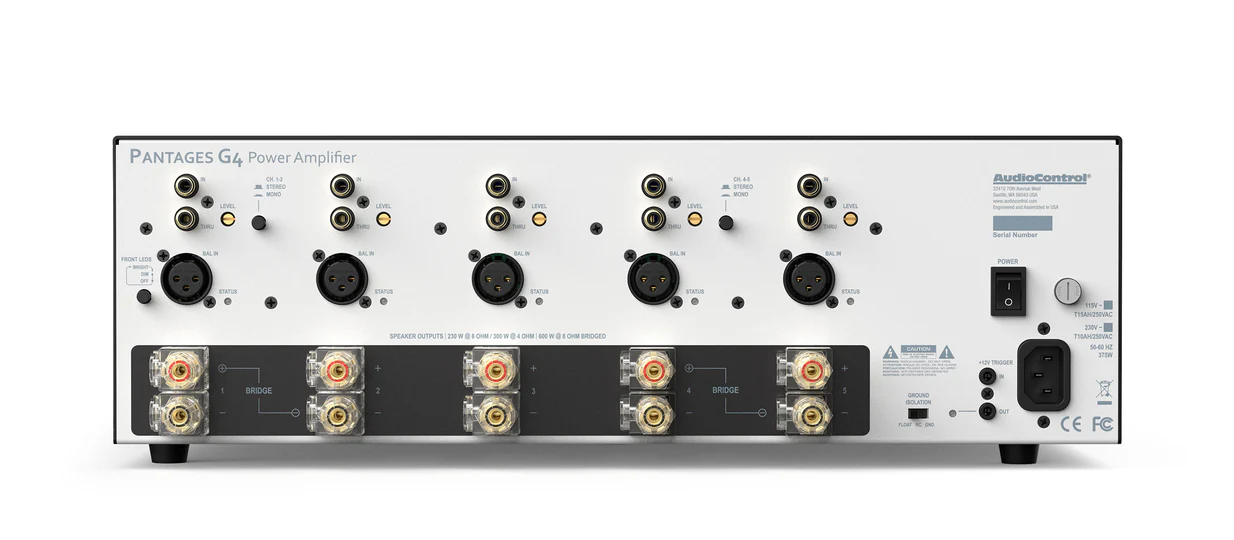

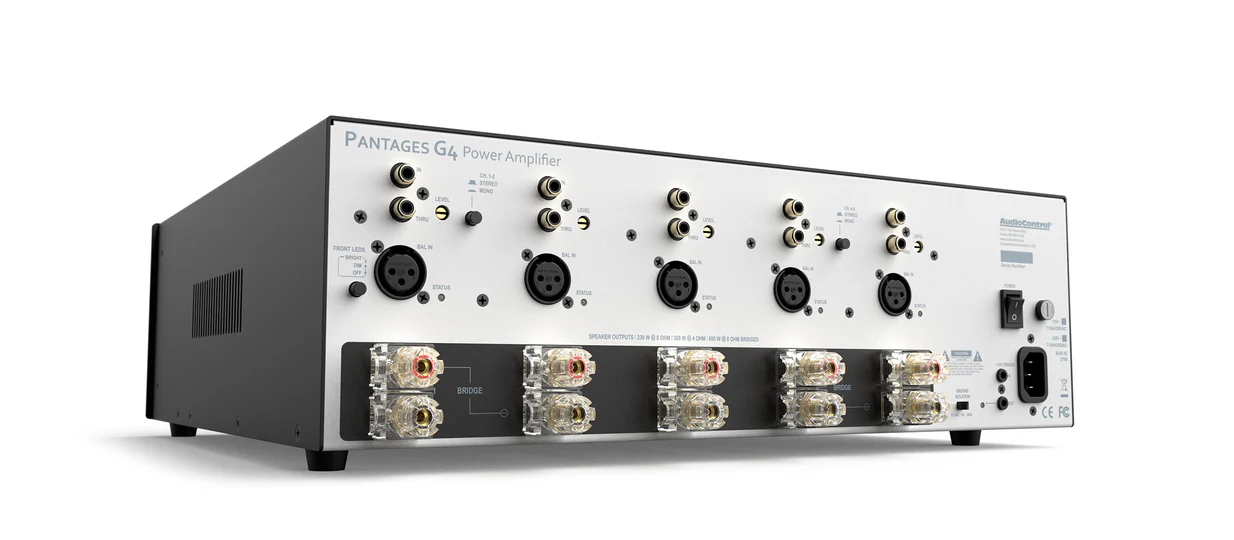

INPUTS
Inputs: 5 RCA Unbalanced, 5 XLR Balanced
Input Sensitivity: 1.42 Vrms for full output
Maximum Input Voltage: 2.7 Vrms
Input Impedance: 100 kΩCONTROL
Remote Power Trigger: +12 VDC or Dry Contact ClosureOUTPUTS
Amplifier Channels: 5
Power Output (8Ω): 230 watts per channel
Power Output (4Ω): 300 watts per channel
Power Ouput (8Ω Bridged Mono): 600 watts
Minimum Speaker Load: 4 ΩGENERAL
Power Consumption (Standby): < 2 W
Power Consumption (Idle): 38W
Power Consumption (loud listening level): 263W
Power Consumption (maximum): 1500W
BTU/Hour Output (Standby): 5.6 BTU/hr
BTU/Hour Output (Idle): 129 BTU/hr
BTU/Hour Output (1/8th power, loud listening level): 313 BTU/hr
BTU/Hour Output (maximum): 1791 BTU/hr
Protection: clipping, short circuit, thermal, DC offsetPERFORMANCE
Damping Factor: >450
Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
Signal to Noise: >102dB, A-wtd ref Full Output
Frequency Response: 10 Hz to 20 kHz, ±1 dBWEIGHT & DIMENSIONS
Dimensions: 17”W x 16.5”D x 5.25”H (3U)
Weight: 41.0 lbs (18.6 kg)IN THE BOX
Pantages G4, Power Cord, rack mounting brackets, Manual, Warranty
