miniDSP UMIK-1
₹9,491.53
USB calibrated measurement microphone for a plug ‘n play measurement of your system.
- Description
- Additional information
- Reviews (2)
Description

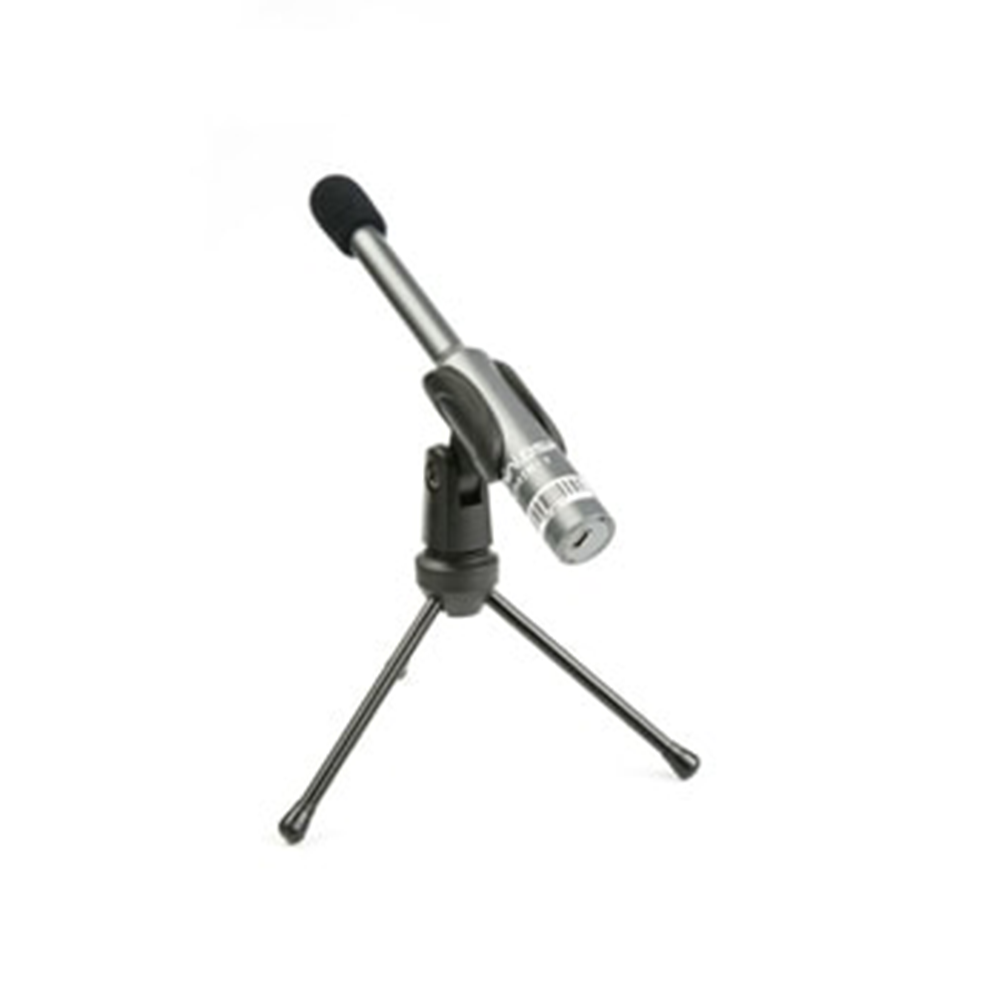

The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on. Forget about driver installation, OS compatibility and un-calibrated mics. The Umik-1 is a USB Audio class 1 device automatically recognized by all Operating Systems (Windows/Mac) and Ipad with Camera Connection Kit. It is provided with a unique calibration file based on the serial number to insure an accurate measurement. Combined with our recommended acoustic measurement software, it is the perfect match for a plug & play measurement system.
Features :
- Windows/Mac/Linux
- All measurement software
- Special features such as calibrated SPL measurement enabled under free Room EQ Wizard software
- Frequency response: 20 Hz – 20kHz /-1dB with calibration loaded
- USB Audio: USB Audio class 1.0 Driverless interface for Windows, Mac & Linux
Specifications:
| Capsule Type & Polar pattern | 6mm electret, Omni-Directional |
| Frequency response | 20 Hz – 20kHz |
| USB Audio Class | USB Audio class 1.0, Driverless interface for Windows, Mac & Linux |
| Connector | miniUSB Connector |
| Resolution & Sample rate | 24bit ADC @ 48kHz |
| Max SPL for 1 % TDH @ 1kHz | 133 dB SPL @OdB gain setting |
| Output noise level at max IGPA | -74dBFS |

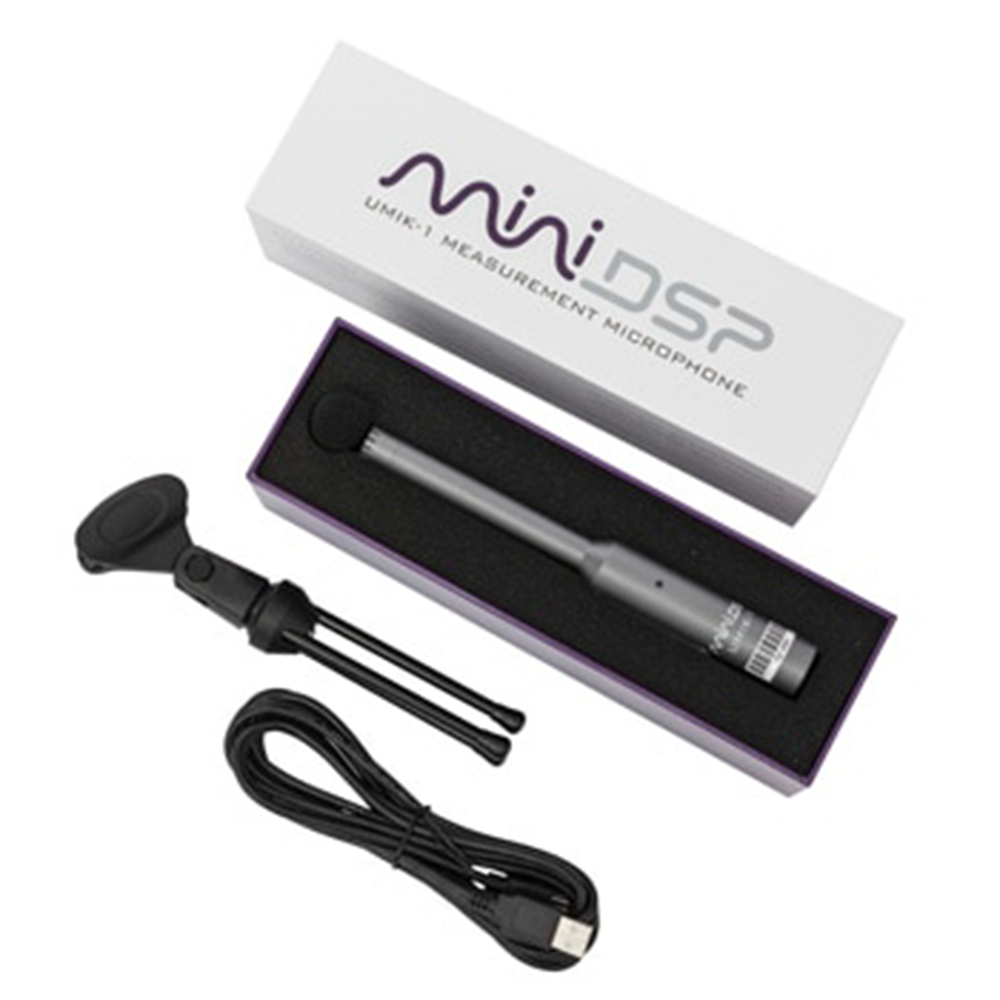

| Weight | 120gm for microphone,600gm complete kit with accessories |
| Power | USB Powered (5V) – Blue LED indicates unit under Power |
| Clamp thread size | 3/8″-16 |
Support:
For basic support please contact www.avenuesound.in
For any advanced support please write to support.minidsp.com
Additional information
| Weight | 4 kg |
|---|
Akshay –
used the miniDSP UMIK-1 for measuring my home audio system, and it worked perfectly…..the setup was easy, and the results were clear. Highly recommend it
Nagesh –
I bought the UMIK-1 to measure my room acoustics, and it’s been fantastic.
