Description
The Flex Eight is the latest member of the miniDSP Flex family of advanced audio processors. We’ve taken advantage of our flexible hardware architecture to cram a full eight channels of DSP and a world-class analog output stage into the compact enclosure.
With multiple digital inputs and eight unbalanced analog output channels, the miniDSP Flex Eight can implement active speakers up to stereo four-way. Flexible 2×8 signal routing supports many other configurations such as two-way, three-way and multiple subwoofers. As always, a full suite of miniDSP’s tried and proven audio processing functionality is included: FIR filters and parametric EQ on the input channels, and parametric EQ, crossovers, advanced biquad programming and delay on each output channel.
The Flex Eight has USB audio, S/PDIF (RCA and optical) and Bluetooth (LDAC/aptX) stereo digital inputs. An OLED front panel display and volume control/encoder knob provides easy control. Last but not least, it is easily software-upgradable with Stereo Dirac Live® for full range correction (20~20kHz), the world’s premiere room correction system.
The miniDSP Flex Eight is the perfect solution for a modern compact integrated active speaker/subwoofer system. You just need to let your creativity do the rest!
Hardware Features
- Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP
- Multi-Core USB Audio processor (XMOS)
- Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC
- Optional upgrade to Dirac Live® 3.x Digital Room Correction, Stereo Full Range Room Correction (20~20kHz)
- Audiophile performance with very low noise floor and distortion (SNR @128dB(A), THD+N @ -111dB (0.0003%)
- Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth)
- Outputs: Unbalanced (RCA)

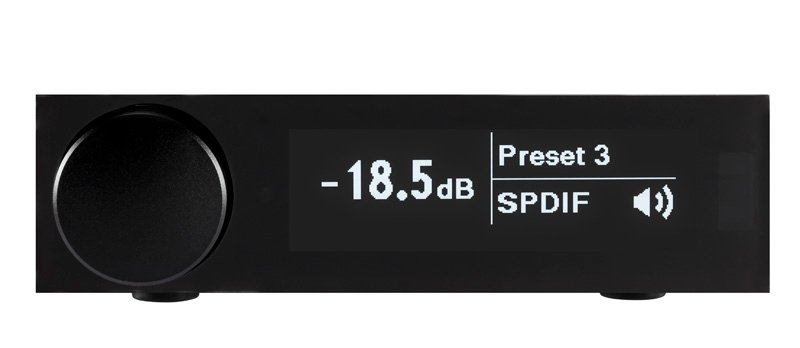

- White/Black OLED front panel controller with IR control
- Control and configuration by miniDSP Device Console (DC)
| Description | |
| Digital Signal Processor Engine | Analog Devices Floating point DSP SHARC ADSP21489 @ 400MHZ |
| Processing resolution / Sample rate | 32 bit/96 kHz (32bit/48 kHz with Dirac Live® license) |
| USB Audio support | UAC2 Low latency Audio – ASIO driver support (Windows) – Plug&Play (Mac/Linux) |
| Input/Output Configuration | 2 channels in / 8 channels out |
| Digital Stereo Audio Input Connectivity |
1 x SPDIF on RCA connector 1 x OPTICAL on Toslink connector 1 x USB audio (stereo) 1 x Bluetooth with support for: LDAC™/aptX™ HD/aptX™/AAC/SBC Supported Sample Rate: 20 ~ 216 kHz |
| Digital Audio Output Connectivity | Not Applicable |

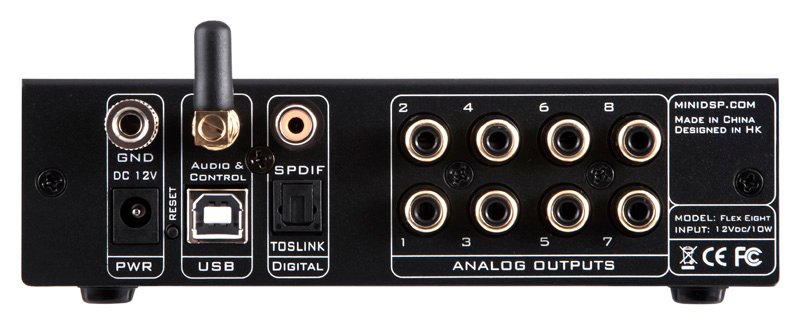

| Analog Audio Output Connectivity | 8 x Unbalanced RCA |
| Analog Audio Output Impedance | 200 Ω |
| Analog Output Max Level | 2 V RMS |
| Frequency Response | 20 Hz – 20 kHz ± 0.05 dB |
| SNR (Digital to Analog) | 125 dB(A) with DRE (Dynamic Range Enhancer) |
| THD+N (Digital to Analog) | -111 dB (0.0003 %) @1kHz |
| Crosstalk (Digital to Analog) | -120 dB |
| Filtering Technology | Flex Eight: IIR (10bands/outputs) + FIR (Stereo bank on input @ 2048taps for impulse response correction) Flex Eight with Dirac Live®: Full Range correction (20~20kHz) + IIR (10bands/outputs) / (Note: FIR and IIR filters on the input channels are not available to the end user if the Dirac Live upgrade is installed.) |
| Software control | Control and configuration by miniDSP Device Console (DC) |
| DSP Presets | Up to 4 presets |
| Dimensions | 150x180x41 mm |

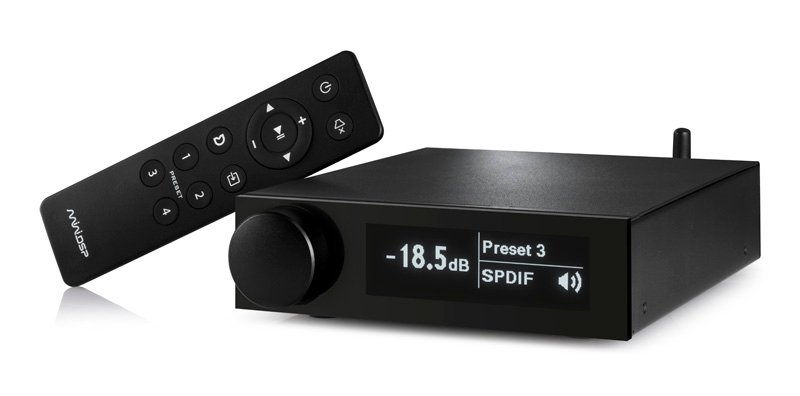

| Accessories | IR Remote |
| Power Supply | Included external switching PSU 12V/1.6A (US/UK/EU/AU plugs) |
| Power Consumption | 4.0 W (idle) 2.5 W (standby) |
