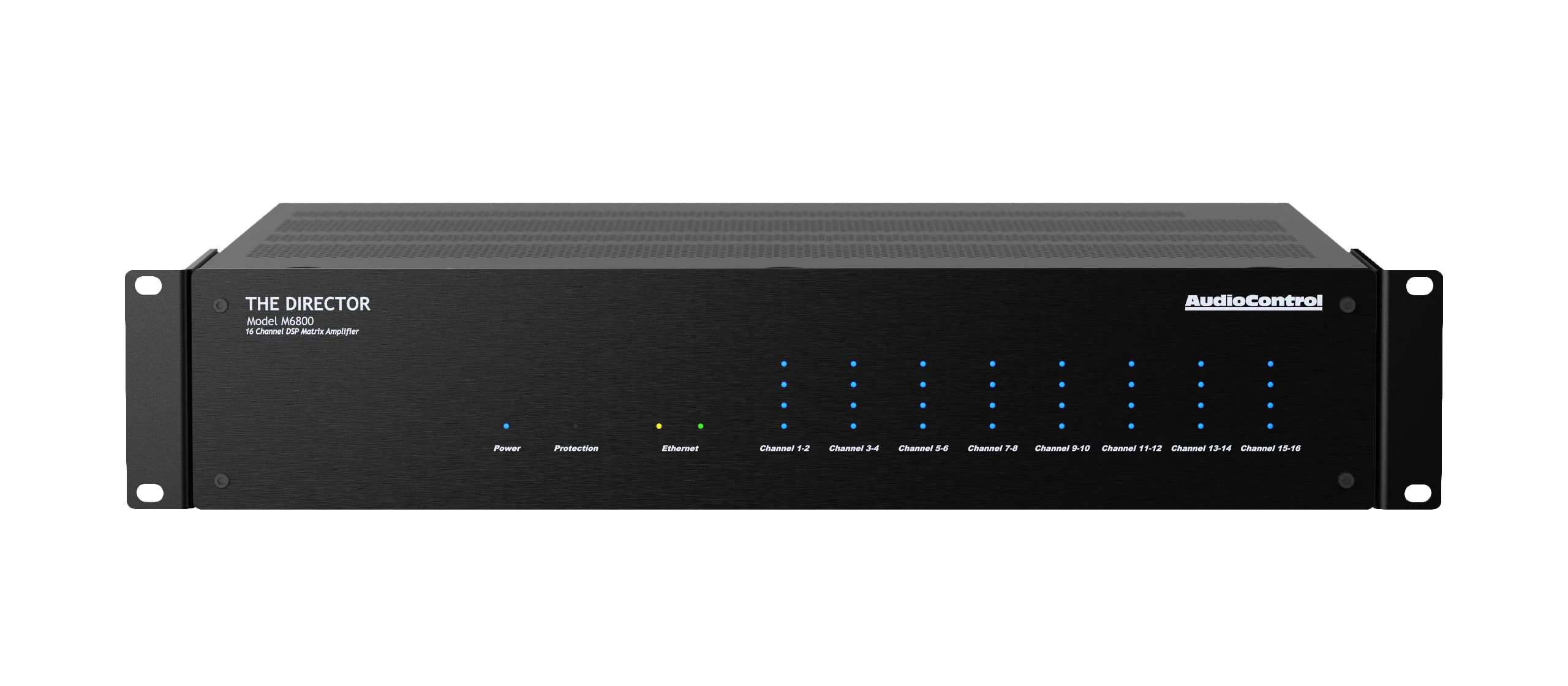

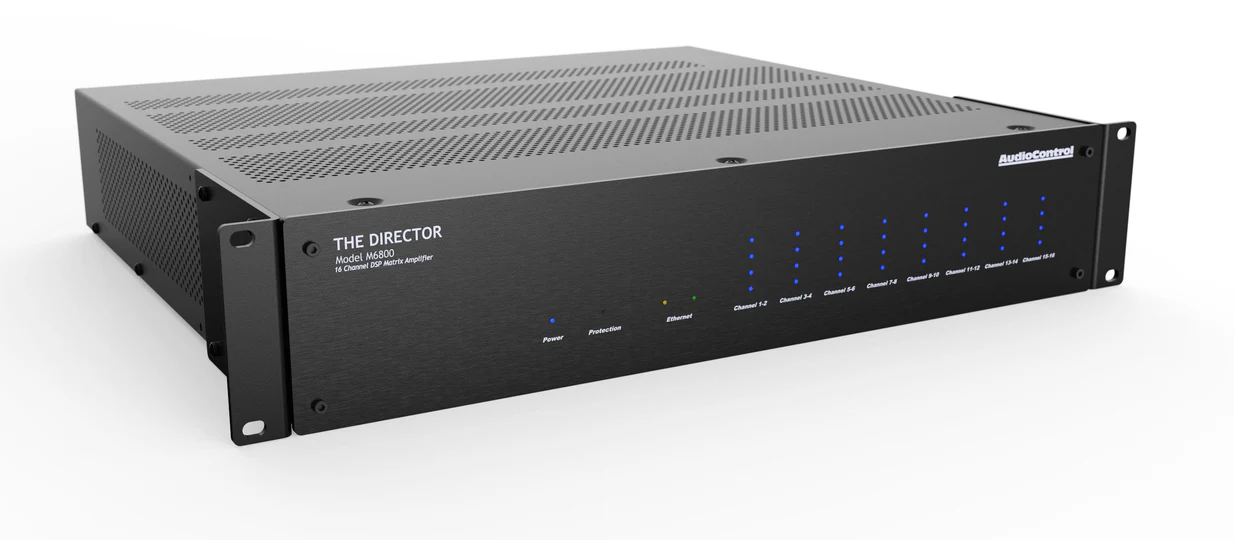

16-Channel DSP Matrix Amplifier
AudioControl Director® M Series amplifiers are among the highest-powered, most flexible multi-zone amplifiers worldwide, designed exclusively for commercial and residential custom integrators. In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director® M Series Model M6800 has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.
16, 100-watt channels into 8 Ohms become 200 watts per channel with 4-Ohm loudspeaker loads. When two channels bridge outputs, that single channel produces 400 watts into 8 Ohms, more than enough power for even the most demanding loudspeaker configurations. Two digital input busses selectable between Coaxial and TOSLINK with Coaxial outputs may be matrixed, along with every analog zone input to any zone or all zone outputs. Built-in speaker profiles from AudioControl’s Sound Partners™ program members offer M Series DSP-optimized tonally balanced speaker calibrations from a growing list of prominent loudspeaker manufacturers.
Discover for yourself the countless critical ways in which AudioControl Director® M Series amplifiers, designed, engineered, and manufactured in Seattle, USA, contribute to successful commercial or residential systems.
- Network DSP Amplifier With Volume Control
- 16 Channels x 100 Watts into 8 Ohms (All Channels Driven)
- 16 Channels x 200 Watts into 4 Ohms (All Channels Driven)
- 8 Bridgeable Channels of 400 Watts into 8 Ohms
- Built-In Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
- Network Programmable Graphic & Parametric Equalization with User Memories
- Assignable Names for Amplifiers & All Zones
- Digital Signal Sense
- Master 12 VDC In/Out Trigger
- Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
- AudioControl LightDrive™ Anti-Clipping Speaker Protection
- Local Inputs with Pass Through/Loop Outputs
- Dual Analog Bus Inputs
- Compact 2 U Rack Space (Includes Rack Mount Brackets)
- Commercial or Residential Installation Compatible

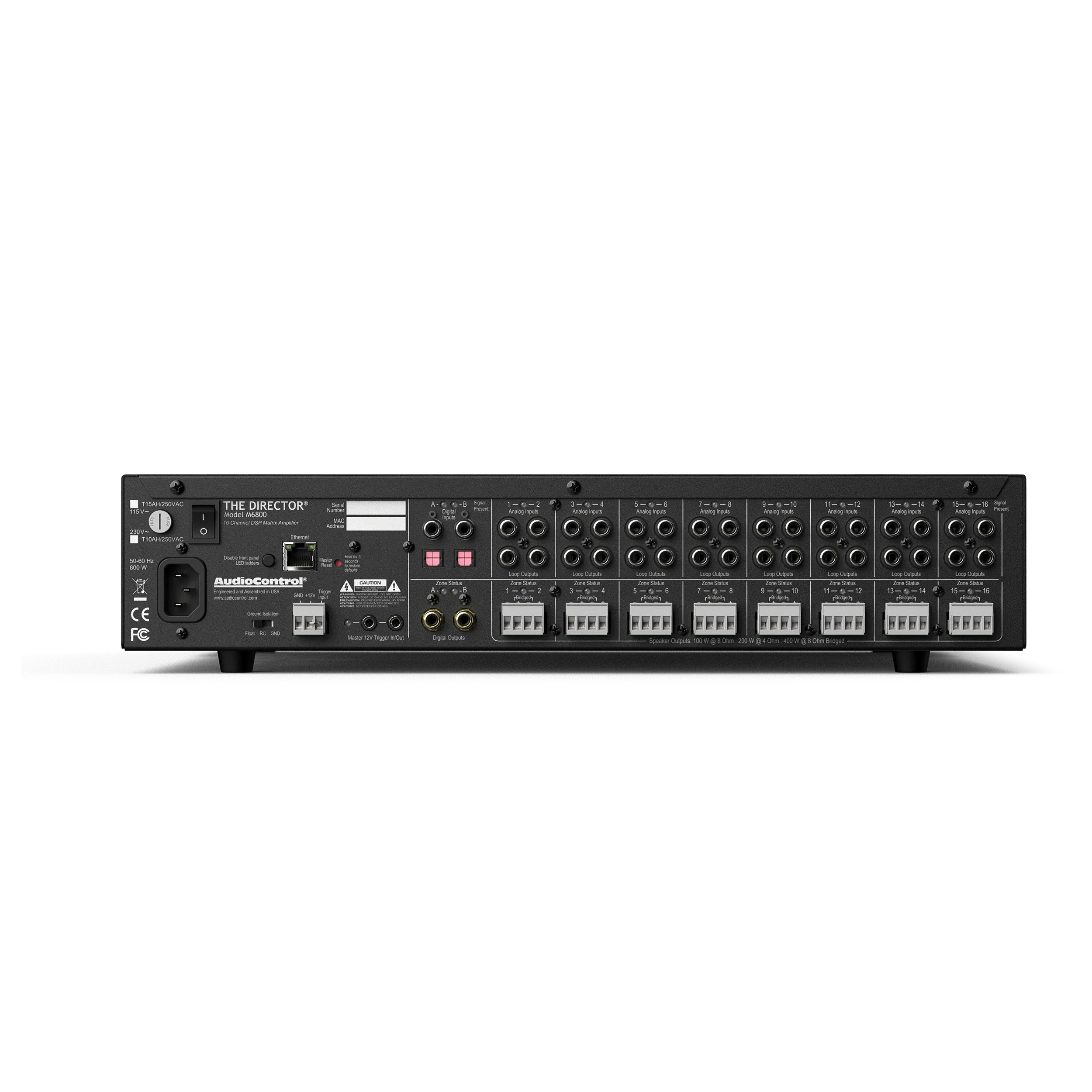

| INPUTS Inputs: 8 Stereo Local Inputs, 2 Coaxial/TOSLINK Bus Inputs Input Sensitivity: 1 Vrms for full output, level at maximum Input Gain: 30 dB |
CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure Network Connection/Protocol: 10Base-T Ethernet TCP/IP Communication Protocol: HTTP or Telnet |
| OUTPUTS Amplifier Channels: 16 Power Output (8 Ω): 100 W per channel Power Output (4 Ω): 200 W per channel Power Output (8 Ω Bridged Mono): 400 W Minimum Speaker Load: 4 Ω Preamp Audio Outputs: 8 Stereo Loop Outputs, 2 Coaxial Digital S/PDIF Outputs |
WEIGHT & DIMENSIONS Dimensions: 17” W x 15.5” D x 3.5” H (2 U) Weight: 21.0 lbs. (9.5 kg) |
| PERFORMANCE Crosstalk: > 80 dB @ 1 kHz Damping Factor: >300 Signal to Noise: >95 dB, A-wtd, ref full output Crosstalk: >80 dB @ 1 kHz DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth |
IN THE BOX The Director Model M6800, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
