Description

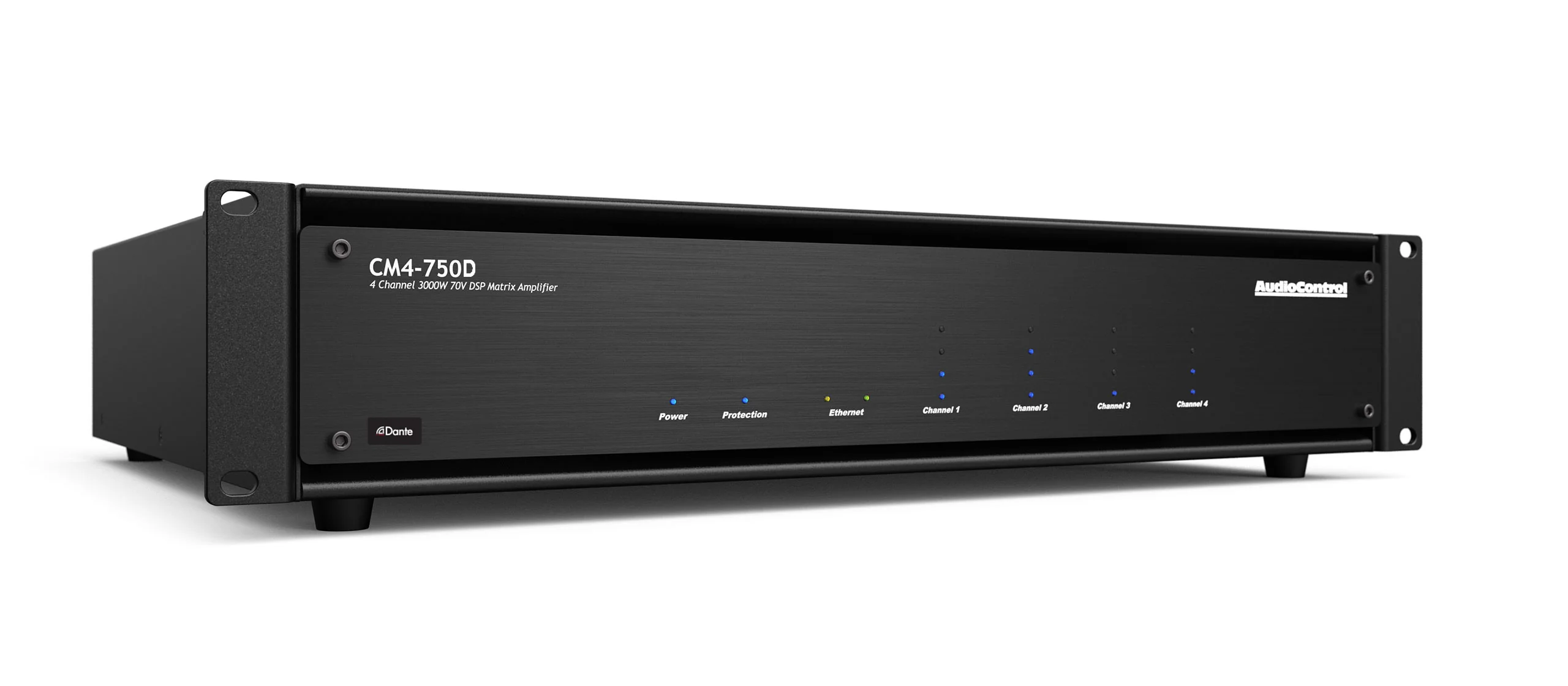

4-Channel High-Power Dual Mode 70 Volt DSP Amplifier with Dante
AudioControl’s 70 volt amplifier solutions deliver superior quality power and sound through a large number of speakers, ideal for outdoor audio systems as well as a large variety of commercial A/V applications. DSP control and signal matrixing capabilities from AudioControl’s award-winning Director Series amplifiers enable integrators to precisely tailor the sound to any environment. Choose from balanced/unbalanced analog, microphone and digital inputs. Outputs can be configured in mono or stereo, giving integrators the configuration flexibility they need to accommodate any system architecture. For maximum efficiency, system setup and diagnostics can be managed remotely via an IP using a responsive web interface.
- Network DHCP Signal Matrix Amplifier With Volume Control
- Dante Port
- 4 Channels x 750 Watts at 70/100 V or 2Ω/4Ω (All Channels Driven)
- 4 Channels x 625 Watts at 8Ω (All Channels Driven)
- 1500 Watts of Bridged Power at 70/100 V or 4Ω/8Ω
- Digital Signal Processing (DSP) Performance
- Built-In Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
- Built in Matrix Delivering Analog or Digital Inputs to be Routed To Any Zone or Digital Bus Output
- Network Programmable Graphic & Parametric Equalization with User Memories
- Assignable Names for All Zones & Amplifier
- Digital Signal Sense
- Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
- AudioControl LightDrive Anti-Clipping Speaker Protection
- Digital and Analog Inputs with Digital and Analog Pass Thru / Loop Outputs
- Dual Digital Audio Bus Outputs
- Commercial and Home Installations

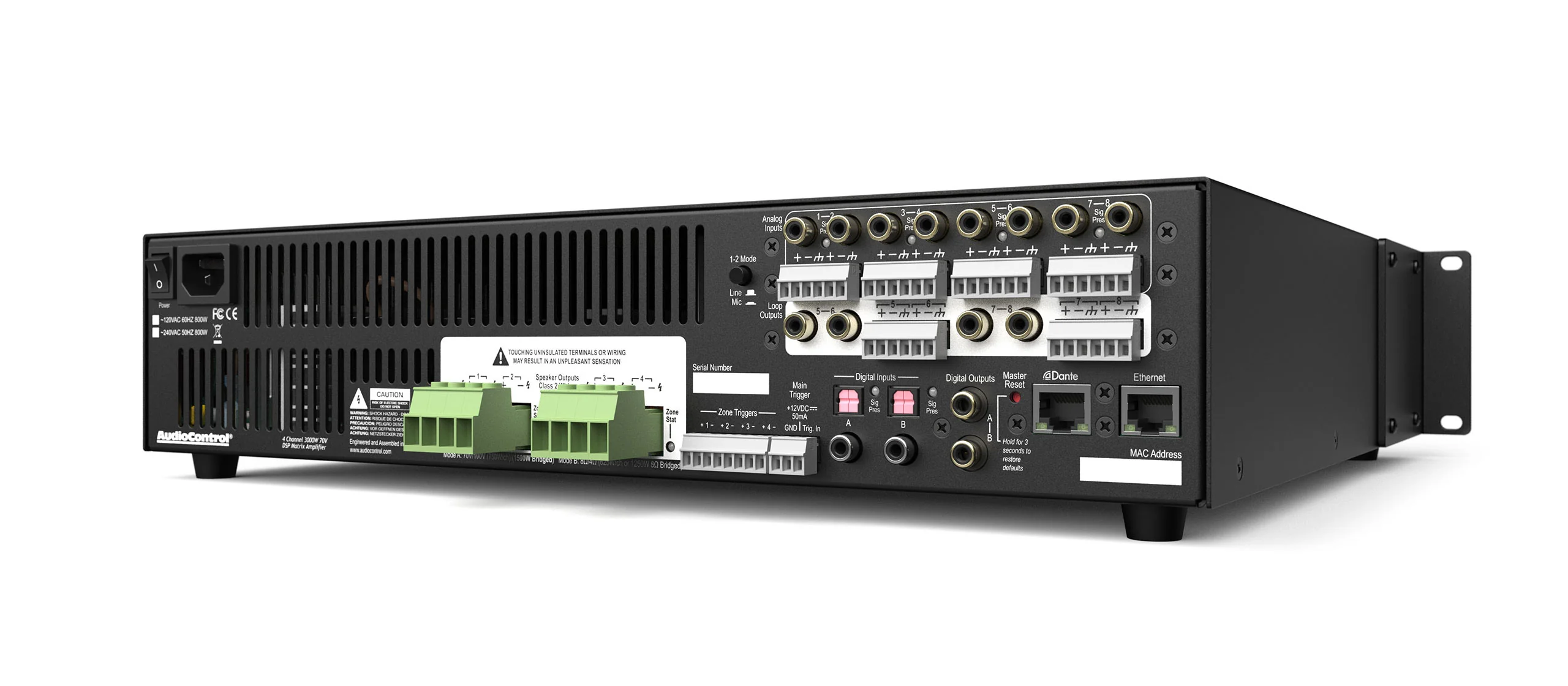

| INPUTS Inputs: 8 Balanced Inputs, 8 Unbalanced RCA Inputs, 2 Digital Combo Coax/TOSLINK Inputs Input Sensitivity: 1 Vrms for full output, level at maximum Input Gain: 30 dB |
CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure Network Connection/Protocol: 10BaseT Ethernet TCP/IP Communication Protocol: HTTP or Telnet |
| OUTPUTS Amplifier Channels: 4 Power Output (70 V / 100 V): 750W per channel Power Output (70 V / 100 V Bridged): 1500W Power Output (8Ω / 4Ω): 625W per channel Power Output (8Ω Bridged): 1250W Minimum Speaker Load: 2Ω Preamp Audio Outputs: 4 Balanced, 4 Unbalanced RCA, 4 Digital Coax Loop Outputs |
WEIGHT & DIMENSIONS Dimensions: 17” W x 15.5” D x 3.5” H (2 U) Weight: 18.5 lbs (8.4 kg) |
| IN THE BOX Model CM4-750, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
Additional information
| Weight | 8.4 kg |
|---|
