Description

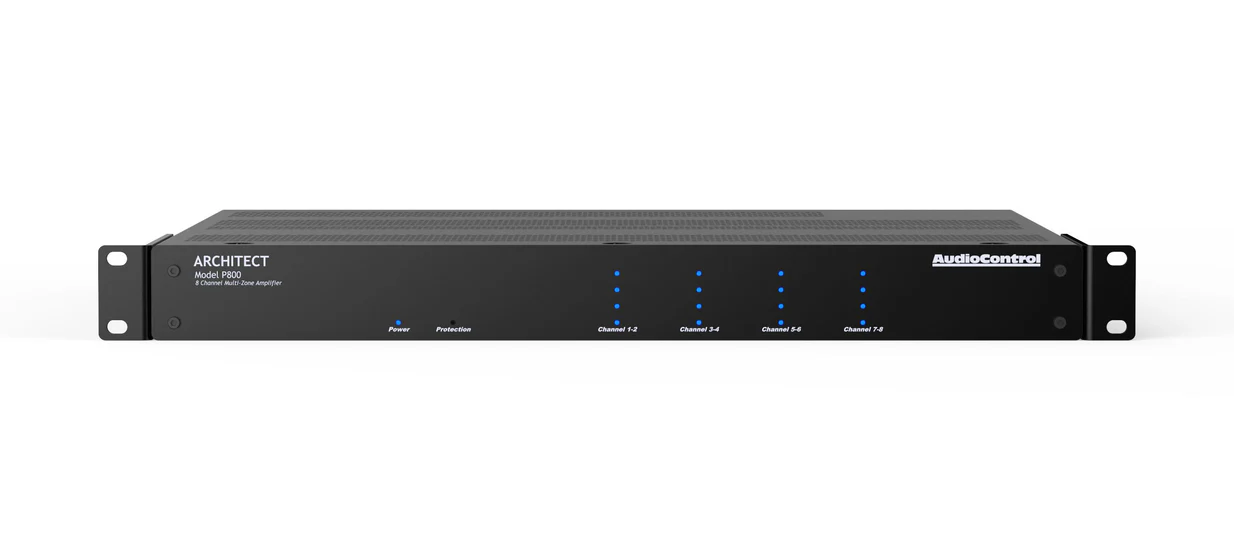

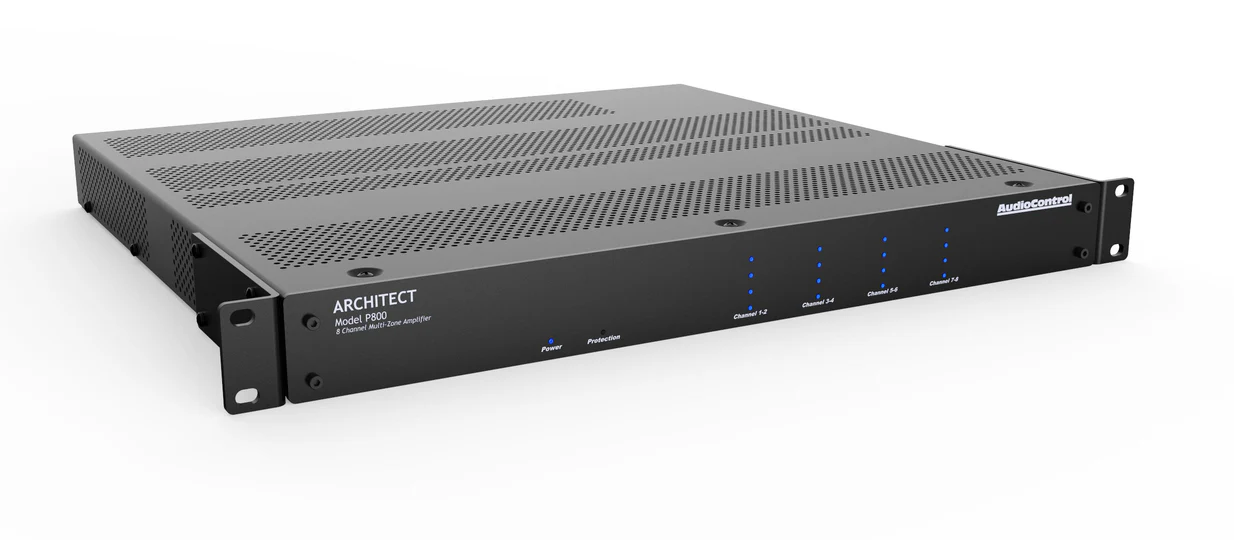

8-Channel High-Power Multi-Zone Amplifier
The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series, delivering 100 watts RMS per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven.
8 channels of high-power amplification are output from the compact 1 U chassis, with the Architect P800 delivering 100 watts per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven. Channel bridging increases power to a remarkable 400 watts into 8 ohms. Benefitting from 35 years of proprietary AudioControl cool-running amplifier design, the Architect P800 is equipped with features like input bussing, output pass-through, global 12 VDC trigger in/out with local 12 VDC trigger inputs for all zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source. Amplifier channels and connected loudspeakers are protected by AudioControl’s fast-acting LightDrive anti-clipping circuitry.
Available in a robust black powder coat finish, the Architect Model P800 is designed, engineered, and manufactured at AudioControl facilities located in Seattle, USA. The Architect ‘P’ series is covered by AudioControl’s legendary 5-year warranty and is available exclusively to the residential, custom install, and Pro Audio markets through AudioControl authorized dealers.
- 8 Channels of High Power and AudioControl Performance
- 100 watts per Channel at 8 Ohms (All Channels Driven)
- 200 watts per Channel at 4 Ohms (All Channels Driven)
- Bridgeable as an 4 channel amplifier at 400 watts
- Low Standby Current Draw of Less Than 1 Watt
- Compact Design Fits into 1 Rack Space
- LightDriveTM Anti-Clipping Protection Circuitry
- 2 x Input Buses (Digital and Analog)
- Local Zone Input Trigger
- 12v Trigger Input and Output
- Signal-Sensing On All Channels
- Input Busing and Level Controls
- Mono-switch for Improved Bridging
- Beefy Rack Mount Brackets Included
- Five Year AudioControl Warranty
| INPUTS Inputs: 4 Stereo Local Analog Inputs, 1 Stereo Bus Coaxial Digital Input, 1 Stereo Bus Analog Input Input Sensitivity: Variable 0 to Vrms Analog Input Sensitivity: 1 Vrms for full output; level at maximum |
AC POWER REQUIREMENTS Standby: 0.8 W Idle (main power on, all channels off): 35 W All channels active: 60 W All channels 1/8th rated power: 180 W Full power (20 A residential service limited): 1036 W Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads |
| OUTPUTS Amplifier Channels: 8 1 Stereo Bus Analog Output Power Output (8 Ω): 100 W per channel Power Output (4 Ω): 200 W per channel Power Output (Bridged Mono): 400 W Minimum Speaker Load: 4 Ω |
BTU/HR OUTPUT Standby: 2.7 BTU/hr Idle (main power on, all channels off): 120 BTU/hr All channels active: 192 BTU/hr All channels 1/8th rated power: 242 BTU/hr Full power (20 A residential service limited): 680 BTU/hr |
| PERFORMANCE Damping Factor: >200 Signal to Noise: >105 dB, (A-wtd, ref full output) Crosstalk: >80 dB @ 1kHz Gain: 30 dB Analog Input Sensitivity: 1 Vrms for full output, level at maximum DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth |
WEIGHT & DIMENSIONS Dimensions: 19″ W (w/rack ears) 17” W (w/o rack ears) x 15.8” D x 1.75″ H (1 U) Weight: 15.0 lbs. (6.8 kg) |
| CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out |
IN THE BOX Architect Model P800, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
Additional information
| Weight | 6.8 kg |
|---|
