Description

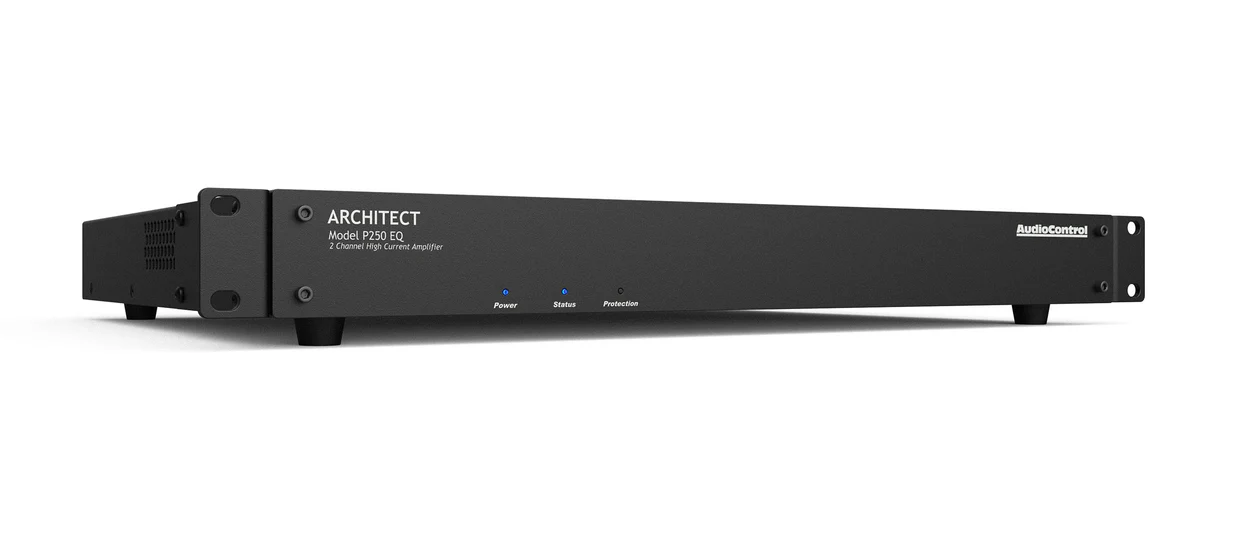

2-Channel High-Current Amplifier with EQ
The Architect Model P250 EQ is a high-power, 2-channel amplifier engineered with an emphasis on sound quality to deliver clarity and tonally balanced sound into any loudspeaker.
At only one rack space high, the P250 EQ delivers solid performance found in much larger solutions. Constructed with a high-current overbuilt power supply, an advanced filter stage, and fast-switching, impedance-matching output transistors, the P250EQ delivers 250 watts per channel into 4/2-ohm loads and 180 watts per channel into 8 ohms. The P250 EQ reproduces nuanced detail from any style of music with the power to control even the hardest to drive loudspeakers effortlessly.
- 250 Watts Per Channel at 4/2 Ohms
- 180 Watts Per Channel at 8 Ohms
- 500 Watts at 8/4 Ohms Bridged
- High Current Design, 2 Ohm Stable
- LightDrive™ Anti-clipping Protection

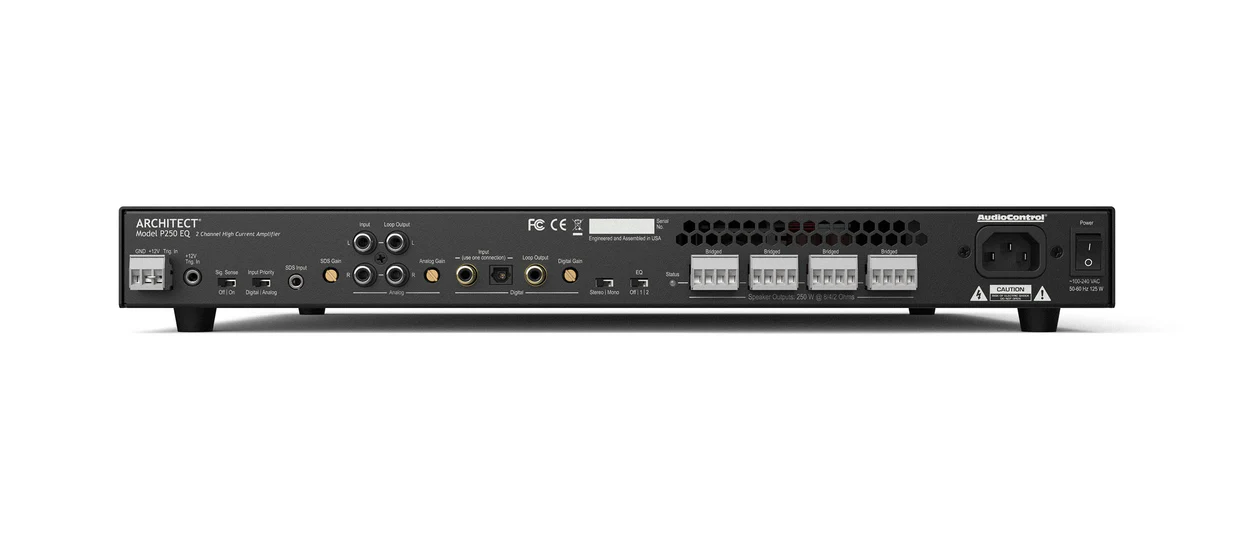

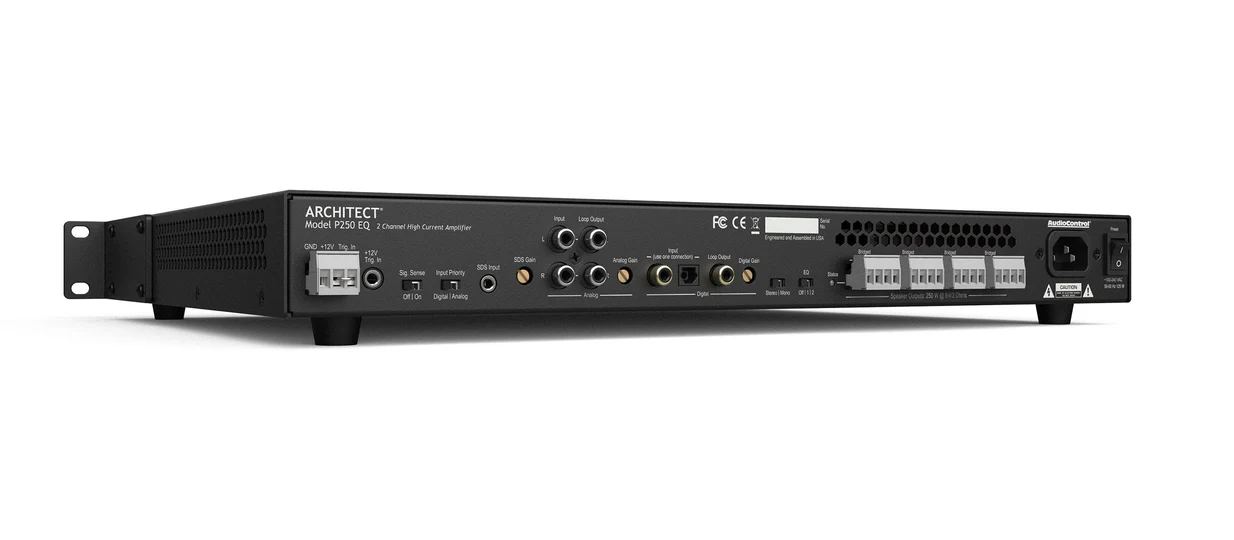

- Stereo Coaxial and TOSLINK Digital inputs
- Stereo Coaxial Digital Loop Output
- Stereo Analog Input with Loop Output
- Signal Detection Switch Input
- Input Prioritization & Signal Sense Switching
- Selectable EQ Presets
- Shallow Mounting Depth (13.5”)
- Compact 1U Design
- Unparalleled Energy Efficiency
| INPUTS Inputs: 1 Analog Stereo Main, 1 Digital Main (Coaxial / TOSLINK), 1 Analog SDS Analog Input Sensitivity: 1 Vrms for full output, level at maximum Gain: 27 dB |
GENERAL Power Consumption (Standby): 1.5 W Power Consumption (Idle / All Channels Off): 18 W Power Consumption (All Channels Active): 24 W Power Consumption (loud listening level): 87 W Power Consumption (maximum): 591 W BTU/Hour Heat Dissipation (Standby): 5.1 BTU/Hour Heat Dissipation (Idle / All Channels Off): 61 BTU/Hour Heat Dissipation (All Channels Active): 82 BTU/Hour Heat Dissipation (loud listening level): 108 BTU/Hour Heat Dissipation (maximum): 268 Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads |
| OUTPUTS Amplifier Channels: 2 Power Output:
Minimum Speaker Load: 2 Ohms |
WEIGHT & DIMENSIONS Dimensions: 19” W w/rack ears / 17” w/o rack ears x 13.5” D x 1.75” H (1 U) Weight: 15.0 lbs. (6.8 kg) |
| PERFORMANCE Frequency Response: ±0.25 dB, 20 Hz to 20 kHz, 8 Ω Load Signal to Noise: >110 dB, A-weighted, ref Full Output +/- 3db THD+N @ Rated Power:<1% @ 8 Ω per ch. <0.2% @ 4 Ω per ch. <0.07% @ 2 Ω per ch. Crosstalk: >80dB @ 1 kHz DAC Specs: 32 to 192 kHz sample rate, 16-/24-bit depth |
IN THE BOX Architect Model P250 EQ, Power Cord, Manual, Warranty |
| CONTROL Remote Power Trigger: +12 VDC |
Additional information
| Weight | 6.8 kg |
|---|
