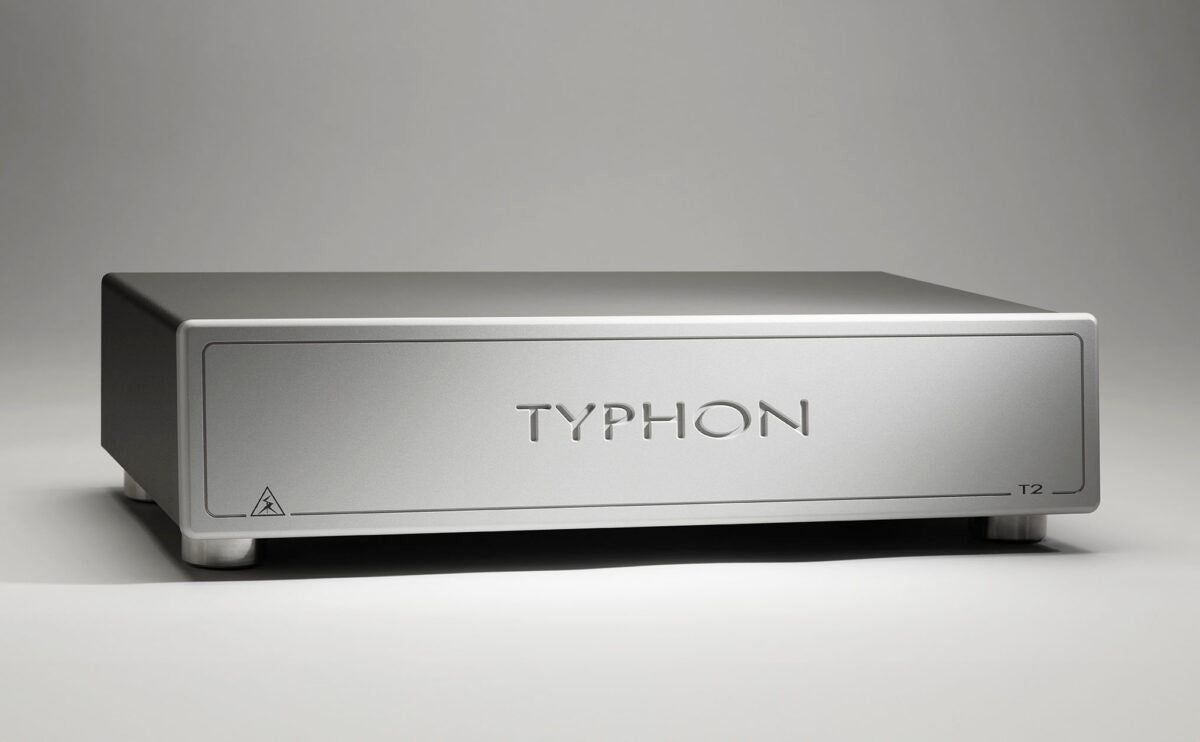

Typhon T2

TRANSFORMATIONAL HIGH-CURRENT PERFORMANCE

Two Outlet High-Current Tour De Force

The two-outlet Typhon T2 represents a years-long evolution in science that makes it a one-of-a-kind product with three dynamic and unique functions. When the Typhon T2 is connected as a stand-alone two-outlet reference power distributor it will super-charge the performance of even the world’s most demanding amplifiers. The Typhon T2 also comes equipped to receive an optional Performance or Reference level umbilical, allowing it to be connected in-line to any Shunyata power-distributor as a performance force-multiplier of the first order. Lastly, simple, reference-level two or three-component systems won’t find a better solution for performance than the Typhon T2. Typhon T2 is guaranteed to elevate the performance of amplifiers or entire systems beyond any and all expectation.

Design Evolution

Typhon T2 represents a dramatic five-year refinement of the original, critically, and commercially acclaimed Typhon and Typhon QR models. At almost half the size and price of the Typhon QR, the Typhon T2 includes two high-current outlets that allow for in-line connection to even the most current-hungry amplifiers. The patented QRBB and NIC technologies within the T2 have been radically improved to deliver an unprecedented performance upgrade when connected in series with a Shunyata Research Denali 6000S/v2 model or virtually any other Shunyata Research power distributor.

Applications

The Typhon T2 model can be used as a stand-alone reference power distributor for any type of amplifier no matter how demanding, or other remote reference-grade source electronics. The Typhon T2 is housed in the same chassis footprint as the Denali 6000S/v2, making it easy to stack and connect from the wall, then via its umbilical to the power distributor. The T2 can also be used with the original Denali 6000s/v1 or any Shunyata Research power distributor below the Everest 8000. No matter the application or combination, the Typhon T2 will deliver a jaw-dropping component-level performance upgrade to any system, no matter how small or large the system may be.

Performance

The revelatory improvements that are readily apparent when adding a Typhon T2 to any system include an immediate and dramatic increase in dynamic expression; as if you added wattage to amplifiers or headroom and scale to your system’s dynamic capability. The T2 delivers on the promise of enhanced timing, improved imaging, and a revelatory increase in the three-dimensional presence of instruments and voice in space. These are not subtle enhancements but are instead easy to hear, immediate gains similar to making a massive component upgrade. Perhaps the most notable improvement is that along with all these improvements comes an unforced, organic ease and noise-less background which permeates the space in and around your favorite recordings.

Umbilical Upgrades

Shunyata Research has optimized every part and technology that goes into the Typhon T2 with a single-minded approach to optimal performance. An obvious case in point are the two models of umbilical cables ideally suited for high-current transfer. The umbilical connection on the Typhon T2 is a one-of-a-kind, custom manufactured military grade twist-lock. This was chosen for its superior connection integrity, ensuring maximum current transfer and the ultimate in performance. There are two distinct models of umbilical cable options. The Performance model umbilical, featuring 8 gauge VTX conductors, allows the Typhon T2 to dramatically impact every area of performance. All of Shunyata Research’s early testing was completed using this Performance umbilical. For more extreme applications, such as ultra high-current amps or for massive systems, the 8 gauge VTX-Ag Reference model will match up well with systems using Shunyata Research’s top Sigma or Omega model power cords. Either power umbilical when connected and used with the Typhon T2 will unleash a system’s full potential.

id="3k9x2v"
SPECIFICATIONS

• Maximum Voltage:
- 90 – 125 VAC r.m.s. unregulated (US)
- 220 – 240 VAC r.m.s. unregulated (EU, UK, AS)

• Input Current Ratings:
- US/AS maximum continuous current: 20A
- US/AS maximum continuous current: 30A (optional)
- EU maximum continuous current: 16A
- UK maximum continuous current: 16A

• Output Current Ratings:
- US/AS max current/outlet: 15A
- EU max current/socket: 16A
- UK max current/socket: 13A

• Transient Suppression:
- Maximum transient pulse: 40,000 Amps @ 8/50 μs

• Over-Current Protection:
- Hydraulic electromagnetic breaker

• Wiring System:
- 8 gauge ArNi® VTX-Ag™ buss system
- 10 gauge ArNi® VTX-Ag™ wiring
- Ratings: 600 V, 105° C

• Noise Suppression:
- Input to Output (100 kHz – 30 MHz): > 50 dB reduction
- Zone to Zone (100 kHz – 30 MHz): > 40 dB reduction

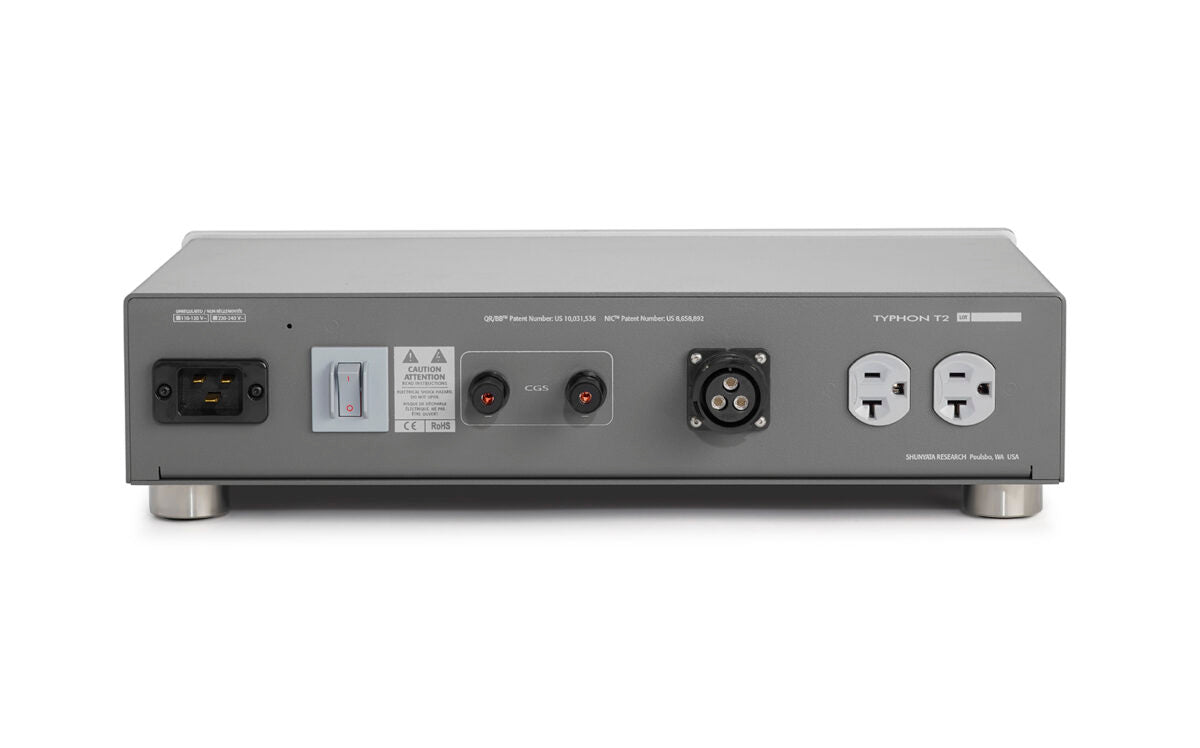

• Connectors & Sockets:
- Inlet: IEC C19R
- Inlet: Proprietary 30A Amphenol (30A Model only)
- Twist-lock outlet: Proprietary Amphenol
- US outlets: 2 NEMA 5-20R
- AS outlets: 2 NEMA 5-20R
- EU sockets: 2 CEE7/3
- UK sockets: 2 BS 1363 (3 Pin)

• KPIP v2 Processing: 4 days

• Isolation Zones:
- 3 zones

• Vibration Control:
- Internal vibration dampening panels
- AC outlet dampening gaskets
- Shunyata Isolation SSF-38 Footer

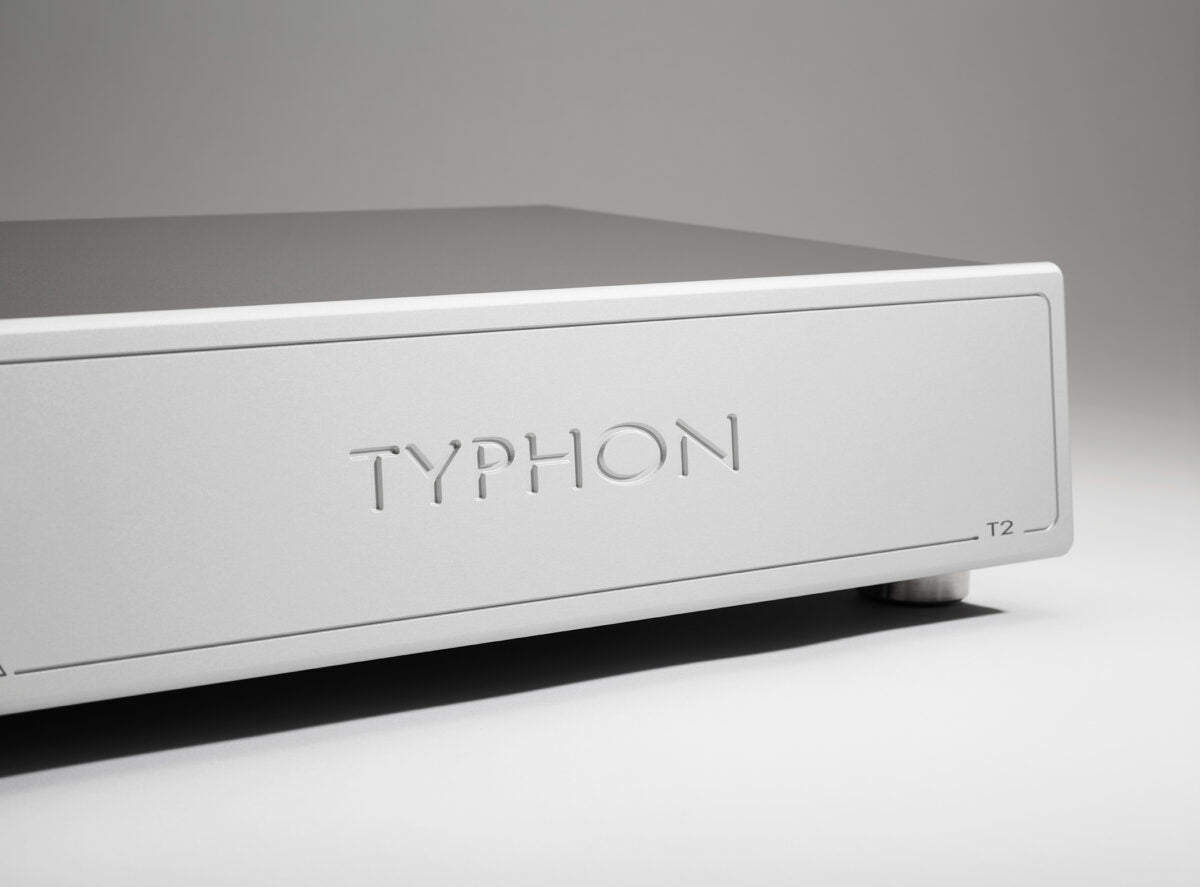

• Construction:
- All aluminum chassis
- Anodized, brushed aluminum faceplate

• Dimensions:
- Width: 17 inches (43.2 cm)
- Depth: 10 inches (25.4 cm)
- Height: 4.4 inches (11.2 cm)
- Weight: 17.5 lbs (7.95 kg)
