SP1-6000-HT

SP1-6000-HT

Rs. 371,800.00
Rs. 371,800.00
Shipping calculated at check out.

Mono Block Subwoofer Plate Amplifier
Home Theater (HT)

STABLE at 1 ohm

6000W at 2 ohms

3400W at 4 ohms

1800W at 8 ohms

131 VRMS (185 Vp) at Hi-Z

Subwoofer DSP Controls

Hurry only 1 left
  • Secure Packaging & Safe Delivery
  • Quality product
  • Shipping available

Features

3-MODE SWITCH

ON - Amplifier ON
AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
OFF-12V - Amplifier OFF, 12V TRIGGER enables amp

CONNECTIONS

3.5mm minijack 12V TRIGGER (IN / THRU)
DUAL RCA (Single-ended) Summing with LFE
XLR (Balanced) with Looping out (THRU)
IEC C13 AC mains connector
NL-4 SPEAKON auxiliary speaker connector

LED INDICATION

GREEN - ON, Amplifier ready to pass signal
RED - STBY, Amplifier is in low-power standby

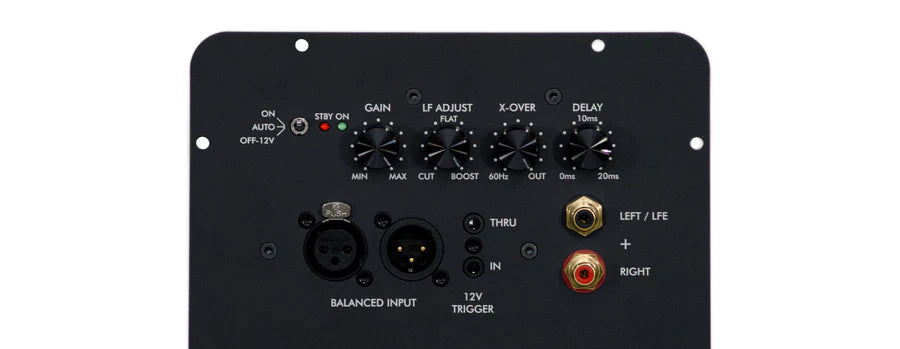

ROTARY CONTROLS

GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
LF ADJUST - 40Hz Tone Shelf ("Bass Boost", CUT-12dB, BOOST+12dB)
X-OVER - 60Hz to OUT (500Hz)
DELAY - 0ms to 20ms

Specifications

AMPLIFIER TOPOLOGY CLASS-D
POWER SUPPLY 6000W with Power Factor Correction (PFC)
FREQUENCY REPSONSE 5Hz to 500Hz (+-1.5dB)
AMPLIFIER GAIN 45dB
AC MAINS 100 - 265VAC 50/60Hz (Universal) rated power at 220VAC
STANDBY POWER DRAW 15W
COOLING ALUMINUM HEATSINK
INPUT SENSITIVITY 316mV (at MAX GAIN)
INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz

DIMENSIONS
HEIGHT 15.7 in. (399 mm)
DEPTH 2.7 in. ( 67 mm)
WIDTH 7 in. (178 mm)
WEIGHT 7 LBS (3.18 kg)

FEEL THE IMPACT

For basic support please contact www.avenuesound.in

For any advanced support please write to support.minidsp.com
