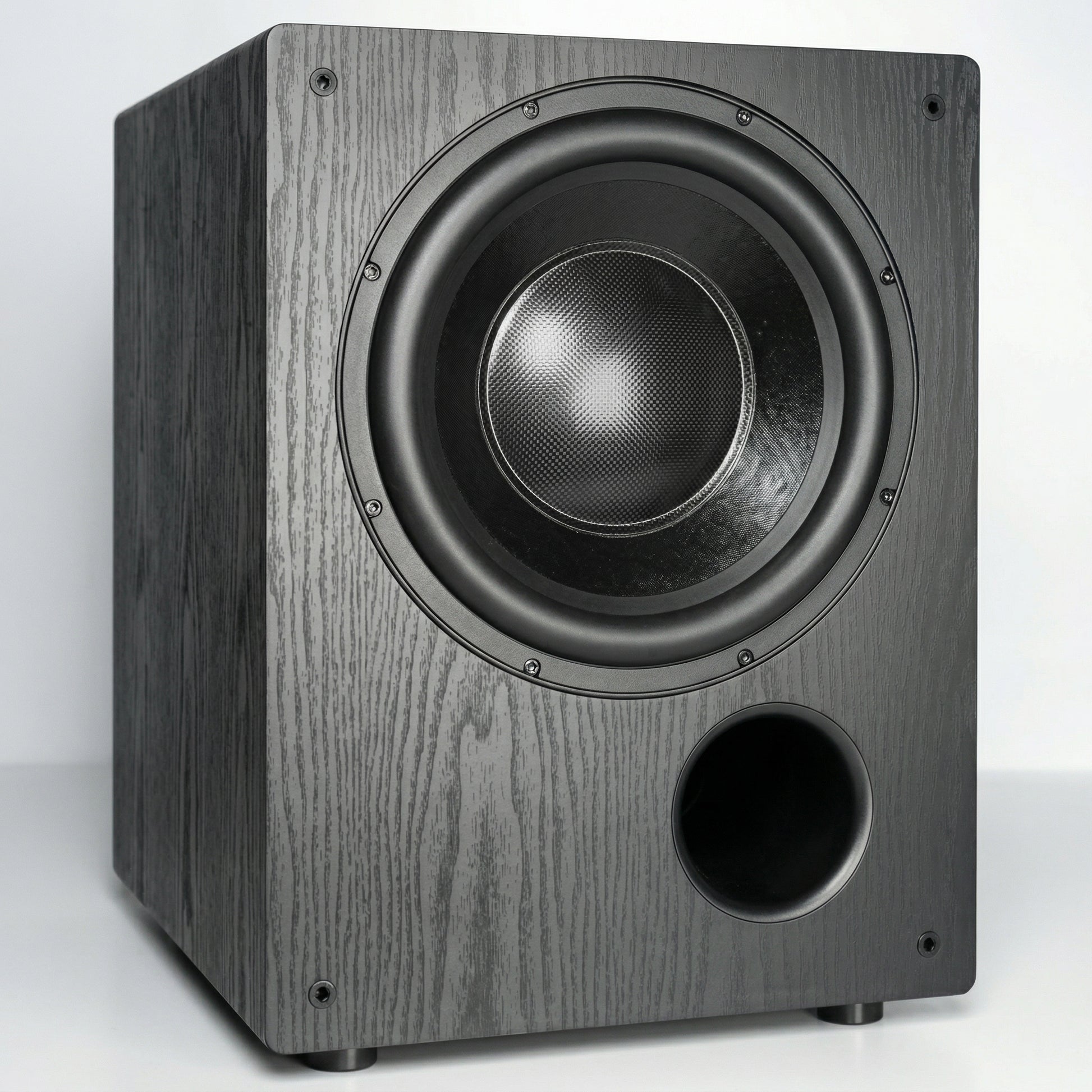

Rythmik Audio LV12M

Rythmik Audio LV12M

Rs. 167,033.90
Rs. 167,033.90

12″ front ported HT sub with one band PEQ

This product can be arranged on request. Call us for pricing details or to place your order

Hurry only 1 left
  • Free 30 day return policy
  • Quality product
  • Shipping available | Estimated Delivery time: 02 August 2025

Features

➤Compact version of LV12F with a smaller footprint
➤Delivers articulate, tight, and tuneful bass performance
➤Ported design ensures strong home theatre (HT) bass output
➤Combines Direct Servo technology with a vented enclosure for both quality and quantity in bass

Home Theatre Performance

➤Ideal budget-friendly subwoofer for home theatre setups
➤Front-vented alignment enhances low-frequency impact and output
➤Maintains tight and musical bass, uncommon in vented subwoofers
➤Premium Direct Servo technology offered at an affordable price

Direct Servo Technology

➤Uses a sensing servo coil to monitor and correct bass output in real-time
➤Compares input signal with actual output for instant correction
➤Delivers highly accurate and controlled bass reproduction

Key Benefits of Direct Servo

➤Minimizes thermal compression under normal operation
➤Higher efficiency with powerful output using less amplifier power
➤Achieves deep bass extension with improved transient response
➤Reduces mechanical and thermal memory effects
➤Provides superior cone control with low driver Q value (~0.1)
➤Produces tighter and more accurate bass vs conventional drivers (Q 0.3–0.5)
➤Significantly reduces internal bass re-radiation from the enclosure

Specifications

➤ Driver: 12″ driver with custom sensing coil
➤ Driver Materials: Paper cone with rubber surround
➤ Aluminum cast frame basket
➤ Copper flux de-modulation shorting rings

➤ Amplifier: 300W RMS Hypex Class D module with patented servo control

➤ Dimensions: 15″ (W) × 19.5″ (H) × 17″ (D)
➤ 18.5″ depth including grille and amplifier knobs

➤ Shipping Weight: 69 lbs

➤ Frequency Response:
➤ 19 – 300 Hz (±2 dB) with LFE
➤ 19 – 100 Hz (±2 dB) with Line-in

➤ Crossover:
➤ Slope: 12 dB/octave
➤ Range (Low Pass): 40 – 120 Hz
➤ Line-level frequency response up to 100 Hz

➤ Rumble Filter (High Pass): Built-in 12 dB/octave at 20 Hz to limit subsonic cone excursion

➤ Phase Adjustment: 0 – 180° continuously variable

➤ Bass Extension Settings:
➤ Low: 19 Hz (Q = 1.1)
➤ Medium: 22 Hz (Q = 0.9)
➤ High: 24 Hz (Q = 0.8)

➤ Finishes: Black matte vinyl or black oak vinyl

➤ Warranty:
➤ 5 years on driver
➤ 3 years on amplifier
➤ (Does not cover misuse/abuse)

➤ Guarantee: 45-day satisfaction guarantee

For basic support please contact www.avenuesound.in

For any advanced support please write to support.minidsp.com
