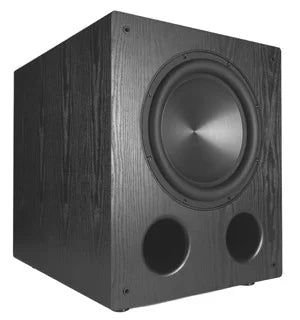

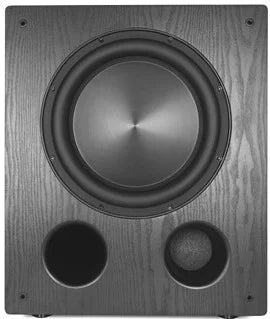

Rythmik Audio FVX12

FVX12 uses our new Hypex module based HX405PEQ amplifier with one-band toggle defeatablePEQ. Its tuning frequency is exactly same as LVX12.

LFE meets accuracy and control
FVX12 multi-tuned ported servo subwoofer is the little brother of our FV15HP/FVX15 subwoofers. It is our answer to the need for a “bang for buck” home theatre solution that retains the dynamic and accurate bass that FV15HP/FVX15 become known for. Correctly integrated, our vented subwoofers can achieve the tight bass normally associated with a sealed enclosure, yet with greater low frequency output. We recommend this subwoofer for systems in which home theatre has a high priority. FVX12 also features multi-tune capability. Customers can select either one-port or two-port operation.

Direct Servo Technology
All our subwoofers use our patented Direct Servo technology. The servo enables precise control over the cone which is essential for tight, dynamic and accurate bass. It also counteracts many different driver non-linearities and allows us to use lighter drivers which avoid the need for excessive amounts of amplifier power.

Some of the benefits of Direct Servo include:

Reduction of the effects of thermal compression are eliminated under normal operation
Higher efficiency allowing output which would normally require a more powerful amplifier
Deep bass extension can be achieved using a low mass driver with superior transient response
Mechanical and thermal memory effects are reduced, further improving transient response
The effective driver Q value is 0.1 resulting in much tighter and accurate bass than conventional non-servo driver with typical Q value of 0.3-0.5
Dramatic reduction of the re-radiation of bass from inside the box.

Driver: 12″ high excursion driver with custom sensing coil

Driver Materials: Metal cone with rubber surround, aluminum flux de-modulation shorting rings

Amplifier: 400W RMS (Hypex UcD module-based), patented servo controlled

Dimensions: 17″ (W) × 20.5″ (H) × 22″ (D) — 24″ depth with grille and control knobs

Shipping Weight: 97 lbs (82 lbs net)

Frequency Response:
14 – 200 Hz (−2 dB @ 18 Hz, −6 dB @ 14 Hz) with LFE input
14 – 90 Hz (−2 dB @ 18 Hz, −6 dB @ 14 Hz) with Line In input
Multi-Tune Options: 20 Hz (2 ports) and 14 Hz (1 port)
Crossover Slope: Selectable 12 or 24 dB / octave
Crossover Range (Low Pass): 30 – 120 Hz (line-level response up to 100 Hz)
Rumble Filter (High Pass): 20 Hz, 18 dB / octave (for two-port tuning)
Phase Adjustment: 0 – 180° continuously variable
Bass Damping Settings: Q=0.5 (1P-Music), Q=1.1 (1P-HT & 2P)
Finishes: Black matte vinyl, black oak vinyl

Warranty: 5 years on driver, 3 years on electronics

Guarantee: 45-day satisfaction guarantee

Weight: 44 kg
