NDAC-2

NDAC-2

Rs. 58,559.32
Rs. 58,559.32
Shipping calculated at check out.

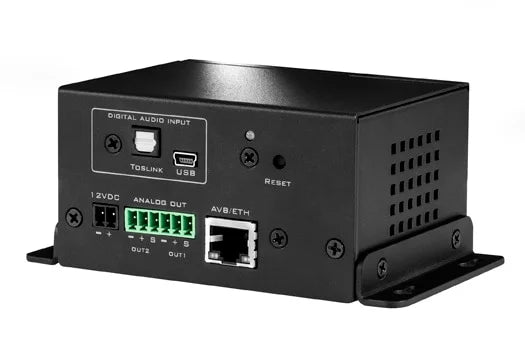

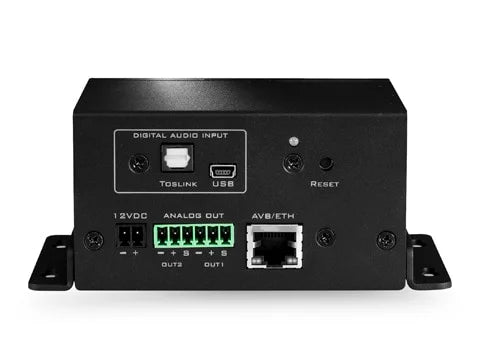

Stereo AVB DAC endpoint, PoE+ powered, Onboard Sharc DSP, Plug&Play on MAC OSx with AVB support



NOTE : you can purchase this product on Special Order ( Includes delivery period )

Hurry only 1 left
  • Secure Packaging & Safe Delivery
  • Quality product
  • Shipping available

Features

The NDAC-2 is an Audio Video Bridging (AVB) endpoint combining network audio streaming, DAC and Digital Signal Processor (DSP) in a pocket size box. A single CAT5/6 network cable provides power, low latency audio and control for a true Plug&Play experience. The system consists of three key element:



The Audio Video Bridging (AVB) technology powered by a 500MHz XMOS processor which provides low latency, uncompressed and tightly synchronized streams to each speaker over standard networks. Thanks to its compliance with IEEE 1722.1, it is plug&play with 3rd party AVB devices such as Apple OSx, Biamp Systems, Audioscience, Echo Audio…
An on-board 400MHz Analog Devices SHARC processor also enables substantial signal processing for true high-resolution audio capability and equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software.
Finally, a stereo DAC powered by ESS Technology ES9018K2M outputs balanced out on phoenix terminal blocks.
With its Power Over Ethernet (POE) capability or external +12VDC supply, the NDAC-2 is easily installed in a matter of minutes with limited knowledge.



Features
Stereo Audio Video Bridging DAC
PoE powered or External Power supply
Onboard Sharc DSP processor
What’s in the box?
1 x NDAC-2 AVB Amplifier interface
1 x 1.5m Ethernet CAT5 cable

Specifications

The NDAC-2 is an Audio Video Bridging (AVB) endpoint combining network audio streaming, DAC and Digital Signal Processor (DSP) in a pocket size box. A single CAT5/6 network cable provides power, low latency audio and control for a true Plug&Play experience. The system consists of three key element:



The Audio Video Bridging (AVB) technology powered by a 500MHz XMOS processor which provides low latency, uncompressed and tightly synchronized streams to each speaker over standard networks. Thanks to its compliance with IEEE 1722.1, it is plug&play with 3rd party AVB devices such as Apple OSx, Biamp Systems, Audioscience, Echo Audio…
An on-board 400MHz Analog Devices SHARC processor also enables substantial signal processing for true high-resolution audio capability and equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software.
Finally, a stereo DAC powered by ESS Technology ES9018K2M outputs balanced out on phoenix terminal blocks.
With its Power Over Ethernet (POE) capability or external +12VDC supply, the NDAC-2 is easily installed in a matter of minutes with limited knowledge.



Features
Stereo Audio Video Bridging DAC
PoE powered or External Power supply
Onboard Sharc DSP processor
What’s in the box?
1 x NDAC-2 AVB Amplifier interface
1 x 1.5m Ethernet CAT5 cable

For basic support please contact www.avenuesound.in

For any advanced support please write to support.minidsp.com
