Gemini Model-4

DUAL FUNCTION & HIGH PERFORMANCE
The GEMINI Model-4 is a unique product that is actually two devices in a single chassis. It includes both a high performance power conditioner and an advanced ground noise reduction hub. It features patented NIC™ noise isolation chamber technology that provides a common grounding point for all components and extends the GEMINI’s noise reduction capabilities to all system components. This significantly reduces AC noise and voltage differences between chassis components that may help to reduce potential ground loops.

The GEMINI Model-4 is the perfect solution for simpler high-end systems, headphone systems and for network closets. Headphones are particularly sensitive to power line noise and ground plane noise. Network switches, routers, music servers and computers all respond positively to improved power distribution and ground plane noise reduction. A GEMINI in the network closet provides a very significant performance boost to any audio/video system. Although the GEMINI Model-4 has a small footprint, it is a high current device capable of powering 200+ watt amplifiers.

• Maximum Voltage:
- 90 – 125 VAC r.m.s. unregulated (US)
- 220 – 240 VAC r.m.s. unregulated (EU, AS)

• Current Ratings:
- Input current maximum: 15A (US)
- Input current maximum: 16A (EU)
- Peak instantaneous current @ 10 ms: > 1000A
- Output current maximum: 15A

• Transient Suppression:
- 40,000 A @ 8/50 μs

• Over-Current Protection:
- Hydraulic electromagnetic breaker

• Wiring System:
- 12-gauge ArNi® conductors
- OFE C10100 copper
- Ratings: 600 VAC, 105° C

• Noise Suppression:
- Input to Output (100 kHz – 30 MHz): > 40 dB reduction
- Zone to Zone (100 kHz – 30 MHz): > 30 dB reduction

• Isolation Zones:
- 2 individual zones

• Noise Reduction Technology:
- NIC™ Noise Isolation Chambers (patented)
- Trident Transient Protection Module
- CCI™ v4 Noise Filters (3)

• KPIP v2 Processing:
- 4 days

• Connectors & Outlets:

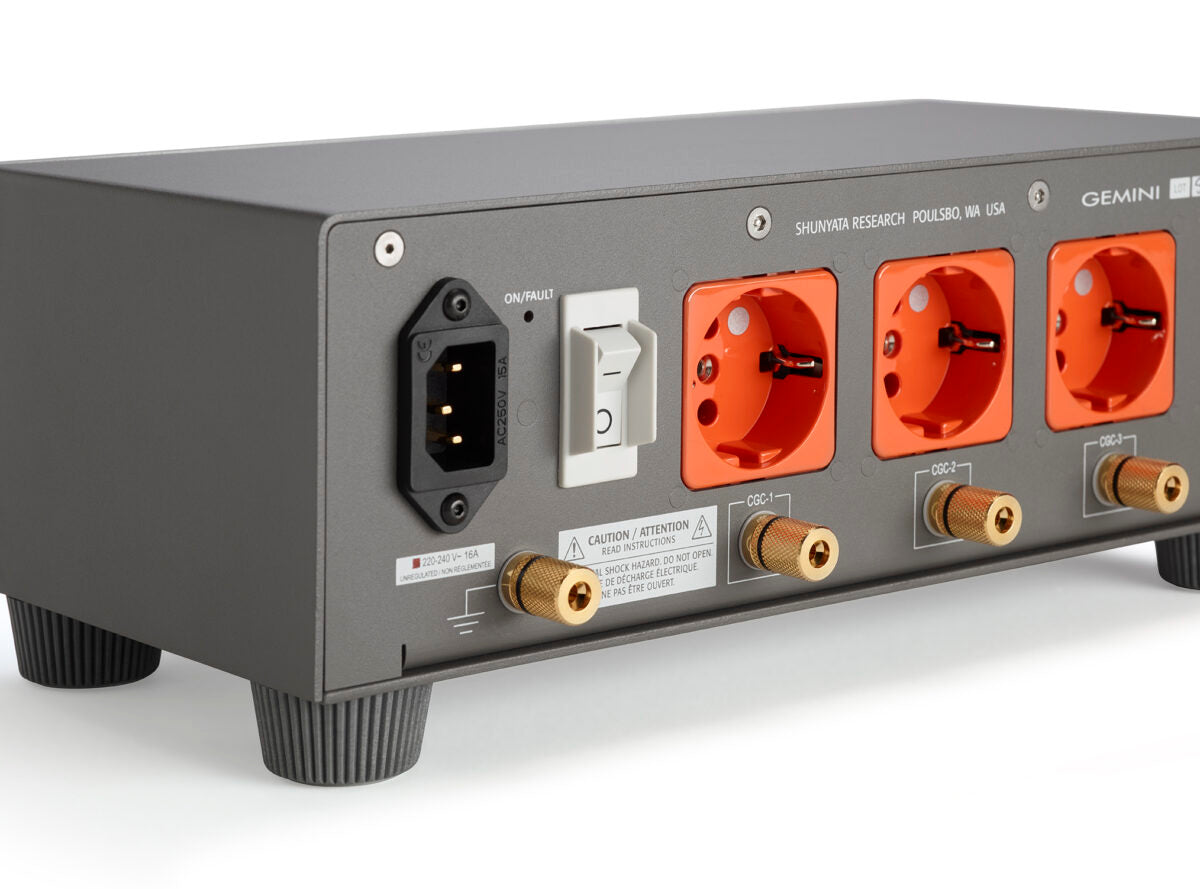

- Input Connector: IEC-C15R
- US Outlets: 4 NEMA 5-15P

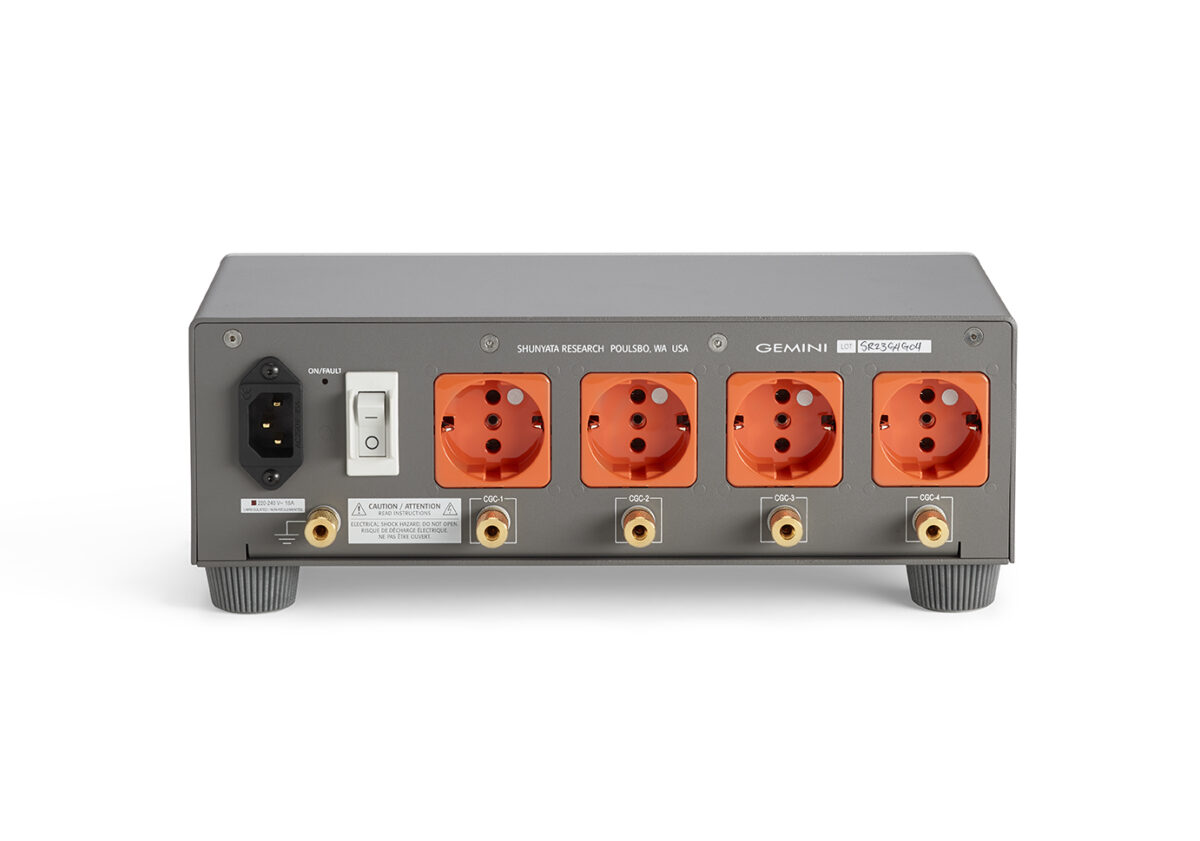

- EU Outlets: 4 CEE 7/3

• Vibration Control:
- Internal vibration damping panels
- Shunyata Isolation Footer

• Construction:
- Powder-coated steel chassis (16 gauge)

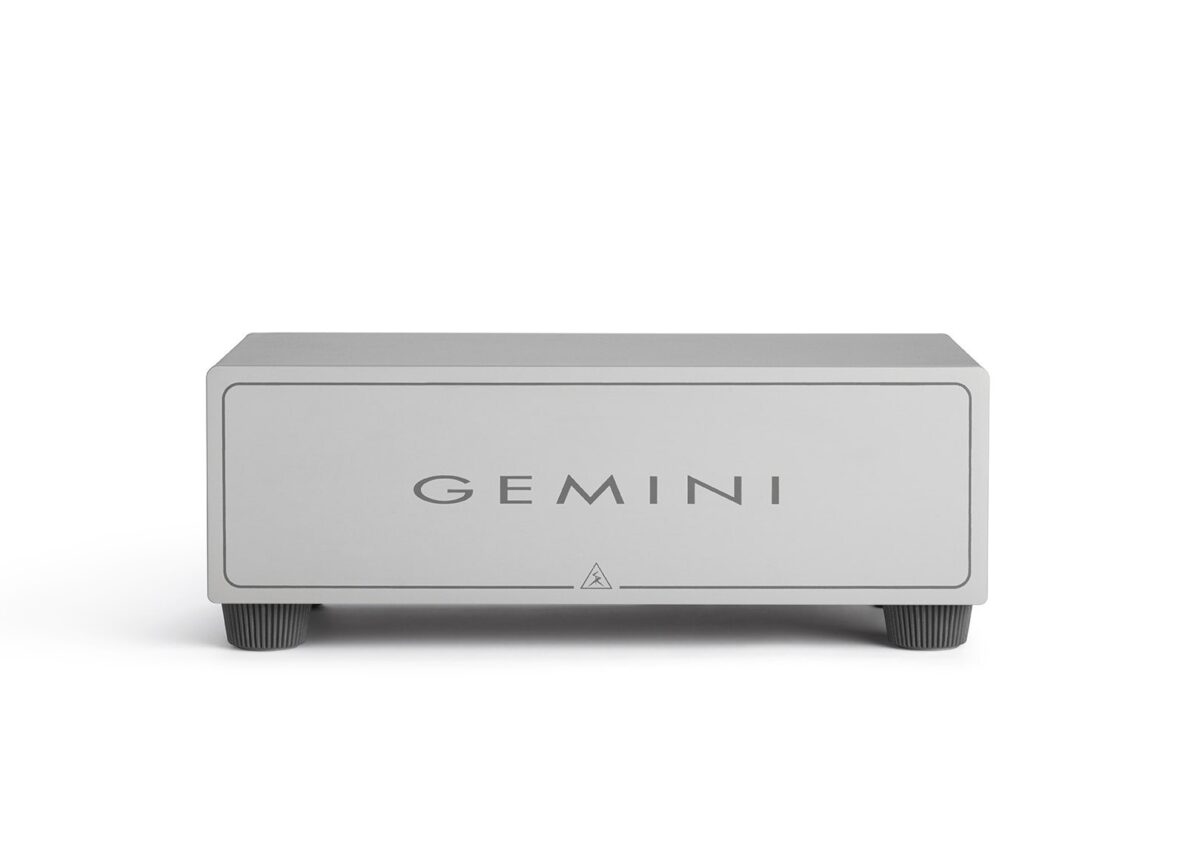

- Anodized aluminum faceplate

• Dimensions:
- Width: 12.25 inches (31.12 cm)
- Depth: 5.88 inches (14.95 cm)
- Height: 4.77 inches (12.12 cm)

• Weight:
- 6.6 lbs (2.99 kg)
