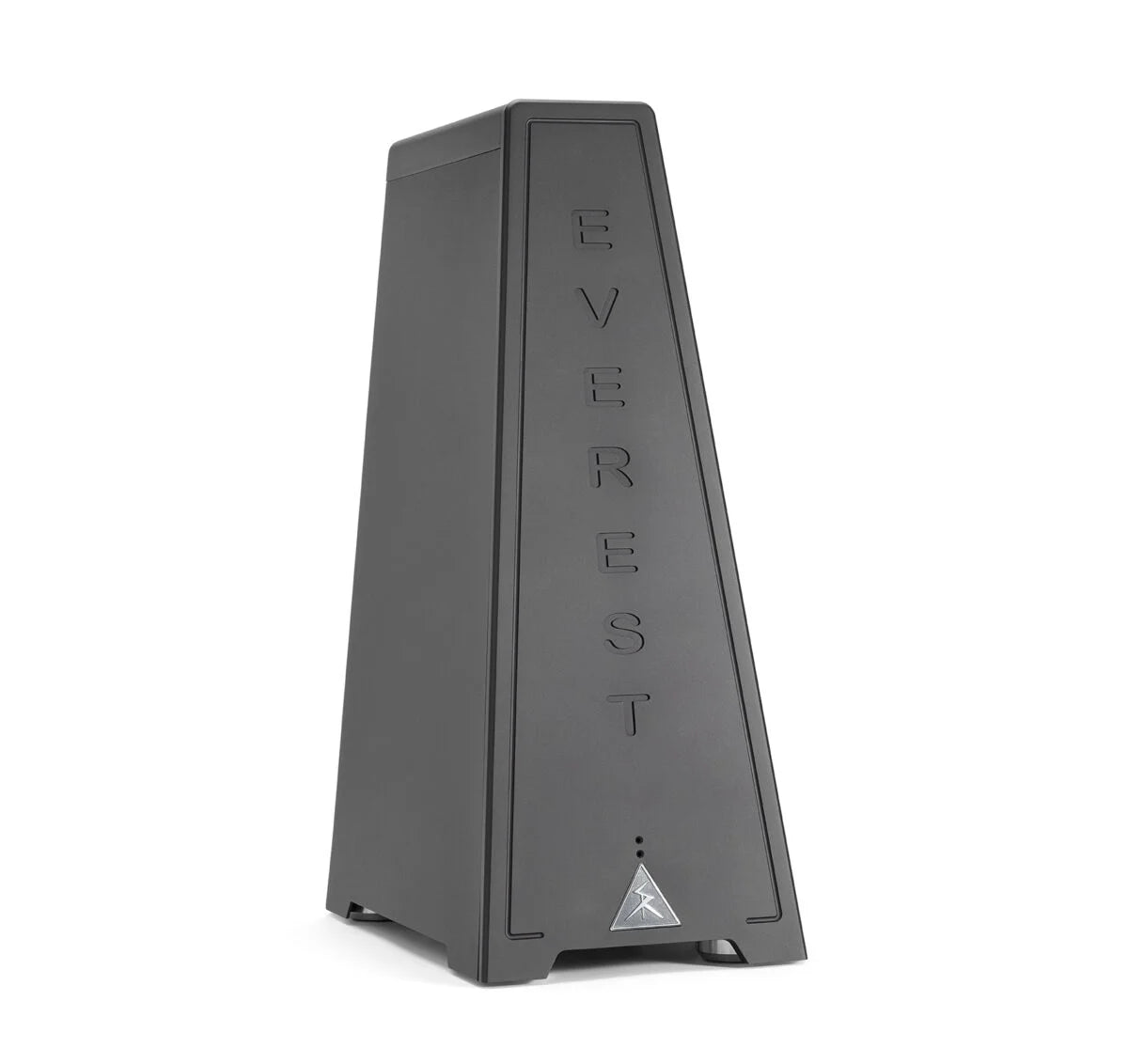

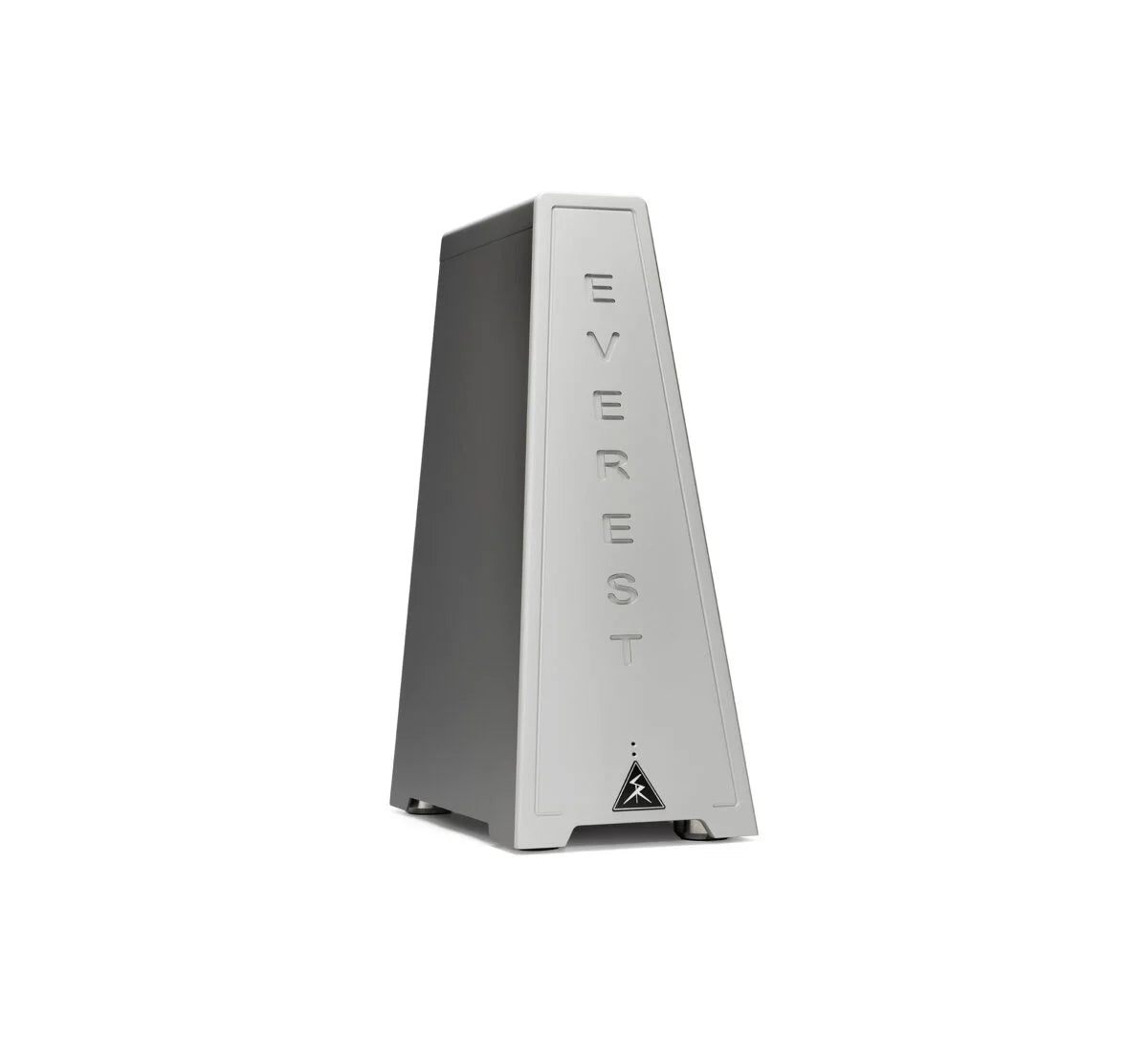

Everest 8000

25 YEARS OF EXPERIENCE & SCIENTIFIC INNOVATION
DESIGN PROGRESSION
The Everest 8000 combines patented innovations from Shunyata Research’s critically acclaimed Hydra Triton and Hydra Typhon designs with transformative technologies developed from its heralded medical division products. From a stunning form-follows-function tower design, to its inside-out engineering, the Everest represents the pinnacle within Shunyata Research’s line of power conditioners.

Over the past 25 years, Shunyata Research has earned a reputation for producing the finest power distribution systems in the high-end audiophile market. From providing clean power for James Guthrie’s re-master of Dark Side of the Moon, or resolving subtle heart signals in medical imaging systems, Shunyata Research products have consistently provided transformational results. With the legacy of award winning products, Shunyata Research designer Caelin Gabriel set about combining 25 years of experience and scientific innovation, into a single product, incorporating everything he’s learned about power-system design.

Designer, Caelin Gabriel considers the Everest to be the crowning achievement in a career devoted to advancing the state-of-the-art in electrical power delivery systems for military, medical, audio, video and mastering applications.

Product Specifications

Maximum Voltage:
90–125 VAC r.m.s. unregulated (US)
220–240 VAC r.m.s. unregulated (UK, EU, AS, AU)

Input Current Ratings:
Maximum continuous current: 30A (US, AS)
Maximum continuous current: 16A (UK, EU, AU)

Output Current Ratings:
Max current per outlet: 20A (US, AS)
Max current per socket: 16A (EU, AU)

Transient Suppression: Maximum protection of 40,000 A @ 8/50 μs

Over-Current Protection: Hydraulic electromagnetic breaker

Wiring System:
8 gauge ArNi® VTX™ buss system
10 gauge ArNi® VTX™ wiring
Rated at 600V, 105°C

Noise Suppression:
Input to output (100 kHz – 30 MHz): > 50 dB reduction
Zone to zone (100 kHz – 30 MHz): > 60 dB reduction

Outlets & Connectors: 6 zones of isolation

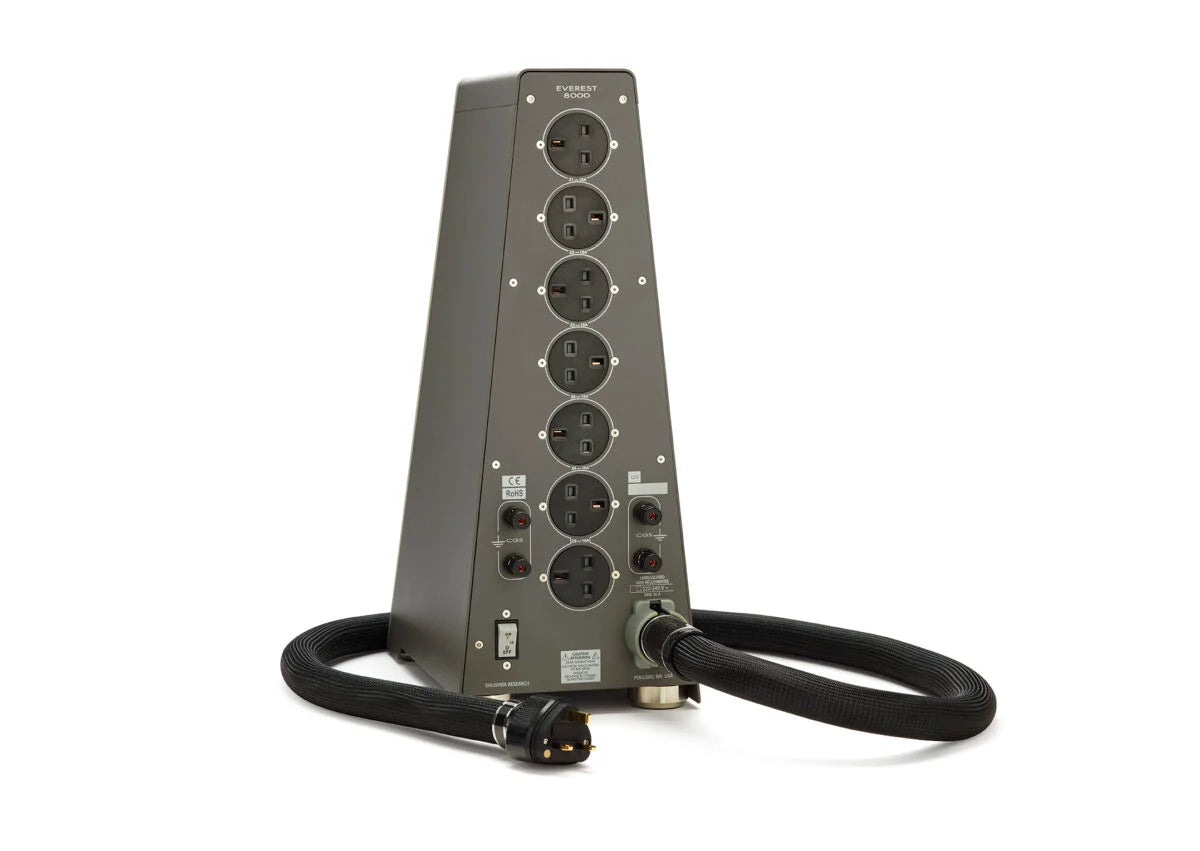

Inlet: IEC C19R

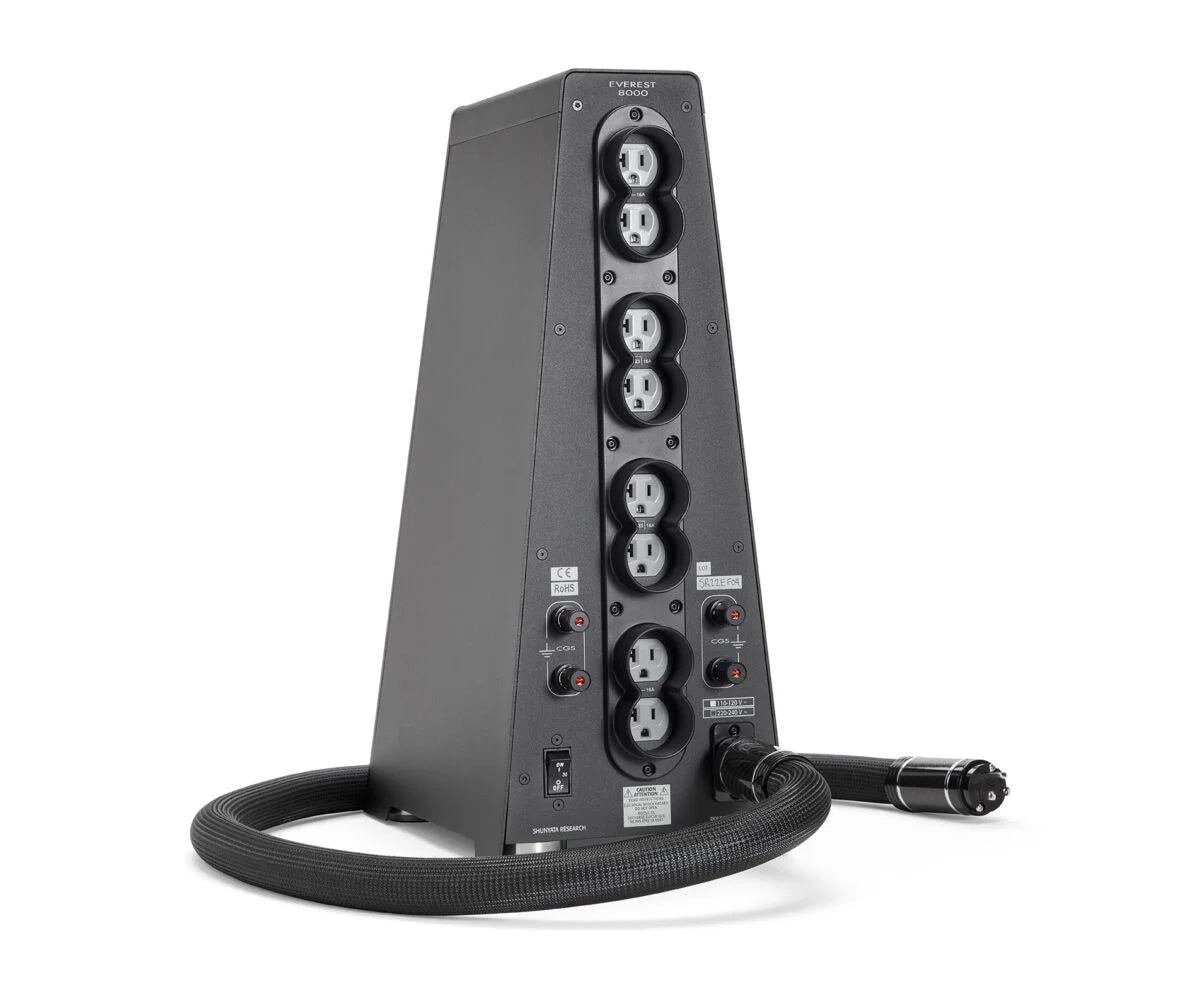

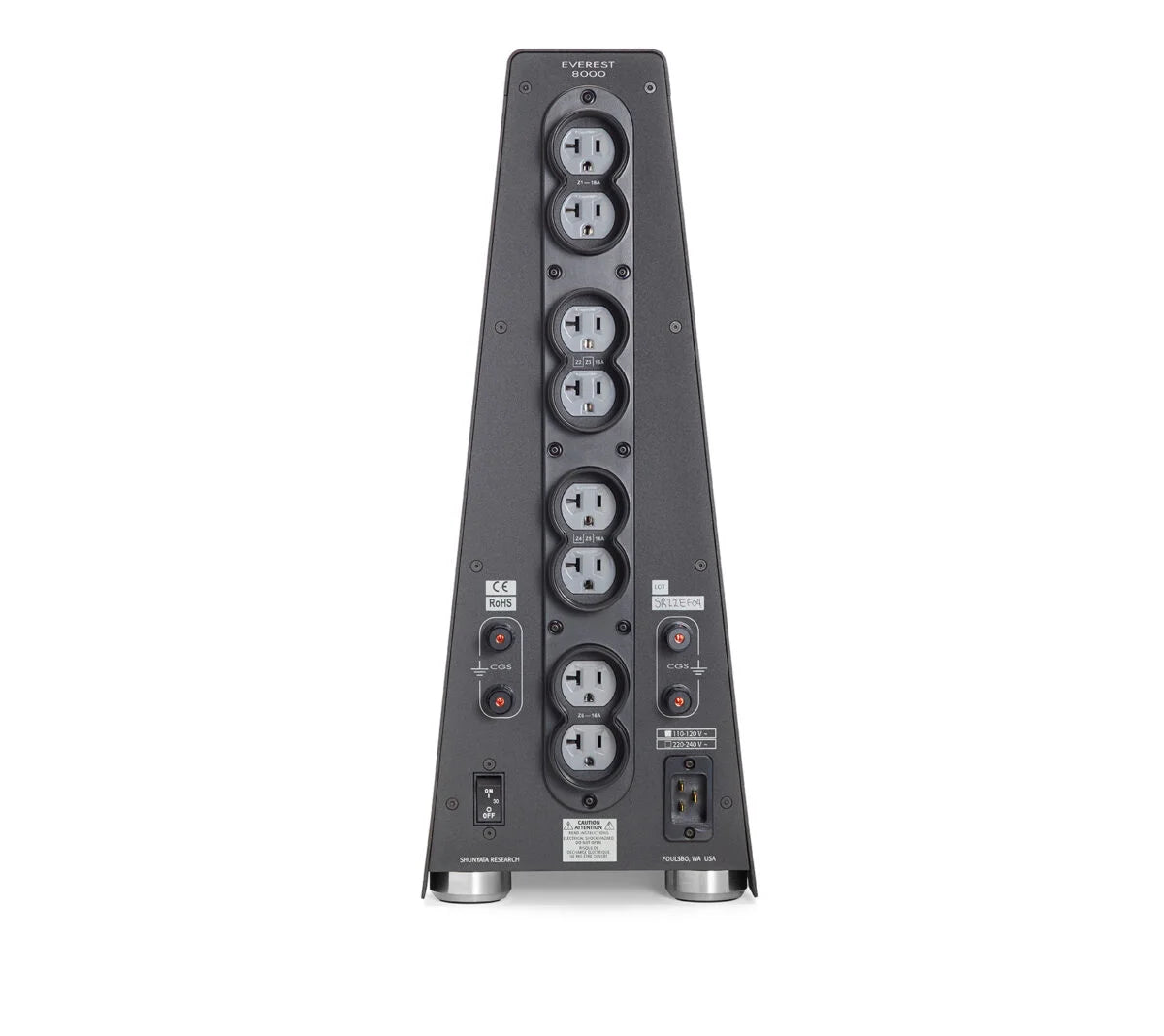

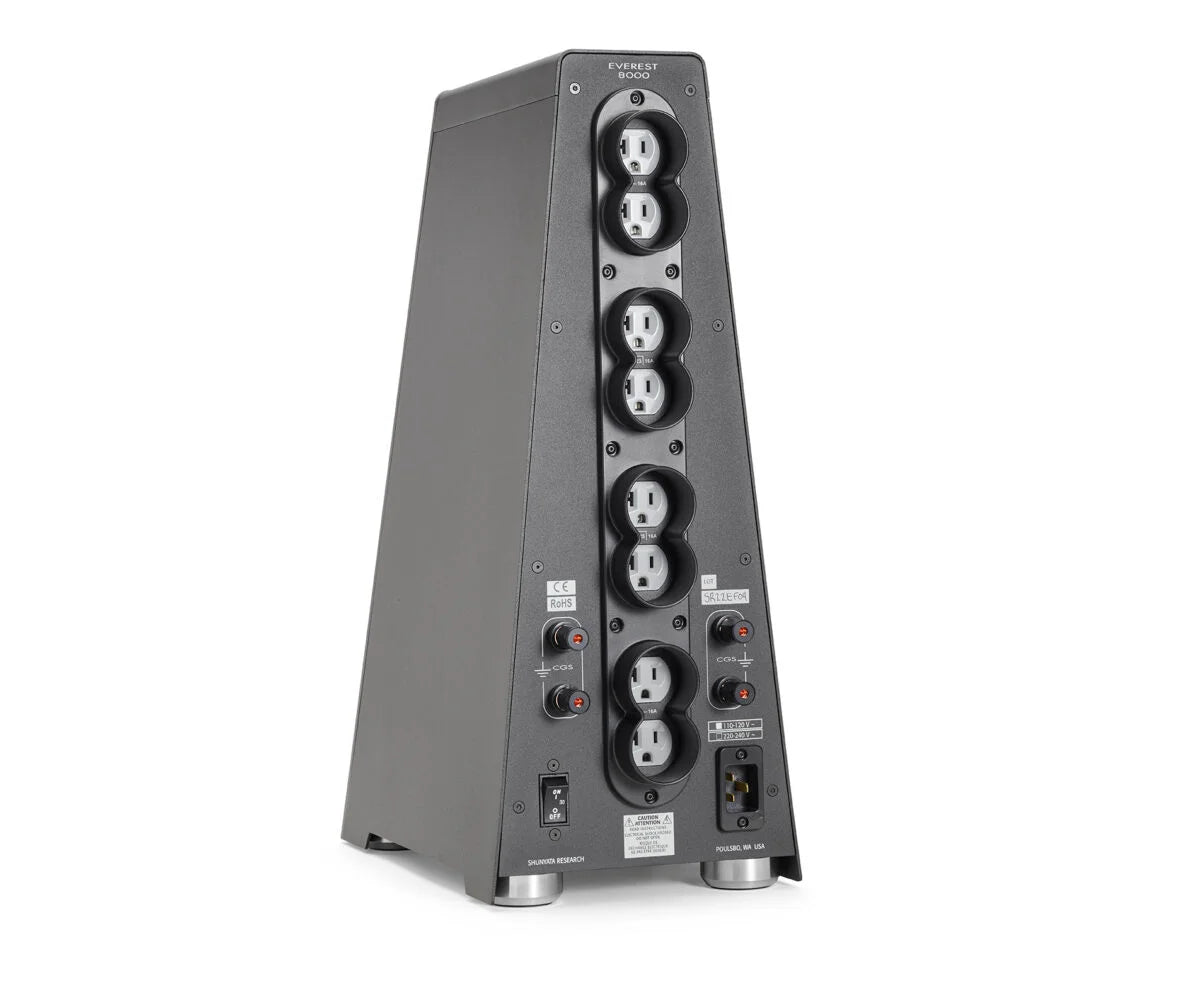

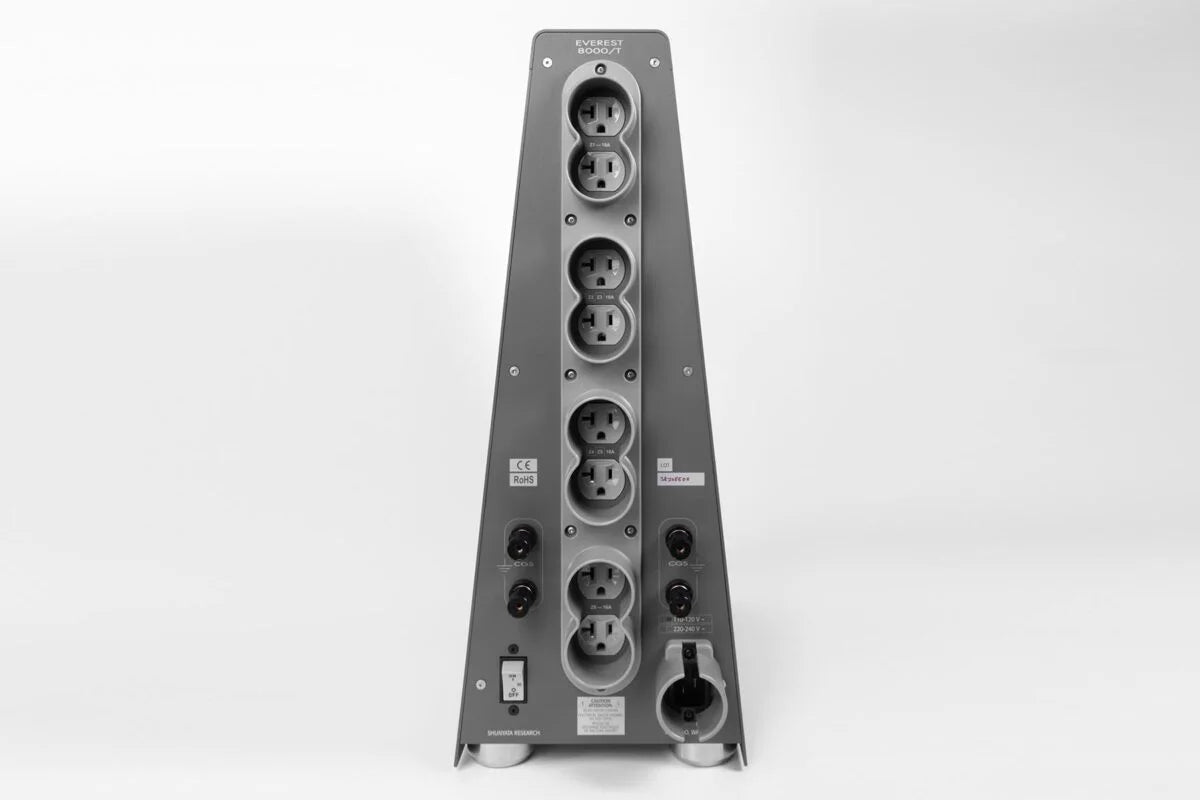

US outlets: 8 × NEMA 5-20R
AS outlets: 8 × NEMA 5-20R

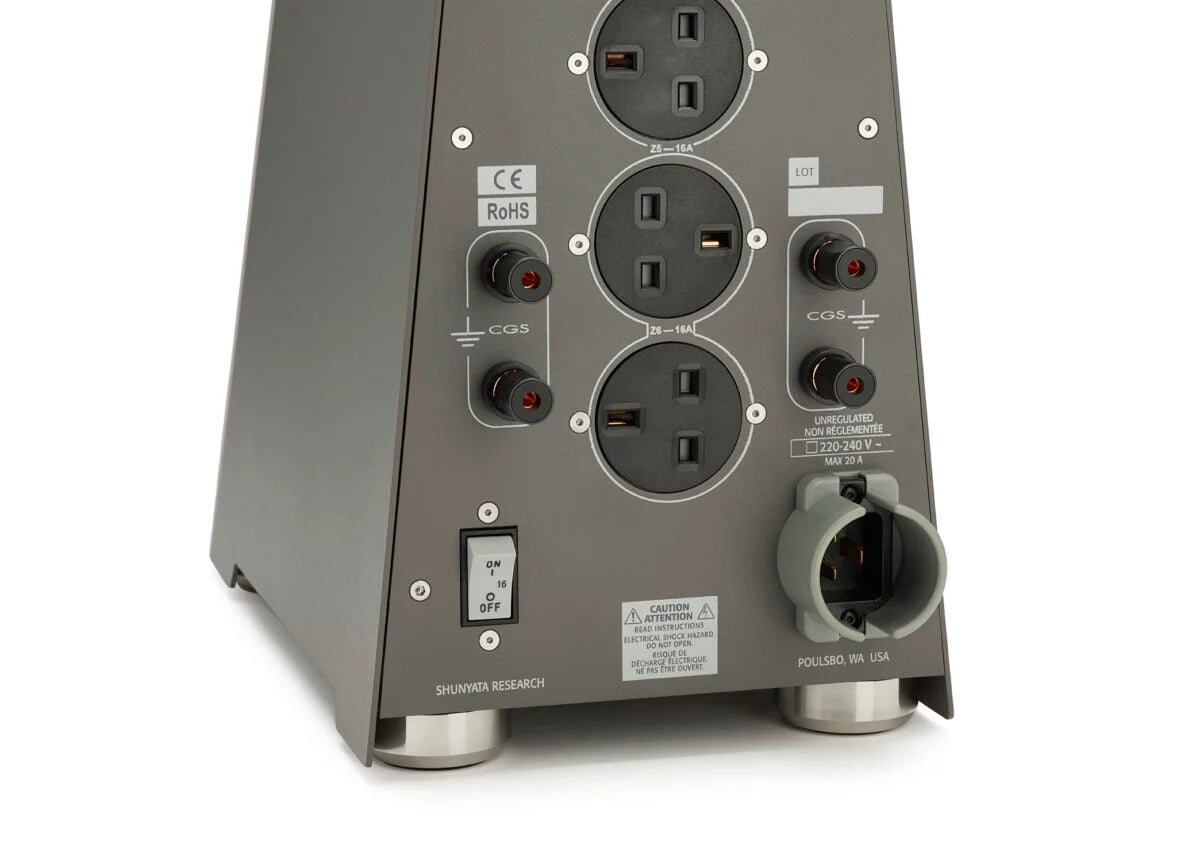

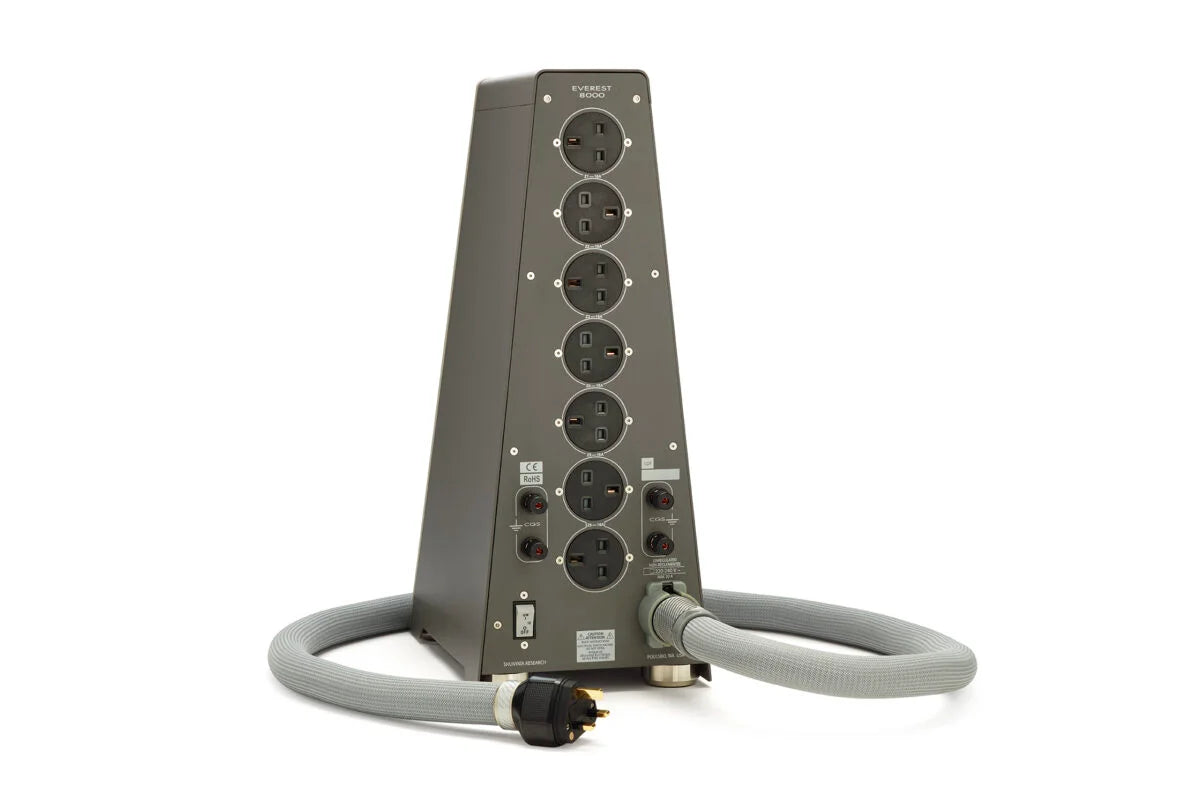

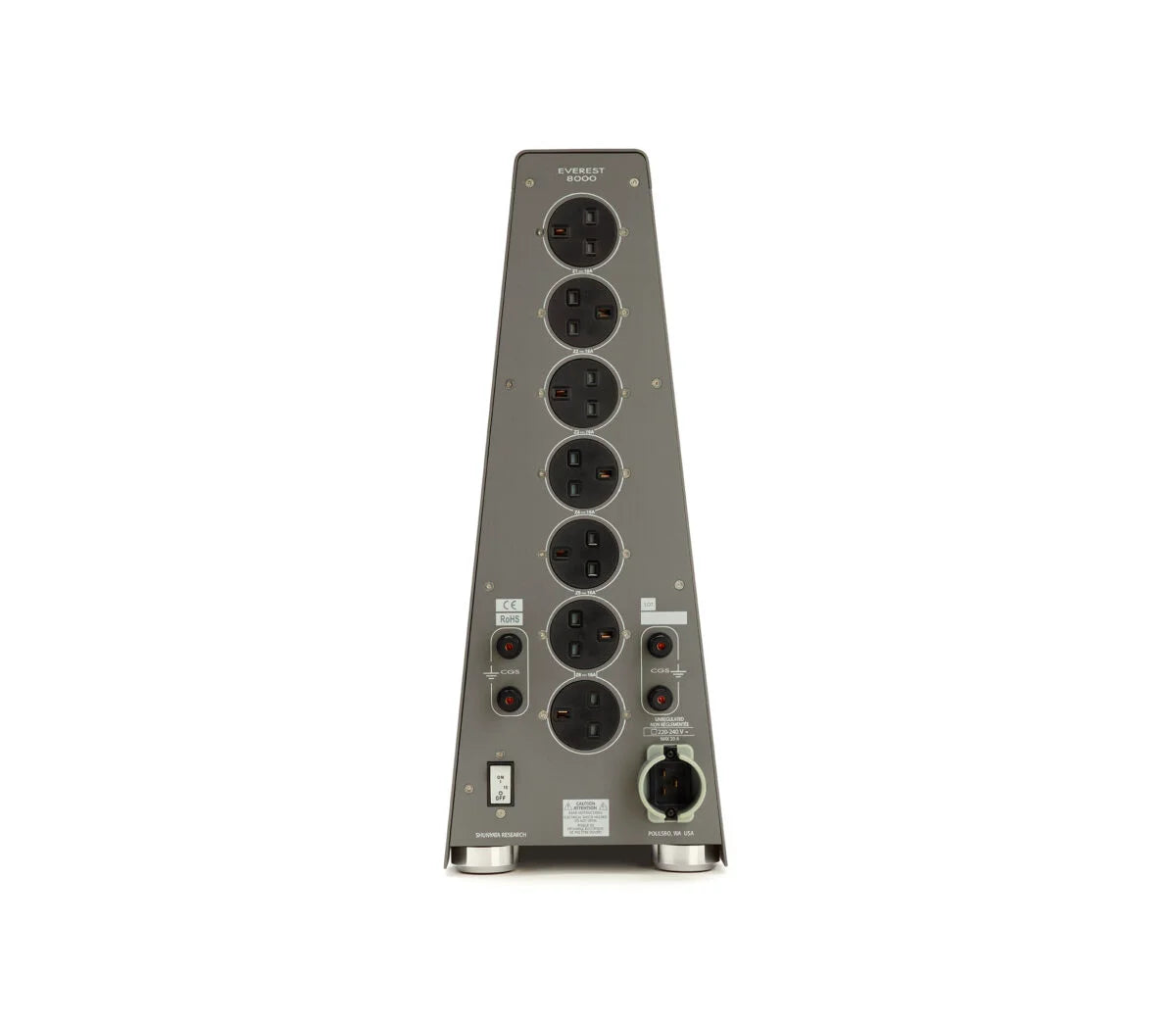

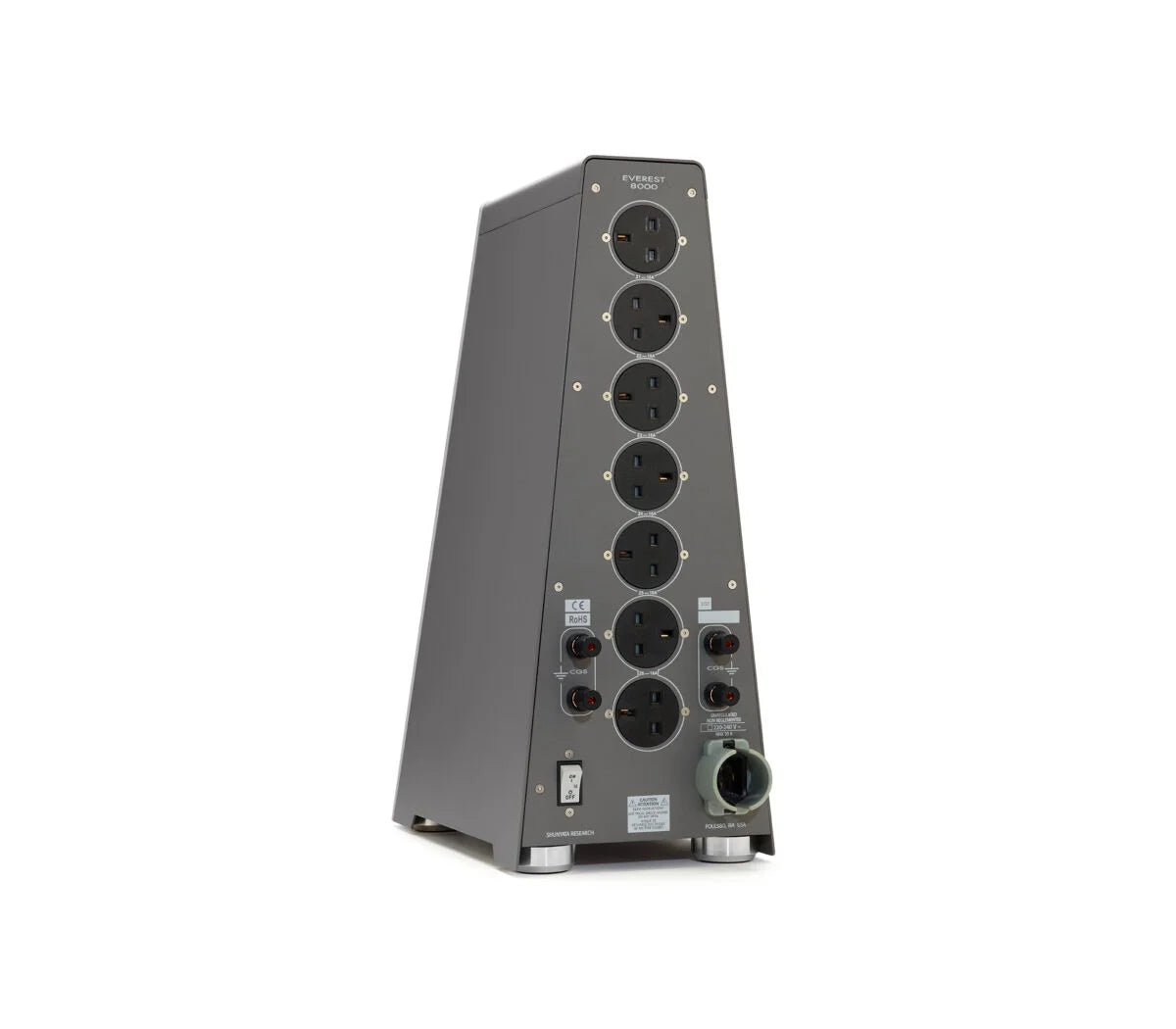

UK outlets: BS-1363 (3 pin)

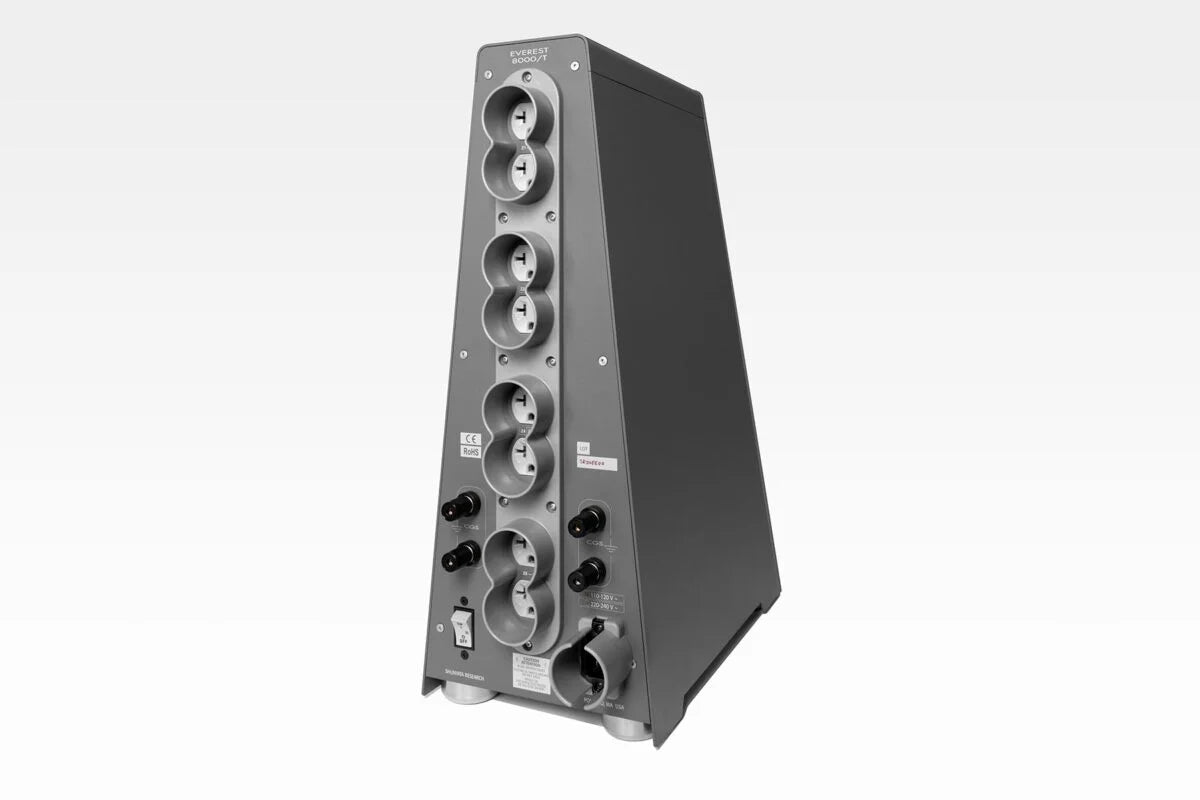

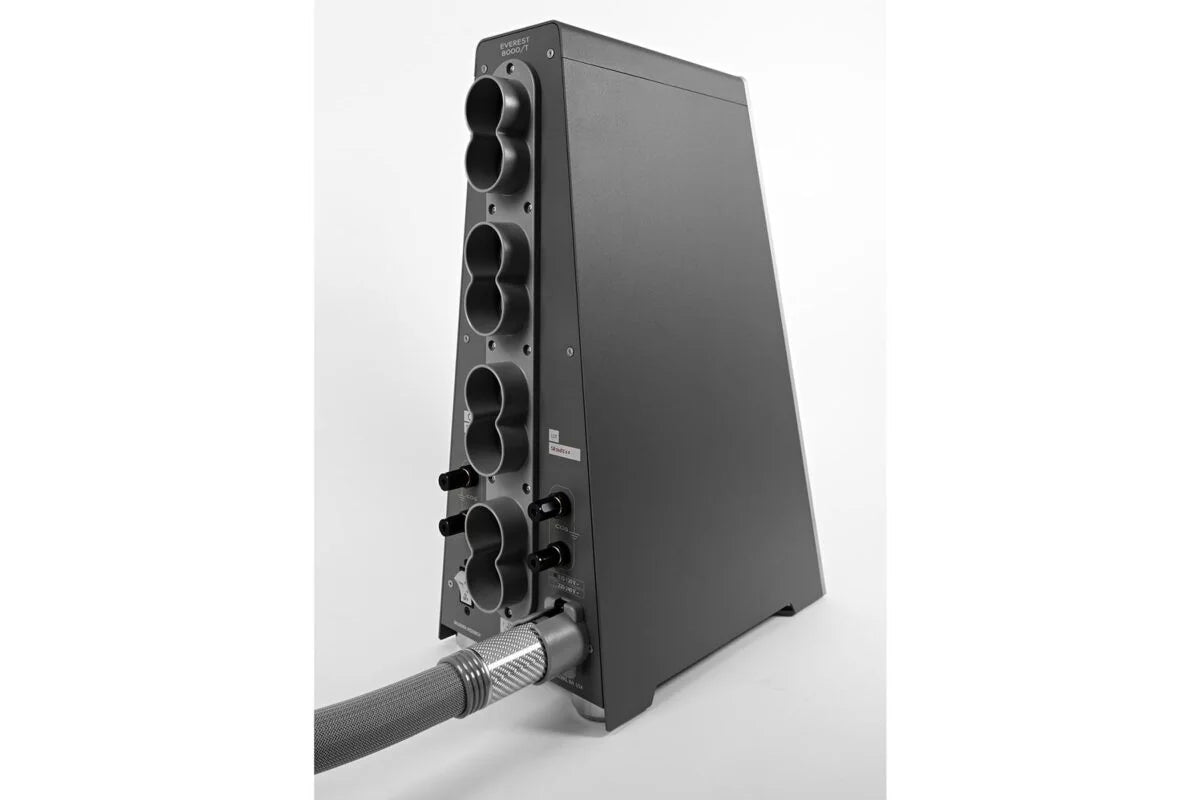

EU sockets: 8 × CEE 7/3
AU sockets: 8 × AS/NZS 31123
KPIP v2 Processing: 8-day conditioning process

Vibration Control:
Internal vibration dampening panels
AC outlet dampening gaskets
Shunyata Isolation SSF-50 footer

Construction: Aluminum and steel chassis with anodized aluminum faceplate
GPNR: Length: 127 mm, Diameter: 38 mm
Dimensions: 8.0″ (W) × 14.75″ (D) × 20.75″ (H)
(20.32 × 37.47 × 52.71 cm)
Weight: 34 lbs (16 kg)
